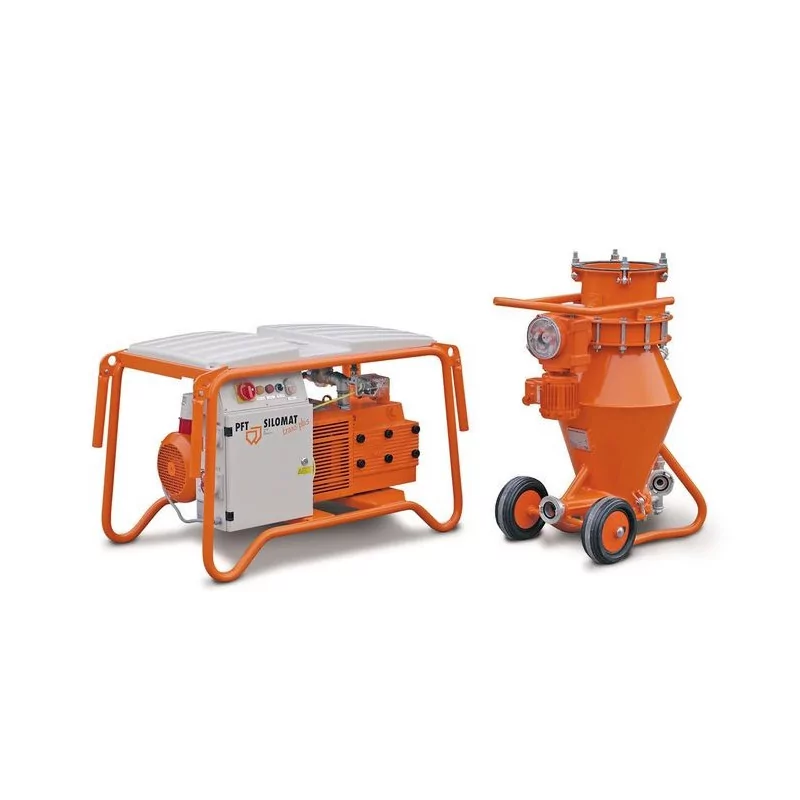

Silomat PFT Trans Plus 145

Portable version

The new PFT SILOMAT trans plus combines attractive design with high performance. Numerous features make the SILOMAT easy to operate and transport, e.g. integrated forklift pockets and fold-out carrying handles. The PFT SILOMAT can be connected to any type of silo. The PFT SILOMAT pumps dry mortar into a mixing pump or mortar mixer fully automatically and dust-free. It is available in a portable, mobile (on wheels) or trailer version.

Advantages:

• Practical in operation
• Resistant to harsh conditions on the construction site
• Easy to maintain
• Fully automated
• Independent of the type of material used
• Reduces the amount of work involved in unloading, transporting and distributing bags on the construction site
• Prevents costly downtime
• No costs associated with paper bags, damage or theft
• Prevents additional work associated with cleaning the construction site and removing sand and empty bags

PFT SILOMAT trans plus:

• Forklift attachment
• Four forklift attachments
• Foldable carrying handles
• Lightweight, stable and aesthetically pleasing plastic cap
• Distribution cabinet with ergonomic operating elements
• Dry compressor, no oil change required
• Possibility of installing an additional air filter
• New shut-off flap with replaceable seal

For all dry factory mortars:

• Machine-applied gypsum plasters
• Cement plasters
• Lime plasters
• Cement-lime plasters
• Masonry mortars
• Loose materials
• Aggregates
• Powdered materials, etc.

Technical parameters:

• Material transport distance: 140 m
• Capacity: approx. 20 kg/min
• Power: 7.5 kW
• Connection: 32 A, 400 V, 30 mA residual current device required
• Connection cable: 5 x 4 mm² with CEE plug
• Maximum pressure: 2.5 bar
• Air flow: approx. 140 m³/h
• Pressure tank: capacity - 55 litres, height - 980 mm, weight - 83 kg
• Rotary compressor with support element: weight - 190 kg
• Length/width/height: 1100/635/720 mm
• Total weight of the device: 285 kg

Warranty: 12 months

Manufacturer: PFT

Item no.: 00689524
