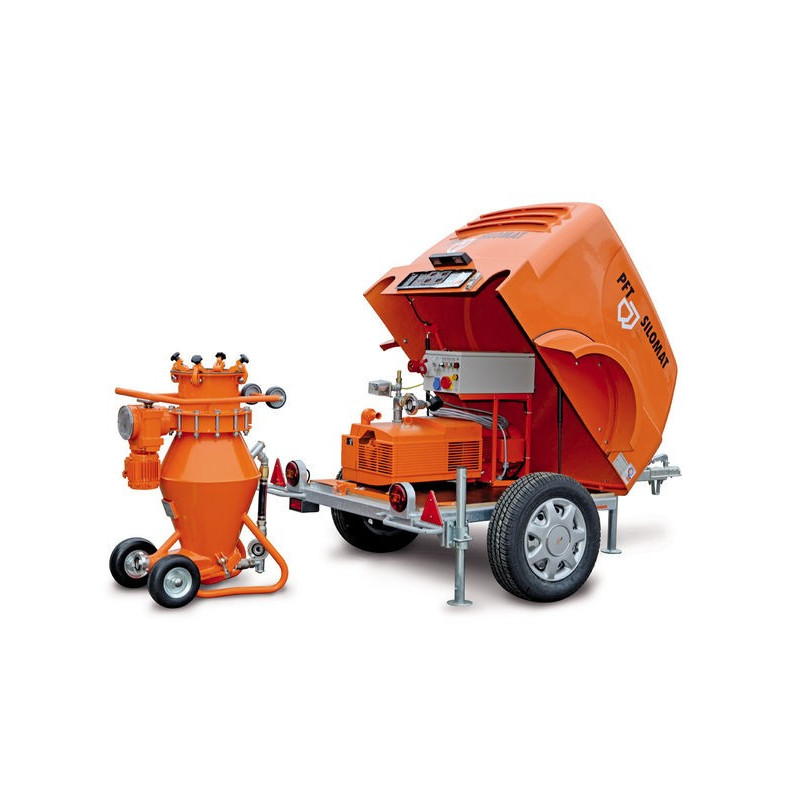

Silomat PFT 145 TRAILER

Fully automatic and dust-free pumping of dry mortar to a mixing pump or mortar mixer. The device is mounted on a trailer suitable for road use.

Advantages:

• Reduces the amount of work involved in unloading, transporting and distributing bags on the construction site.
• Prevents costly work interruptions.
• Eliminates costs associated with the use of paper bags, their damage and theft.
• Prevents additional work related to cleaning the construction site and removing sand and empty bags.
• Practical device.
• Resistant to harsh conditions on the construction site.
• Easy to maintain.
• Fully automated.
• Independent of the type of material used.
• 13" wheels guarantee optimal mobility, even in difficult terrain.
• Hot-dip galvanised frame.
• Minimal noise guaranteed, as the machine can also operate with the cover closed.
• The cover and trailer attachment are lockable.
• Super advantage: thanks to the use of large wheels, the pressure tank can be transported without load.
• Dry-running compressor, no oil change required.
• Long machine operating time with high operational reliability.
• Easy replacement of wear parts - even on site.
• Single-axle, unbraked chassis with car trailer hitch and 13-pin connector.

Application:

• For all factory-made dry mortars:
• Gypsum plasters for machine plastering
• Lime-gypsum plasters
• Cement plasters
• Lime plasters
• Lime-cement plasters
• Masonry mortars
• Loose materials
• Aggregates
• Powdered materials

Technical data:

• Pumping range: up to 140 m
• Capacity: approx. 20 kg/min
• Power connection: 400 V, 3 phases, 50 Hz, 7.5 kW
• Protection: 32 A distributor required, with 30 mA residual current device
• Power cable: 5*4 mm with CEE plug
• Air compressor: Power: max. 7.5 kW, Pressure: 2.5 bar, Air flow: 145 Nm³/h
• Pressure tank: capacity - 55 litres, weight - 87 kg, height - 980 mm
• Length/width/height: 2320/1530/1230 mm
• Weight of rotary compressor with support element: 323 kg
• Total weight: 410 kg

Warranty: 12 months

Manufacturer: PFT

Cat. no.: 20560806
