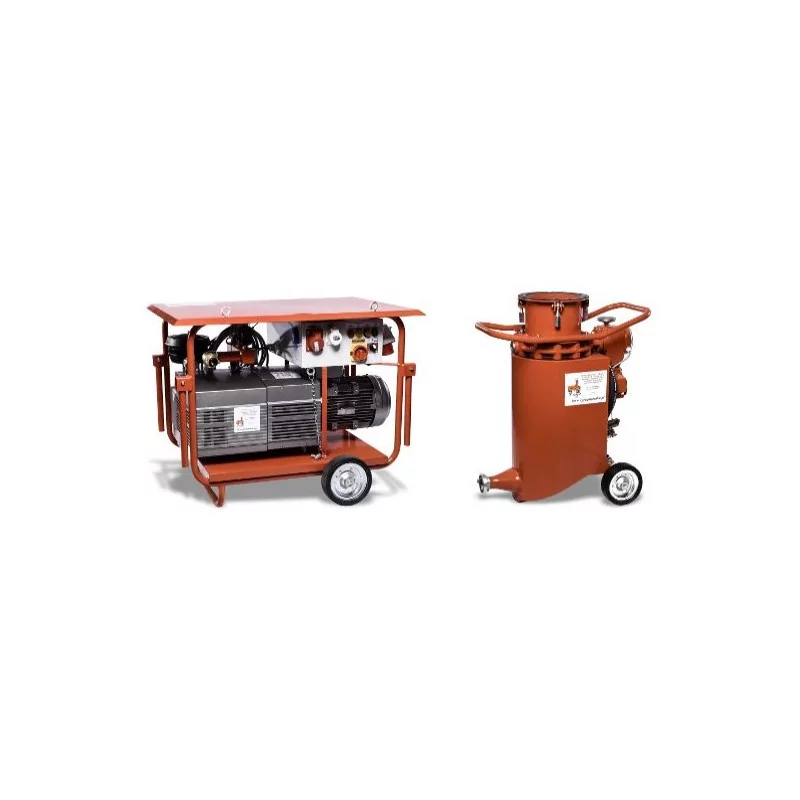

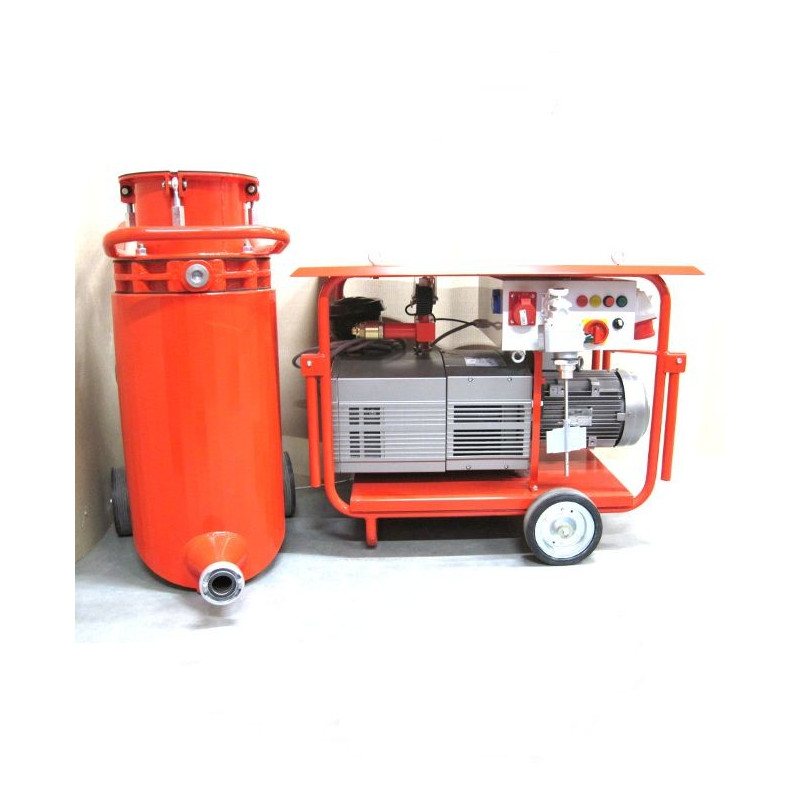

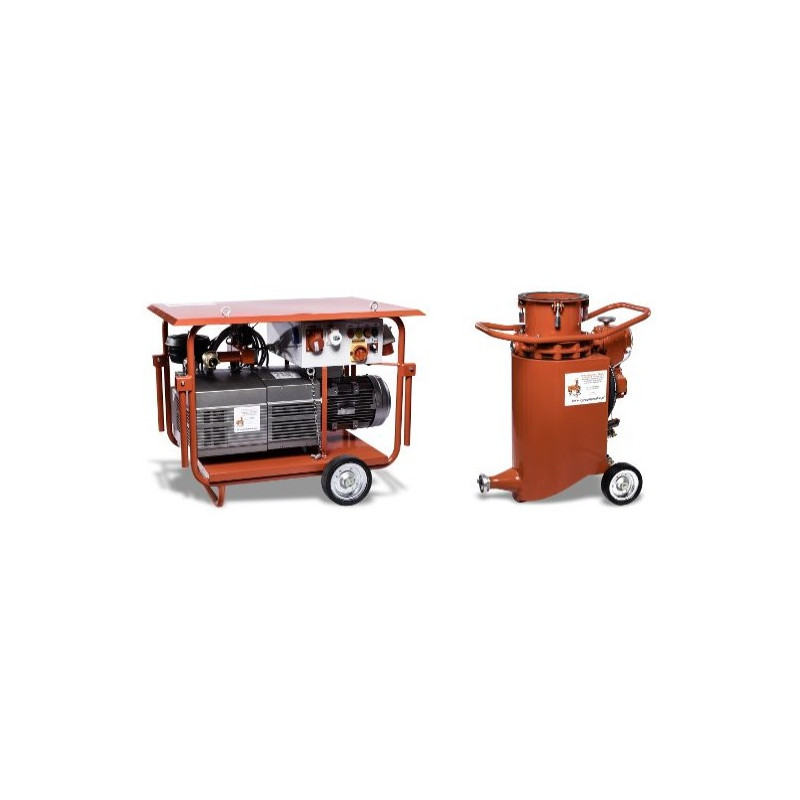

Silomat SILO M-150

High-performance, automatic, portable pumping device for dust-free feeding of ready-made loose mortars to plastering units and other devices adapted to work with a dust cover.

Application:

The device is suitable for feeding loose materials and ready-made mortars such as: ready-made plastering mortars gypsum plasters cement plasters cement-lime plasters lime plasters lime-cement plasters masonry mortars adhesive mortars others

Advantages:

• Modern compressor design with automatic lubrication, increased pressure parameters and maximum capacity of 150 m3/h + – 5% 2.5 bar
• Automatic bearing lubrication
• Compressor equipped with a modern cyclone pre-filter for easy cleaning and maintenance
• Compressor with a power of 7.5 kW and a maximum capacity of 150 m3/h + – 5% 2.5 bar
• 80-litre tank
• Modern pressure tank solution for easy cleaning of air compartments
• Tank equipped with a transport handle and wheels for easy transport
• Modern technical control solutions and the use of a highly sealed control box create a reliable and durable solution
• Compressor equipped with wheels and transport handles for easy transport

Characteristics of basic equipment:

Compressor:

• delivery range up to 150 m
• capacity approx. 25 kg/min
• maximum delivery pressure 2.5 bar
• power consumption 7.5 kW 380 V
• weight 200 kg

Feed hopper:

• capacity 80 litres, 2.5 bar
• gate valve gear motor 0.18 kW, 380 V
• weight 100 kg

Vibrator:

• power consumption 0.27 kW
• supply voltage 380 V
• FC force 321 kg

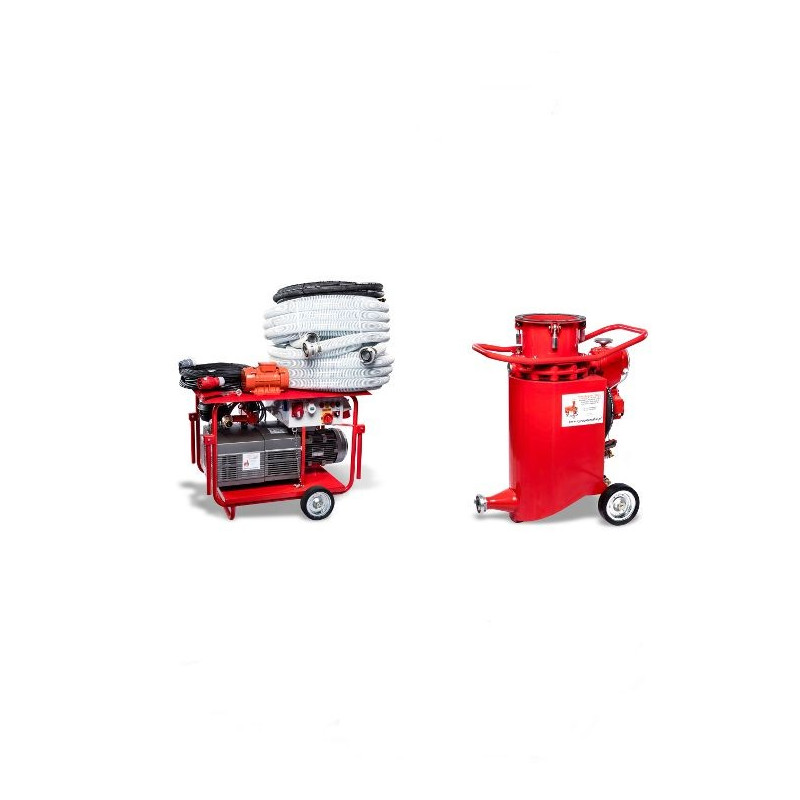

The Silomat SILO M-150 set includes:

• Compressor – 1 set
• Feed hopper – 1 pc.
• Air hose, diameter 25 mm, 6 m – 1 pc.
• Probe cable 3×1.5 with plugs, 50 m – 1 pc.
• Dry mix pumping hose, diameter 50 mm, 25 m – 2 pcs.
• Hose wrench – 2 pcs.
• Vibrator – 1 pc.
• Measuring probe – 1 pc.

Warranty – 24 months!
