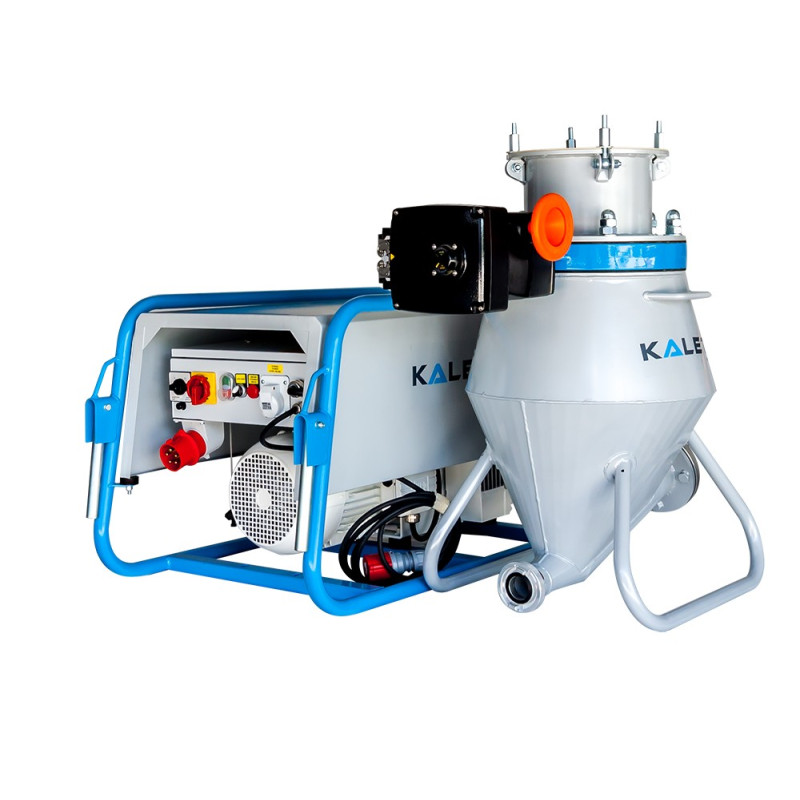

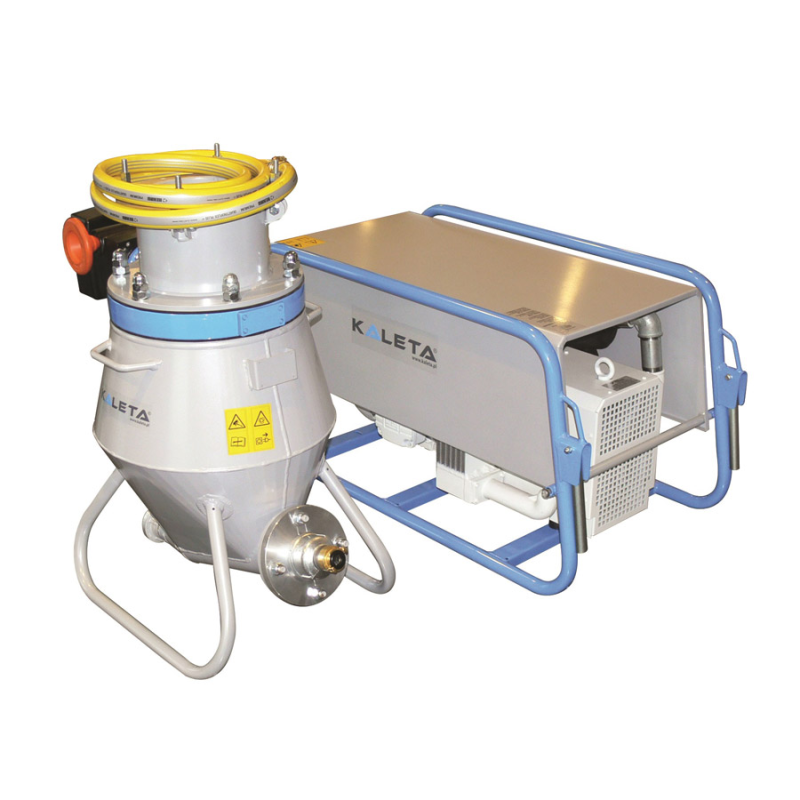

Silomat plaster silo Kaleta-140

Silomat SILO KALETA-140 is a pneumatic conveying system. It is an automated device for feeding dry plaster mix from a silo to a plastering machine.

Suggested equipment at extra cost:

• OW 3x1.5mm probe control cable, complete, 50 m
• OW 5x2.5mm/32A power cable, complete, 50 m
• Hose for dry material 2x30 m
• Filling cover for plastering machine
• Electric vibrator for emptying the silo.

TECHNICAL DATA:

• Length 1200 mm
• Width: 560 mm
• Height: 650 mm
• Total weight: 345 kg
• Compressor power: 140 m³/h
• Pressure: 2.5 bar
• Motor power: 7.5 kW
• Power supply: 400 V/50 Hz
• Material transport distance: 140 m

EQUIPMENT:

• 1 vane compressor
• Silo bell 70 l
• Air hose 3 m

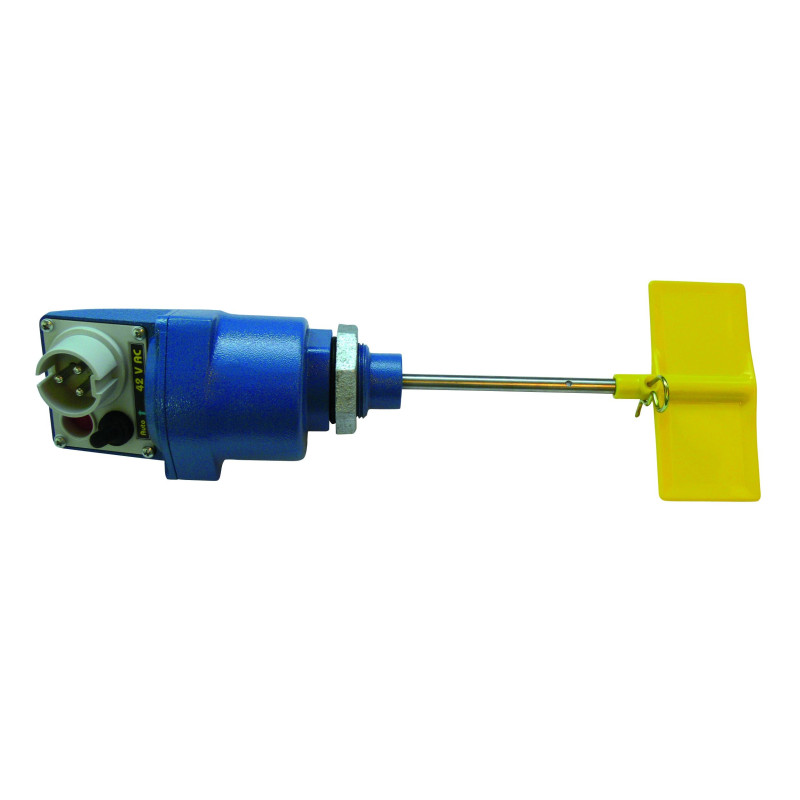

• Probe (sensor) 42 V
