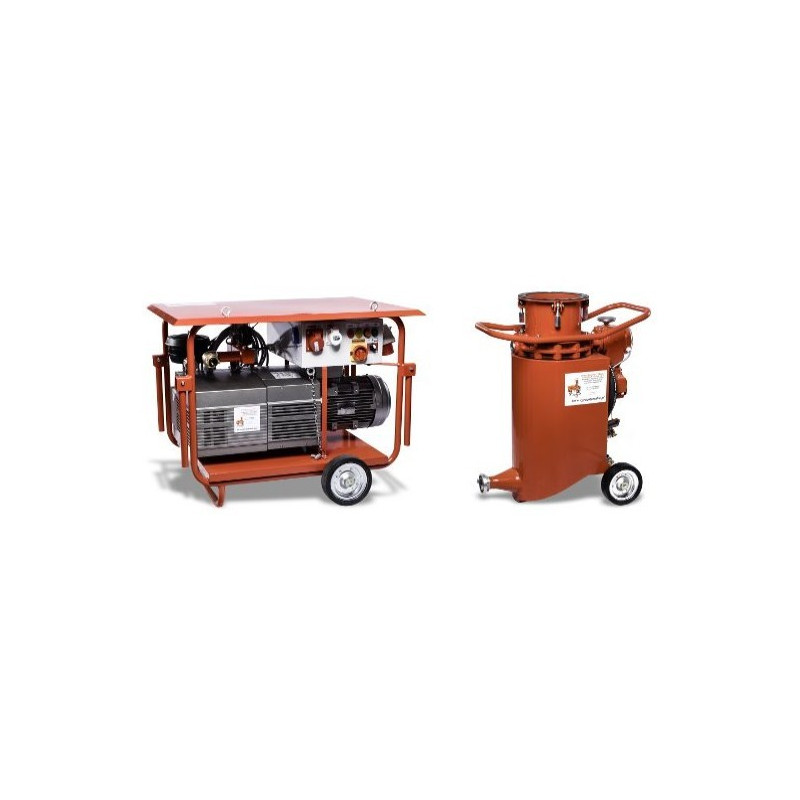

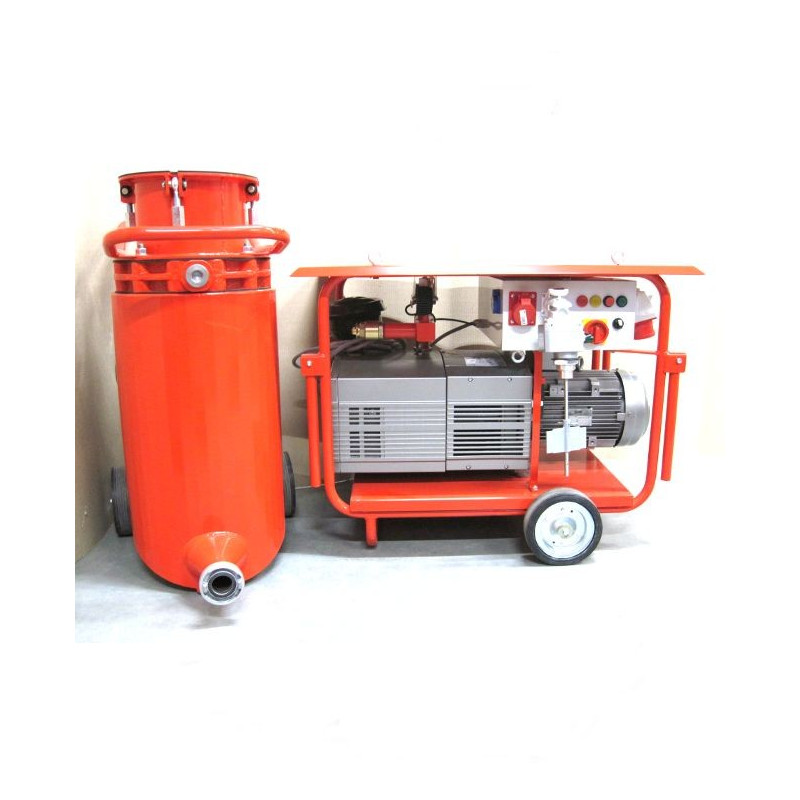

Silomat SILO M-150

High-performance, automatic, portable pumping device for dust-free feeding of ready-made loose mortars to plastering units and other devices adapted to work with a dust cover.

Application:

The device is suitable for feeding loose materials and ready-made mortars such as:

• ready-made plaster mortars
• gypsum plasters
• cement plasters
• cement-lime plasters
• lime plasters
• lime-cement plasters
• masonry mortars
• adhesive mortars others.

Advantages:

• Modern compressor design with automatic lubrication, increased pressure parameters and maximum capacity of 150m3/h + – 5% 2.5 bar
• Automatic bearing lubrication
• Compressor equipped with a modern cyclone pre-filter for easy cleaning and maintenance
• Compressor with a power of 7.5 kW and a maximum capacity of 150 m3/h + – 5% 2.5 bar
• 80L capacity tank
• Modern pressure tank solution for easy cleaning of air baffles
• Tank equipped with a transport handle and wheels for easy transport
• Modern technical control solutions and the use of a highly sealed control box create a reliable and durable solution
• Compressor equipped with wheels and transport handles for easy transport

Technical data:

Compressor:

• delivery range up to 150 m
• capacity approx. 25 kg/min
• maximum delivery pressure 2.5 bar
• power consumption 7.5 kW 380V
• weight 200 kg

Feed hopper:

• capacity 80 litres
• operating pressure 2.5 bar
• slide valve drive 0.18 kW 380 V
• weight 100 kg

Equipment:

• Compressor – 1 set
• Feed hopper – 1 pc.
• Air hose, diameter 25 mm, 6 m – 1 pc.
• Hose wrench – 2 pcs.

Warranty: 24 months!
