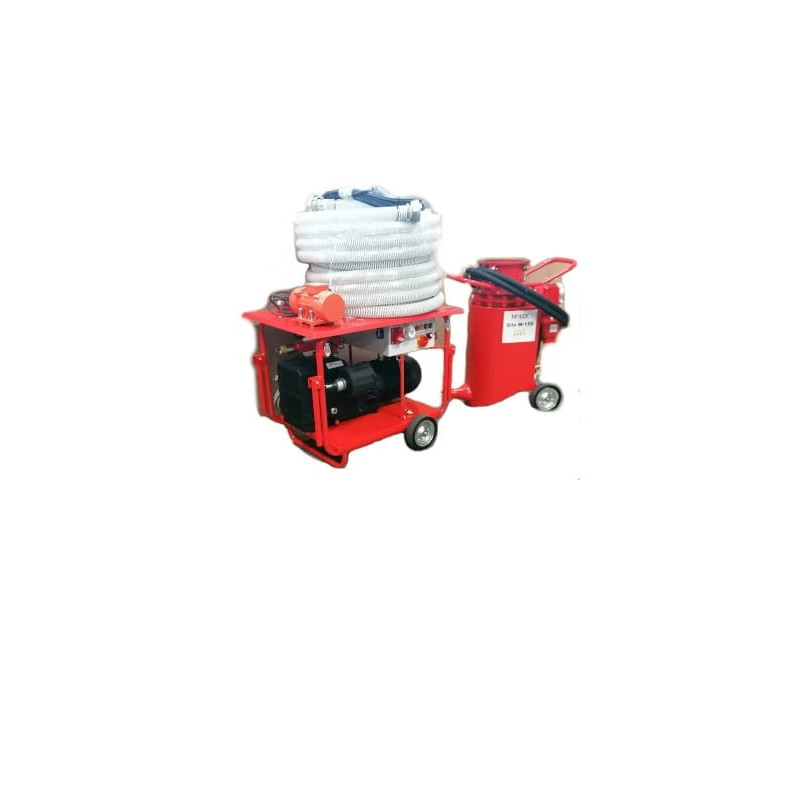

Plaster silo - SILO M-140 MAX

Silomat SILO M-140 MAX - a silo with a modern, oil-free ELMO RIETSCHLE claw compressor, ensuring maximum comfort and innovative features. It enables dust-free feeding of ready-made loose mortars to plastering units and other devices adapted to work with a dust cover.

Application:

The device is suitable for feeding loose materials and ready-made mortars such as: ready-made plastering mortars, gypsum plasters, cement plasters, cement-lime plasters, lime plasters, masonry mortars, adhesive mortars and others.

Advantages:

• Modern design of the ELMO RIETSCHLE claw compressor with increased pressure parameters and a maximum capacity of 140m³/h + - 5% 2.5 BAR.
• Oil-free and maintenance-free claw compressor.
• Compressor with a power of 7.5 kW and a maximum capacity of 140 m³/h + - 5% 2.5 bar.
• Tank capacity of 80L.
• Modern pressure tank solution for easy cleaning of air baffles.
• Tank equipped with a transport handle and wheels for easy transport.
• Modern technical control solutions and the use of a highly sealed control box create a reliable and durable solution.
• The compressor is equipped with wheels and transport handles for easy transport.

Characteristics of basic equipment:

Compressor:

• delivery range up to 150 m
• capacity approx. 25 kg/min
• maximum delivery pressure 2.5 bar
• power consumption 7.5 kW 380V
• weight 200 kg.

Feed hopper:

• capacity 80 L 2.5 bar
• valve gear motor 0.18 kW 380V
• weight 100 kg

Vibrator:

• power consumption 0.27 kW
• supply voltage 380 V
• FC force 321 kg

The Silomat SILO M-140 MAX set includes:

• Compressor - 1 set
• Feed hopper - 1 pc.
• Air hose, diameter 25 mm, 6 m - 1 pc.
• Probe cable 3x1.5 with plugs, 33 m - 1 pc.
• Spiral hose for pumping dry mix, diameter 50 mm, 25 m - 2 pcs.
• Hose wrench - 2 pcs.
• Vibrator - 1 pc.
• Measuring probe - 1 pc.
• Power cable 20 m - 1 pc.

Warranty - 24 months!
