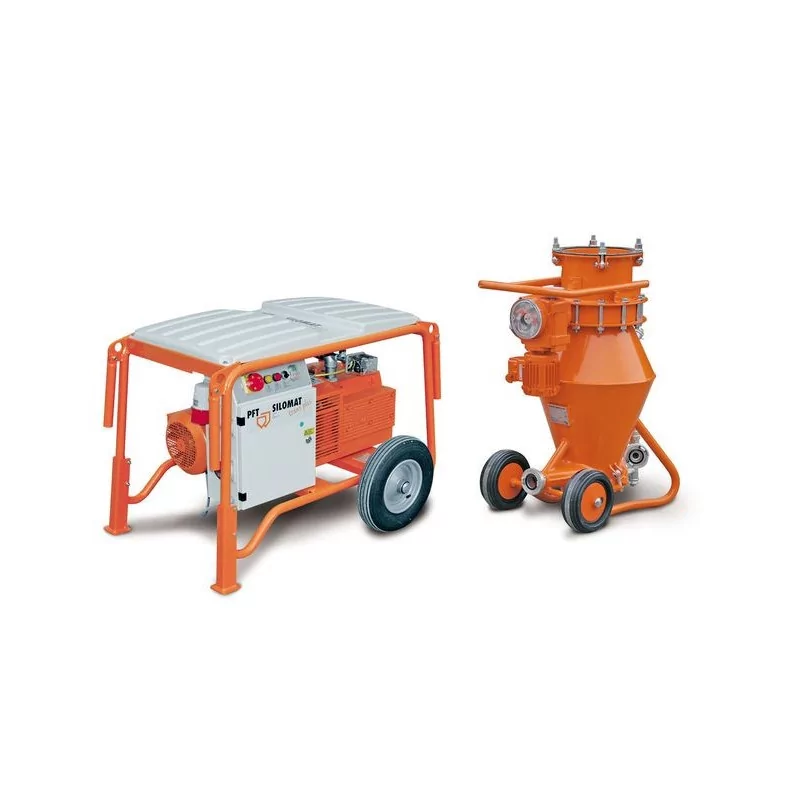

Silomat PFT Trans Plus 145

Wheeled version

The new PFT SILOMAT trans plus combines attractive design with high performance. Built-in forklift pockets and fold-out handles facilitate handling and transport. The device can be connected to any type of silo, automatically and dust-free pumping dry mortar to a mixing pump or mixer. It is available in a portable version, on wheels or on a trailer.

Advantages:

• Practical and efficient
• Resistant to harsh conditions on the construction site
• Easy to maintain
• Fully automated
• Independent of material type
• Reduces the workload associated with unloading, moving and distributing bags
• Prevents work stoppages
• Eliminates costs associated with paper bags, damage and theft
• Prevents additional work in cleaning the construction site and removing sand and empty bags

PFT SILOMAT trans plus:

• Forklift attachment
• Four forklift attachments
• Foldable carrying handles
• Lightweight, stable and aesthetically pleasing plastic cap
• Control cabinet with ergonomic controls
• Dry compressor, no oil change required
• Option to install an additional air filter
• New shut-off flap with replaceable seal

For all dry factory-made mortars:

• Machine-applied gypsum plasters
• Cement plasters
• Lime plasters
• Cement-lime plasters
• Masonry mortars
• Loose materials
• Aggregates
• Powdered materials, etc.

Technical parameters:

• Material transport distance: 140 m
• Capacity: approx. 20 kg/min
• Power: 7.5 kW
• Connection: 32 A, 400 V, 30 mA residual current device required
• Connection cable: 5 x 4 mm² with CEE plug
• Maximum pressure: 2.5 bar
• Air flow: approx. 140 m³/h
• Pressure tank: capacity - 55 litres, height - 980 mm, weight - 83 kg
• Rotary compressor with support element: weight - 190 kg
• Length/width/height: 1100/635/720 mm
• Total weight of the device: 285 kg

Warranty: 12 months

Manufacturer: PFT

Item no.: 00124358
