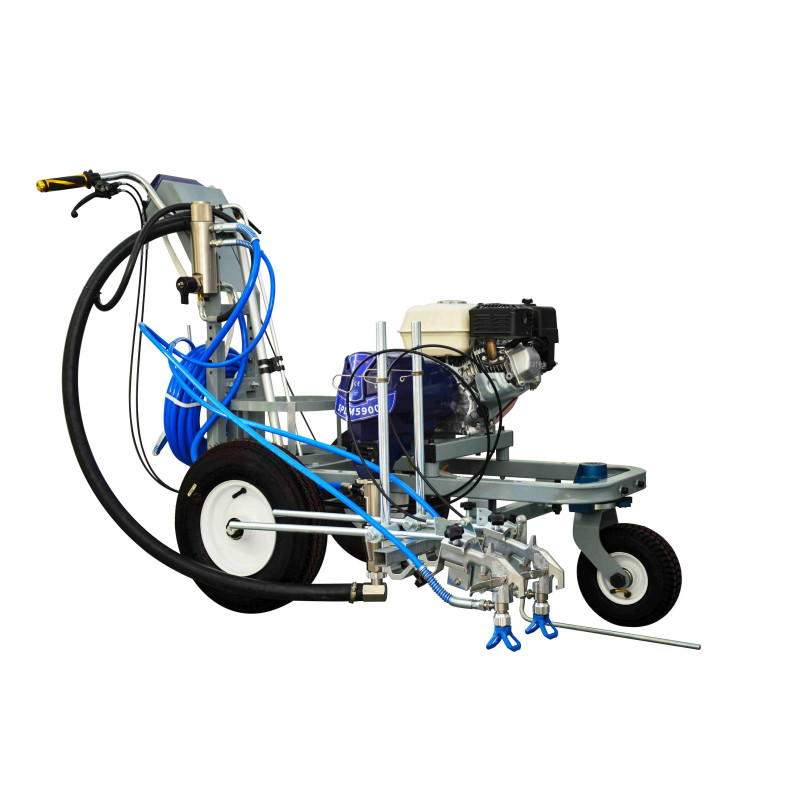

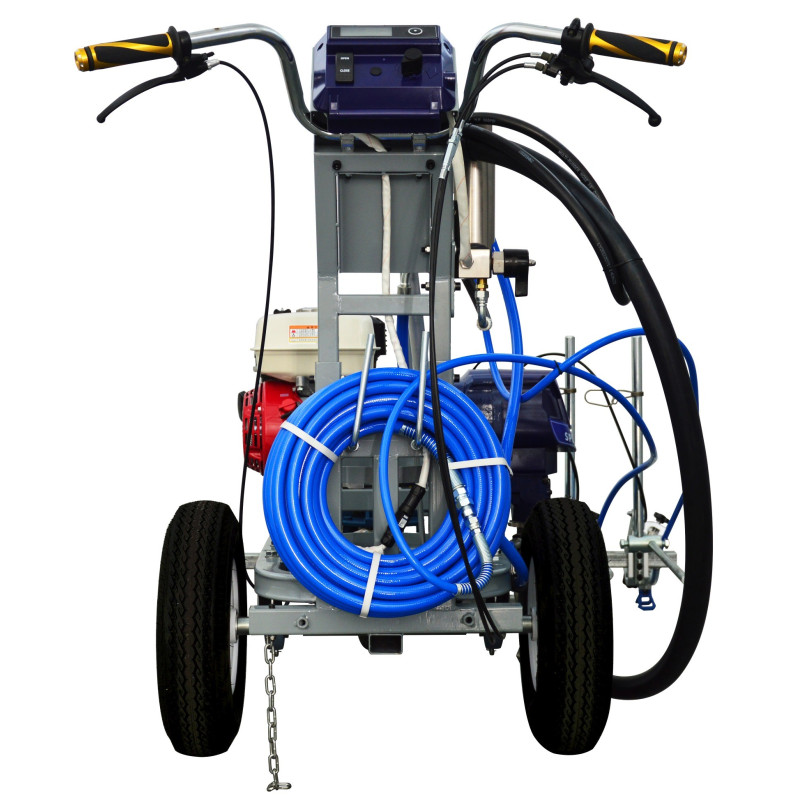

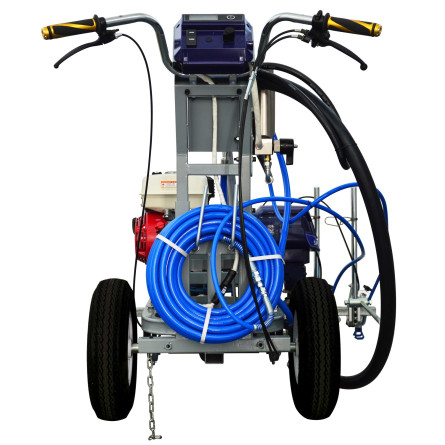

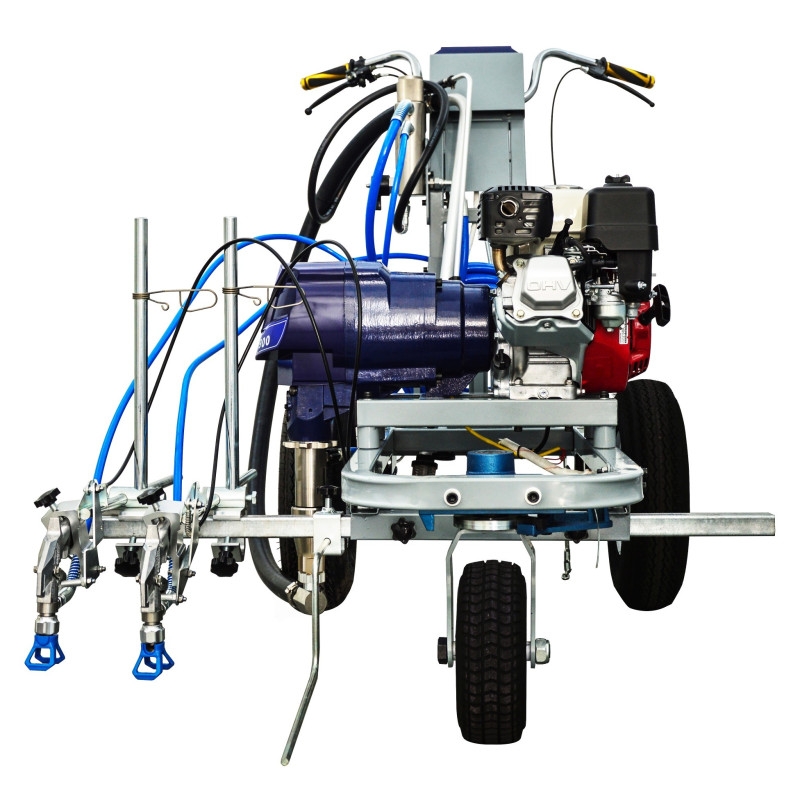

Strong-Tech SPLM 5900 belt painting machine
Strong-Tech SPLM 5900 line marking machine with two spray guns included.
A two-station road marking machine designed for marking double or wide lines. It is a professional choice for work in sports halls, production halls, on streets or in car parks. Electric pressure adjustment and swivel front wheels ensure excellent work quality. The higher flow and efficiency of the two spray guns make it suitable for medium and large surface marking applications.
The ideal solution for smaller areas where a smaller device is needed, e.g. in production plants for marking safety lines. Like all hydrodynamic painters, this device can be used for classic airless spraying.
A compact paint sprayer for marking car parks, sports fields and courts.
High performance and a powerful combustion engine guarantee long and trouble-free operation.
---
Advantages:
- automatic safety valve to prevent excessive pressure
- wheel brake in the steering wheel
- universal gun holder
- interchangeable spray guns – for full painting performance when using a template.
- the spray gun can be removed from the holder and applied manually using a template, e.g. to mark a pedestrian crossing or draw road signs
- the paint is applied to the asphalt under high pressure using a spray gun
- high speed of road paint application
- low dust generation when marking car parks
- Road marking paint does not need to be poured from the factory container.
- the paint sprayer can be used as a painting machine to paint kerbs, posts, fences and bridges
- it can mark a wide line for pedestrians on a single car crossing
- large, durable pneumatic tyres
- swivel front wheel – moves straight and unlocks for easy manoeuvring.
- Easy manoeuvring – small turning radius, making painting with stencils quick and easy.
---
Application:
- marking car parks and underground garages
- sports fields and other sports facilities
- airports and production and storage halls
- horizontal street markings
- classic airless spraying - facades, halls, pillars, bridges, etc.
---
Recommended materials:
- water-based and solvent-based paints
- special paints for horizontal marking
- acrylic, dispersion, silicone paints, etc.
---
Technical parameters:
- Max. operating pressure: 230
- Max. output: 5 l/min
- Max. nozzle size: 0.035" - 1 spray gun, 0.025" - 2 spray guns
- Petrol engine: 5.5 HP HONDA
- Weight: 142 kg
- Dimensions: 123x82x84 cm
---
Equipment:
- 1/4" hose – 15 m + 1.5 m
- spray gun with nozzle – 2 pcs.
- high-pressure filter – 1 pc.
- STRONG FTX airless nozzle cover – 7/8" 2 pcs.
- road marking nozzle – 2 pcs. to choose from
- TSO piston oil – 1 pc.
---
Fuel settlement:
We deliver the generator with a full fuel tank and require a full tank upon return. Otherwise, we will charge the customer for a full fuel tank at the purchase price.
