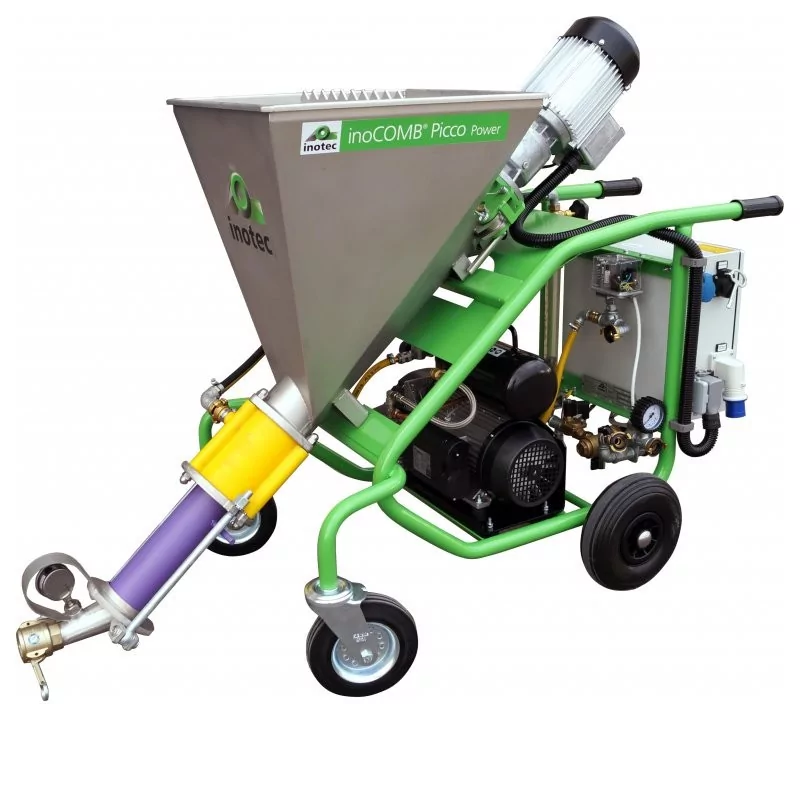

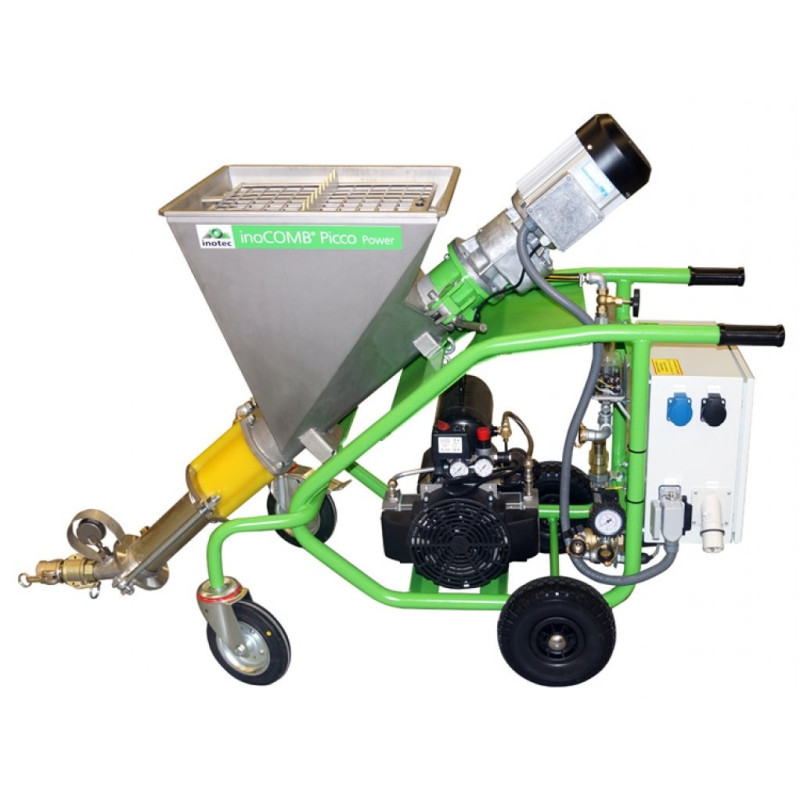

Inotec inoCOMB Picco plastering unit Compact plastering
unit powered by 230V.
CONSUMABLES (at extra cost):
- Stator (type depending on the material used)
- Rotor (type depending on the material used)
- Spray nozzle (sizes 10, 12, 14, 16)
- 30 mm ball for cleaning DN25 hoses
ADDITIONAL ACCESSORIES (at extra charge):
- additional DN25 material hose and 1/2" air hose
- 3/4" water hose
- OW 5 x 2.5 mm, 32 A, 25 m power cable
APPLICATION:
Ready-mixed bagged mixtures: gypsum plasters, lime-gypsum plasters, lime-cement plasters, base coats (rough coats), lightweight plasters, special plasters, self-levelling screeds. Technical
data:
- Length: 1560 mm
- Width: 640 mm
- Height: 1090 mm
- Filling height: 1000 mm
- Total weight: 97 kg
- Bucket capacity: 55 kg
- *capacity: 0-30 l
- Max. discharge pressure: 30 bar
- *Feed distance: 30 m
- Pump motor: 3 kW
- GENTILIN C330 oil-free compressor: 330 l/min
*capacity and delivery distance depend on the plaster mixture and pump type: D or RSET CONTENTS
- Spray gun - 1 pc.
- Mortar hose DN25 - 1x10 m
- Air hose 1/2" - 1x10 m
- Mixer - 1 pc.
- Worm key - 1 pc.
- Spray gun cleaner - 1 pc.
