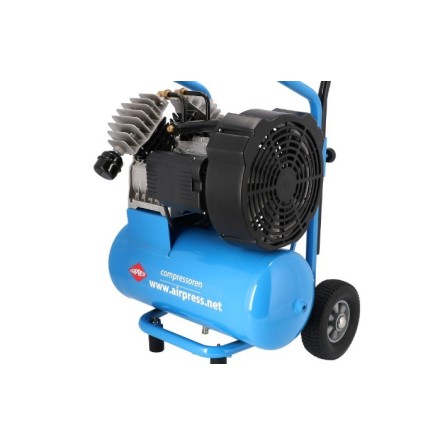

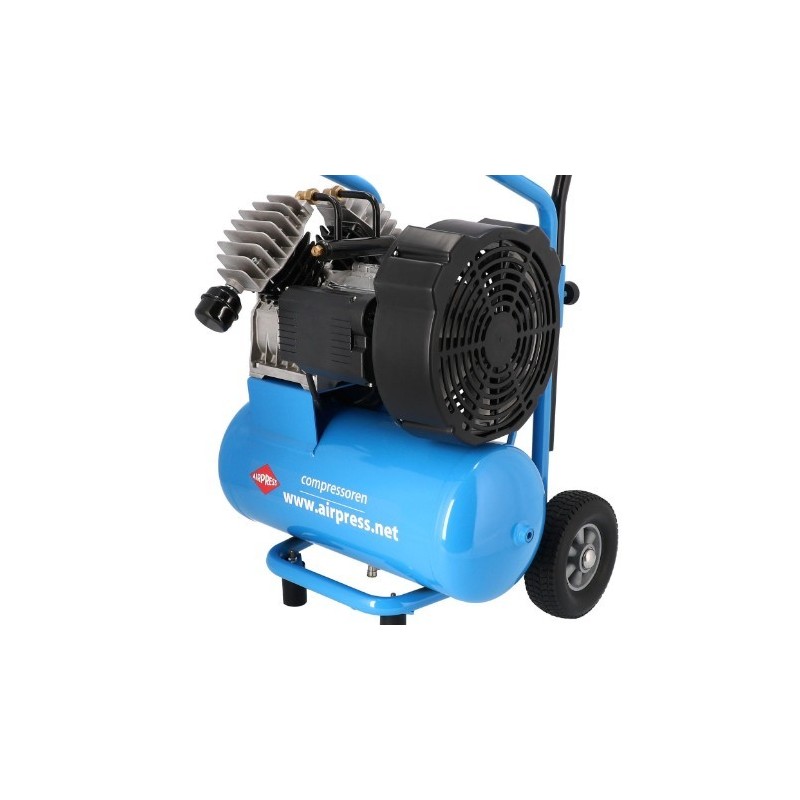

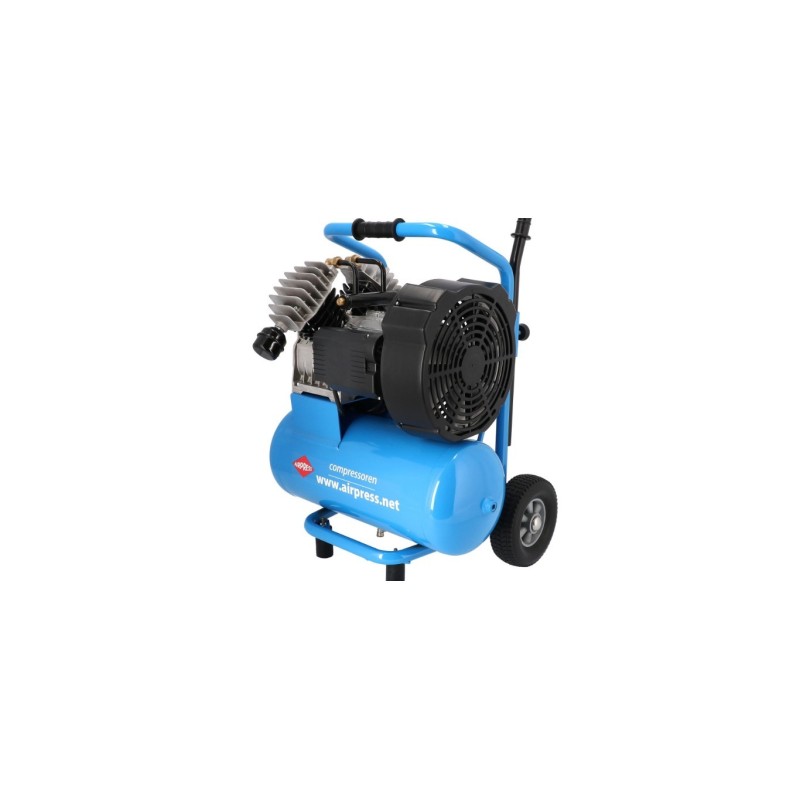

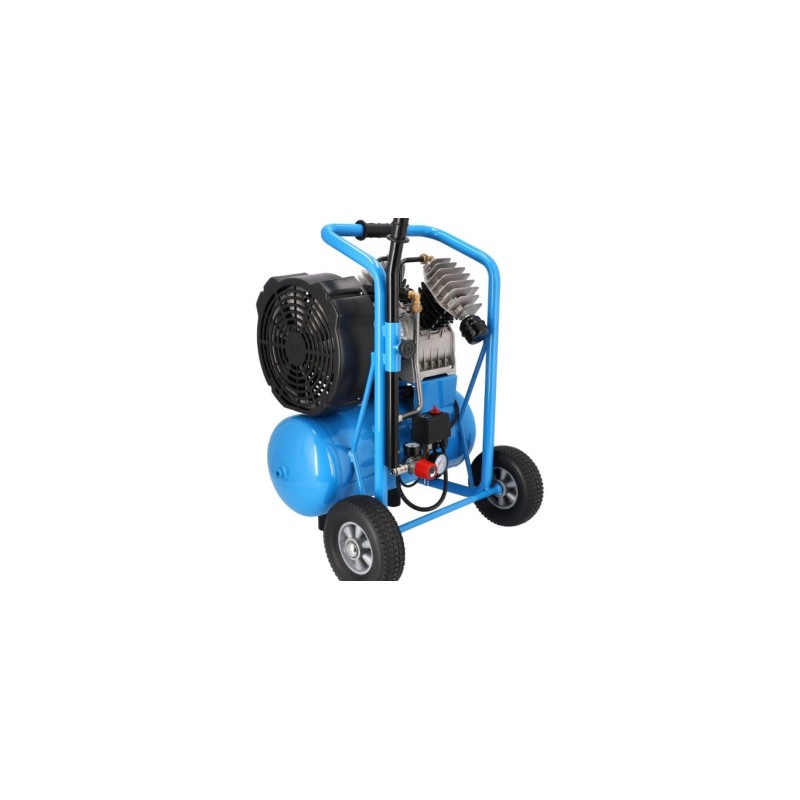

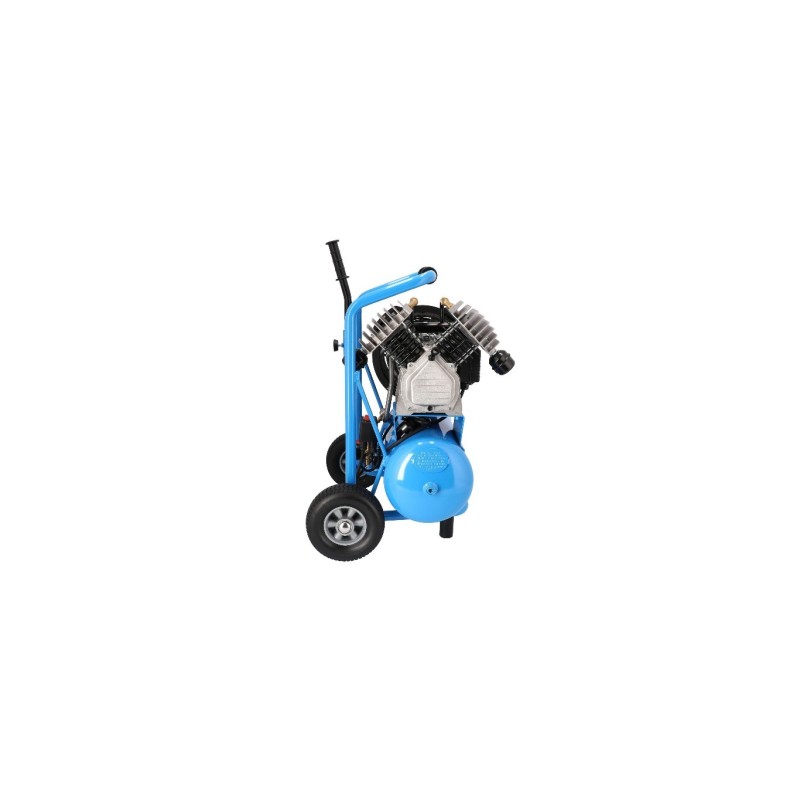

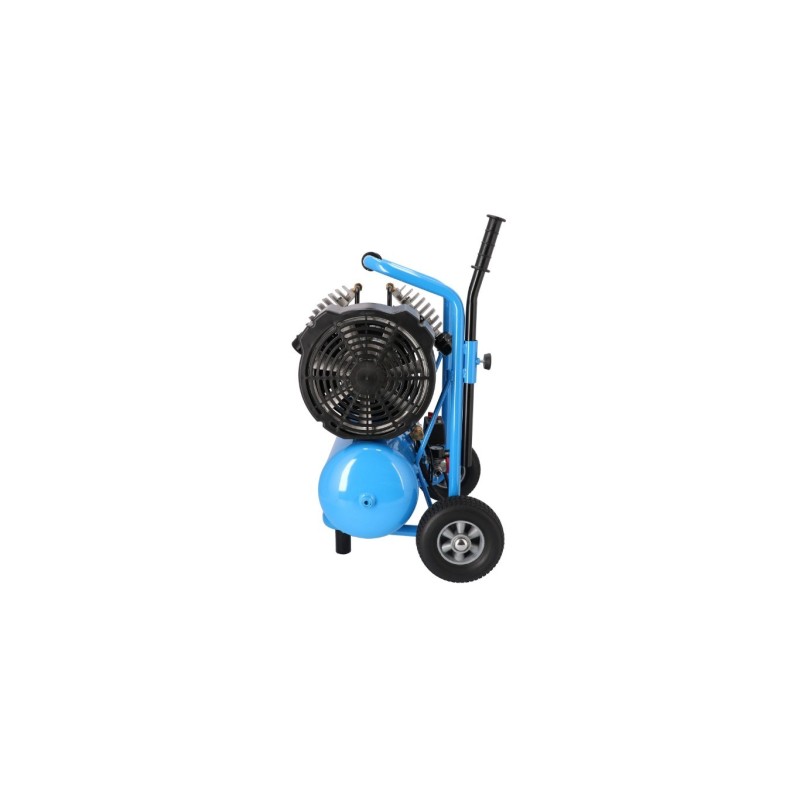

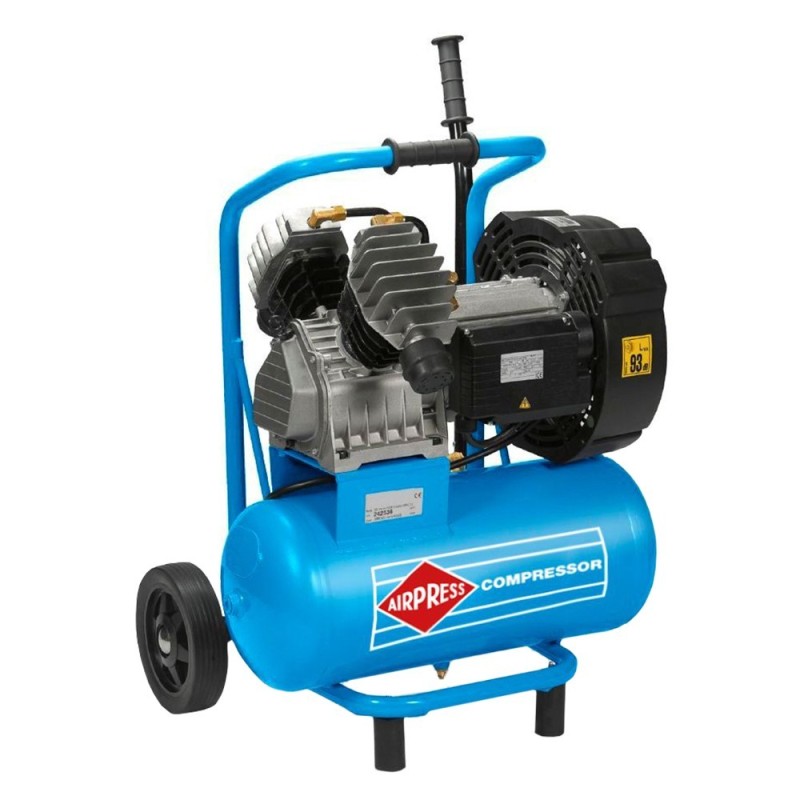

LM 25-410 AIRPRESS Piston Compressor
High-performance portable compressor – 410 l/min, 230 V. Designed for spray equipment in the construction industry
AIRPRESS Blue Series compressors are portable units for specialist applications. The range includes oil-free compressors, silenced compressors and compact models with a maximum pressure of up to 10 bar. They can operate in cycles of 60%–40% (36 min/1 h compression time – rest time) for a maximum of 12 hours per day. Applications: construction, garages, small industrial plants.
Technical specifications:
- Suction capacity: 410 l/min
- Tank capacity: 25 l
- Engine power: 3.0 HP / 2.2 kW
- Operating pressure: 8 bar
- Maximum pressure: 10 bar
- Number of cylinders: 2
- Number of compression stages: 1
- Speed: 1400 rpm
- Power supply: 230 V / 50 Hz / 1 Ph
- Dimensions: 60 x 58 x 82 cm
- Weight: 48 kg
The main advantages of AIRPRESS compressors include:

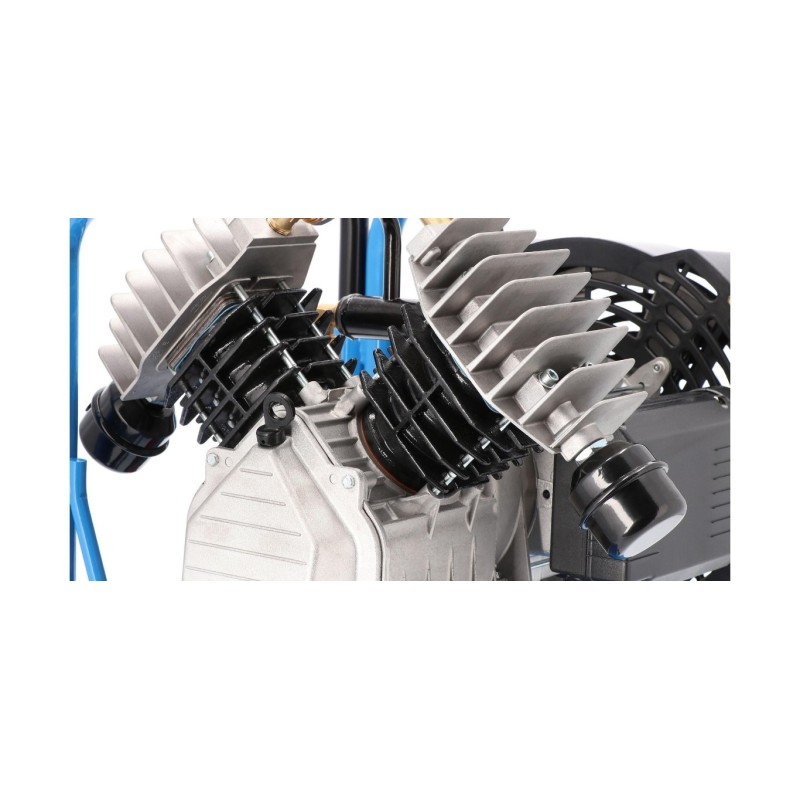

- an efficient compressor pump cooling system (lower compressed air temperature, longer compressor service life)
- compressor pump manufacturing technology based on automotive industry production technology
- easy oil level check
- easy access to spare parts for 20 years from the date of manufacture
