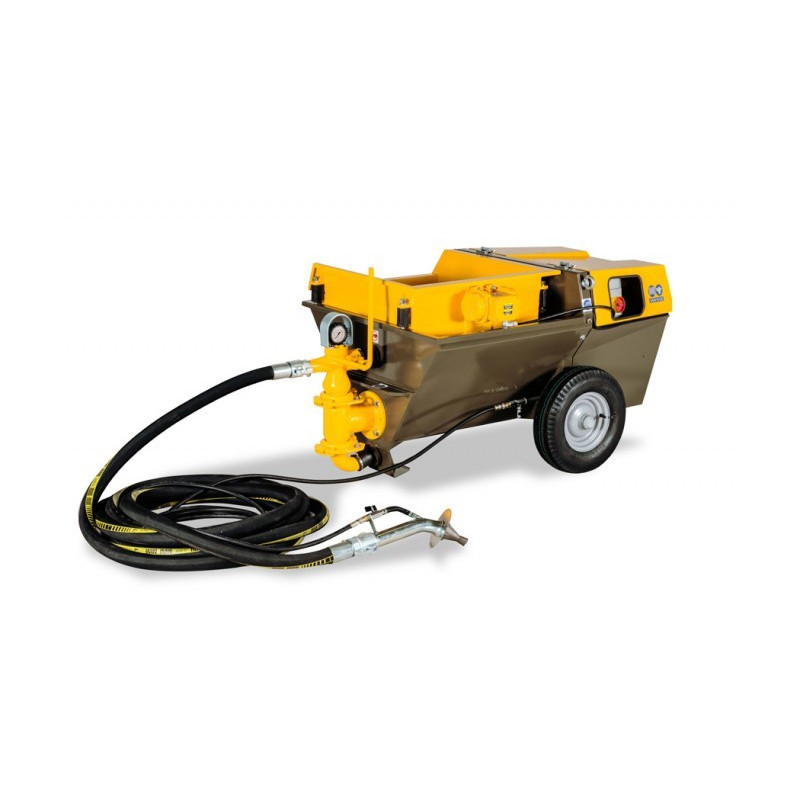

MINI AVANT 230V TURBOSOL piston plastering machine

MINI AVANT – the smallest piston pump on the market from the Italian company TURBOSOL

MINI AVANT is a piston pump with gravity-closed ball valves. Ideal for pumping and spraying ready-made or prepared plaster, reprofiling and sealing mortars, machine grouts and self-levelling screeds on construction sites. The unique piston design of the pump does not cause heating or changes in material parameters. The absence of a stator and rotor significantly reduces operating costs. The pump can be equipped with a hose up to 50 m long. The piston pump can apply mortars with particle sizes up to 6 mm, ensuring high performance, low operating costs and low energy consumption. TURBOSOL guarantees that the pump can be operated without replacing the piston seals to apply over 30,000 m² of plaster with an average thickness of 2 cm.

Versions – 4 different Mini Avant models are available:

• with single-phase drive (230 V)
• with three-phase drive (400 V)
• Vario – with electronic output control
• "G" – with Honda combustion engine

Application:

• Spraying traditional plaster mortar
• Pumping of standard and ready-mixed mortars
• Applying plaster and mortars for concrete repairs
• Pumping self-levelling floor screeds
• Applying lightweight insulation materials
• Filling joints in bricks or stones (VARIO version)
• Applying thin-layer finishing plaster (VARIO version)
• Controlled pressure injection with cement mortars (VARIO version)

The set includes:

• Piston pump with gravity-closed ball valves
• Sieve with 8 mm mesh
• Electric vibrator
• Container safety device
• Two-speed gearbox
• Built-in air compressor
• Remote air on/off control
• Outlet hose with pressure gauge
• 30 m (20 + 10) hose Ø 35 mm with camlock connection
• 33 m air hose Ø 8 mm with quick couplings
• Tool kit
• Plastering gun with nozzle set

Optional accessories:

• Kit for ready-mixed plasters
• Kit for pumping lightweight insulating plasters
• Pressure-controlled injection lance
• Spray guns for ready-mixed material Ø 25 or Ø 35
• Injection gun
• Gun for shotcrete
• Grouting gun
• Hose extension Ø 25 or Ø 35
• Spare parts kit

Technical data (basic version – single-phase):

• Motor power: 2.2 kW
• Power supply: 230 V
• Capacity: 24–30 l/min
• Max. grain size: 6 mm
• Max. operating pressure: 15 bar
• Compressor: 220 l/min
• Tank capacity: 140 l
• Feed distance: 40–50 m*
• Hose diameter: Ø 35 mm
• Dimensions: 159 × 86 × 75 cm
• Weight: 240 kg

*The data provided is theoretical and depends on the quality and consistency of the materials used, pump wear, and the diameter and length of the hoses. The maximum capacity, distance and height of delivery cannot be achieved simultaneously.
