An original plastering machine from the German company PFT – one of the most advanced plastering machines on the European market, renowned for its durability, reliability and ease of use.

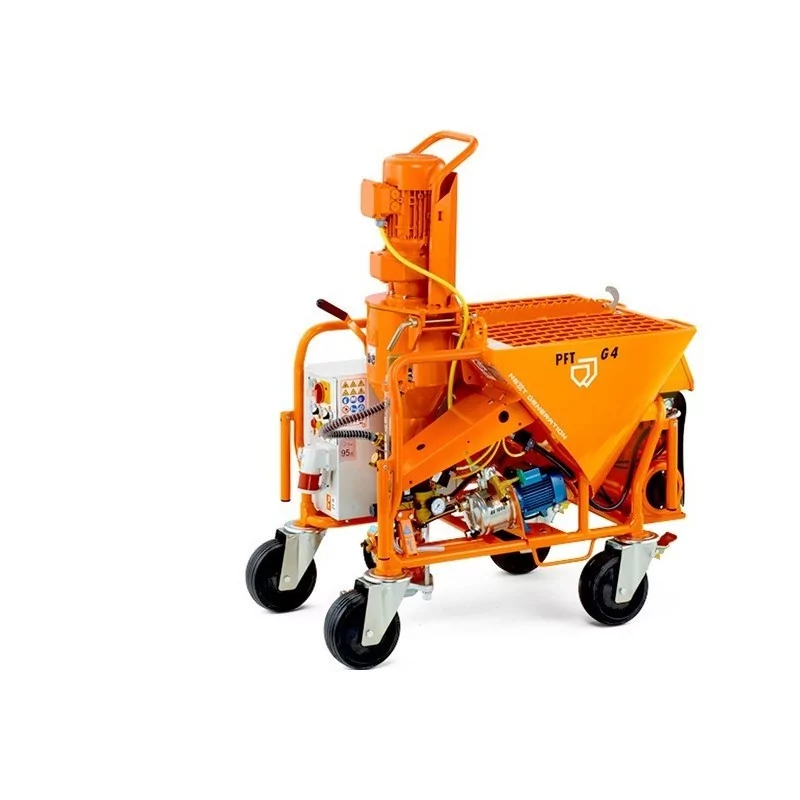

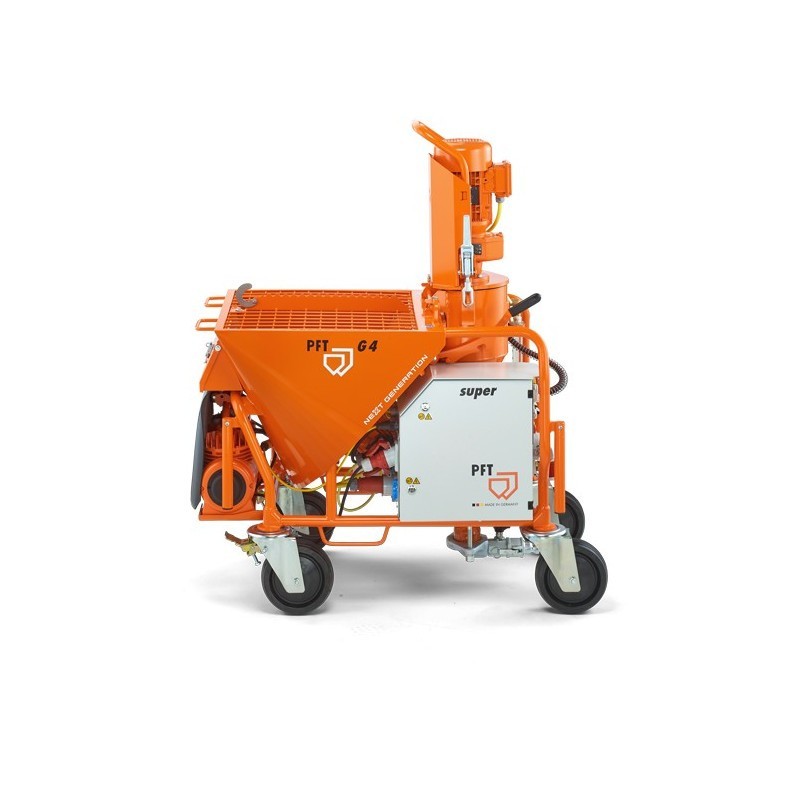

The PFT G4 X Smart is a new-generation (gen25) continuous-duty plastering machine, designed for mixing factory-produced dry, machine-mixed mortars.
The machine can be fed either from bags or directly from a silo using a PFT silo feeder. The mortar feed zone is separated from the mixing chamber and the pump. The material enters the mixing chamber via a diagonally mounted dosing wheel, which is driven by a separate motor and can be easily removed thanks to its central mounting.
Start-up and refilling with a new batch of material is possible at any time during operation.
New features and benefits of the G4 X Smart gen25 generation:
removable compressor for easier transport
reinforced scraper and mixing pipe
opening in the hopper for a silo connection
option for retrofitting a mortar level sensor
improved ergonomics and carrying handles
Applications: Gypsum, gypsum-lime, cement, lime, lime-cement plasters, insulating plasters, mineral slurries, adhesive, reinforcing and grouting mortars, liquid screeds, masonry mortars, soundproofing compounds, self-levelling fillers and many others.
Technical data:
Pump motor: 6.05 kW, 400 rpm Feed wheel motor: 0.75 kW, 28 rpm Power supply: 400V, 50 Hz, 3-phase Screw pump: PFT D6-3 Performer Feed rate: up to 35 l/min* Operating pressure: max. 30 bar* Delivery distance: up to 30 m (DN25) / up to 50 m (DN35)* Water pump: YES (AVO 500) Air compressor: LK-250, 0.9 kW, 400 V, approx. 250 l/min Water connection: 3/4" hose, min. 2.5 bar Water flow range: 100 – 1000 l/h
*approximate figures, depending on the mortar, pump condition, hose diameter and delivery height
Standard equipment:
RONDO DN25 mortar hose, 10 m, with couplings
Air hose ½” 11 m
Main gear motor 6.05 kW, 400 rpm with tilt sensor
Feed wheel gear motor 0.75 kW, 28 rpm
Control cabinet with flow meter 150 – 1000 l/h
LK-250 400V compressor with pressure switch (removable)
Mixing chamber cleaner (reinforced version)
Cleaning bar
Plastering gun with 14 mm DN25 nozzle
PFT D6-3 Performer screw pump
Type “D” pump yoke with mortar pressure gauge
BIONIK mixer
Tool box
RED 5-32 A 25 m power cable
Operating instructions
Dimensions:
Filling height: 910 mm
Hopper capacity: 145 litres
Length / width / height: 1200 mm / 720 mm / 1530 mm
