Strong-Tech B24 - paint pump

Italian diaphragm pump for air spraying, included in the set on a trolley, with a spray gun and a combined hose

Two versions to choose from:

1. with suction hose
2. with a 6 l tank

Set for painting wood, plastics and metals for general use

STRONG B24 is a spraying kit with a 1:1 aluminium diaphragm pump, controlled by application air, for high-quality decorative finishes on wooden and metal elements.

STRONG B24 is a more effective alternative to traditional pressure tanks.

Features:

• high-quality finish
• low pulsation and smooth pump switching ensure a consistent spray pattern
• ease of use
• quick colour changes and efficient filling save time and money
• Durable stainless steel or aluminium pump construction handles a wide range of spray materials.

Main applications:

• application of primers, base coats and top coats
• general-purpose metals
• Agriculture and construction
• trucks and buses
• automotive components and finishes
• spraying of stains, sealants, varnishes and topcoats
• wooden furniture and joinery
• wooden windows and doors
• wooden products for individual needs.

APPLICATION:

varnishing in the furniture and automotive industries, carpentry, varnishing of wood, metals and plastics

RECOMMENDED MATERIALS:

polyurethanes, epoxies, enamels, varnishes, stains, single- and multi-component materials, UV coatings, solvent- and water-based materials

TECHNICAL PARAMETERS:

• maximum working pressure of the liquid 8 bar
• maximum air inlet pressure 8 bar
• maximum liquid flow 24 l/min.
• weight: 12 kg
• air consumption 200-500 l/min
• Maximum viscosity of sprayed materials: 400

BASIC EQUIPMENT:

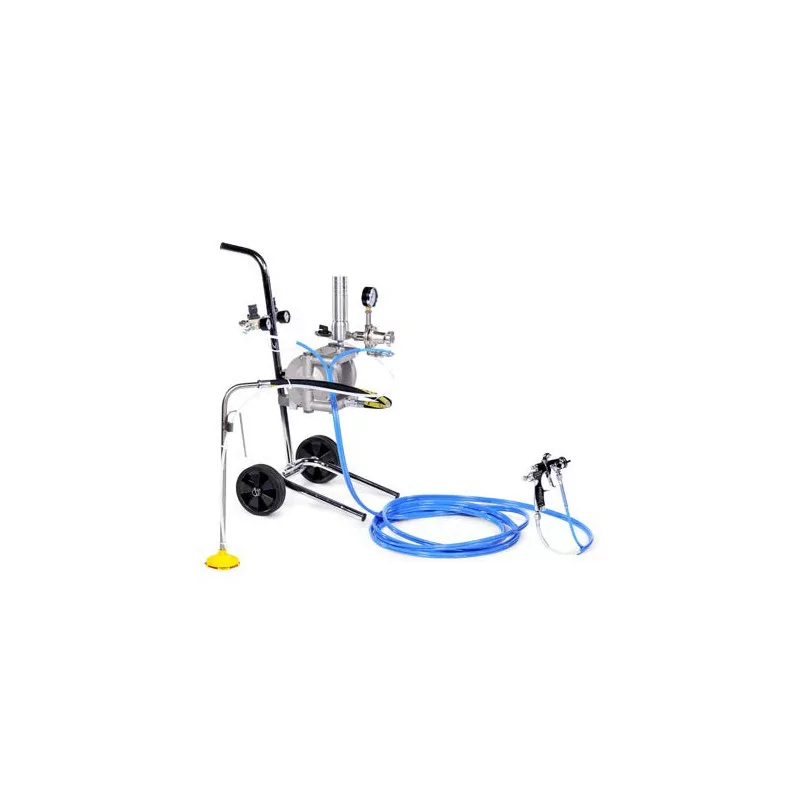

• STRONG B24 aluminium pump on a trolley
• set with suction hose or 6 l tank
• compressed air regulator for controlling pump operation
• compressed air regulator for the gun
• LP 6x8 7.5 m composite supply hose
• S 710 SSP air spray gun
