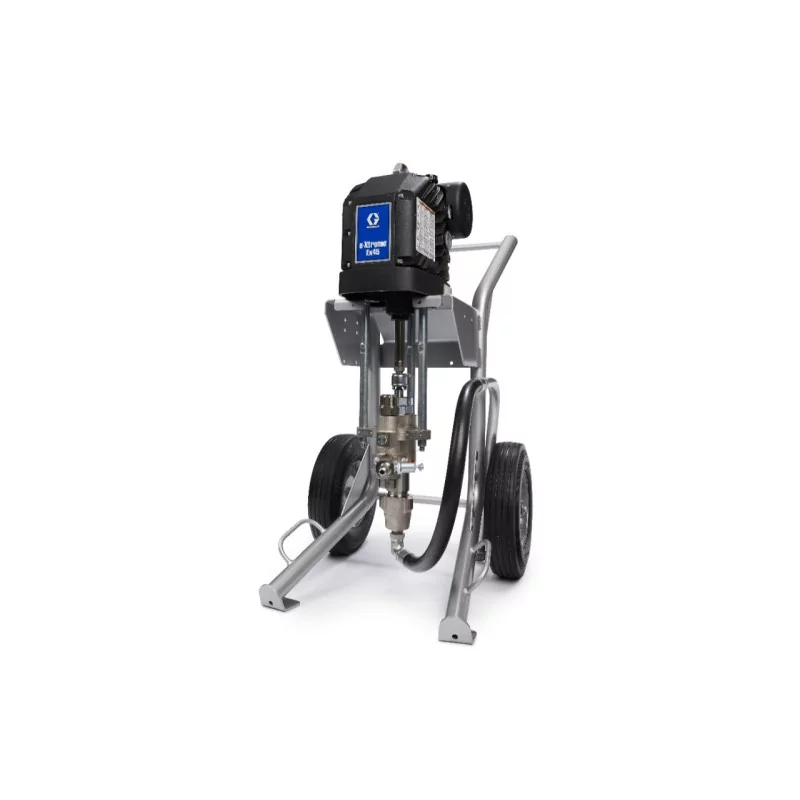

e-XTREME EX45 GRACO painting unit

Electric high-pressure unit for spraying heavy-duty anti-corrosion coatings. New from Graco – a painting unit with an Xtreme pump, well known from Graco King Xtreme NXT pneumatic devices, now available with electric power supply! A completely autonomous unit, operating on 230 V, single-phase power supply. Explosive areas require a qualified electrician to connect the power supply.

Sufficient pressure for atomising the most popular materials with medium and high solids content.

Sufficient power for a 0.021 nozzle with a one size reserve to compensate for consumption of 2.2 litres per minute at 280 bar.

Key features of the new e-Xtreme unit compared to pneumatic solutions:

• quiet operation,
• energy savings (fewer KW per litre of paint applied),
• no icing,
• easy installation and start-up – plug and play,
• integrated dry-run protection,
• very smooth pressure control, no dependence on pressure surges when starting large pneumatic devices in the network,
• pulsation reduction by controlling the direction of pump operation – "smart change-over"

Advantages over other electrical devices:

• Full ATEX, version approved for hazardous areas,
• higher pressures for materials with a higher solid particle content,
• larger material pumps for materials with higher viscosity,
• slower operating cycles,
• designed for corrosion resistance.

The unit is mounted on a standard Heavy Duty trolley with a suction hose or SST container.

The device is available in two versions - dynamic pressure 280 bar (EX45) and 210 bar (EX 35).

Basic equipment:

• XTREME piston pump with electric motor and anti-freeze and anti-frost protection system on trolley
• compressed air filter with pressure regulator for pump drive
• suction pipe with flexible hose to the pump
• 15 m long, 3/8" diameter material supply hose for the gun + 1.8 m long, 1/4" diameter whip
• XTR-5 acid-resistant steel gun for hydrodynamic spraying

Technical parameters:

• Maximum working pressure: 310 bar (4500 psi, 31.0 MPa)
• Maximum recommended nozzle size: 0.53 mm (0.021 in) at a spray pressure of 276 bar (4000 psi, 28 MPa)
• Weight: 135 kg (295 lb)
• Overall dimensions (W x H x D): 65.40 x 123.82 x 73.66 cm (25.75 x 48.75 x 29 inches)
• Operating temperature range: -5°C to 50°C (23°F to 120°F)
• Input voltage: 200 to 240 V, single phase, 50/60 Hz
• Power consumption: 2.5 kVa
• Sound pressure: 70 dB(A)
• Material pump: 145 cm³
• Operating instructions: 3A3164
