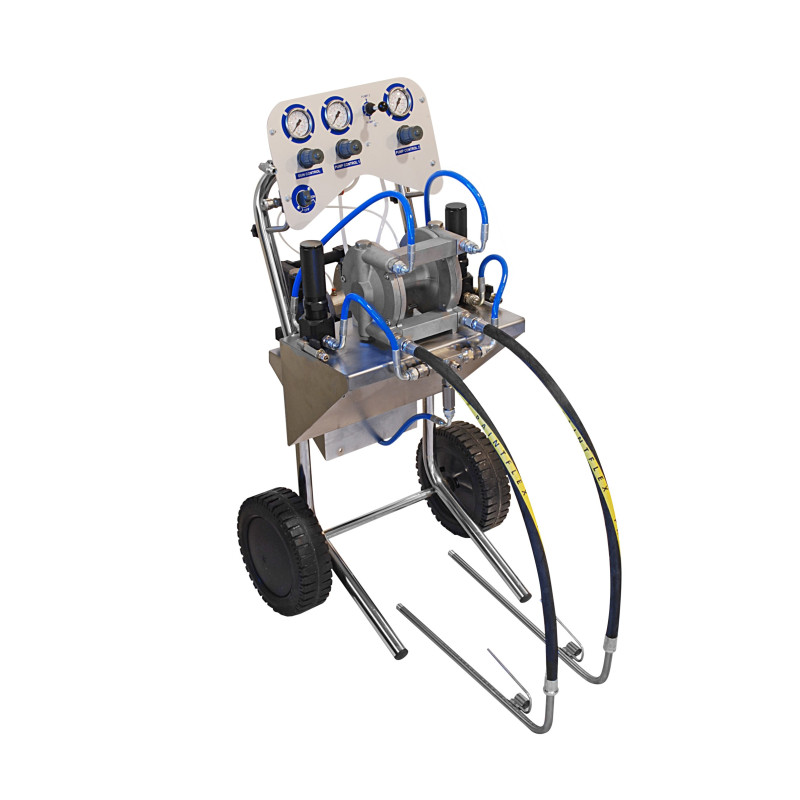

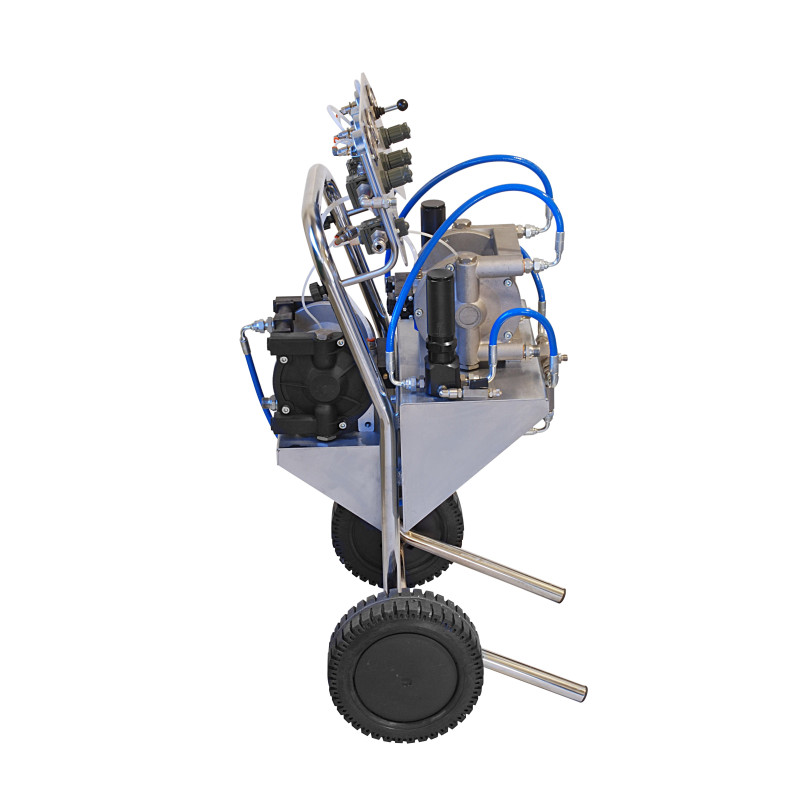

Strong-Tech B24 MIX painting unit

Paint pump for two-component materials. Italian diaphragm pump for air spraying, included in the set on a trolley, with a spray gun and a composite hose.

Strong-Tech B24 MIX is a spray kit with a 1:1 aluminium diaphragm pump, controlled by application air, for high-quality decorative finishes on wooden and metal elements. B24 MIX is designed for use with two-component products. B24 MIX allows two different products to be sucked in through two separate coatings, which are then mixed by the mixing system at the pump outlet. This device is designed to work with any type of pneumatic spray gun: volumetric, automatic, HVLP, etc. The valves are made of tungsten carbide to ensure a long service life. Direct suction from the original paint can ensure even and smooth paint delivery to the spray gun. It requires no lubrication, is robust and easy to use.

Strong-Tech B24 MIX is a more efficient alternative to traditional pressure tanks.

Features:

• high-quality finish
• low pulsation and smooth pump switching ensure a consistent spray pattern
• ease of use
• quick colour changes and efficient filling save time and money
• Durable stainless steel or aluminium pump construction handles a wide range of spray materials.

Main applications:

• two-component materials
• application of primers, base coats and top coats
• general-purpose metals
• Agriculture and construction
• trucks and buses
• automotive components and finishes
• spraying of stains, sealants, varnishes and topcoats
• wooden furniture and joinery
• wooden windows and doors
• wooden products for individual needs.

TECHNICAL PARAMETERS:

• maximum working pressure of liquid 8 bar
• maximum air inlet pressure 8 bar
• maximum liquid flow 24 l/min.
• weight 45 kg
• air consumption 200-500 l/min
• maximum viscosity of sprayed materials 400.

BASIC EQUIPMENT:

• Strong-Tech B24 aluminium pump on a trolley
• set with suction hose or 6 l tank
• compressed air regulator for controlling pump operation,
• compressed air regulator for the gun
• LP 6x8 7.5 m composite supply hose
• S 710 SSP air spray gun.
