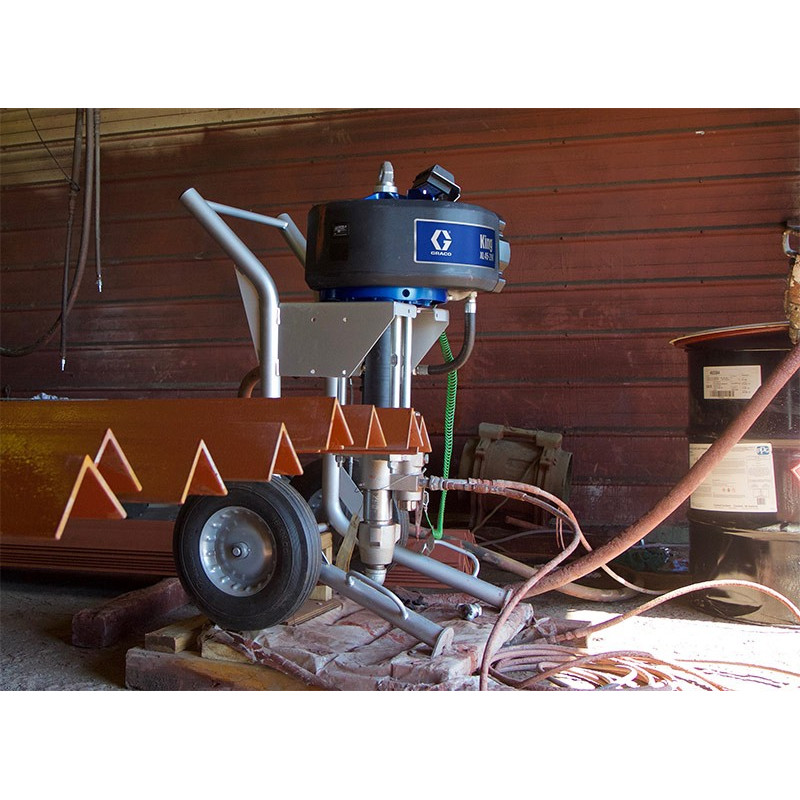

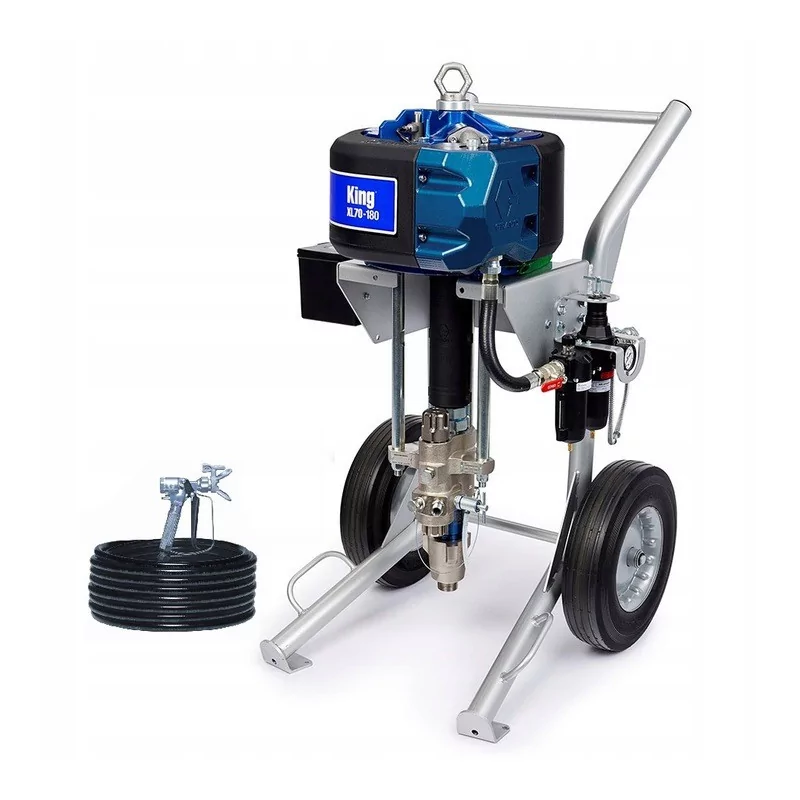

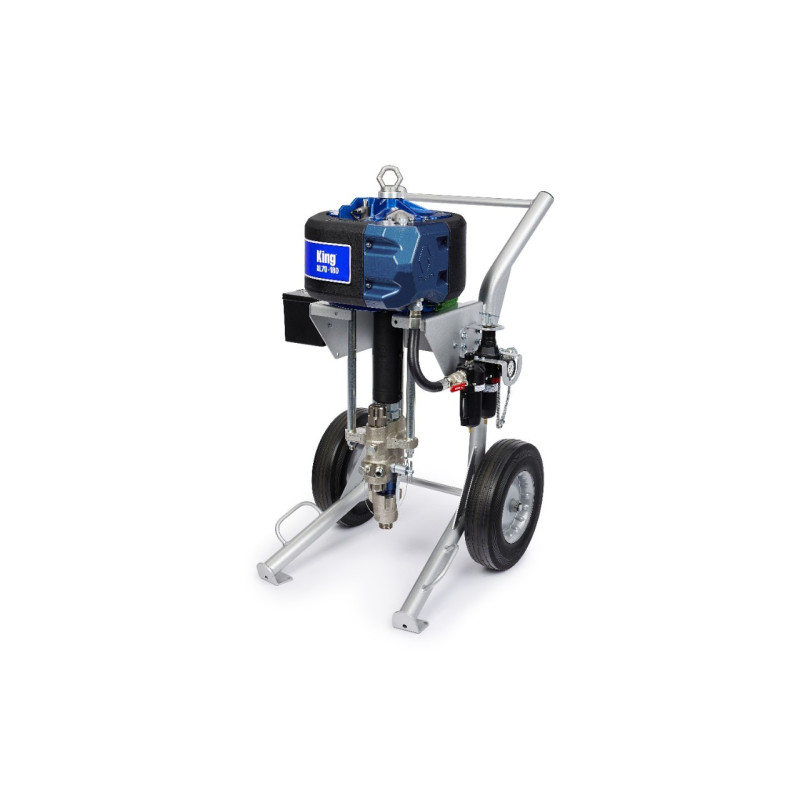

Painting unit – King K70FH1 pneumatic airless sprayer – by GRACO

Paint sprayer for airless application of industrial coatings, waterproofing, fireproof and anti-corrosive coatings with high durability.

Advantages:

• Graco's new powerful pneumatic motor allows the use of multiple spray guns with almost imperceptible pulsation.
• Higher cycle efficiency means fewer total cycles are needed to complete a job, which means less wear and tear on parts and components. This results in less downtime and lower maintenance costs for the user.
• The King sprayer is designed to eliminate motor freezing problems, increasing its effective operating time.
• The new suction hose design maximises material pick-up speed. The new connector facilitates maintenance and cleaning.
• The durable trolley is extremely robust and protects the pump and accessories – even in the most difficult conditions.

Application:

corrosion and fire protection in shipbuilding, railway, bridge construction, tanks, sewage treatment plants, pipelines, etc.

Recommended materials:

alkyd mini paints, alkyd paints with anti-corrosive pigment, epoxy primers, epoxy, zinc, zinc silicate. Suitable for applying the most difficult protective coatings and 100% solids (solvent-free). Used for spraying two-component, bituminous-epoxy materials with high viscosity and large pigment grain size, fire-resistant and anti-fouling insulation materials.

Technical data:

• capacity at 60 cycles per minute is 11 l/min.
• The capacity at free flow is 32 l/min.
• The material volume per cycle is 180 cm³.
• Max. working pressure 500 bar
• Maximum inlet pressure 7 bar
• The pump is exceptionally durable, guaranteeing many years of operation in extreme working conditions, and is characterised by its simple design.

Basic equipment:

• KING piston pump with air motor and anti-freeze and anti-frost protection system
• compressed air filter with pressure regulator for pump drive
• suction pipe with flexible hose for the pump

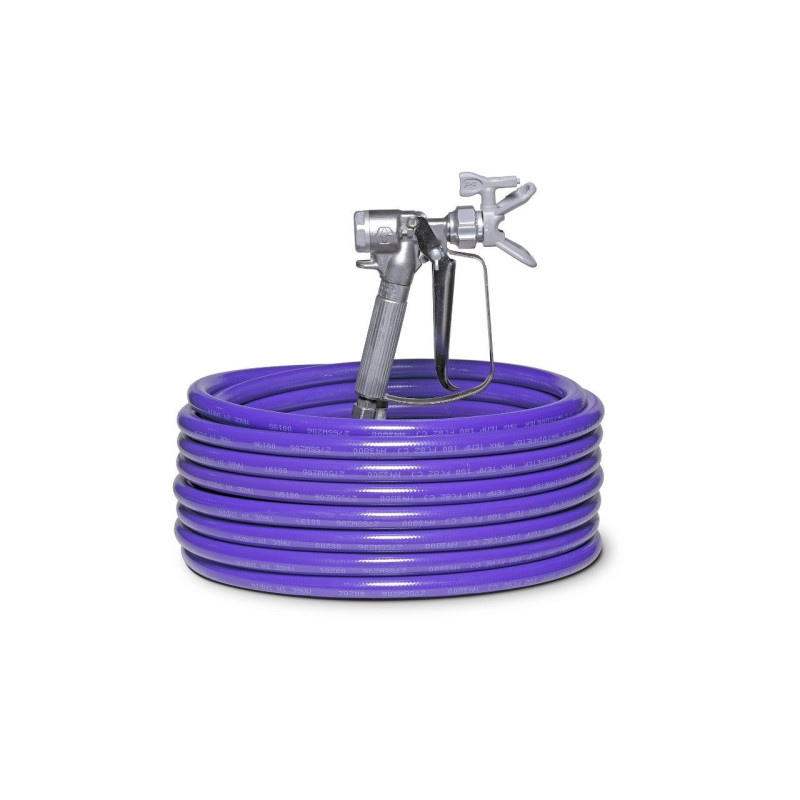

• 15 m long, 3/8" diameter hose for supplying material to the gun + 1.8 m long, 1/4" diameter whip
• XTR 7 acid-resistant steel gun for hydrodynamic spraying with XHD 519 nozzle
