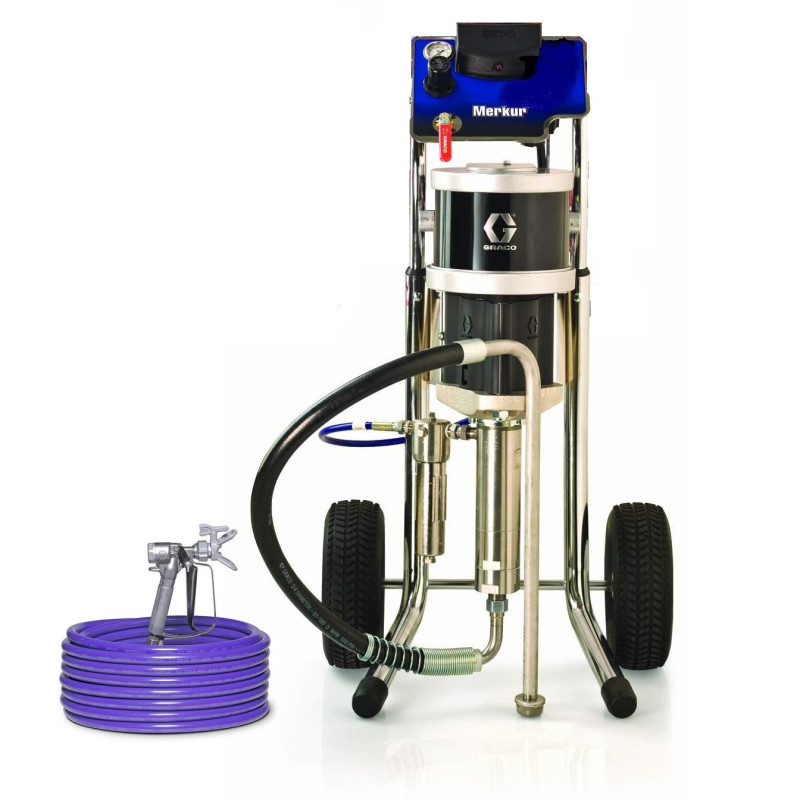

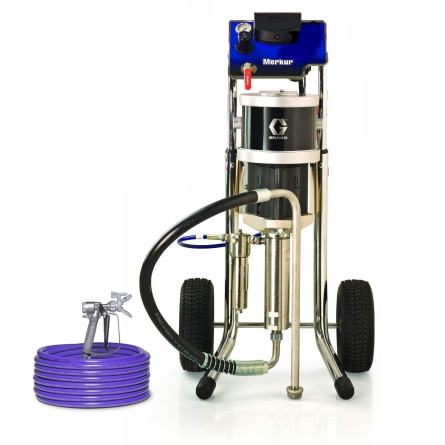

MERKUR X48 GRACO paint sprayer + XTR5 spray gun

MERKUR X48 GRACO paint sprayer / paint pump - airless

Used mainly for applying anti-corrosive and paint coatings. A kit for precise, high-performance finishing work designed to increase productivity, reduce costs and lower emissions. The MERKUR X48 kit is based on piston pumps, with 50% less pulsation of the material being fed compared to typical two-valve piston pumps.

Advantages:

• The best air motor technology on the market
• Low air consumption ensures higher efficiency
• Silencer ensures low noise levels during operation
• External access to the valve allows for easy servicing and replacement during operation to minimise downtime
• Operator control panel located at operator height allows for easy setting and control
• Throat seal and piston housing protect the pumped material and wet cup vessel from contamination and can be easily removed for inspection and service
• Enclosed piston rod working space.
• Uncomplicated TSL oil change.
• Merkur units offer better performance and reliability than other pumps in this class.
• Manufacturer's warranty - 12 months

Application:

anti-corrosion and painting works in the steel, shipbuilding, furniture, automotive, carpentry industries, painting of wood, metals and plastics

RECOMMENDED MATERIALS:

light and medium anti-corrosion, polyurethanes, epoxies, enamels, varnishes, glosses, single and multi-component materials, UV coatings, solvent- and water-based materials

Technical parameters:

• 48:1 gear ratio
• capacity at 60 cycles per minute is 4.5 l/min.
• Max. working pressure 331 bar
• Max. inlet pressure 5.8 bar
• Maximum nozzle size 0.025"
• Air requirement 0.74 m³/min
• Weight: 45 kg

equipment:

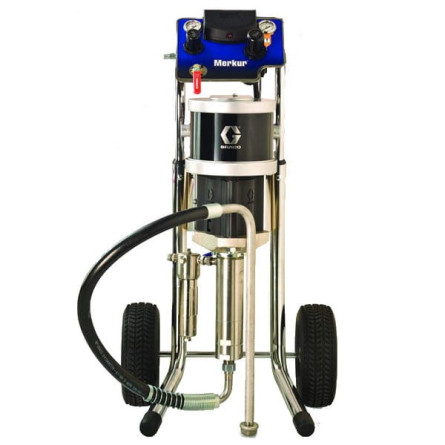

• MERKUR piston pump with air motor on a trolley
• compressed air filter with pressure regulator for pump drive
• 1" suction hose

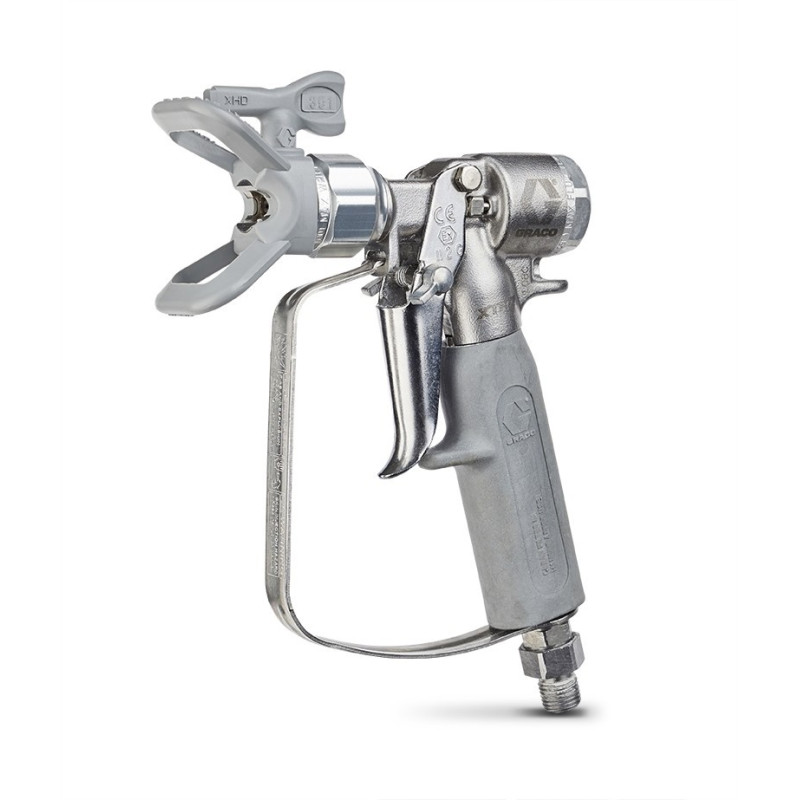

• XTR 5 spray gun with XHD 519 nozzle

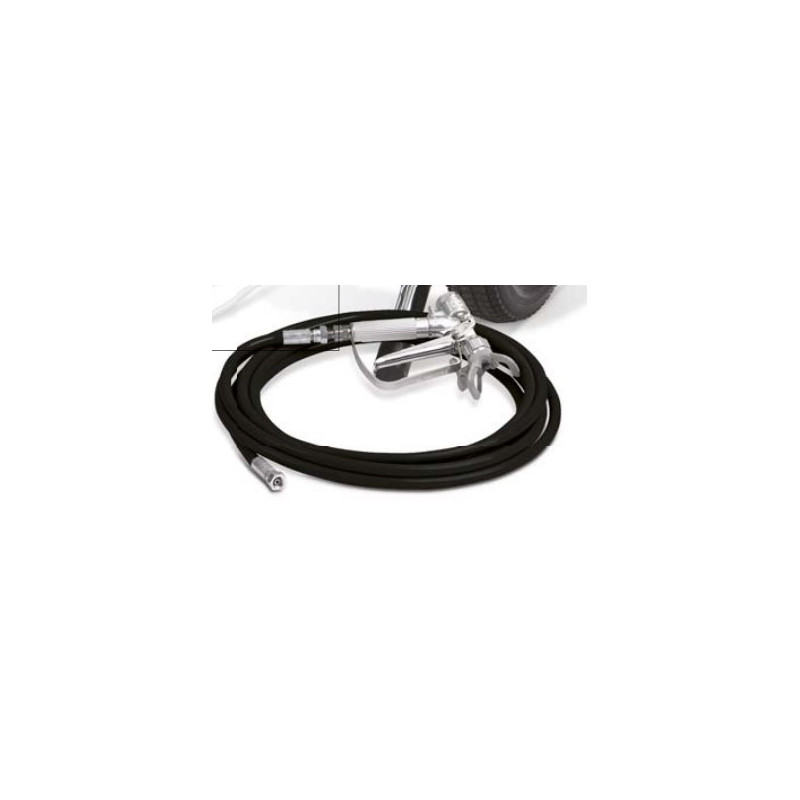

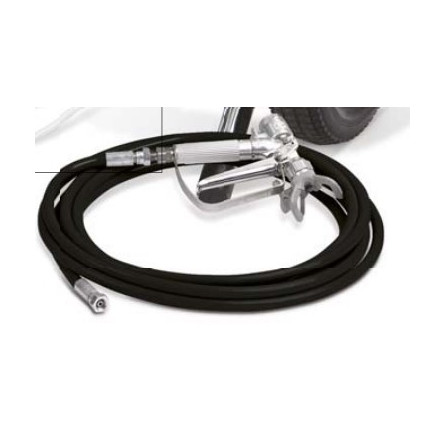

• 3/8" x 7.6 m spray hose + 1/4" x 1.8 m hose
• pump filter assembly
