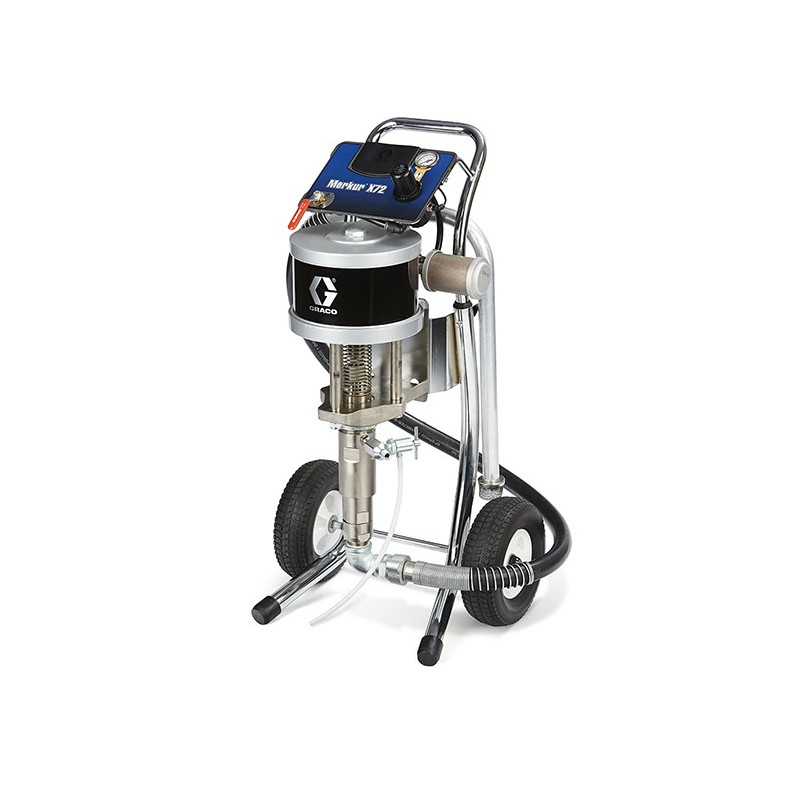

MERKUR X72 GRACO painting unit, complete set

for hydrodynamic spraying of heavy anti-corrosion coatings

An excellent device for coatings with a high solids content. Spray unit for hydrodynamic application of paint coatings. Merkur X72 is an optimal combination of power and mobility, which allows spraying difficult materials even in the most unfavourable conditions. The Merkur spraying device weighs only 45 kg, so it can be easily set up in tight spaces without compromising spray quality and power.

Advantages:

• Portable and lightweight – easy to move around the workplace
• Powerful – sprays medium and high solids coatings at pressures up to 500 bar (7,200 psi)
• Cost-effective – high-quality work at low investment costs
• Flexible – wide range of applications, including shipbuilding, railways and steel construction
• Ideal complement to larger Graco KING and Xtreme sprayers

High pressure

• Up to 500 bar (7,200 psi, 50 MPa)
• Spraying of coatings with high solids content
• Can work with longer hose lengths

Compact size and weight - weighs only 45 kg Suction
hose with quick connector - large 25.4 mm x 1.8 m
suction hose Inlet - smooth 1-1/4 inch inlet prevents dead spots and material build-up

Drain valve

• Free-ball design
• Reduces leakage and valve clogging

Merkur material pump

• Improved spraying of high-viscosity coatings
• Durable Chromex™ coated piston Easy maintenance
• Easy pump disconnection from air motor Gland and piston seals
• Automatic spring-loaded pressure adjustment ensures long seal life

Capable of operating 2 painting stations

Manufacturer's warranty: 12 months
