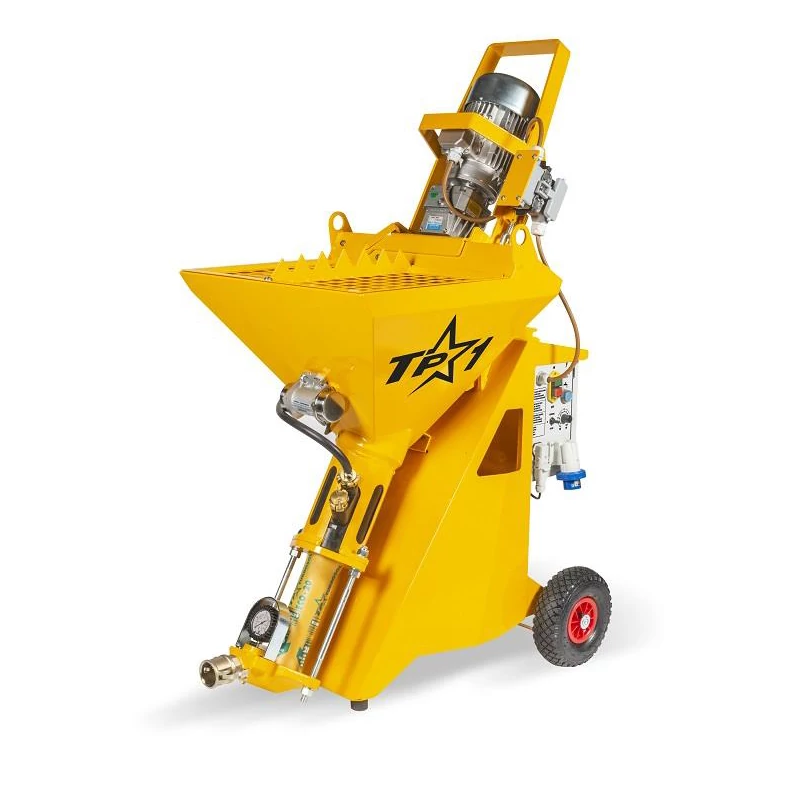

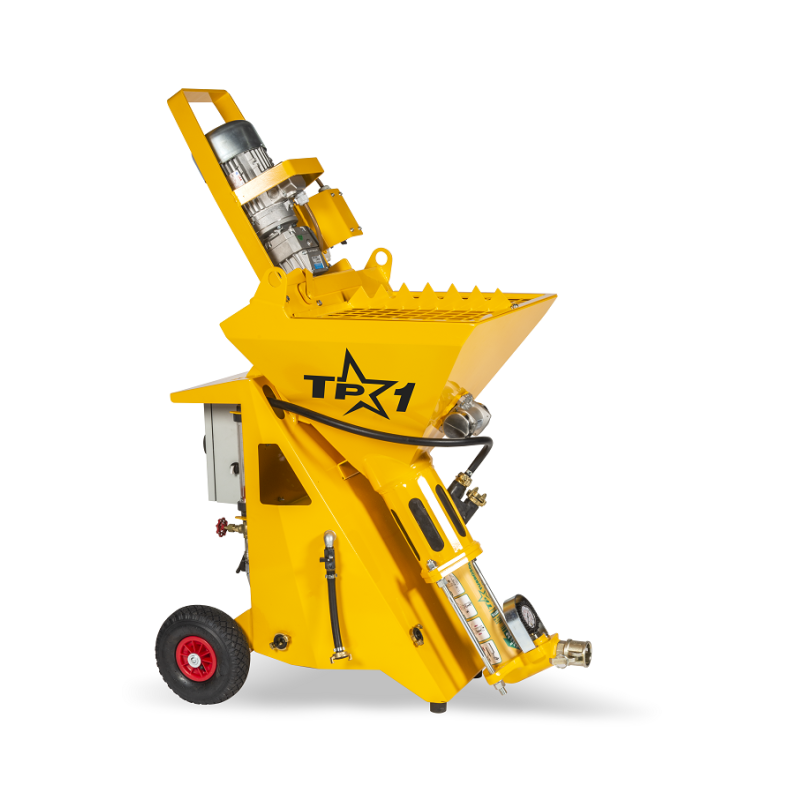

TP1 PLASTER 230V plastering unit - TURBOSOL

A universal, compact plastering machine with a powerful 230 V drive (3 kW main motor), manufactured specifically for pumping, spraying and applying dry mortars suitable for machine application, paste-like materials and many others. Thanks to modern solutions, the machine is lighter than competing solutions and can be disassembled into several modules, which greatly facilitates transport. The machine can work with both dry mortars (machine-applied plasters, self-levelling screeds) and ready-made products, e.g. facade plasters. For ready-made mortars, the machine must be equipped with additional accessories. It is also possible to purchase a machine adapted to both types of application - the PLUS version. Variable pumping capacity is possible thanks to the speed control of the gear motor by an inverter.

Application: gypsum plasters, lime-gypsum plasters, cement-lime plasters, fillers, thin-layer plasters, adhesives, plaster primers, renovation mortars, garage systems, jointing mortars

Advantages:

• versatile use in construction
• possibility of configuring accessories for various tasks
• powerful single-phase motor
• 70 l container with protective net
• water flow meter
• compressor
• water pump
• highly resistant polyurethane mixing chamber
• optimal mixing quality
• device easily dismantled into several parts
• stable modular design
• low weight and compact dimensions
• high feeding capacity
• easy operation, maintenance and cleaning

Technical data:

• Main motor power - 3 kW
• Compressor motor power - 1.1 kW
• External water pump motor power - 0.75 kW
• Power supply - 230 V
• Capacity - 8-26 l/min (MONO-T pump)*
• Max. grain size - 4 mm (MONO-T pump)*
• Pressure - 25 bar (MONO-T pump)*
• 70 l tank
• Maximum delivery distance - 40 m (MONO-T pump)*
• Maximum delivery height - 10-15 m (MONO-T pump)*
• Feeding hose diameter - Ø 25 mm
• Dimensions (L x W x H) – 100 x 68 x 150 cm
• Weight - 133 kg

*The data provided are theoretical and depend on the quality and consistency of the materials used, pump wear, and hose diameter and length. The maximum delivery distance and height cannot be achieved simultaneously.

Basic equipment:

• plastering unit with inverter – smooth capacity control, 230V power supply, powerful motor – 3 kW
• pneumatic wheels
• built-in electric vibrator
• mortar pressure gauge
• 3/4" water hose – 40 m
• plastering gun
• 3x4 mm² power cable – 20 m
• MONO-T screw pump
• 1.1 kW motor compressor

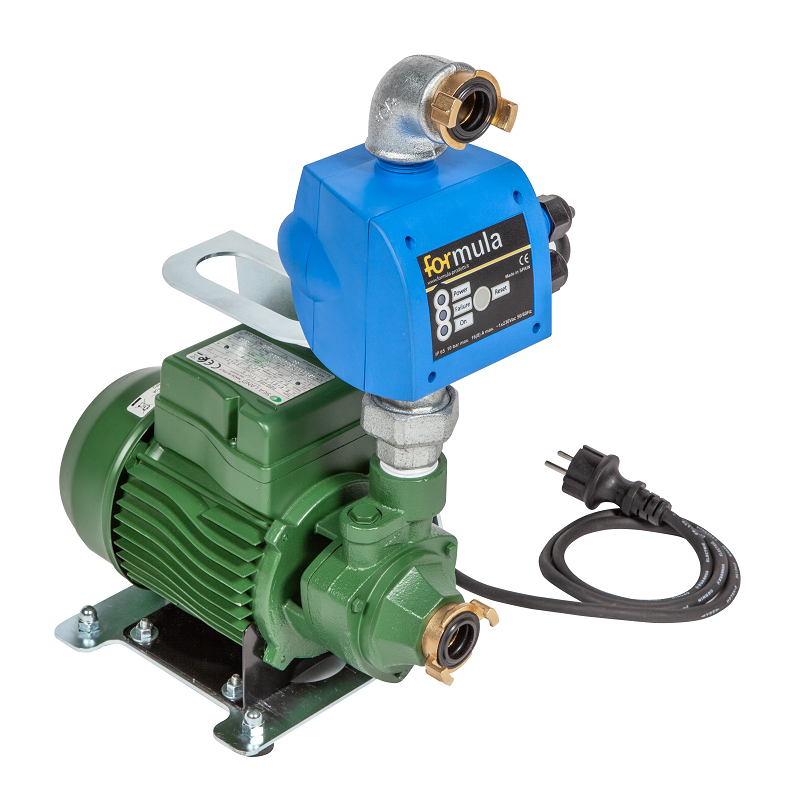

• external water pump with a capacity of 50 l/min – 0.75 kW
• DN25 plastering hose, CAMLOCK connectors – 15 m
• 1/2" air hose – 16 m
• accessory kit
