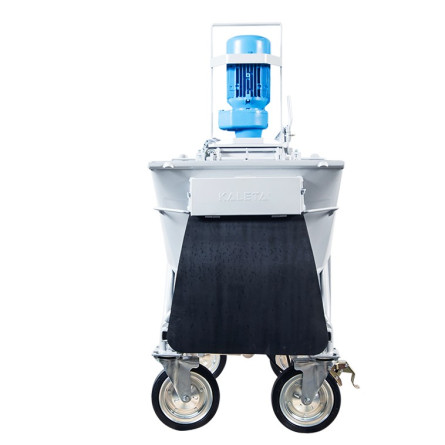

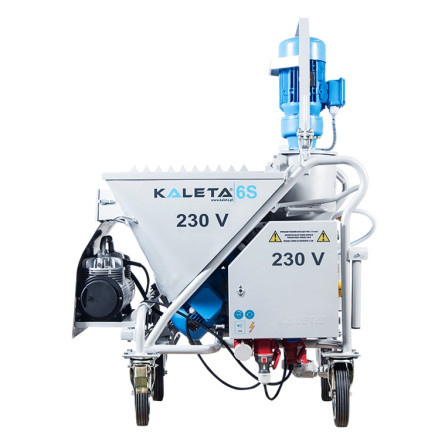

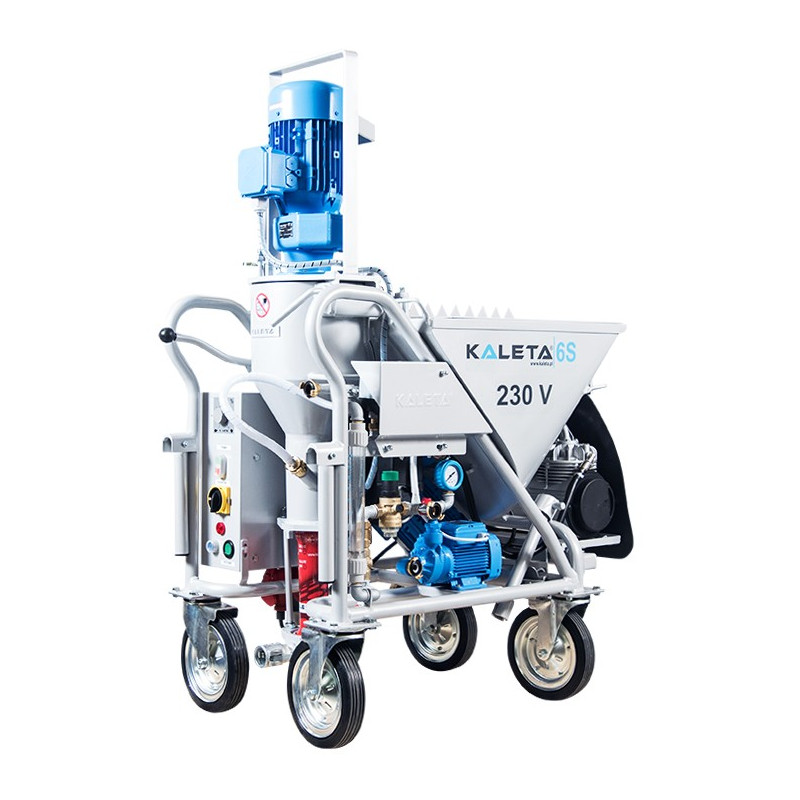

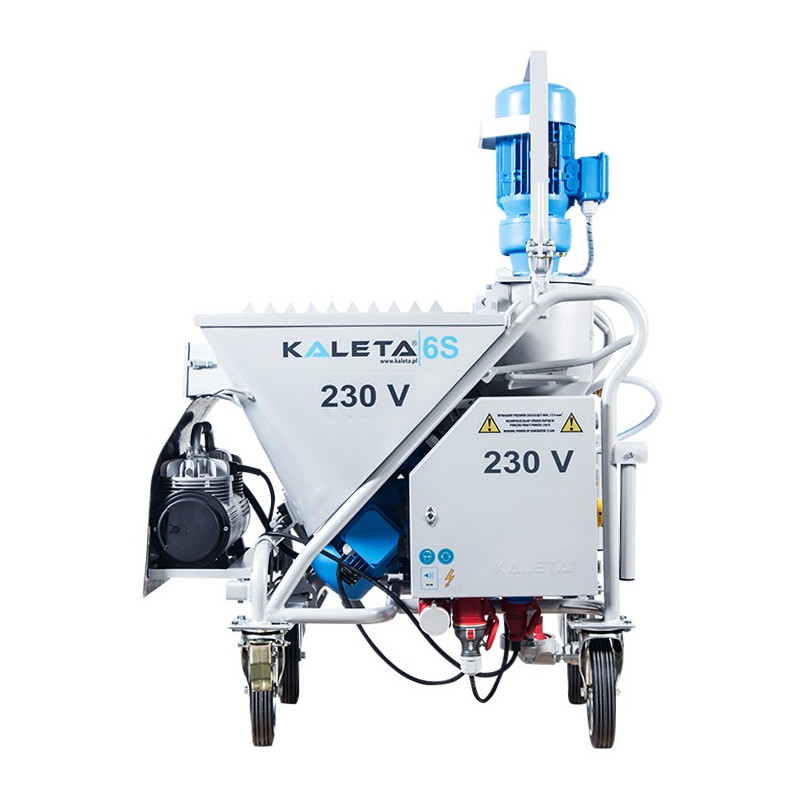

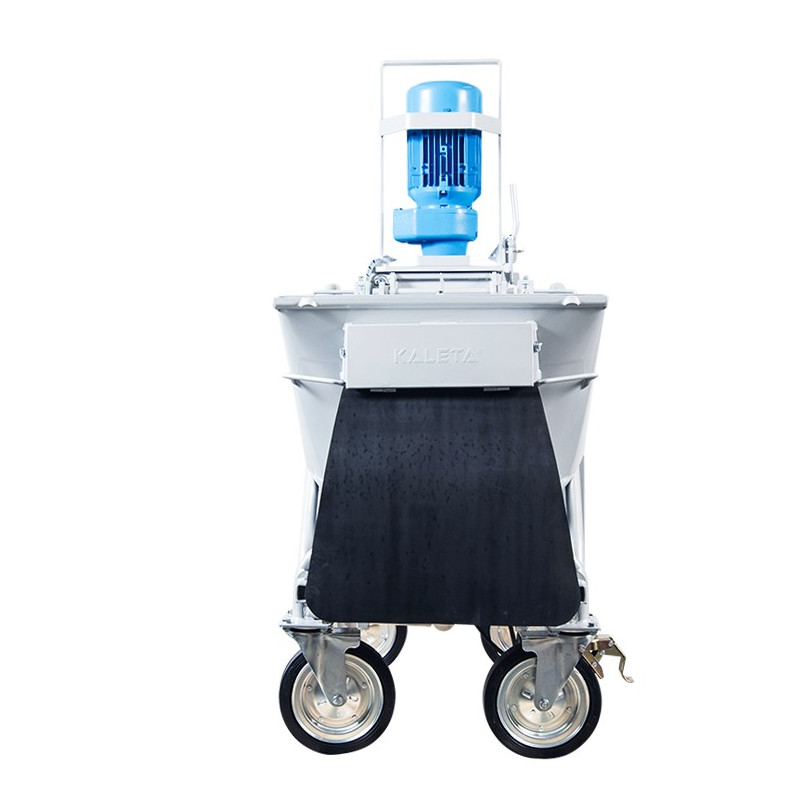

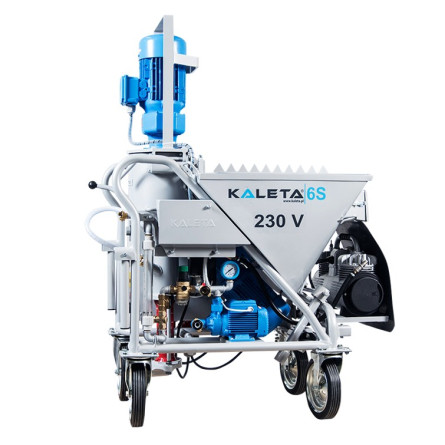

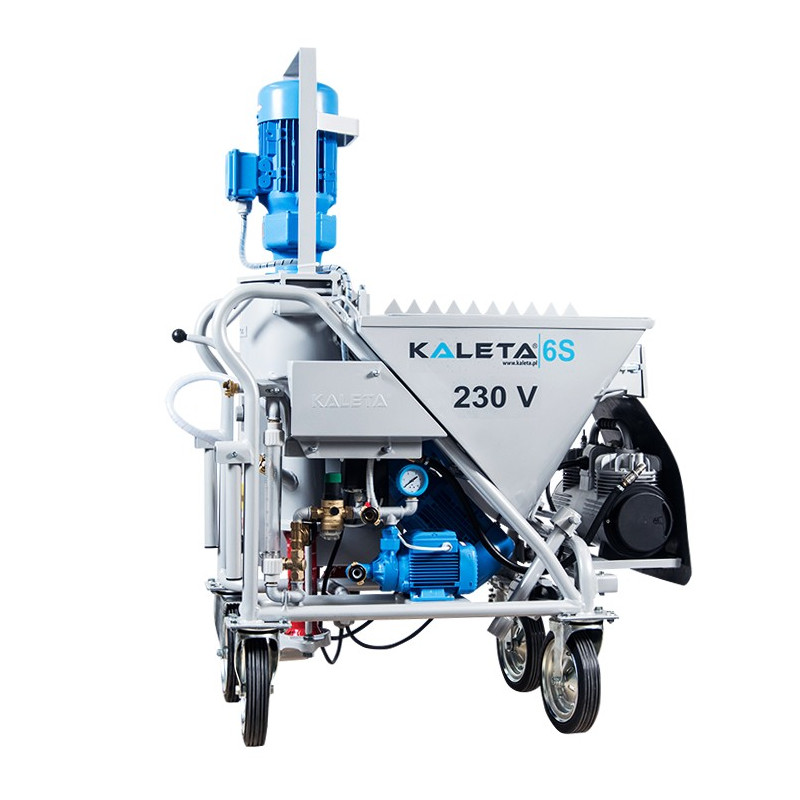

KALETA plastering unit - 6 S/230
In the SUPER version, the unit is equipped with a diaphragm compressor and a Honeywell water reducer.

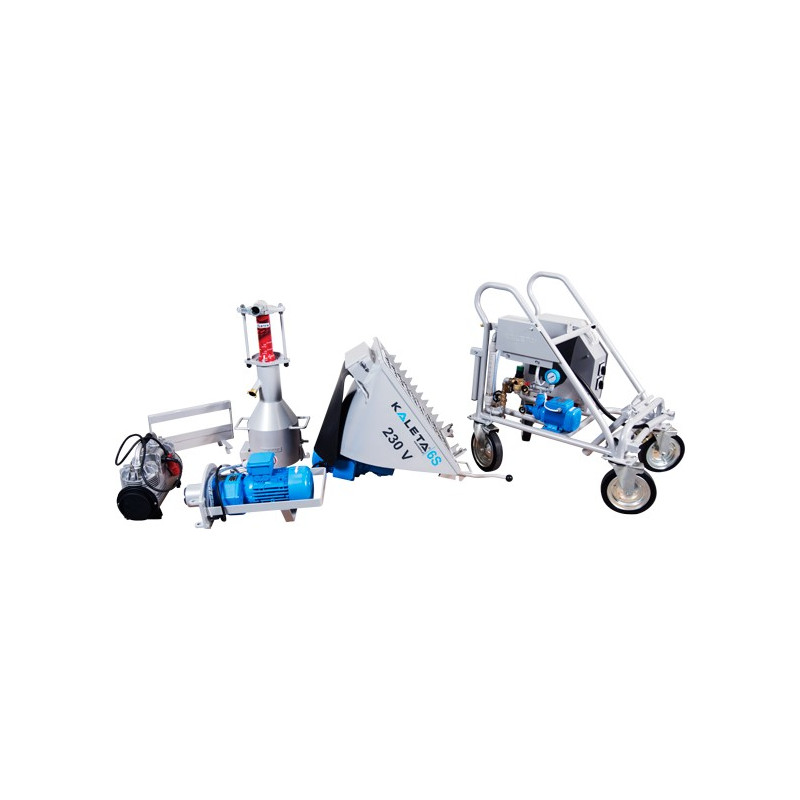

The latest model of plastering machine offered by KALETA. The machine works with a silo, and its capacity and feeding distance depend on the plaster mortar used and the type of pump: D or R. The machine is easy to operate, service and maintain. Its modular design allows for quick disassembly into five components: mixer column with pump, gear motor, feed hopper, support frame with installations, compressor with base. KALETA 6S is a unit with a Kaleta 250 l/min compressor.
APPLICATION:
ready-made mixtures in bags and from silos: gypsum plasters, lime-gypsum plasters, lime-cement plasters, base coats (rough coats), lightweight plasters, special plasters, renovation plasters, self-levelling screeds, liquid screeds, etc.
TECHNICAL CHARACTERISTICS:
- Length 960 mm
- Width 670 mm
- Height 1580 mm
- Filling height 960 mm
- Total weight 250 kg
- Bucket capacity 100 kg
- *capacity 25 l/min
- Max. discharge pressure 30 bar
- *Feed distance up to 20 m
- Pump motor 4 kW/230 V
- Basket motor 1.1 kW/230 V
- KALETA diaphragm compressor 250 l/min
- Water pump 230 V
- Power supply 230 V, 50 Hz
EQUIPMENT:
- Spray gun 1 pc.
- Mortar delivery hose 1x10m
- Air hose 1x10m
- Screw pump D6-3 FIT 1 pc.
- Mixer 1 pc.
- Cleaner with connector 1 pc.
- Screw wrench 1 pc.
- Gun nozzle 3 pcs.
- Flat wrench 1 pc.
- Gun cleaner 1 pc.
- Cleaning ball 1 pc.
- G/K connector 2 pcs.
- DTR 1 pc.
*performance and feeding distance depend on the type of plaster mortar and screw pump
