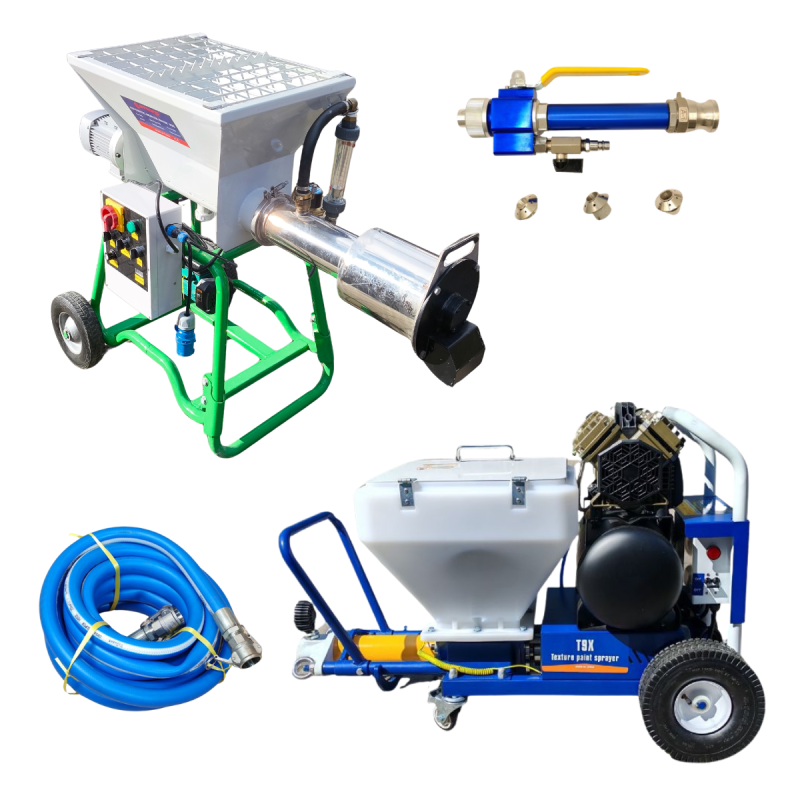

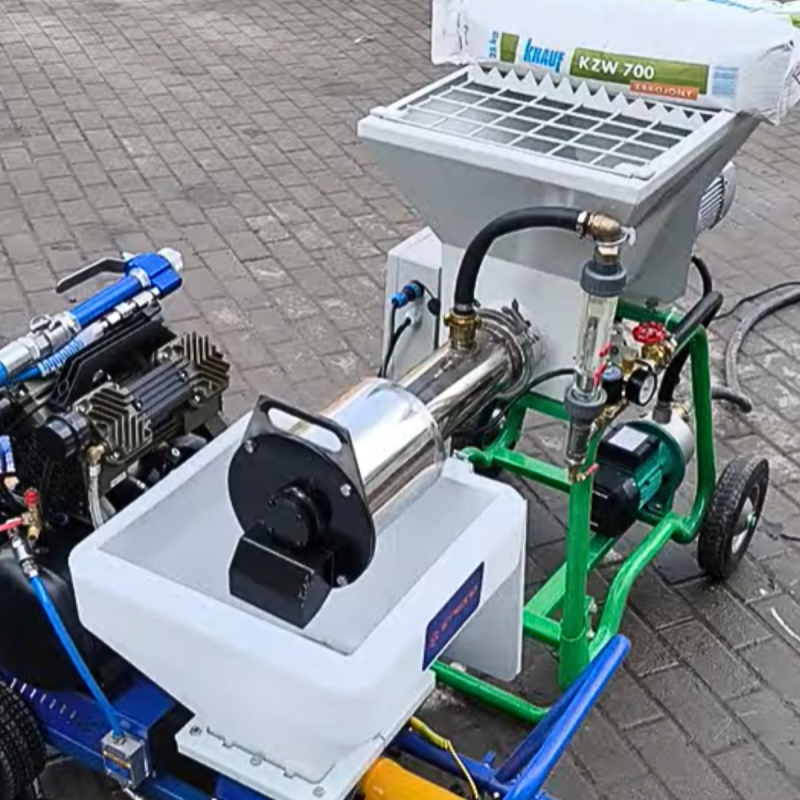

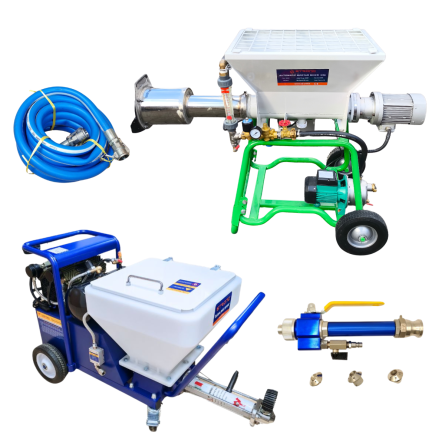

SET DP-T9X Plastering Unit + N35 230V Flow Mixer Strong-Tech

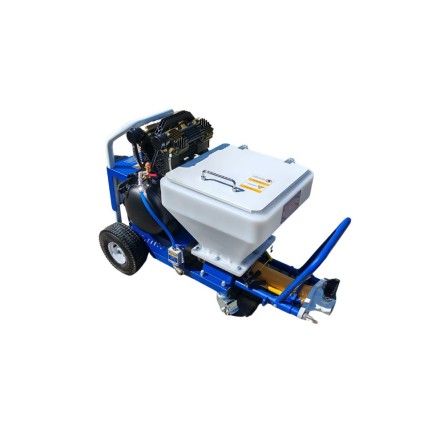

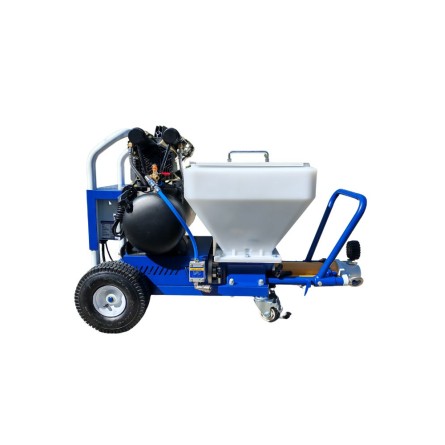

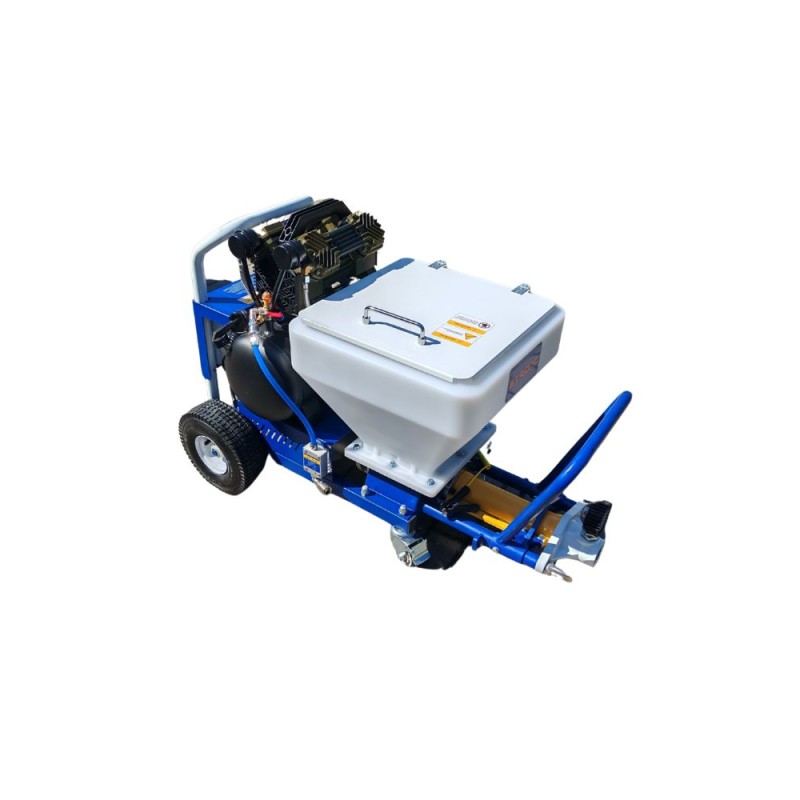

DP-T9X Plastering Machine for Facades - Strong-Tech

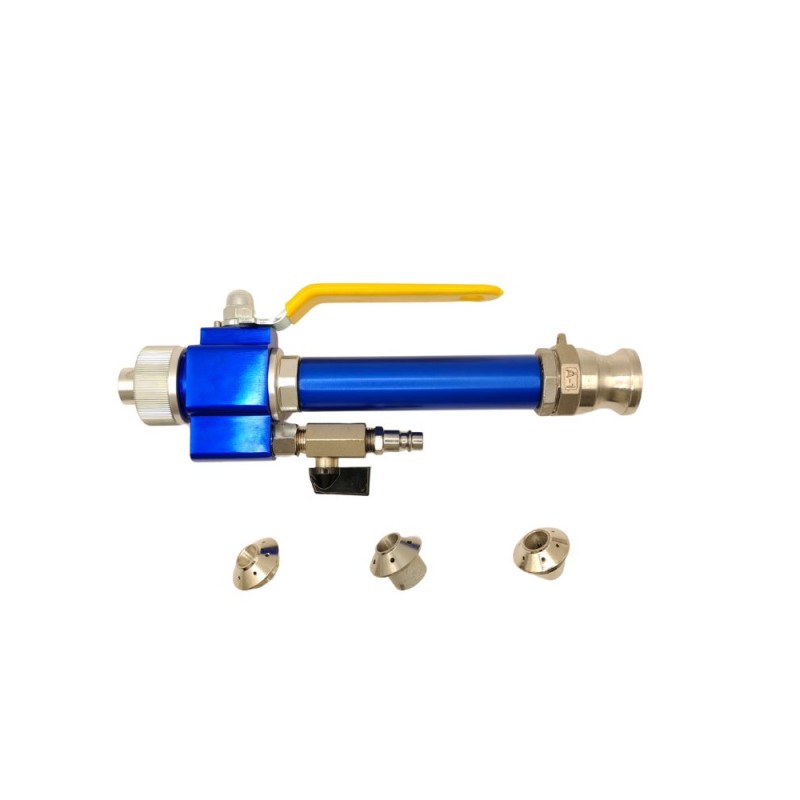

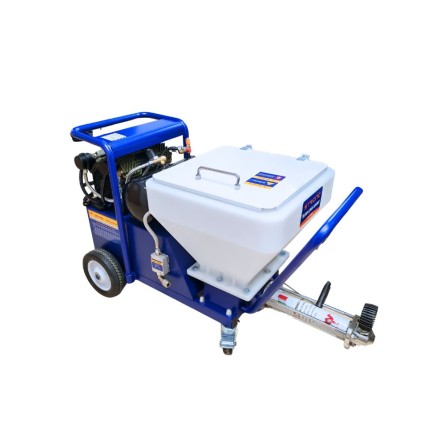

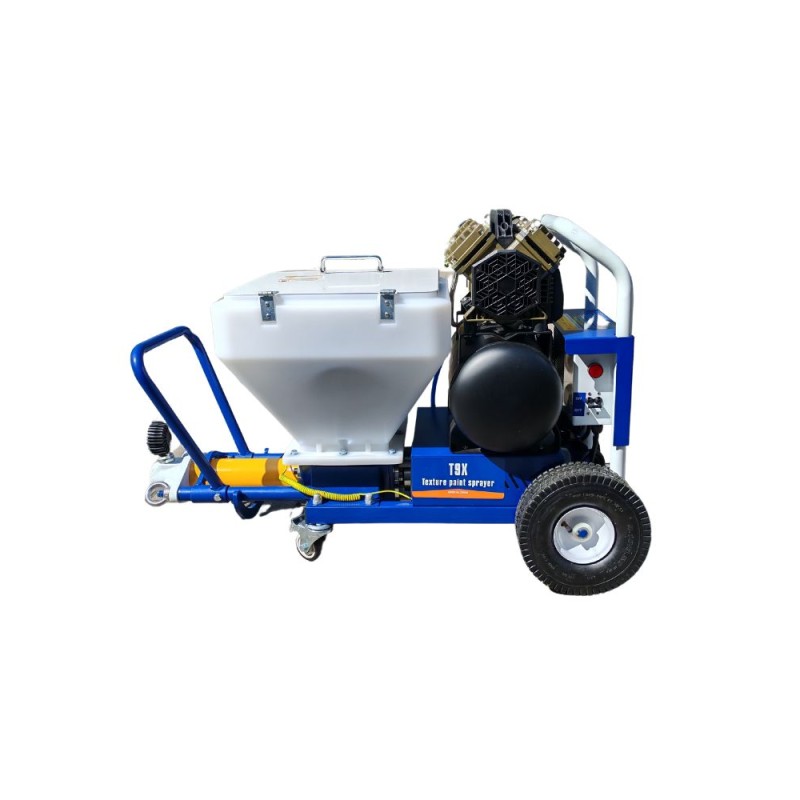

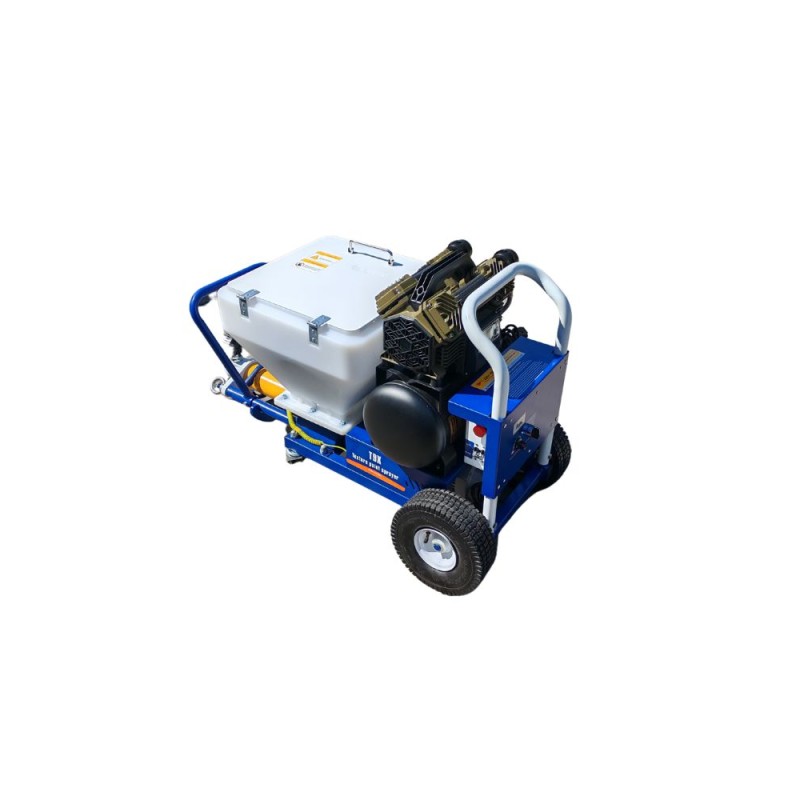

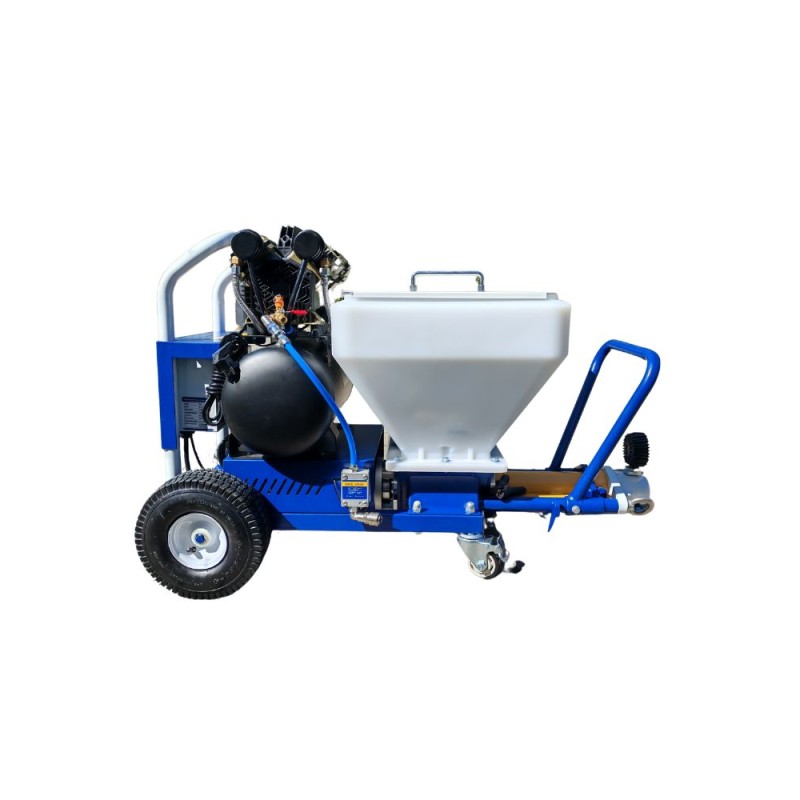

The DP-T9X Plastering Unit for Facades - Strong-Tech is the most efficient plastering unit in the series. The device is made of the highest quality components, ensuring high performance and low operating costs. The unit has a built-in compressor with a capacity of 250 l/min. A wide range of accessories is available for the device, which allow you to expand its range of applications.

Application:

• PCC/SPCC mortars
• gypsum and acrylic fillers,
• garage systems,
• adhesives for polystyrene,
• textured plasters,
• emulsion and textured paints,
• acoustic plasters,
• thin-layer plasters,
• renovation plasters,
• grouting mortars,
• fireproof mortars,
• bituminous compounds,
• primers.

Technical data:

• Main motor power - 3200 W
• Compressor motor power - 1500 W
• Power supply - 230V / 50 Hz
• Capacity - 1 - 22 l/min
• Tank capacity - 45 l
• Total weight - 96 kg
• Compressor weight - 19 kg
• Max. pressure - 30 bar
• Max. delivery height - 20 m
• Max. delivery distance - 40 m
• Maximum grain size - 4 mm.

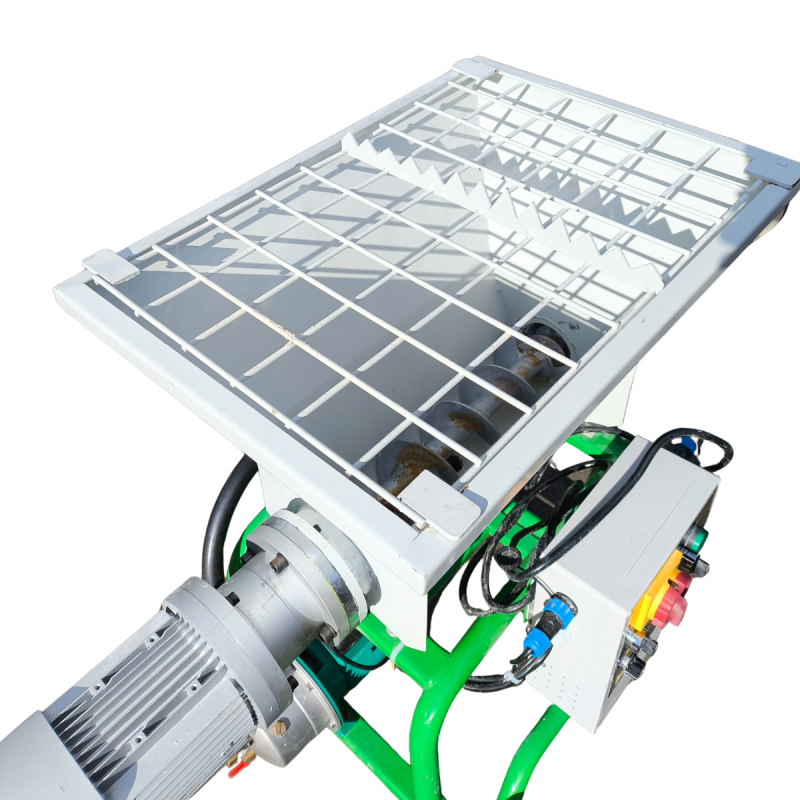

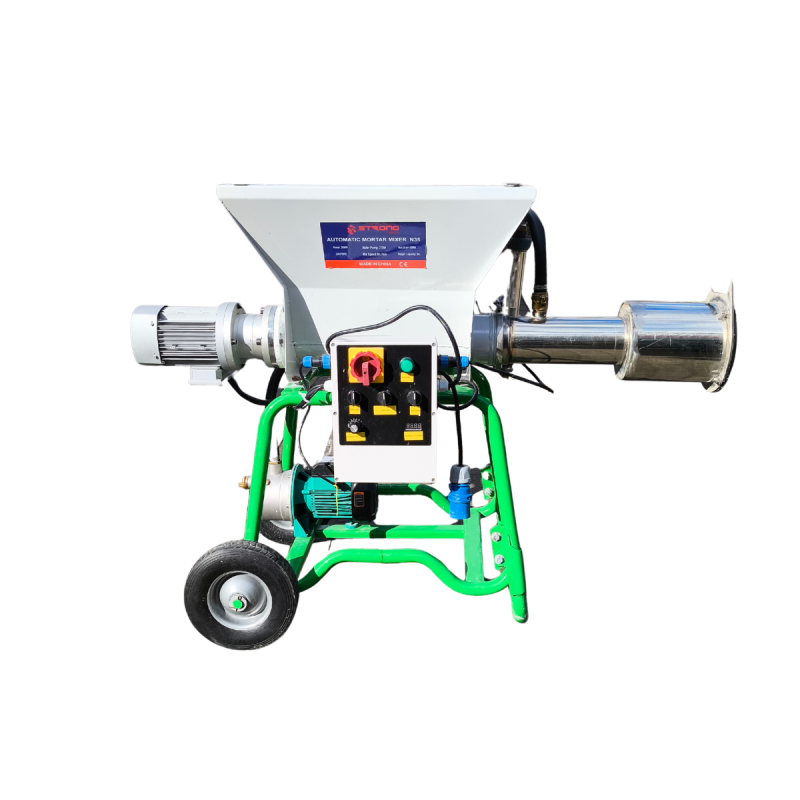

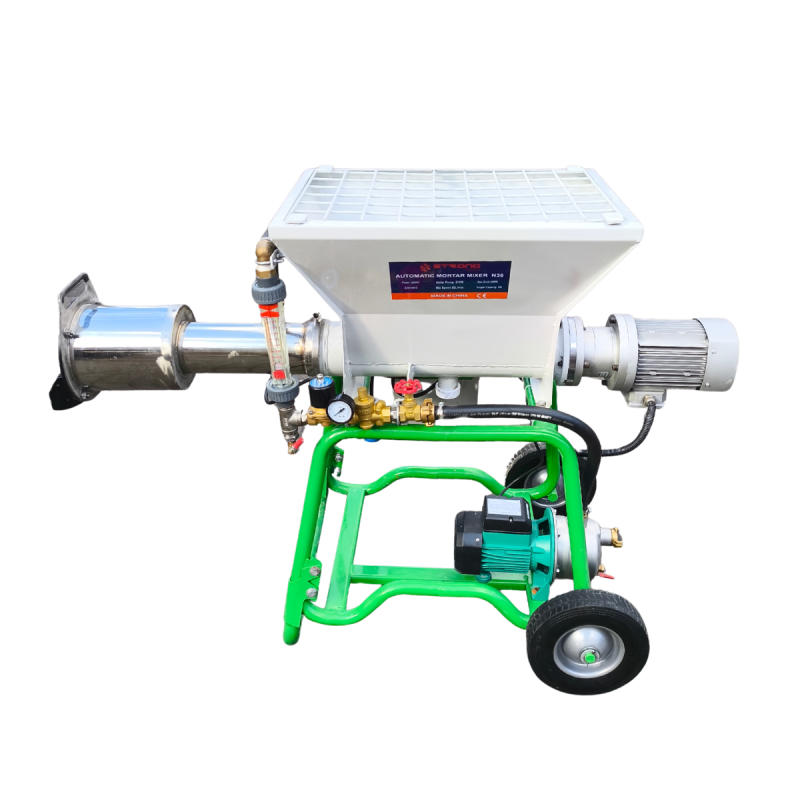

Strong-Tech N35 flow mixer

Strong-Tech N35 is an efficient flow mixer designed for quick preparation and feeding of mortars, finishing coats and fillers. Thanks to its continuous mixing system, it ensures perfect consistency of the material and stable operation of spray units and injection pumps.

Key advantages

• Automatic water filling – the automatic dosing function eliminates the risk of incorrect proportions.
• Fast and even mixing – mixing speed of up to 50 l/min ensures perfect consistency of the mixture.
• Intuitive operation – quick start/stop and easy parameter adjustment.
• Versatile applications – ideal for materials of varying viscosity: plasters, mortars, gypsum and finishing coats.

Application

The Strong-Tech N35 mixer is designed for preparing mixtures with a grain size of up to 5 mm, including:

• plaster and adhesive mortars,
• gypsum and cement-lime compounds,
• adhesive mixtures,
• cement and insulating plasters,
• screeds,
• mortars for ceramic tiles and joints.

Technical data:

Power supply

220 V / 50Hz

Mixer motor

3000W

Water pump motor

370W

Working capacity

up to 50 L/min

Tank capacity

50 L

Filling height

90 cm

Outlet height

70 cm

Gross weight

95 kg

Dimensions (L×W×H)

120 × 65 × 95 cm
