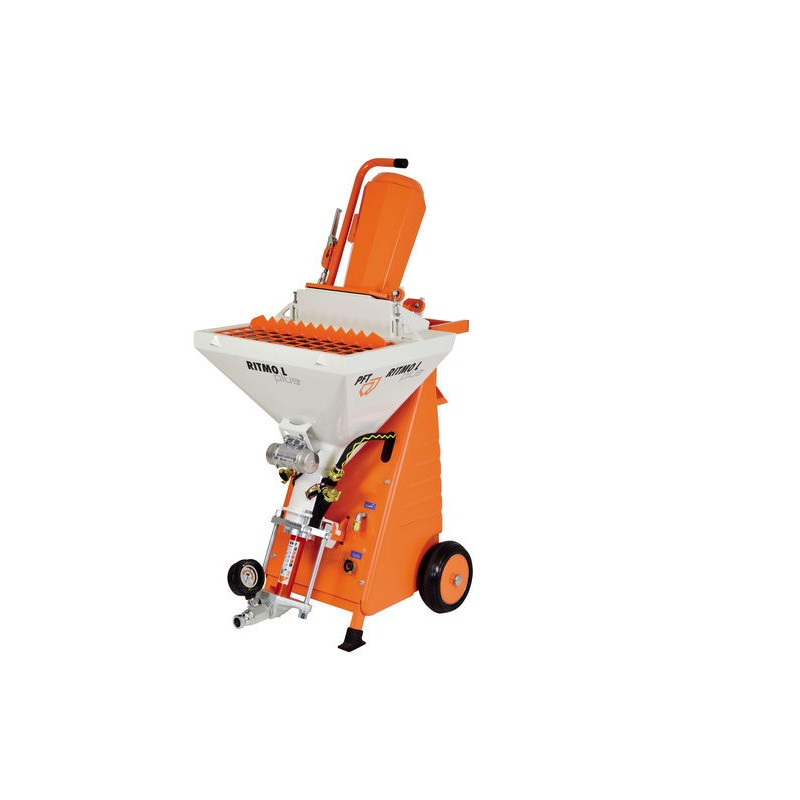

RITMO L FC-230V plus plastering unit - B4-2

This mobile plastering machine, operated by a single worker and powered by 230 V AC, is now equipped with a powerful 2.2 kW drive. It is used for spraying and applying spray plasters, dispersion paints and many other materials with a grain size of up to 3 mm.

The high-performance drive allows maximum utilisation of the single-phase mains power. This enables the application of many building materials - including even exterior plasters - using hoses up to 20 metres long.

Application:

• External plasters
• Top coats
• Fillers
• Levelling compounds
• Liquid fillers
• Mortars for door frames
• Full thermal insulation
• Dispersion paints
• Betokontakt
• Renovation mortars

Advantages:

• Comes complete with compressor, hoses and spray gun – just connect and get to work
• With external vibrator installed

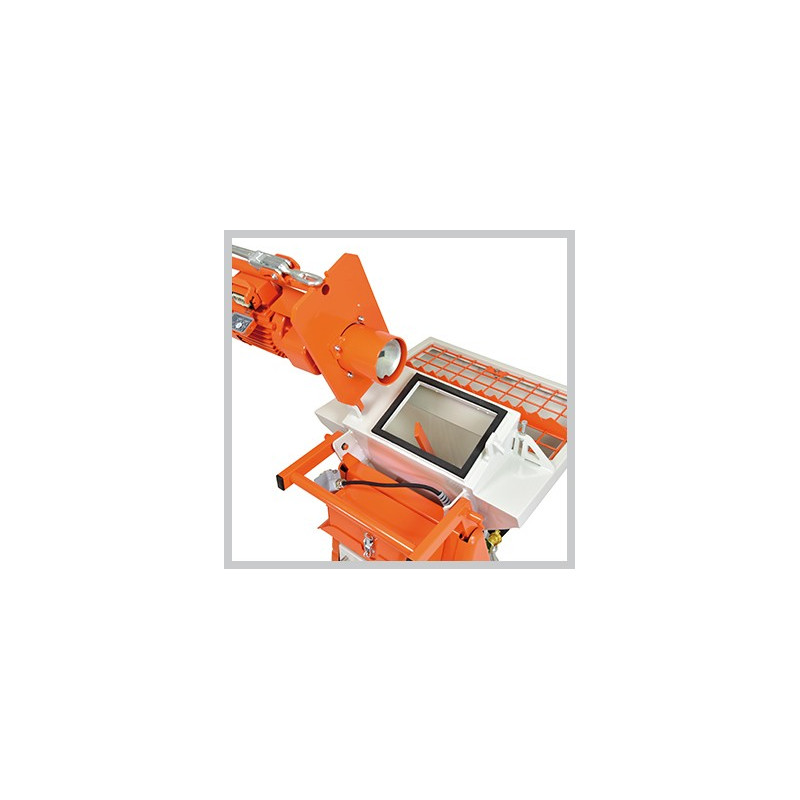

• With a tried and tested rubber mixing zone

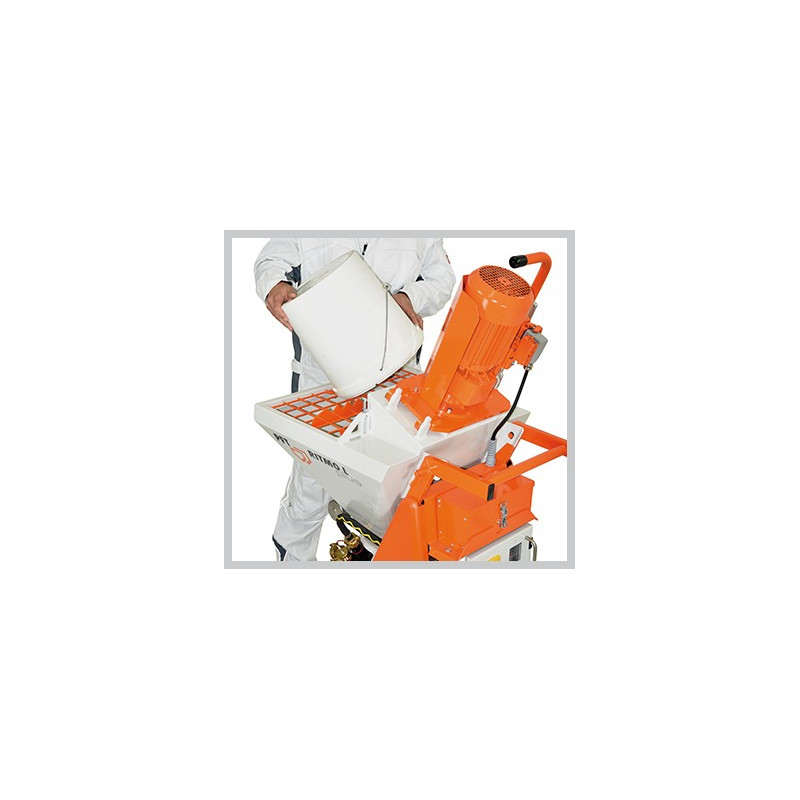

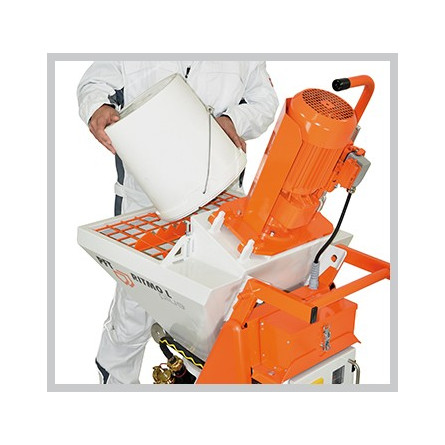

• Can be loaded from a bucket or bag and used as a plastering unit or pump
• Easy to operate during start-up, changeover, maintenance and cleaning

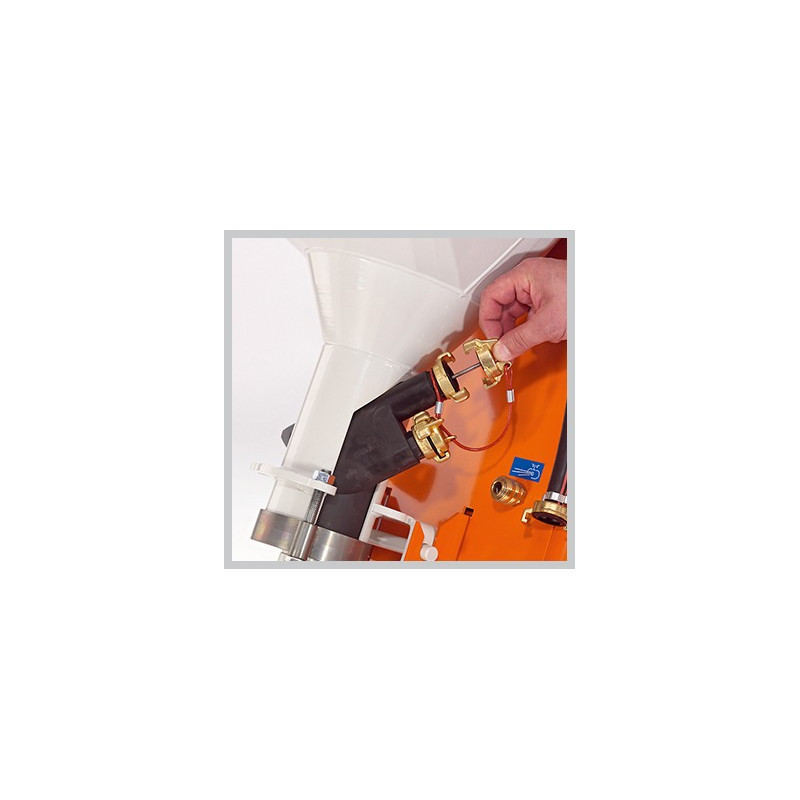

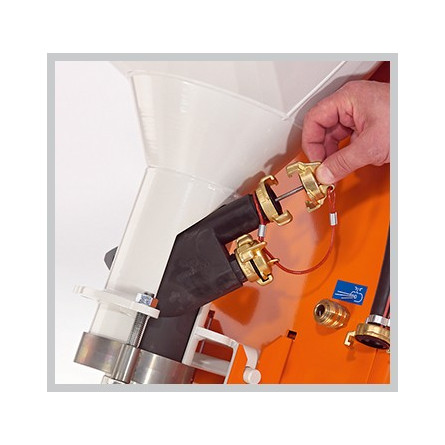

• Flexible mixing intensity thanks to two water supply points
• Steplessly adjustable drive – precise adjustment of feed and mixing performance

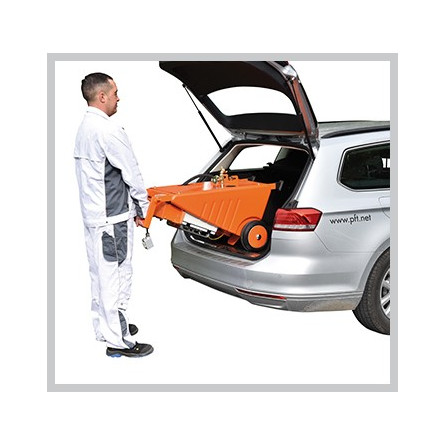

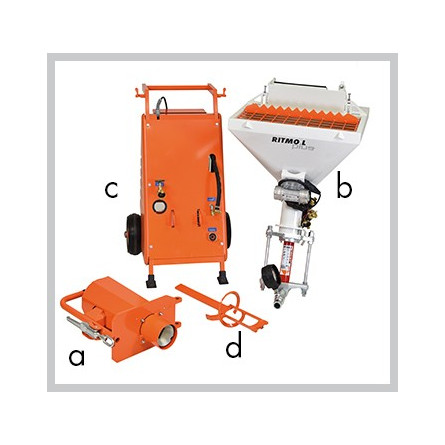

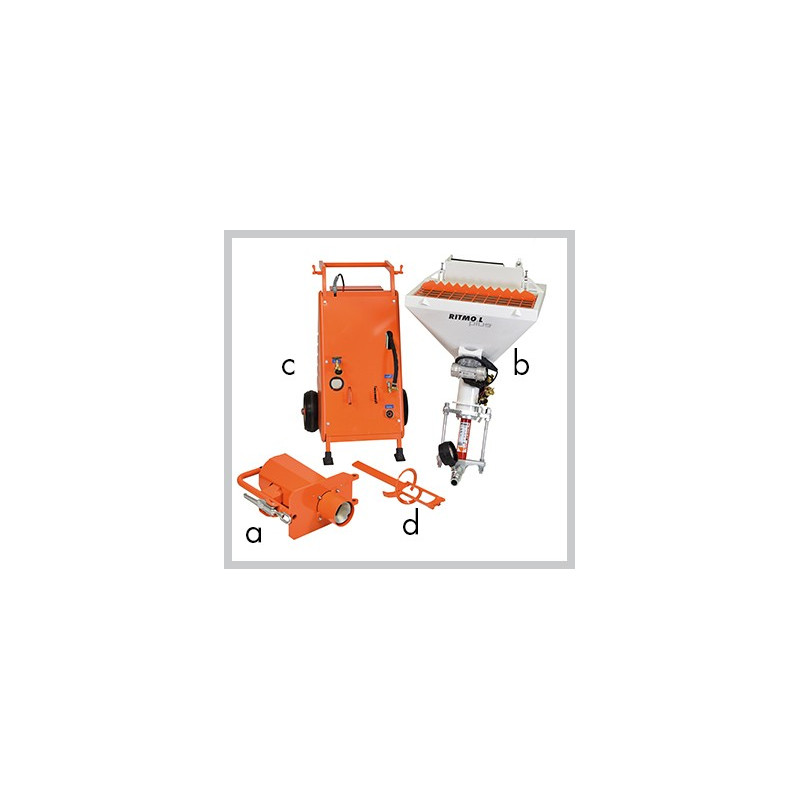

• Small, lightweight, handy and compact device on wheels – can be divided into three modules.

Technical parameters:

• Drive: 2.2 kW control cabinet with integrated frequency converter, 69 - 492 rpm
• Connection data: 230 V, 50 Hz
• Water connection: 1/2 hose
• Protection: 16A
• Rotor/Stator: B4-2
• Pump capacity: 1.5–14 l/min
• Grain size: 3 mm
• Working pressure: max. 20 bar
• Feeding distance: plaster mortars up to 20 m, screed adhesives up to 40 m

Dimensions:

• Filling height: 930 mm
• Hopper capacity: 45 l
• Length: 750 mm
• Width: 600 mm
• Height: 1430 mm
• Total weight: 125 kg

Basic equipment package:

• Pump unit: B 4-2 wf 14 l/min 20 bar
• Mortar hose: RONDO DN25 - 5 m, RONDO DN25 - 15 m
• Trailed vibrator: AM3-0.44 - 1.2 m, 230 V, 1 phase, 50 Hz

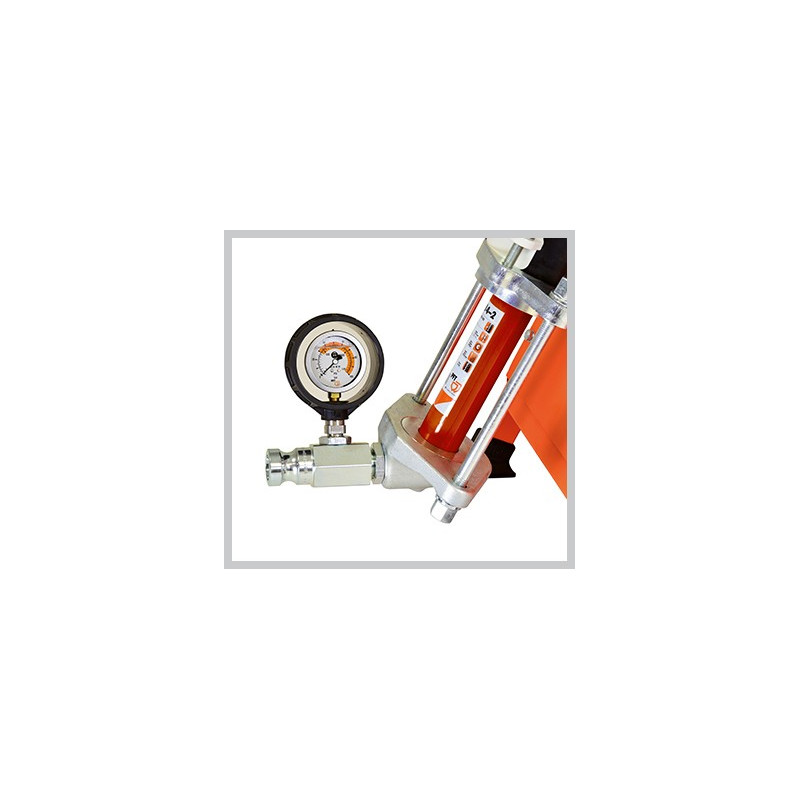

• Water meter: 100 - 1000 l/h
• Air compressor: COMP R-80, 230V, 1 Ph, 50 Hz, 0.35 kW, 80 l/min - max 1.8 bar with pressure shut-off
• Spray lance for fine-grained plastering: DN25-360 ° S10 200 Ewo
• Power cable: 3 x 2.5 mm², BLU 3-16 A | BLU 2-16A - 25m
• Water/air hose: DN9 (3/8") Ewo | Ewo - 5 m, DN9 (3/8") Ewo | Ewo 16 m, DN12 (1/2") Geka | Geka - 11 m

Warranty: 12 months

Manufacturer: PFT

Cat. no.: 00659504
