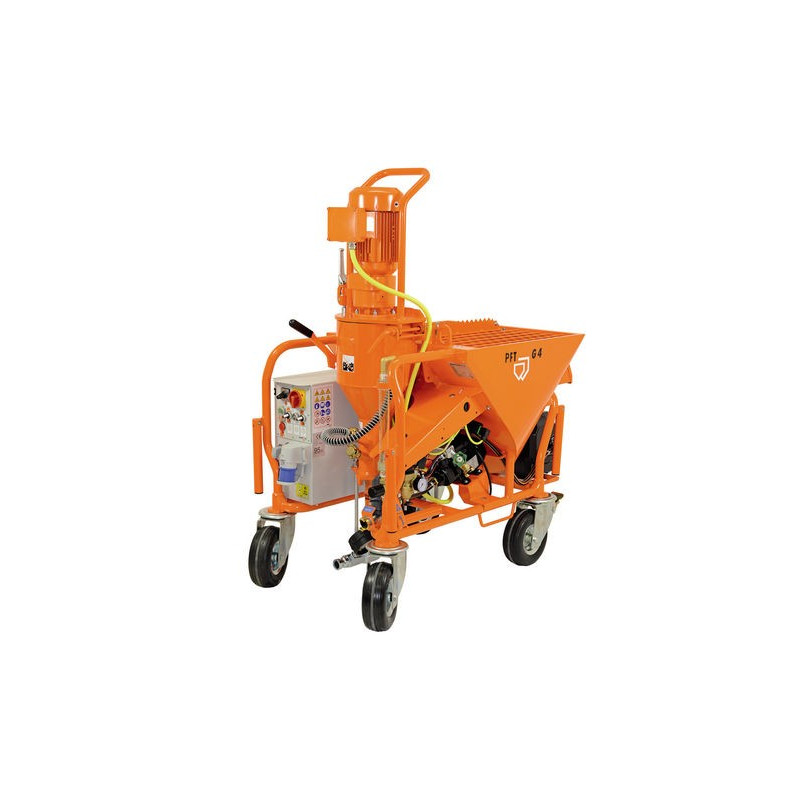

The PFT G 4 is a continuous-operation plastering machine designed for processing factory-made, dry, machine-mixed mortars. The device can be filled with material either from bags or directly from a silo or container using a feed cover or blow cover and a PFT SILOMAT. The FC-230V version is particularly recommended for use in the renovation and refurbishment sector, when working with low current.
zł29,186.99 tax excl.
zł35,900.00 tax incl.
Available quantity: 0
Have a question about a product?
"
>"
>71 321 07 95 – technical advice and service since 2008.
>Call:
Secure payments
🔒 Przelewy24 online payments
Shipment
Order by 12:00 – Your product will be shipped the same day
The PFT G 4 is a continuous-duty plastering machine designed for processing factory-made, dry, machine-mixed mortars. The machine can be filled with material either from bags or directly from a silo or container using a feed cover or blow cover and the PFT SILOMAT. The FC-230V version is particularly recommended for use in the renovation and refurbishment sector, when working with low current.
Advantages:
Easy cleaning - mixing zone made of rubber with replaceable D and R pump flanges
Rubber mixing zone
New reinforced unit frame and sturdy wheels
Special handles for lifting with a forklift and a lifting eye
Large control cabinet, well protected against dust and moisture
New large full-size water filter
Mixing pipe lock allowing it to be locked in several positions for easier transport
Possibility of direct filling of the unit with plaster from a silo via a PFT silo
Possibility of filling the unit with plaster from a bag
Four convenient handles for safe transport of the unit
All water and air fittings are easily accessible
Mixing pipe without replaceable flange for D-type pumps
Flexible mixing intensity thanks to two water inlets
Frequency converter (FC) for stepless speed control
Technical parameters:
Maximum capacity: 35 L/min.
Pressure: max. 30 bar.
Feed distance: 15 m with DN25
Drive: pump motor - 4 kW, approx. 400 rpm
Dispenser motor: 0.3 kW, approx. 12 rpm
Water supply pressure: 2.5 bar when the device is running
Mortar tank capacity: 145 litres ~ 5 bags (30 kg)
Filling height: 910 mm
Total length: 1200 mm
Width: 720 mm
Height: 1530 mm
Total weight: 287 kg
Warranty: 12 months
Manufacturer: PFT
Basic equipment package:
Pump unit: SD 6-3 slimline 20 l/min 25 bar
Mortar hose: RONDO DN25 – 10 m
Adapter connector: female part DN35 | Female part DN25
Water pump for pressure boosting: AVO 500 - 230 V, 1 Ph, 50 Hz, 0.37 kW
Water meter: 150 - 1500 l/h
Air compressor: COMP P-200, 230V, 1 Ph, 50 Hz, 0.5 kW, 200 l/min - max 3.4 bar with pressure shut-off
Connection cable: 3 x 4 mm², BLU 3-32 A - 25 m Adapter cable BLU 3-32 A - 25 m | BLU 2-16A - 1m²
Water/air hose: DN12 (1/2") Ewo | Geka - 11 m
Warranty: 12 months
Cat. no.: 00268143
