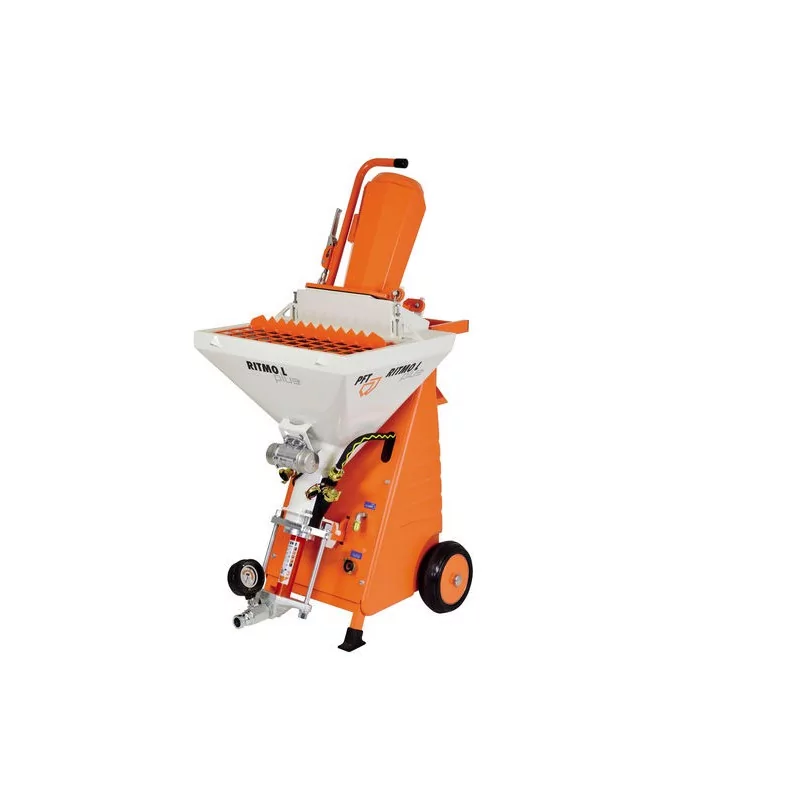

PFT RITMO L FC-230V plus POWERCOAT plastering machine

Machine-based plaster application systems have revolutionised the way interior finishing work is carried out.

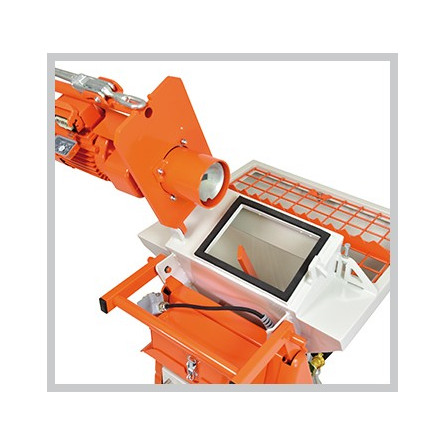

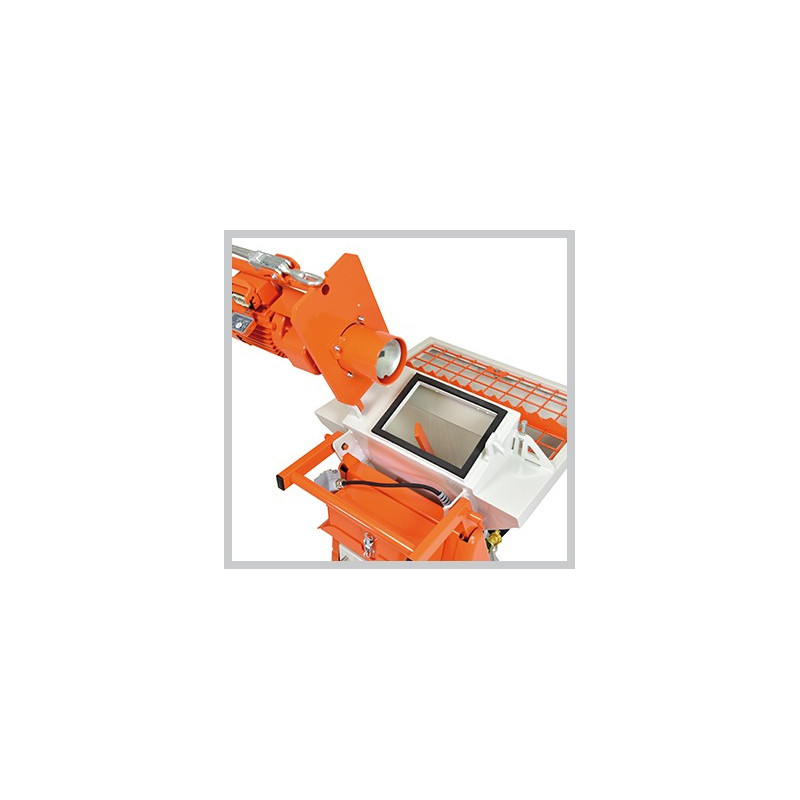

This tried and tested plastering machine, equipped with a revolutionary solution in the form of an additional stainless steel and rubber mixer, enables, for the first time, the machine-based and thorough grinding of lumps, thus producing a homogeneous, thin-layer plaster that is ideal for spraying. Until now, this type of material had to be mixed manually with a paint scraper, which involved a considerable amount of work.

Areas of application:

• Filling large areas of interior walls constructed using drywall technology and concrete walls
• Filling primed raw ceilings
• Filling walls with fine-grained filler
• Levelling filling to prepare the surface for the application of high-quality paint coatings

Advantages:

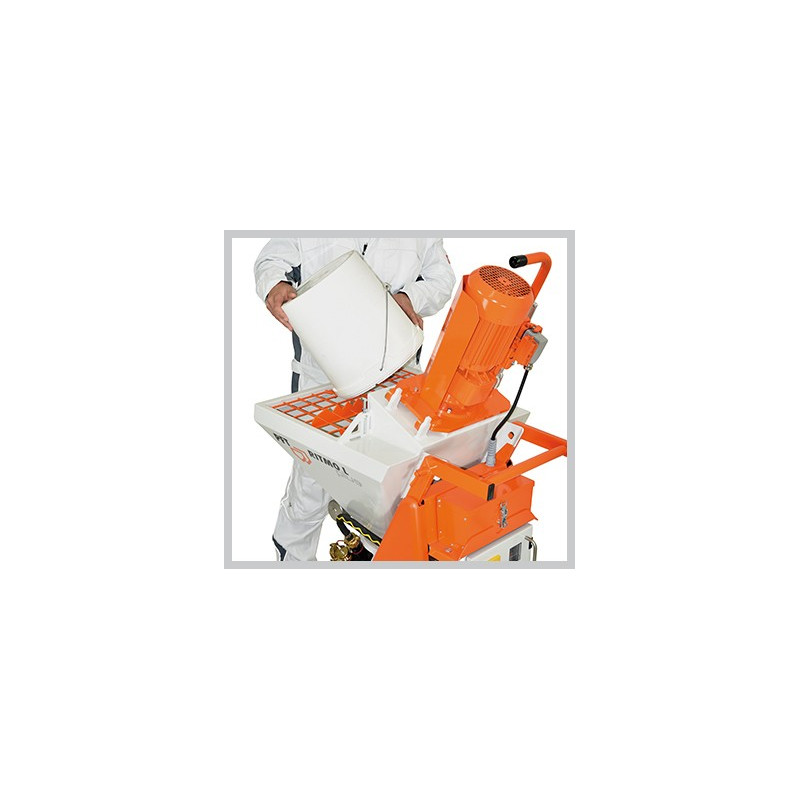

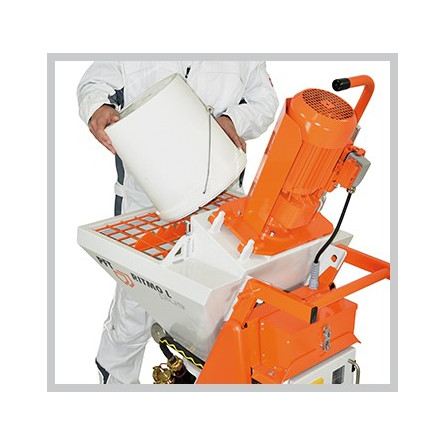

• The practical bag opener and low filling level allow for quick opening and complete emptying of material bags.
• The infinitely variable drive allows the amount of material fed and the mixing time to be adjusted. The flexible addition of water via a nozzle allows a wide variety of materials to be processed.

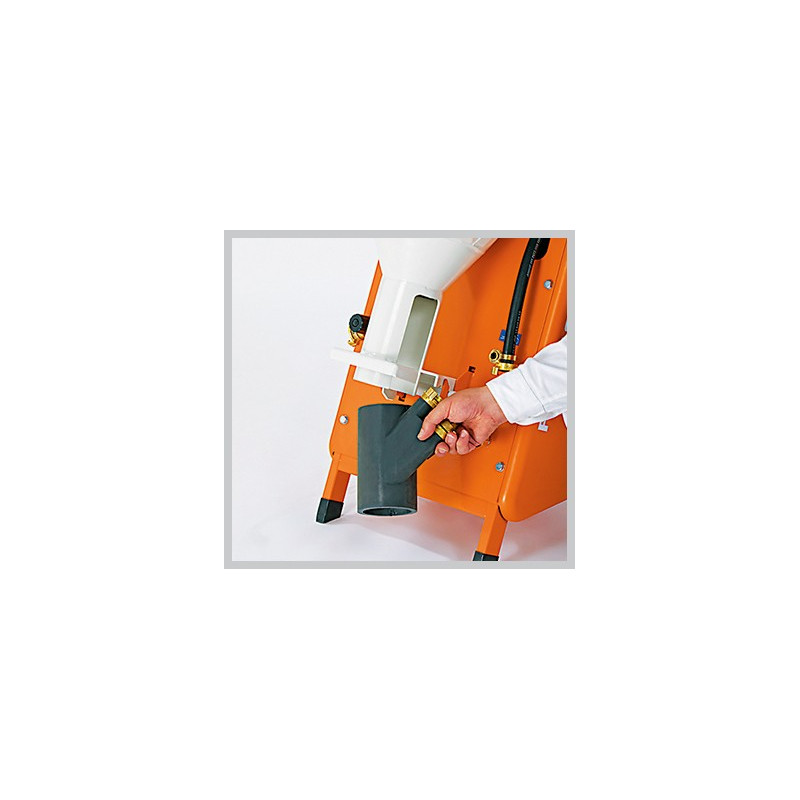

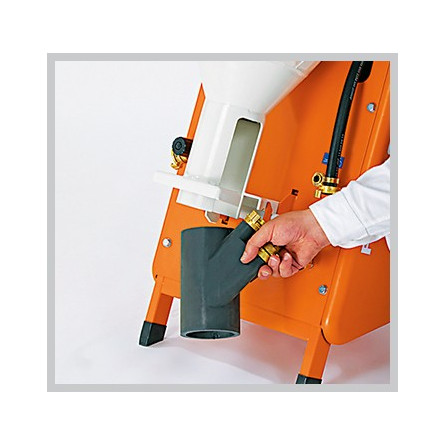

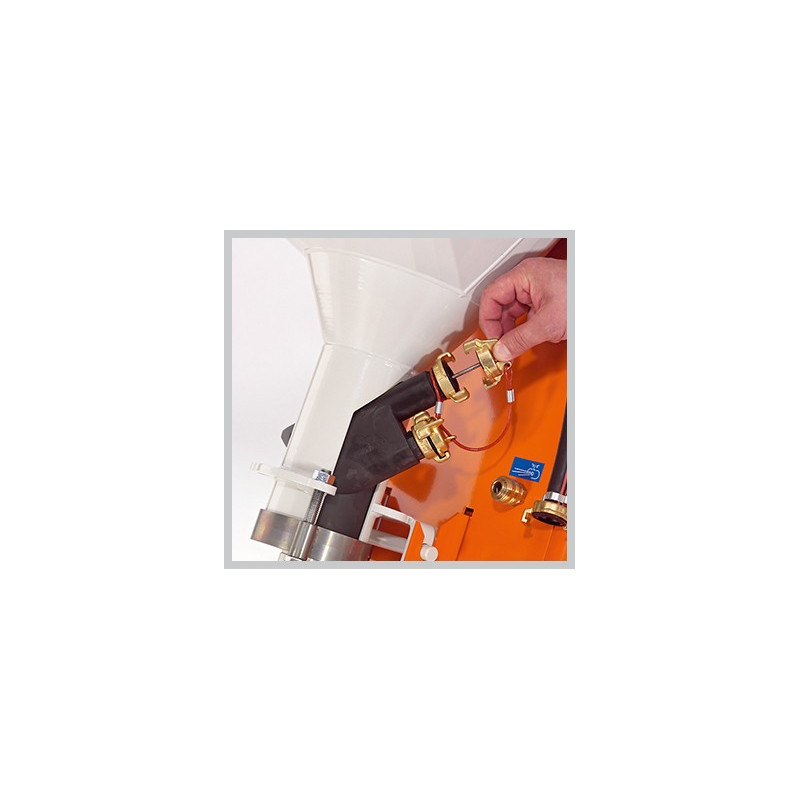

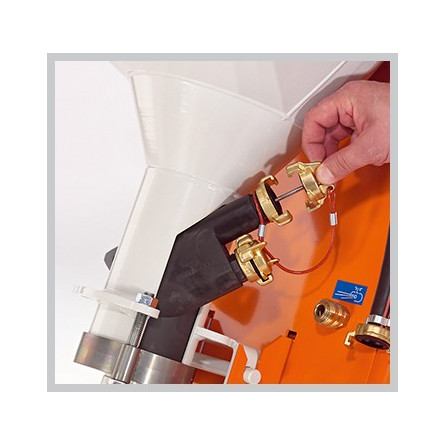

• Easy, simple and quick cleaning of individual device modules. Even if caking occurs in the rubberised mixing zone, it can be removed quickly and easily.

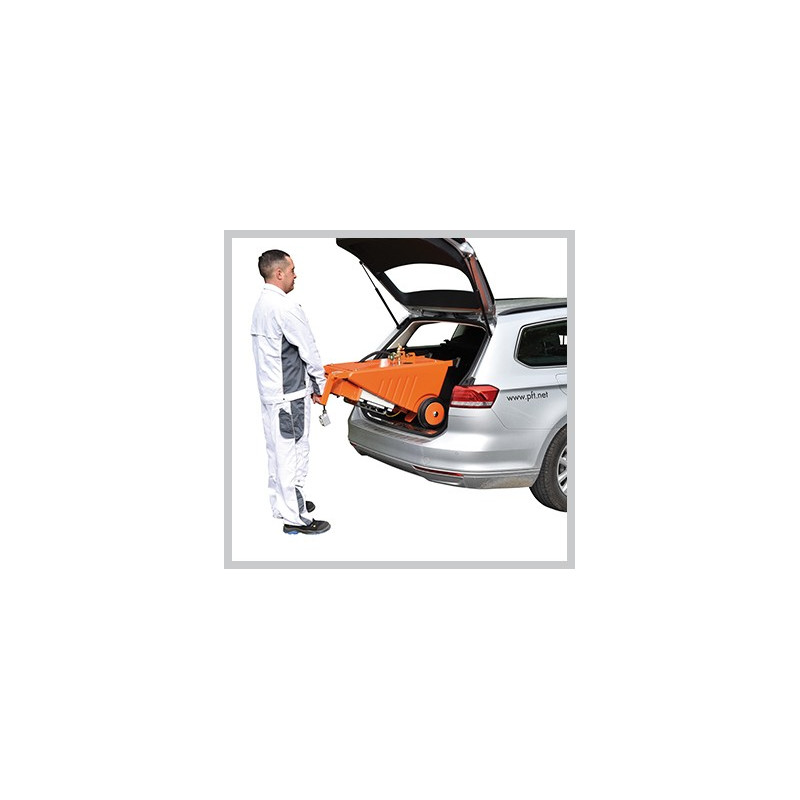

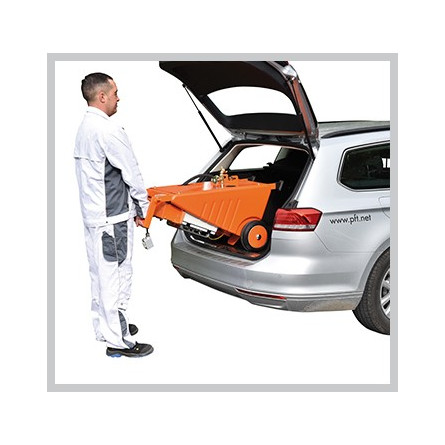

• The device fits into any estate car.

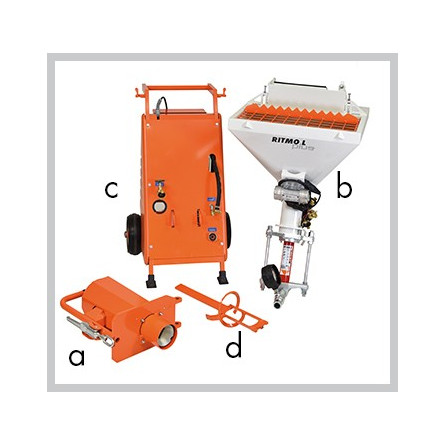

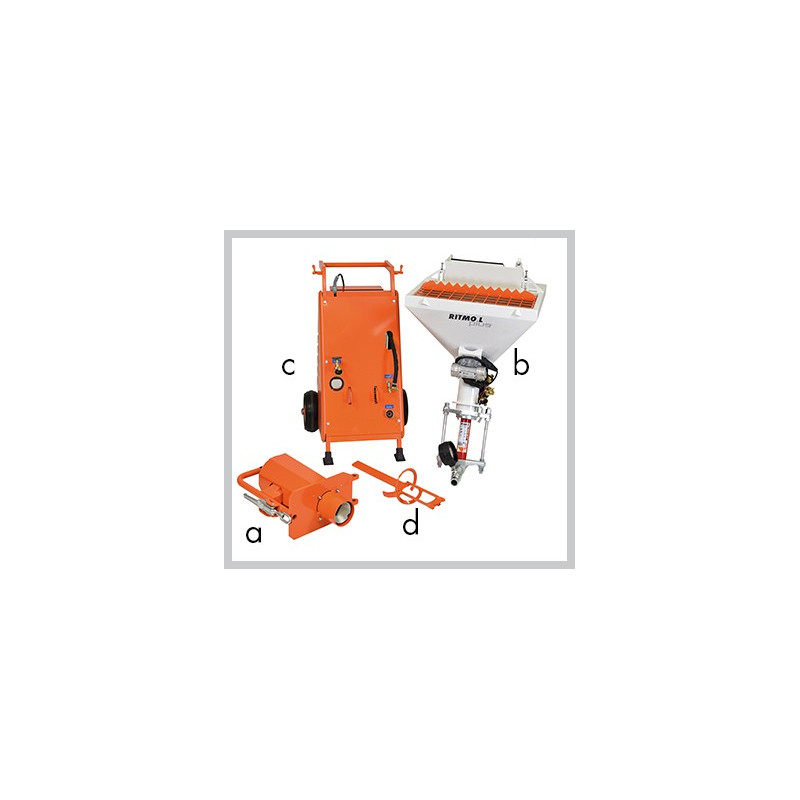

• The device consists of individual portable modules; no tools are required to disassemble the device into individual modules, and thanks to the small and handy dimensions and low weight of the individual modules, convenient and easy transport is guaranteed.

Technical parameters:

• Drive: 2.2 kW control cabinet with integrated frequency converter, 69 - 492 rpm
• Connection data: 230 V, 50 Hz
• Water connection: 1/2" hose
• Protection: 16 A
• Rotor/Stator: A2-2.5
• Pump capacity: 3 l/min

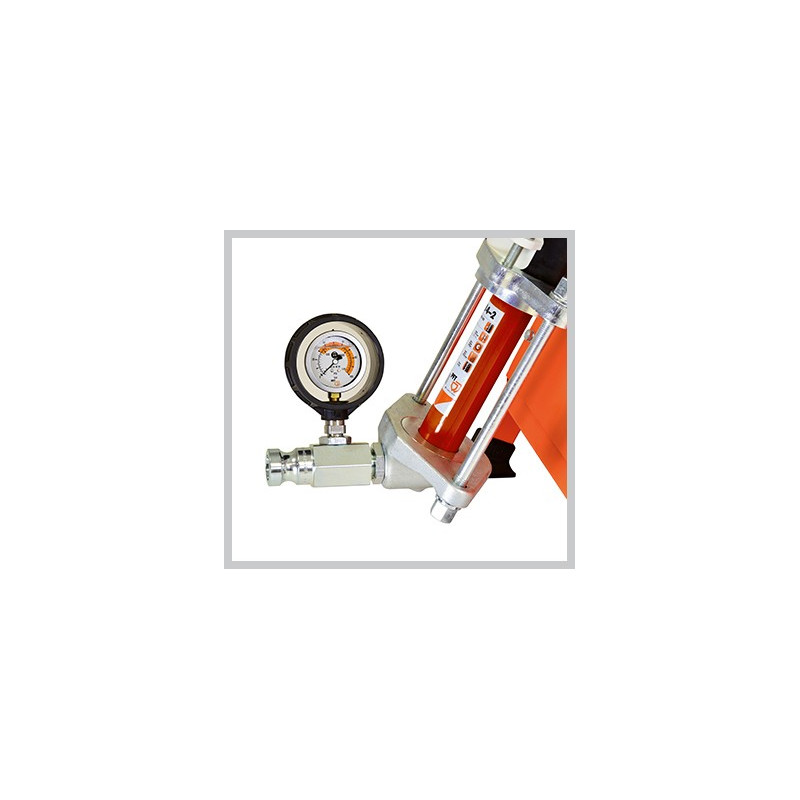

• Operating pressure: 25 bar
• Delivery distance: up to 20 m

Dimensions:

• Filling height: 930 mm
• Hopper capacity: 45 l
• Length: 750 mm
• Width: 600 mm
• Height: 1430 mm
• Total weight: 123 kg

Basic equipment package:

• Rotor A 2-2.5 powercoat / Stator A 2-2.5
• Water meter 31.5 - 315 l/h
• RONDO DN13 mortar hose - 15 m²
• DN9 (3/8") Ewo air hose | Ewo - 16 m
• Mortar hose cleaner DN13 M part | Geka
• Powercoat spray gun DN13 VA4 1500 Ewo
• Remote control cable extension - 16 m
• AM3-0.44 - 1.2 m attachment vibrator, 230 V, 1 phase, 50 Hz
• Power cable: 3 x 2.5 mm², BLU 3-16 A | BLU 2-16A - 25 m

Warranty: 12 months

Manufacturer: PFT

Cat. no.: 00659659
