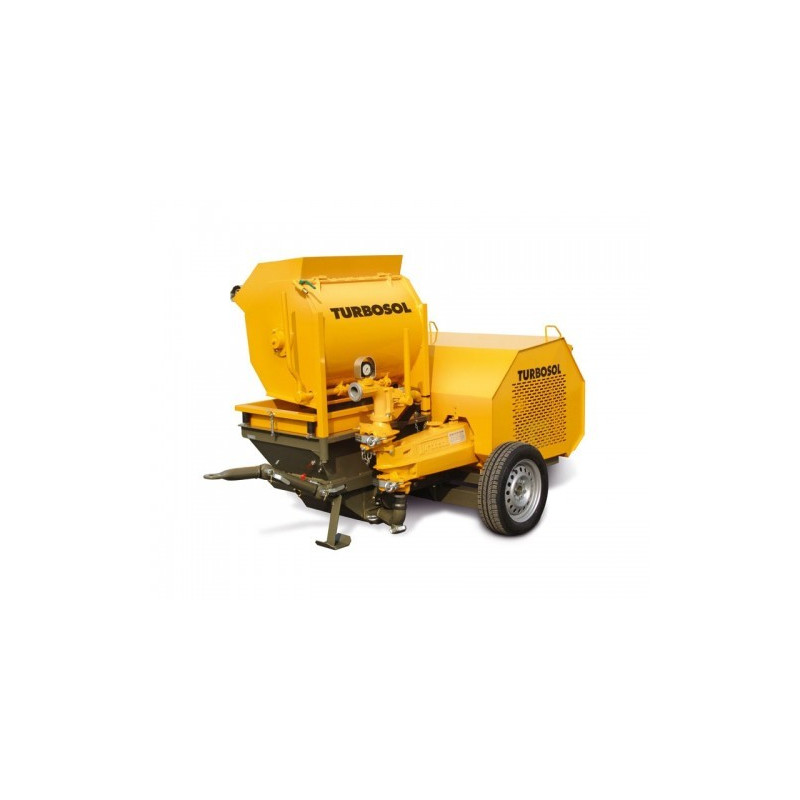

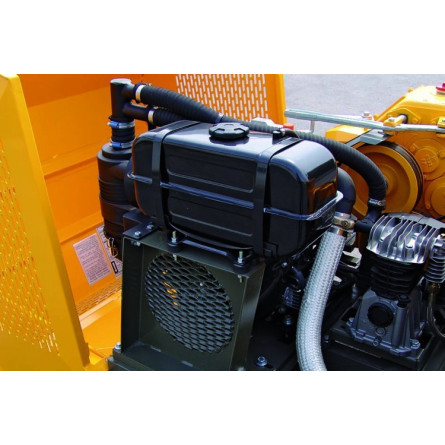

UNI 30 DMF - diesel engine version. Piston pump manufactured by the Italian company TURBOSOL

UNI 30 DMF is a piston pump with gravity-closed ball valves. Ideal for pumping and spraying ready-made or prepared on-site plastering, reprofiling and sealing mortars, machine grouts and self-levelling screeds. The unique piston design of the pump does not cause heating or changes in material parameters. The absence of a stator and rotor significantly reduces operating costs. The piston pump can apply mortars with a grain size of up to 10 mm, ensuring high performance, low operating costs and low energy consumption. TURBOSOL guarantees that the pump can be operated without replacing the piston seals to apply over 40,000 m² of plaster with an average thickness of 2 cm. Over 10,000 units sold worldwide.

Available versions:

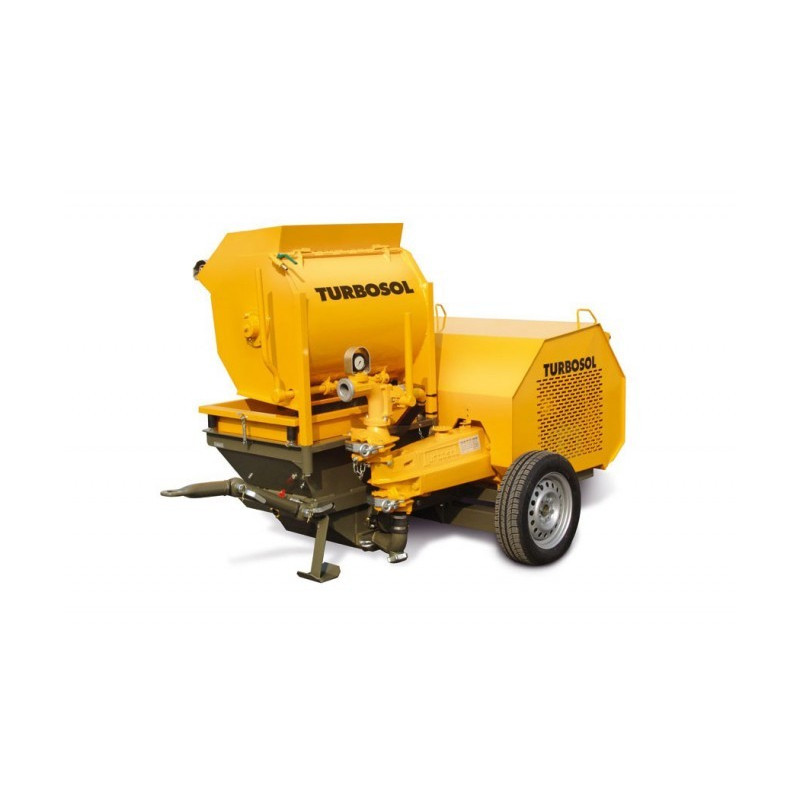

• UNI 30 DMF with mixer and combustion engine (diesel engine)

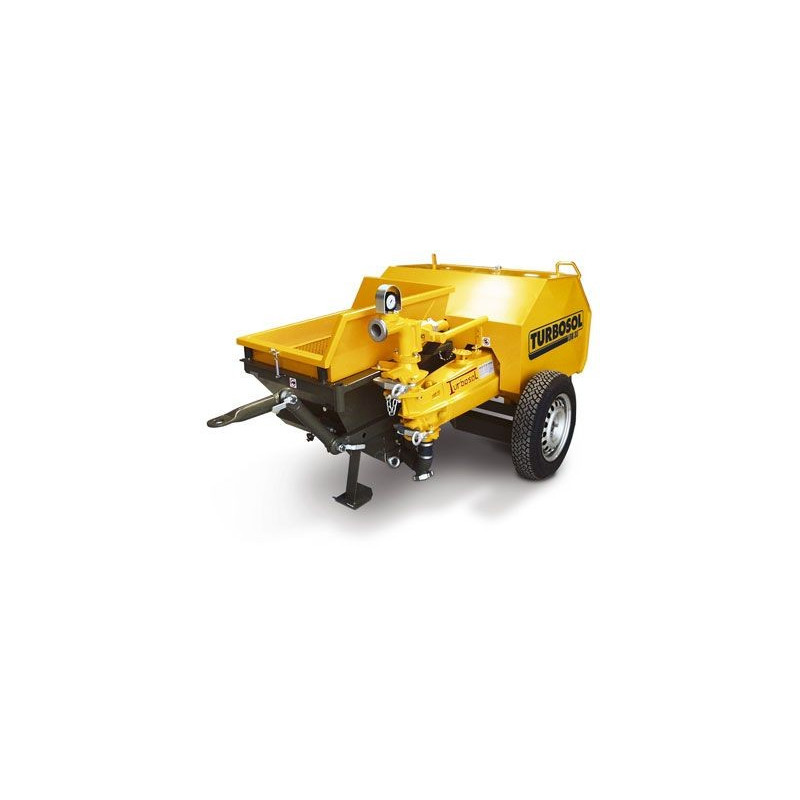

• UNI 30 D with combustion engine (diesel engine)

Application:

• Spraying traditional plaster mortar
• Pumping of standard and ready-mixed mortars
• Applying plaster and special mortar for concrete repairs
• Pumping self-levelling floor screeds
• Applying lightweight insulation materials
• Spraying wet shotcrete

The set includes:

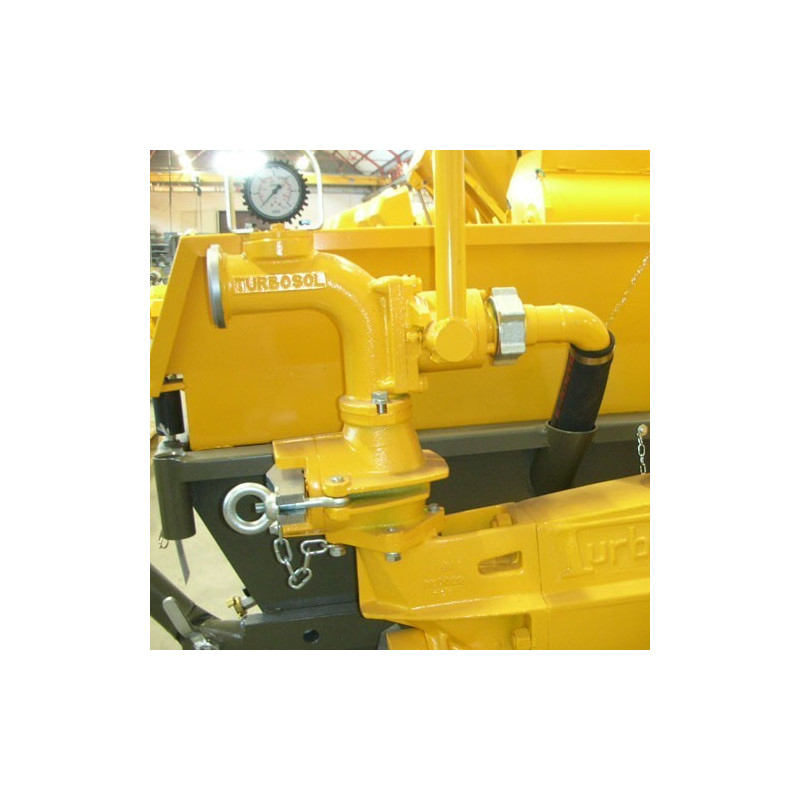

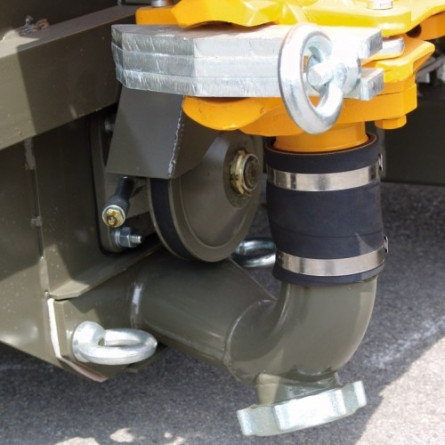

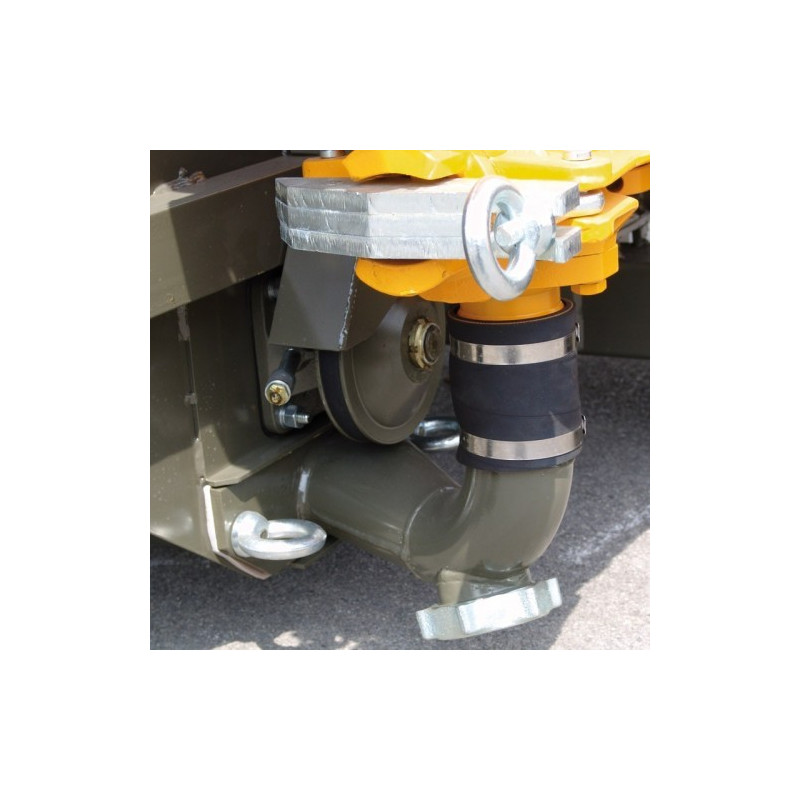

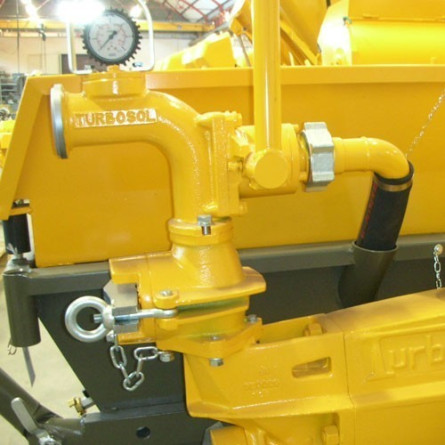

• Piston pump with gravity-closed ball valves

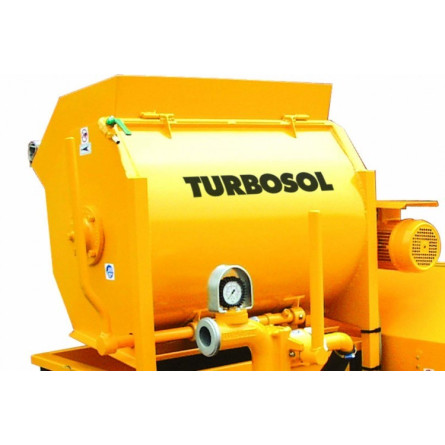

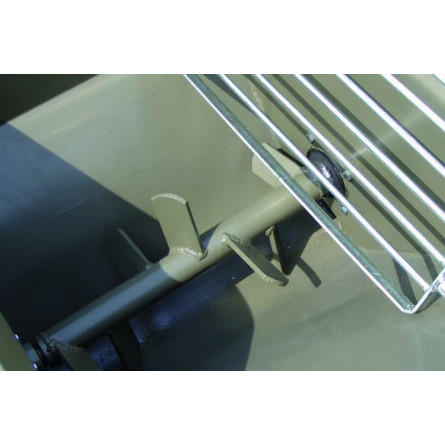

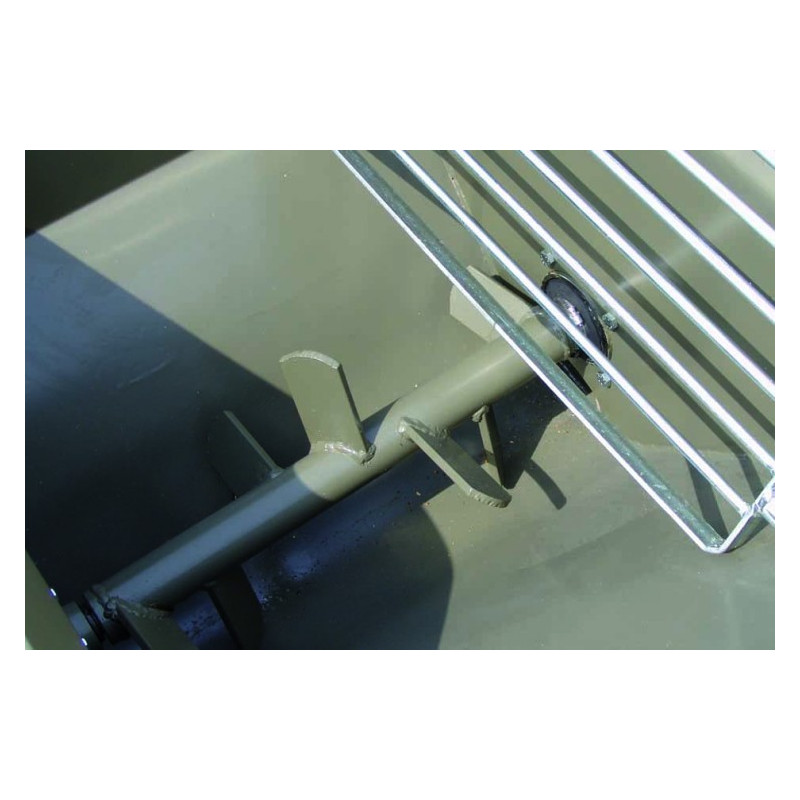

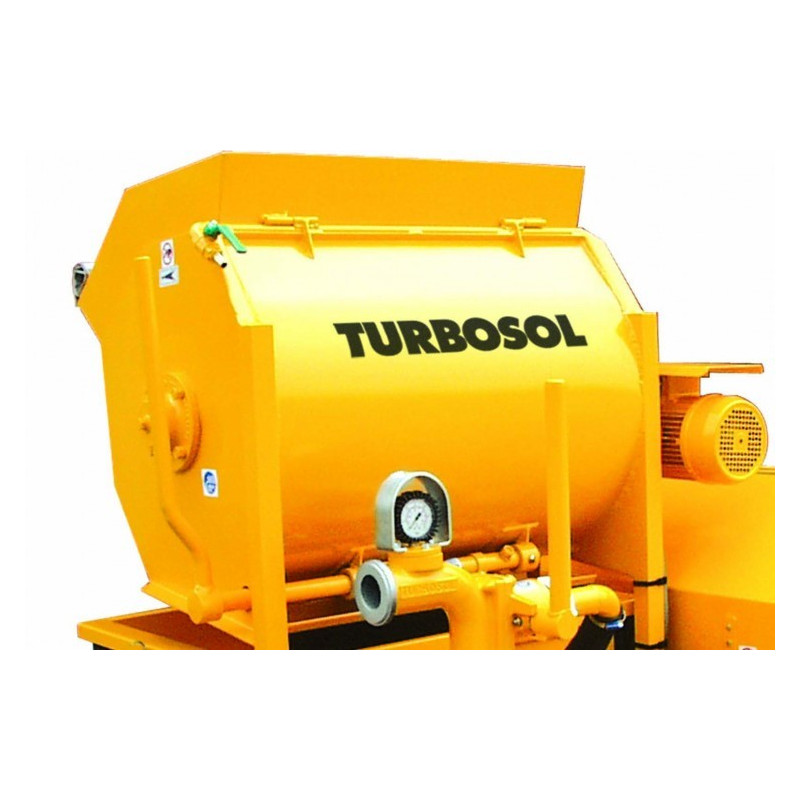

• Mortar mixer
• Sieve with 8 mm mesh
• Self-supporting frame with pneumatic wheels and tow bar
• Container safety device
• Two-speed gearbox
• Built-in air compressor
• Remote air on/off control
• Mortar hose with pressure gauge DN50 30 m (20 + 10) + DN35 10 m camlock couplings
• Air hose Ø 13 mm x 41 m, with quick couplings
• Tool kit

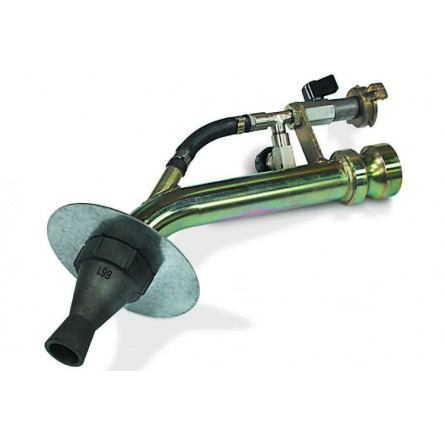

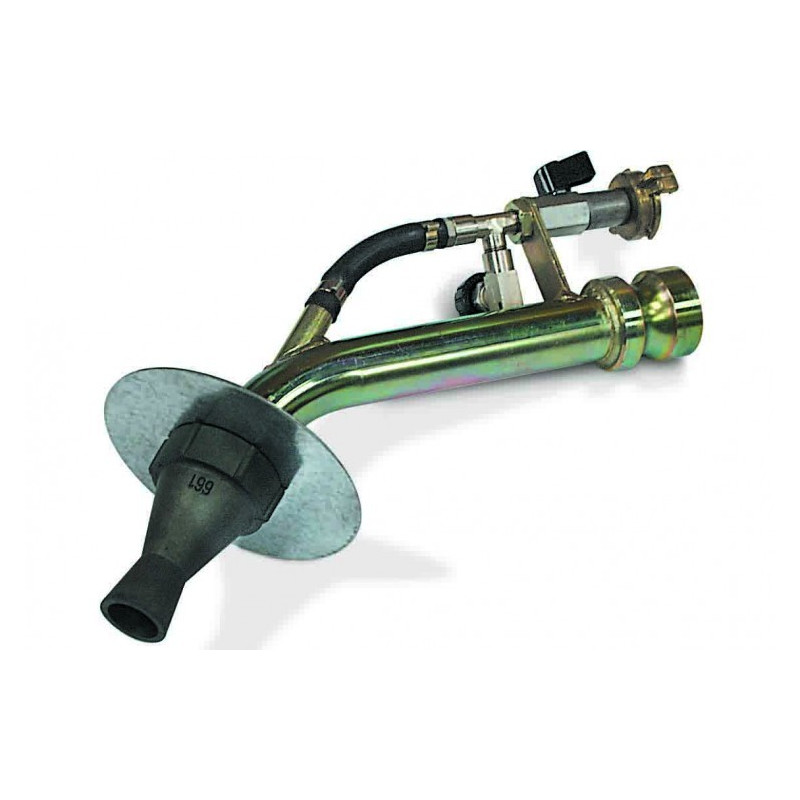

• Plastering gun with nozzle set, ball valves

Optional equipment:

• Pressure gauge for hose manifold DN 50
• Water level indicator
• Various spray sets (nozzles, guns, etc.)
• Cement slurry injection device
• Steel ball valve
• 10 mm mesh for sieve
• Hose extensions of various diameters
• Spare parts kit

Technical data:

• Engine power: 10.5 kW (14.3 HP)

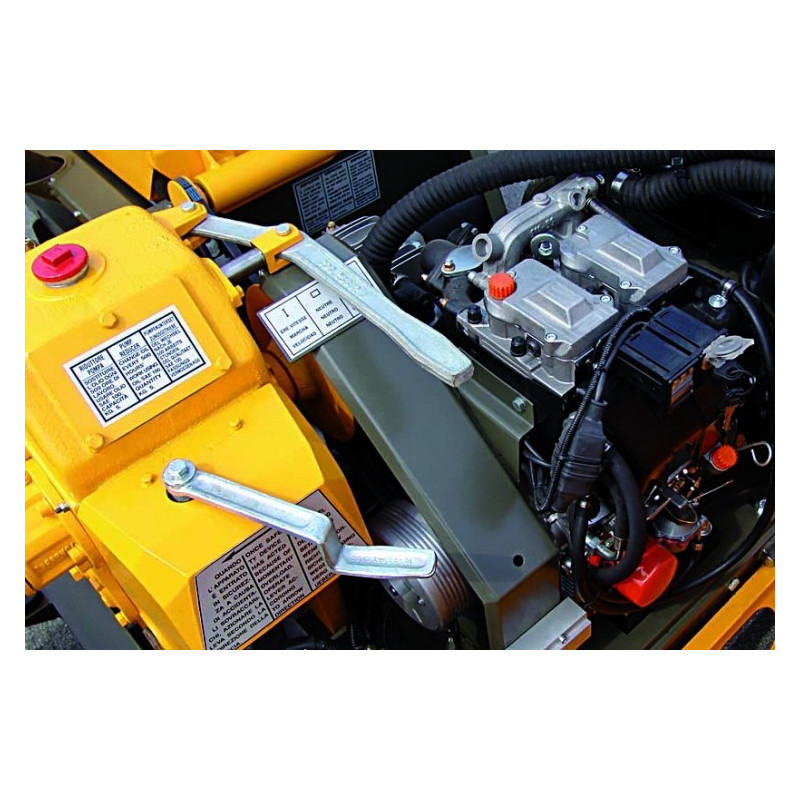

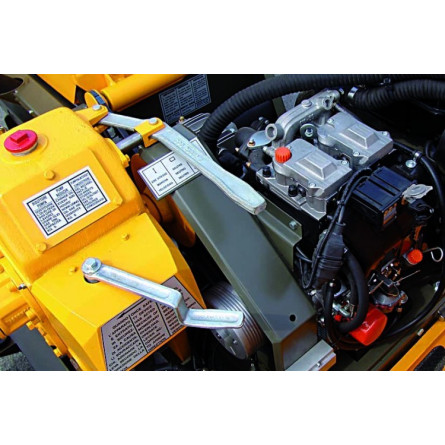

• Power supply: two-cylinder diesel engine
• Capacity: 30-50 l/min *
• Max. grain size: 8-10 mm (pumping), 6-7 mm (spraying)
• Max. working pressure: 45 bar
• Compressor: 270 l/m
• Tank capacity: 190 l
• Feeding distance: 300 m*
• Feed height: 100 m*
• Loading height: 75 cm
• Pressure manifold: ø 50 mm

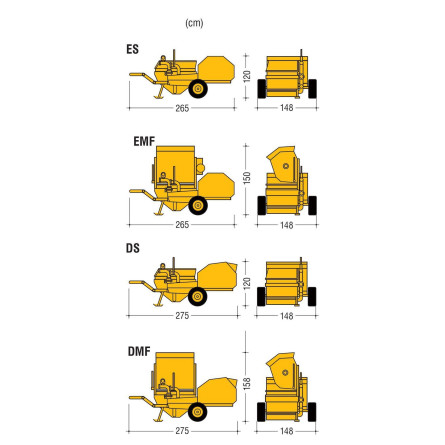

• Dimensions (L x W x H): 200 x 148 x 120 cm (150 cm with mixer)
• Weight: 790 kg (without mixer) 950 kg (with mixer)
• Mixer drive: 1.5 kW, 400 V/50 Hz
• Mixer tank capacity: 180 l

_{*The data provided are theoretical and depend on the quality and consistency of the materials used, pump wear, and the diameter and length of the hoses. The maximum distance and height of delivery cannot be achieved simultaneously.}
