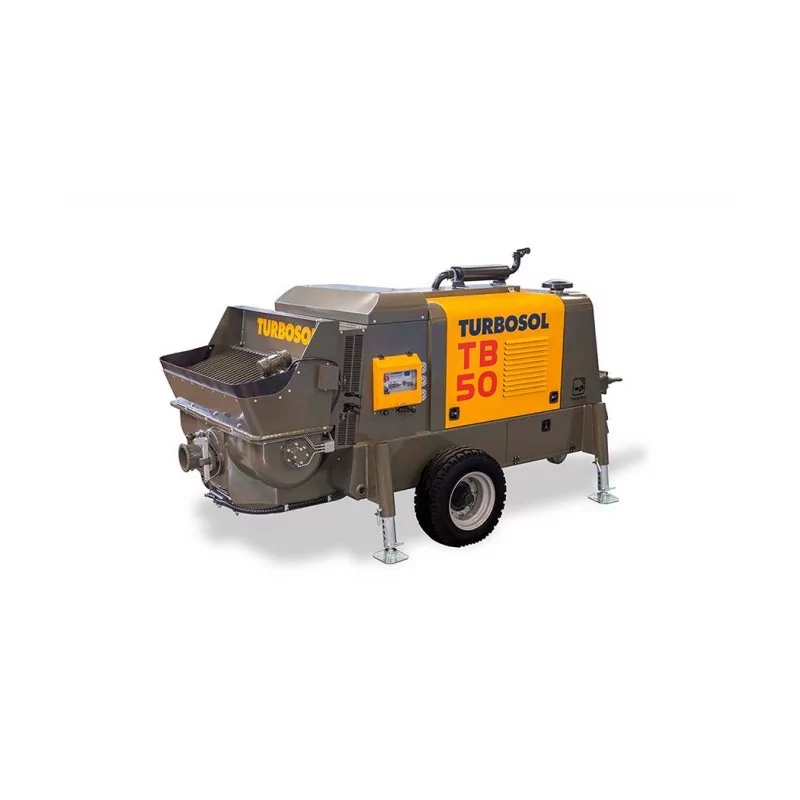

TB 50 from TURBOSOL – a powerful and efficient piston pump for concrete

The TB 50 is a stationary concrete pump with an S-type slide valve and variable output. With a maximum pressure of 80 bar, it has an output of 2 to 50 m³/h. Electric valve, smooth adjustment, two-cylinder pump designed for very difficult working conditions.

Applications:

• Pumping concrete with grain size up to 35 mm
• Shotcrete
• Grouting
• Self-levelling screeds
• Pressure injections.

Advantages:

• Tubular chassis with water and diesel tanks
• Hydraulically controlled discharge segment flap for quick cleaning
• new agitator design with valve is ideal even for difficult materials
• Compact design
• practical solutions for easy maintenance and daily use
• central single lifting eye for crane lifting

Technical parameters:

• Liquid-cooled Kubota diesel engine - V3307 turbo 4 cylinders - 55 kW - 74 HP
• Smooth adjustment [*] - from 2 to 50 m³/h
• Max. grain size - 35 mm
• Max. working pressure - 80 bar
• Pump cylinders - Ø 200 mm stroke 1000 mm
• Outlet manifold - Ø 150 mm
• Tank capacity - 500 l
• Max. delivery distance [*] - 200 m
• Max. delivery height [*] - 100 m
• Basket height - 128 cm
• Chassis - Manual drawbar - fixed axle and pneumatic wheels
• Dimensions (L x W x H) 454 x 210 x 205 cm
• Weight 3,750 kg

[*] The data provided is theoretical and depends on the quality and consistency of the materials used, pump wear and hose diameter.

Scope of delivery:

• 4-cylinder liquid-cooled diesel engine
• Tank assembly with gate valve and agitator
• Tank grid with vibrator
• Centralised lubrication system
• Exhaust manifold ø 150 mm
• Hydraulic discharge flap
• 4 manual stabilisers
• Safety horn
• Hydraulic circuit with optimised exchange sequence
• Electromechanical control panel
• Bosch Rexroth displacement pump
• Lifting eye for crane lifting.
