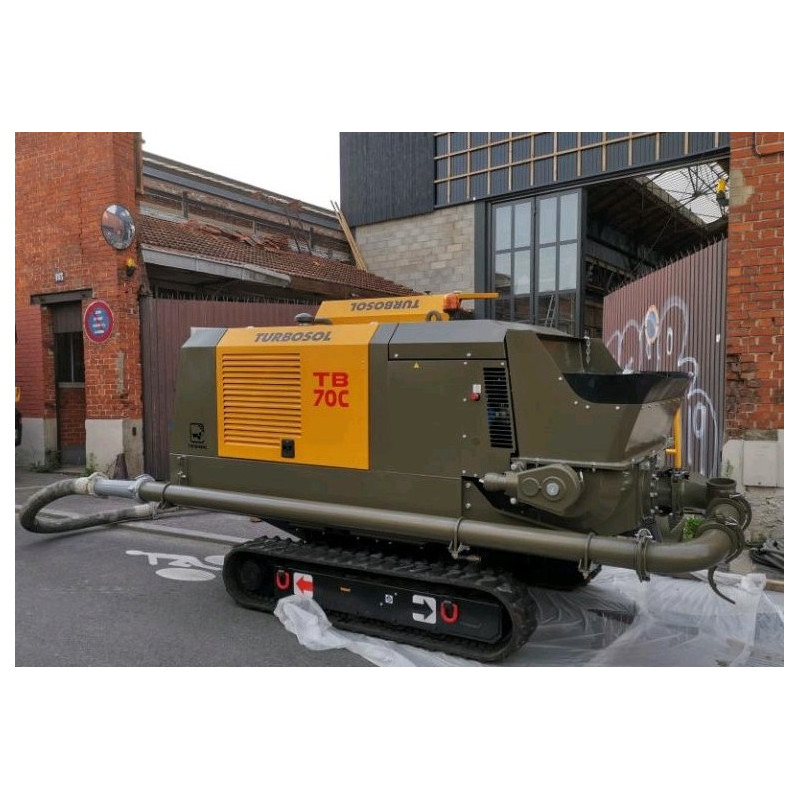

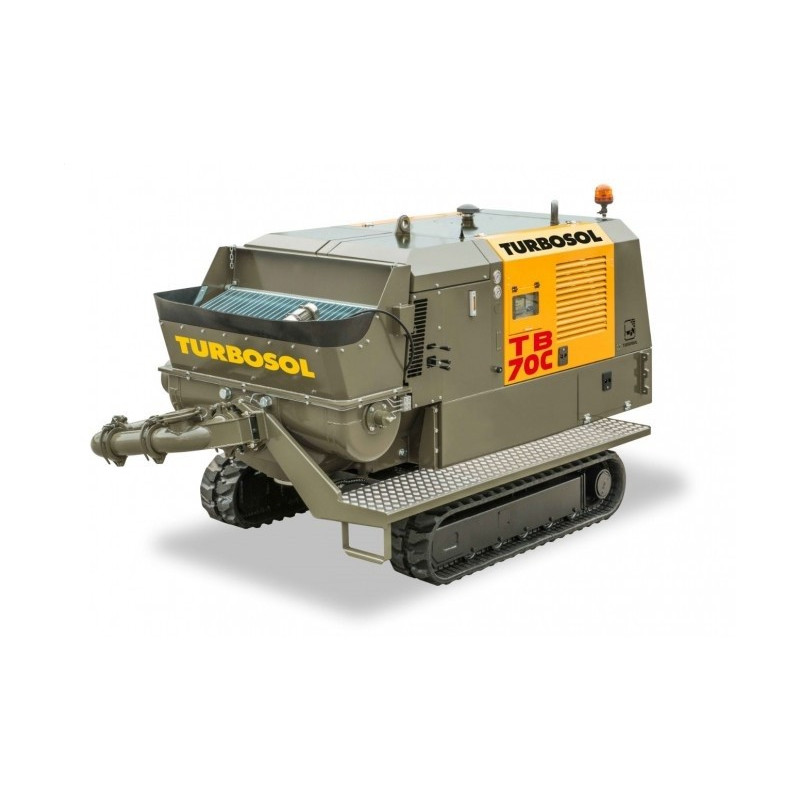

TURBOSOL TB 70C – crawler-mounted concrete piston pump
A modern, compact stationary concrete pump that guarantees maximum performance in the most difficult working conditions. The TB 70C is a new crawler pump with an S-type slide valve and variable capacity, designed for concrete applications. A modern hydraulic system, compact design, robust construction and wireless control guarantee high performance and low operating costs.
Advantages:
- Reliable on soft ground where it is not possible to set up the pump on a lorry.
- The new design ensures high comfort of operation and maintenance of the device.
- Water (210L), fuel and oil tanks.
- Lifting eye (for transport by crane).
- Hydraulically opened bottom flap – for easy cleaning.
- Fully hydraulic control.
- Compact design.
- New agitator design – ideal even for difficult concretes.
- Remote control of pump and drive.
- Optical and acoustic warning system.
---
Application:

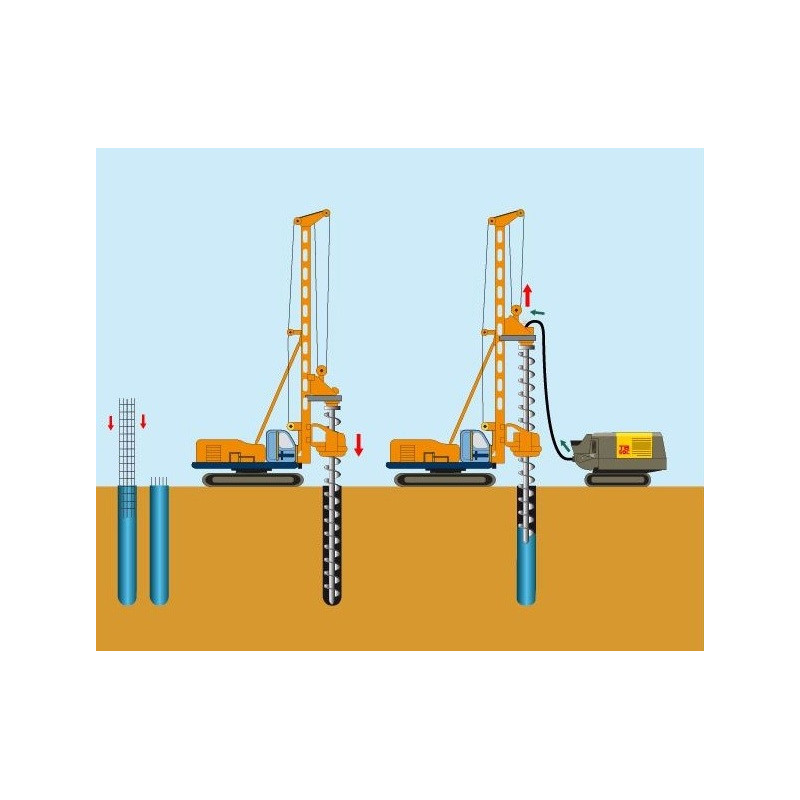

- CFA piles,
- pumping concrete with grain size up to 35 mm,
- self-levelling screeds,
- mortar and cement grout injections.
---
Versions:
- Piston side: hydraulic oil introduced from the piston side - higher pressure and material pumping distance, lower efficiency.
- Rod side: hydraulic oil introduced from the rod side - lower pressure and material pumping distance, higher efficiency.
---
Technical data:
- Engine: liquid-cooled 4-cylinder diesel engine - Kubota - V3307 CRTEGB turbo - 55 kW - 74 HP (Stage V - III A)
- Stepless capacity control: up to 50 m³/h [*] or 70 m³/h [**]
- Max. grain size: 35 mm
- Max. operating pressure: 80 bar [*] or 55 bar [**]
- Pressure cylinders: Ø 200 mm, stroke 1000 mm
- Material outlet: Ø 150 mm
- Max. number of strokes/min: 27 [*] or 37 [**]
- Tank capacity: 500 l
- Max. pumping distance: 200 m [*] or 160 m [**]
- Max. pumping height: 100 m [*] or 60 m [**]
- Tank loading height: 150 cm
- Chassis: tracked
- Maximum speed: 2 km/h
- Dimensions: 392 x 230 x 203 cm
- Weight: 4,250 kg
[*] Version in which hydraulic oil is fed from the piston side
[**] Version in which hydraulic oil is fed from the rod side
---
Equipment:
- 4-cylinder liquid-cooled diesel engine
- Tank with "S" type gate valve and agitator
- Grid with electric vibrator
- Centralised lubrication system
- Ø150 mm outlet with Victaulic coupling
- Hydraulically operated bottom hatch
- Warning system
- Variable displacement hydraulic pump – Bosch Rexroth
- Electromechanical control panel
- Towing eye
- 90° steel elbow Ø 150 mm and reduction 150 x 125 mm
- Radio control
- Accessory box + manual grease gun
- Built-in water pump 40 l/m - 20 bar
---
Optional equipment:
- Various hose sizes: Ø 125, Ø 100, Ø 75, Ø 65, 50 50 and related accessories.
- Hydraulically controlled compressor with a capacity of 800 l/min
- Steel tracks
