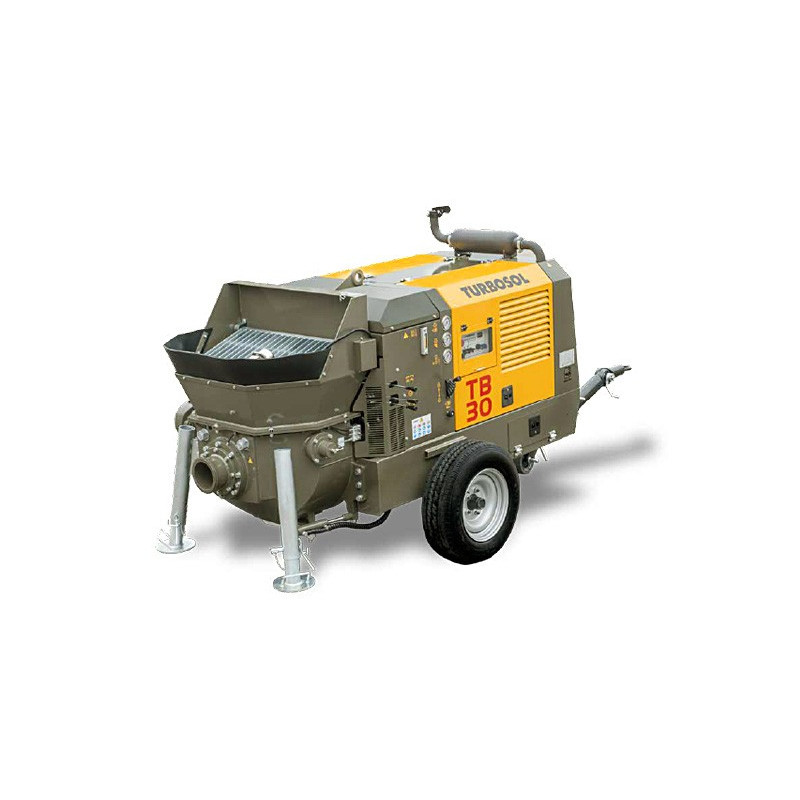

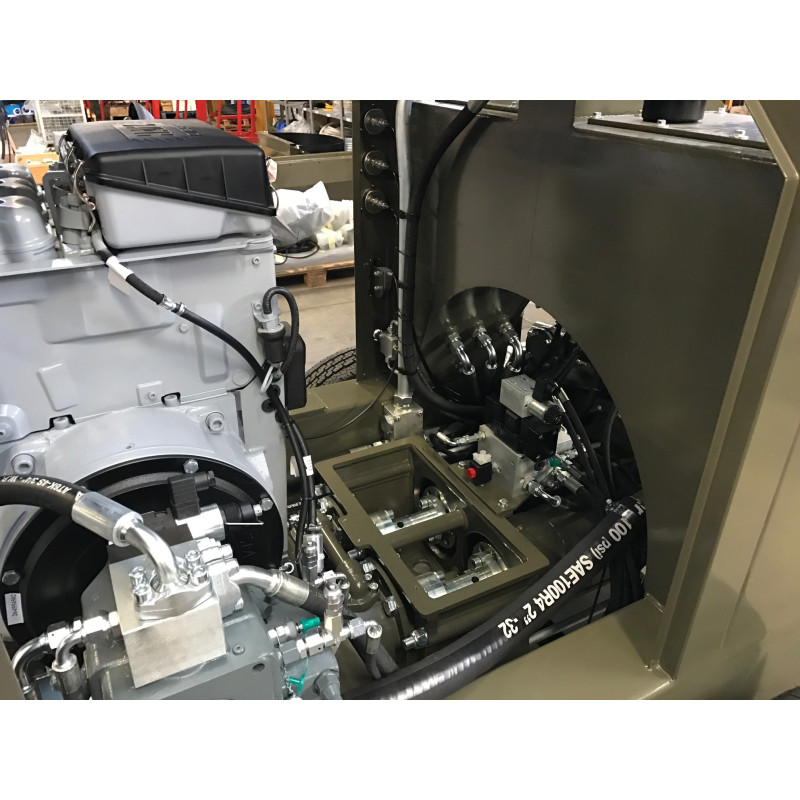

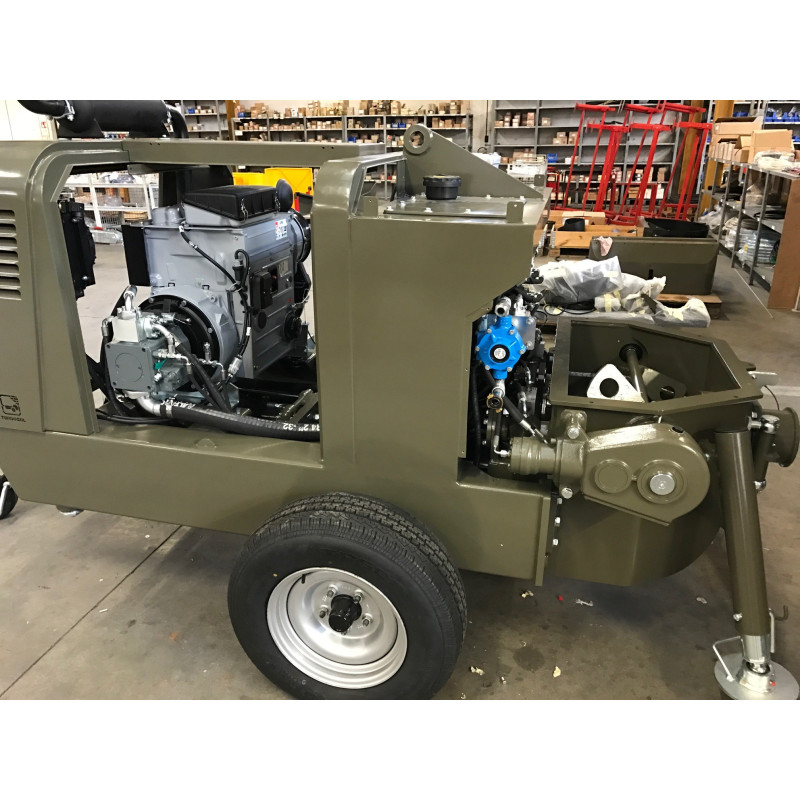

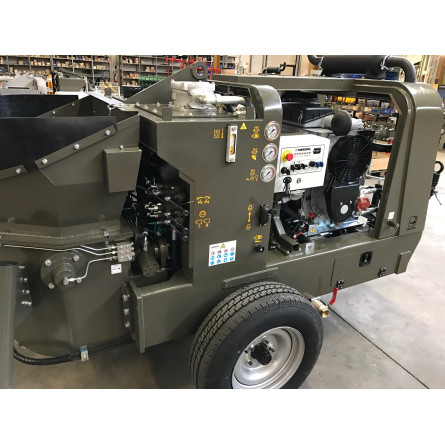

TURBOSOL TB 30 – piston pump for concrete

The TB 30 is a new stationary Turbosol pump designed for pumping concrete, shotcrete and many other applications. Powerful, compact and reliable, designed for harsh conditions.

Advantages:

• practical solutions for easy maintenance and everyday use,
• Turbolar chassis,
• hydraulically controlled discharge segment flap for quick cleaning,
• compact design,
• new agitator design with "S" type slide gate is ideal even for difficult materials.

Application:

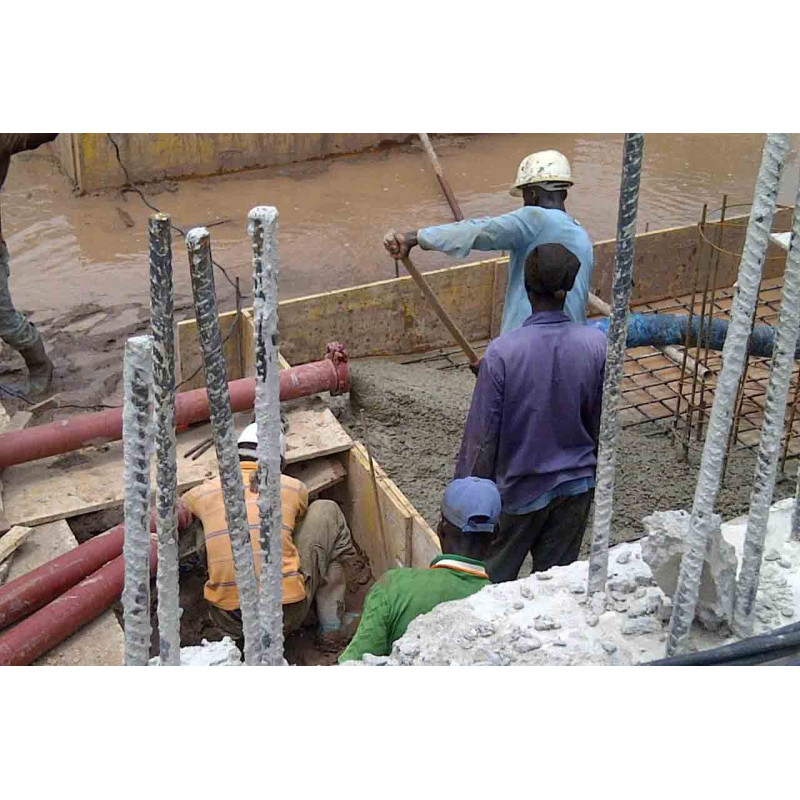

• pumping concrete with grain sizes up to 35 mm,

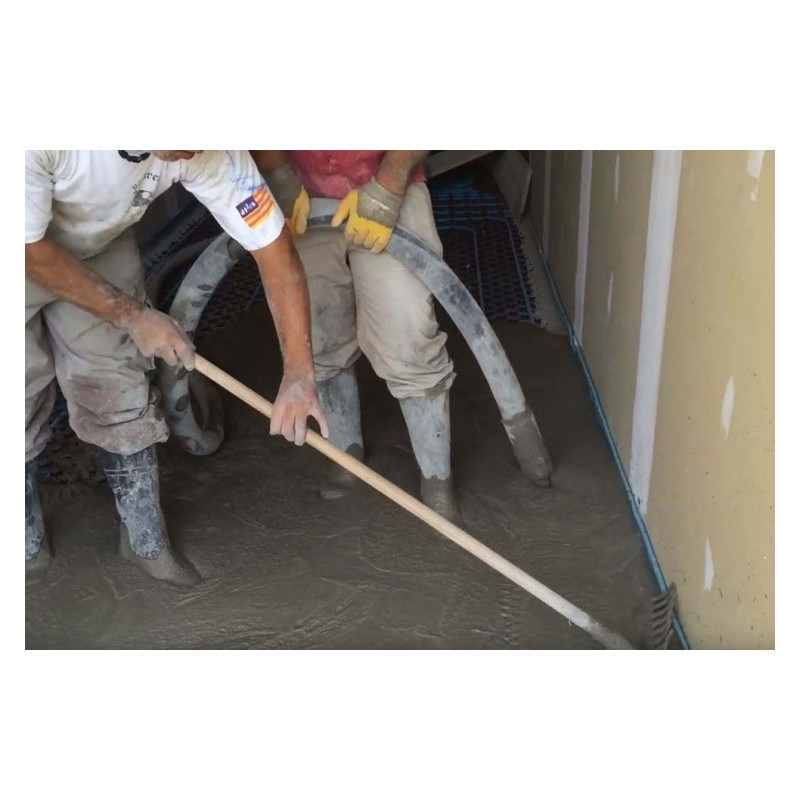

• self-levelling screeds,
• grout and cement slurry injections,

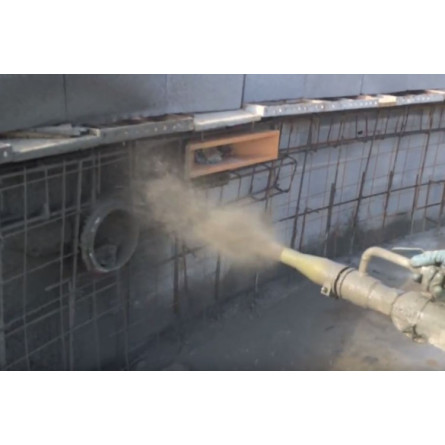

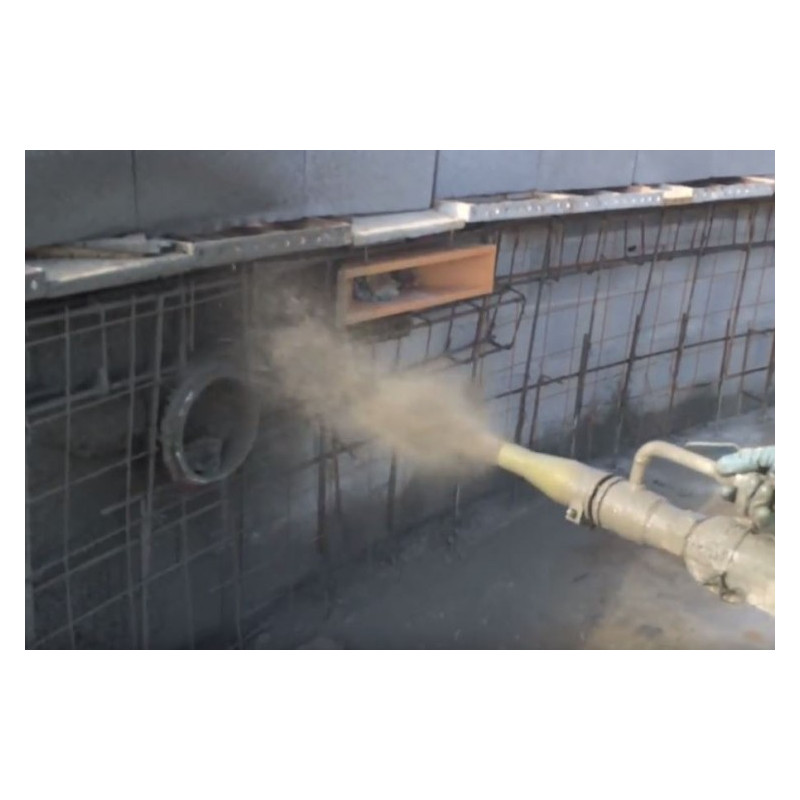

• shotcrete spraying.

Versions:

• pumping version with steel pipes and rubber hoses for mortars
• version for shotcrete with rubber hoses and shotcrete gun.

Technical parameters:

• Air-cooled diesel engine - Hatz 3M41 - 3-cylinder - 36.3 kW - 50 HP
• Smooth pump capacity control - from 2 to 30 m³/h
• Max. grain size - 35 mm
• Max. operating pressure - 80 bar
• Pump cylinders - Ø 200 mm stroke - 570 mm
• Drive cylinder diameter - 100/56
• Material outlet - Ø 150 mm
• Tank capacity - 300 l
• Max. pumping distance - 200 m
• Maximum pumping height – 100 m
• Tank loading height - 135 cm.

Chassis versions:

• Manual drawbar - fixed axle and pneumatic wheels,
• Road approval - with brakes and road suspension
• Dimensions – non-approved version (L x W x H) – 330 x 175 x 165 cm
• Dimensions - approved version (L x W x H) - 455 x 185 x 190 cm
• Weight - non-approved version - 2,300 kg
• Weight – approved version – 2,500 kg.

Scope of delivery:

• 4-cylinder liquid-cooled diesel engine
• Tank assembly with slide valve and agitator
• Tank grid with vibrator
• Centralised lubrication system
• Ø 150 mm outlet manifold with Victaulic
• Hydraulic discharge flap
• 4 manual stabilisers
• Safety horn
• Hydraulic circuit with optimised exchange sequence
• Electromechanical control panel
• Bosch Rexroth displacement pump
• Lifting eye for crane
• Discharge manifold with quick coupling
• 90° steel bend ø 150 and reduction cone ø 150 to ø 125
• 30 m remote control
• Towing hook
• 2 rubber balls for cleaning hoses
• Tool kit
• Box with accessories

Optional equipment:

• 40 l/m' water pump - 20 bar
• 3-function radio remote control
• Various hose sizes Ø 125, Ø 100, Ø 75, Ø 65, 50 50 and related accessories.
