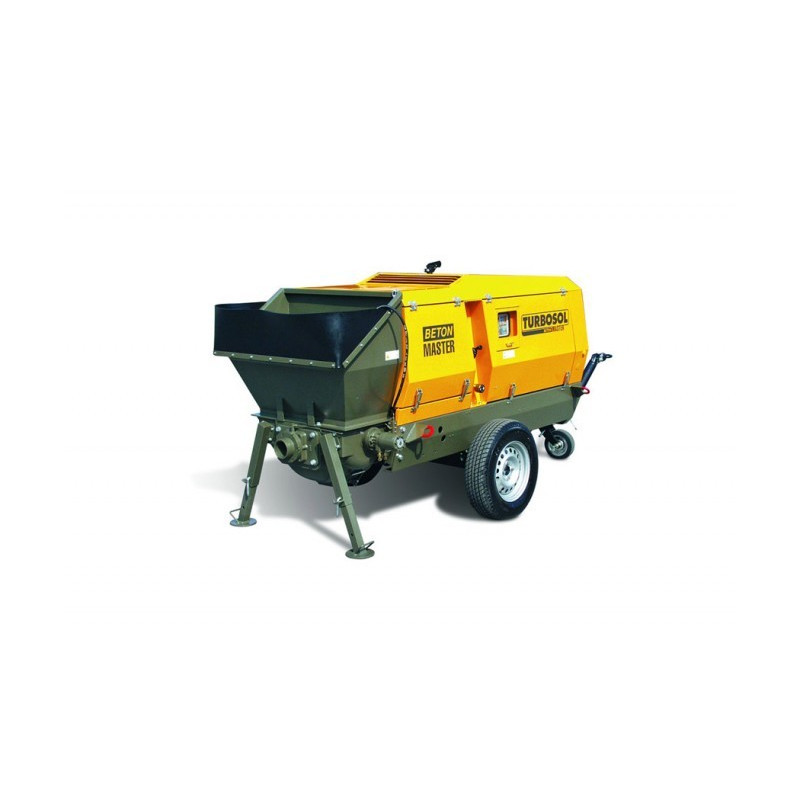

BETON MASTER – piston pump for concrete from the Italian company TURBOSOL
Wear-resistant machine for pumping concrete and shotcrete in harsh conditions. Beton Master is a 2-cylinder pump with an "S" type slide valve and variable capacity for pumping concrete, specialised mortars and shotcrete spraying. Beton Master is a reliable alternative to popular mixers, especially in difficult working conditions.
Applications:
- Concrete, grouts, construction mortars, fireproof mortars
- Self-levelling floor screeds
- Mortar injections
- Cement slurry feeding
- Shotcrete.
Versions:
- version for pumping, complete with steel pipes and rubber hoses for mortar Ø 100
- shotcrete version with rubber hoses Ø 100 and shotcrete gun Ø 50.
Technical data:
- Liquid-cooled 4-cylinder diesel engine - Perkins 404D22-36.3 kW - 50 HP
- Electric motor (on request) - 22 kW - 400 V - 50 Hz
- Smooth pump capacity control [*] - from 2 to 15 m³/h
- Max. grain size - 25 mm
- Max. operating pressure - 80 bar
- Pump cylinders - Ø 120 mm stroke 700 mm
- Material outlet - Ø 100 mm
- Tank capacity - 250 l
- Max. pumping distance [*] - 200 m
- Max. pumping height [*] - 100 m
- Tank loading height - 135 cm.
Chassis versions:
- Manual drawbar - fixed axle and pneumatic wheels,
- Road approval - with brakes and road suspension
- Dimensions (L x W x H) - 336 x 150 x 160 cm / 455 x 150 x 142 cm [# 1]
- Weight - non-approved version - 1,550 kg - 1,600 kg [# 2]
- Weight – approved version – 1,700 kg – 1,750 kg [# 2]
- [*] The data provided is theoretical and depends on the quality and consistency of the materials used, pump wear and hose diameter.
- [# 1] Approved version
- [# 2] With chemical dosing pump.
Scope of delivery:

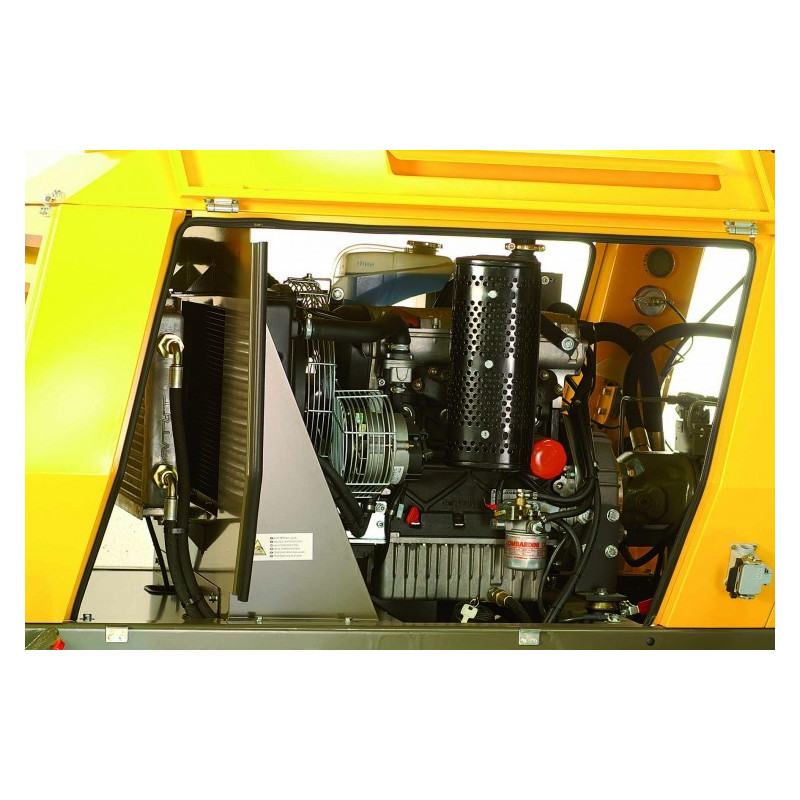

- 4-cylinder liquid-cooled diesel engine
- Tank assembly with gate valve and agitator
- Centralised lubrication system
- Ø 100 mm discharge manifold Victaulic couplings

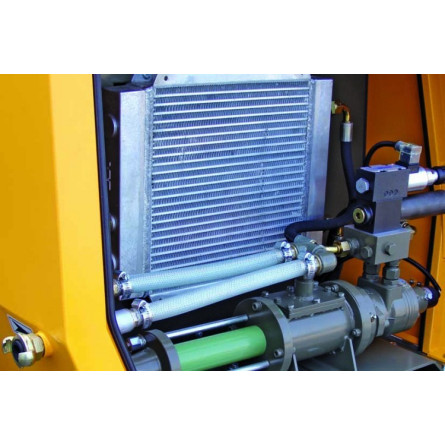

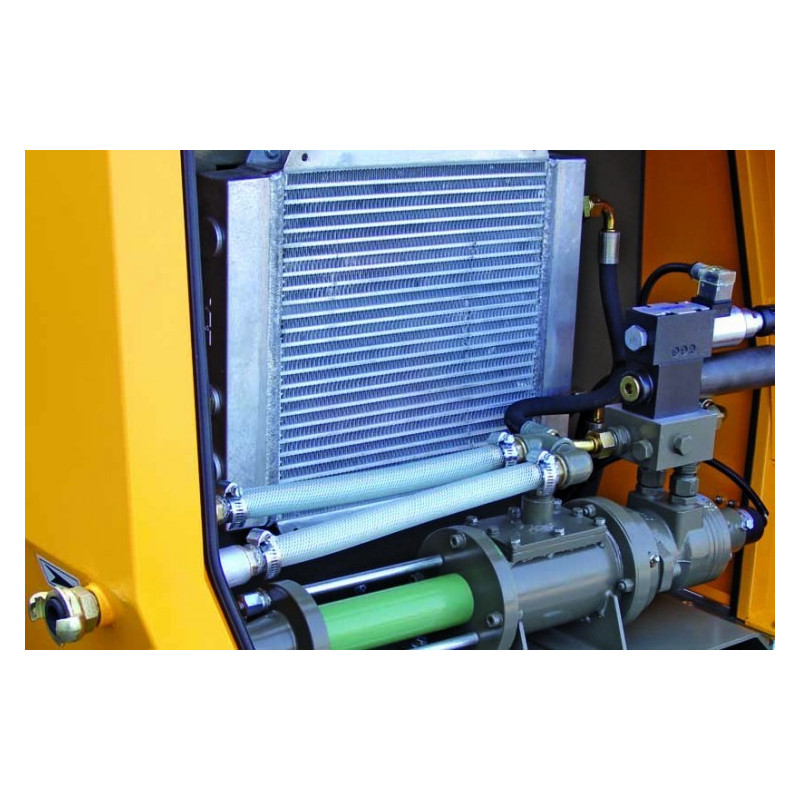

- Hydraulic circuit with optimised exchange

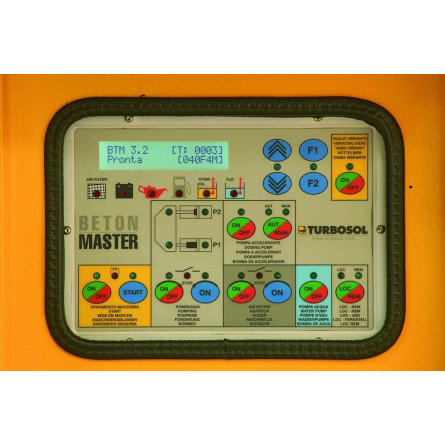

- Electromechanical control panel
- Bosch Rexroth positive displacement pump
- Lifting kit
- 30-metre cable pilot
- Accessory box.
Pumping version:

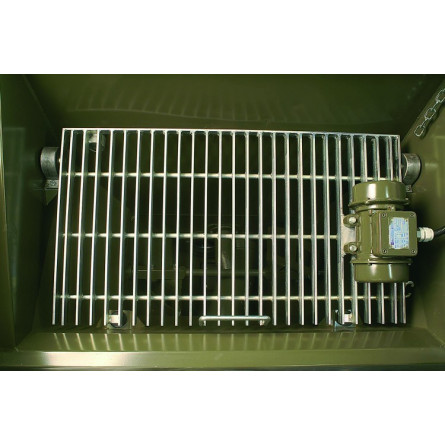

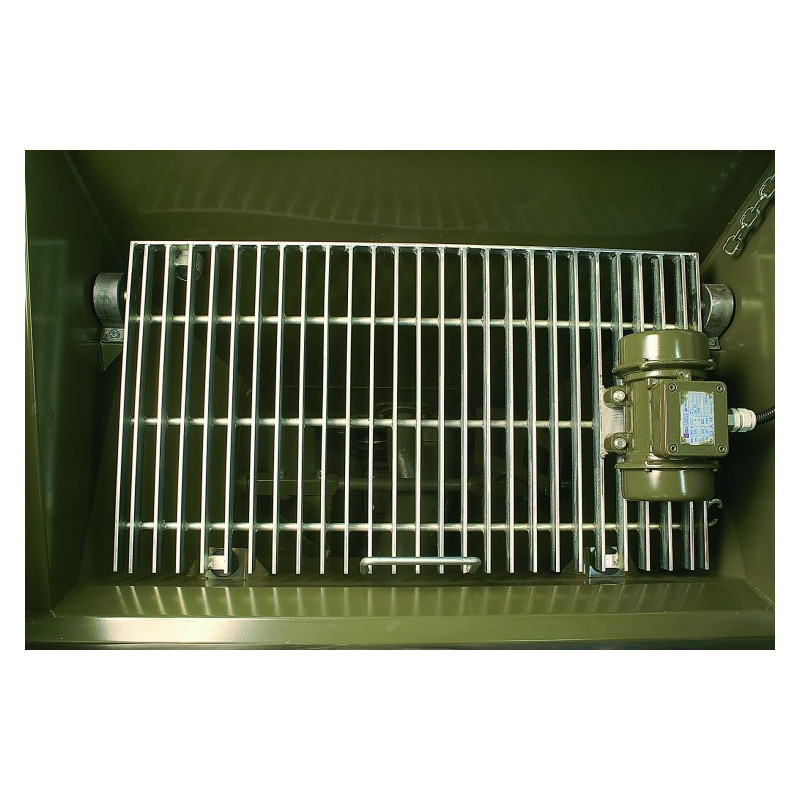

- Tank grid with electric vibrator
- 21 m steel pipe Ø 100, 3 m rubber hose Ø 100 and Victaulic couplings and seals 100 100, 4 steel elbows 100 100.
Sprayed concrete version:
- 15 mm tank grate with electric vibrator
- Reducing cone (Ø 100 - Ø 50), steel elbow Ø 100 at 90°, 30 m rubber hose Ø 50 and accessory kit Ø 50
- Spray gun for Ø 50 hose.
Optional equipment
- Electronic control panel
- Anti-Theft TATS (Turbosol anti-theft system)
- Flexible tow axle with brakes and tow lights (version / T)
- Chemical dosing pump
- High-pressure washer
- 3-function radio remote control
- Various hose sizes Ø 100, Ø 75, Ø 65, 50 50 and related accessories.
