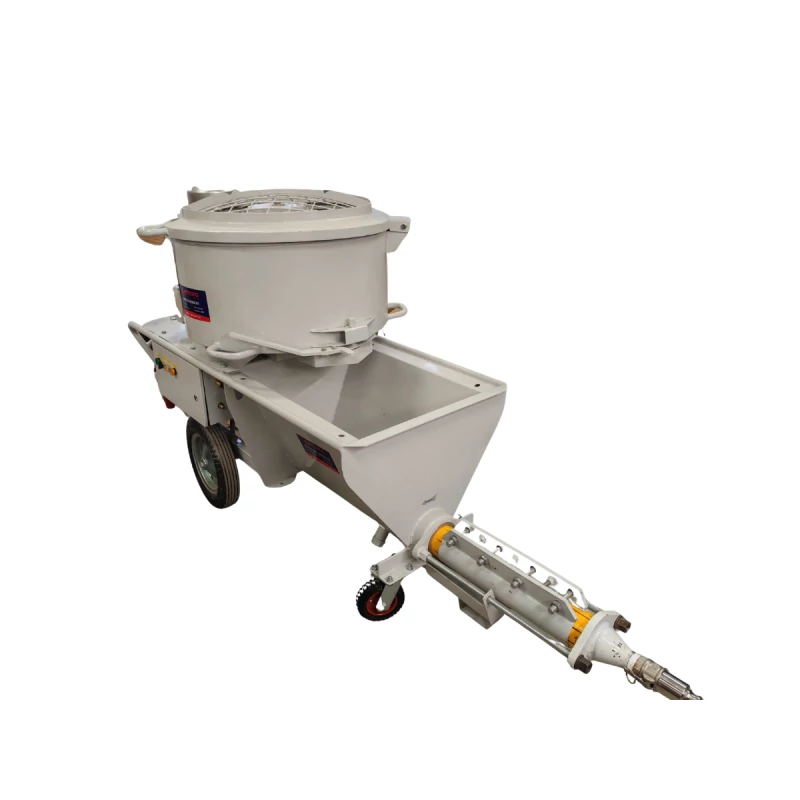

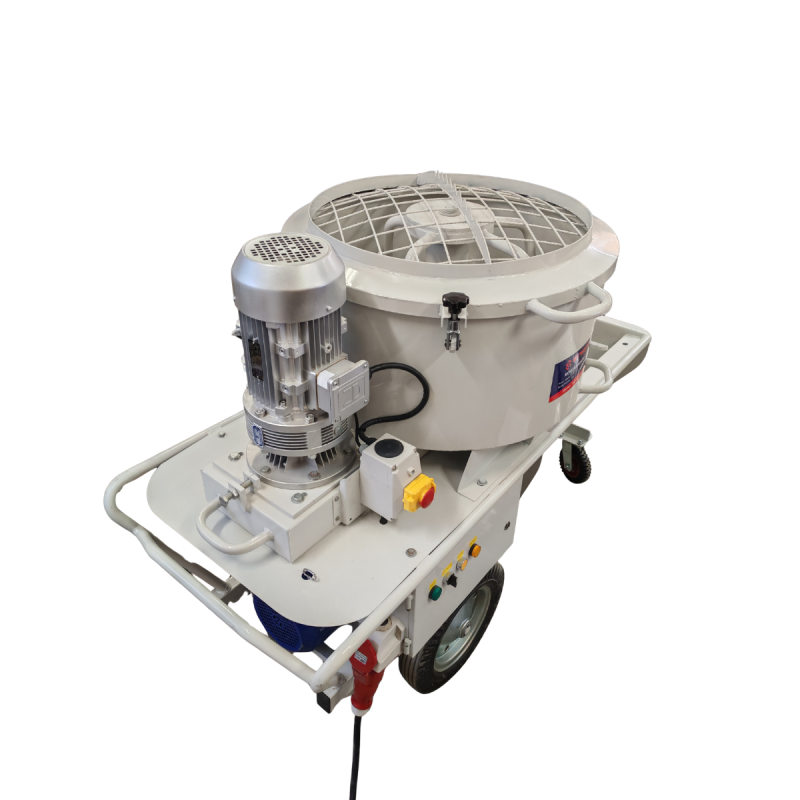

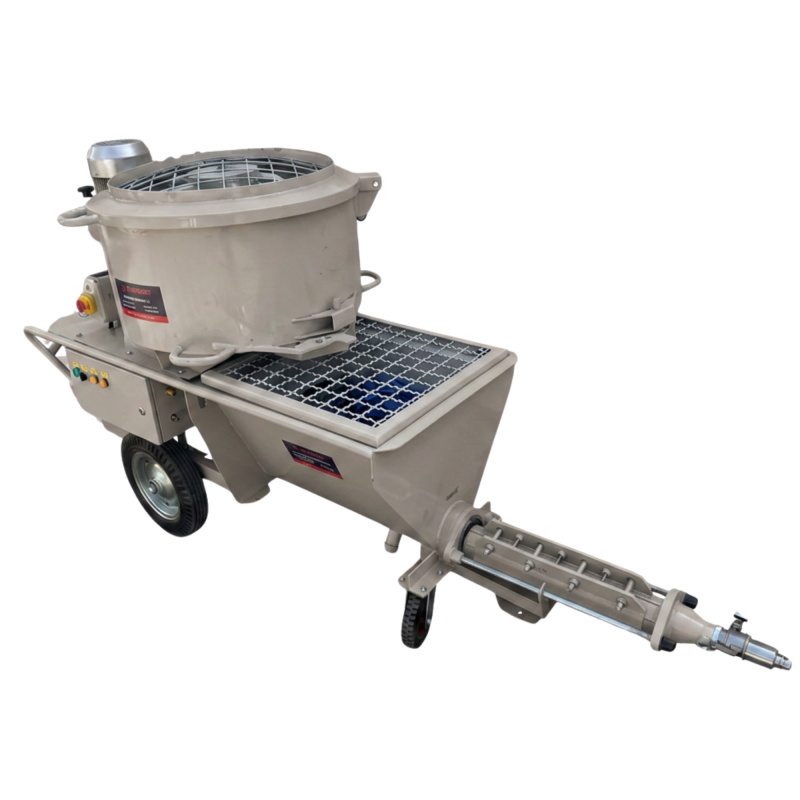

STRONG-TECH S6 plastering unit with STRONG-TECH R1 mixer

STRONG-TECH S6 plastering unit with STRONG-TECH R1 mixer

The professional STRONG TECH S6 + R1 set is a complete solution for the preparation and spray application of plastering mortars, adhesives, fillers and other high-density building materials. Thanks to the combination of the efficient R1 mixer with the S6 unit, the device allows for continuous operation – from material preparation to application – without the need for additional intermediate devices.

Key advantages

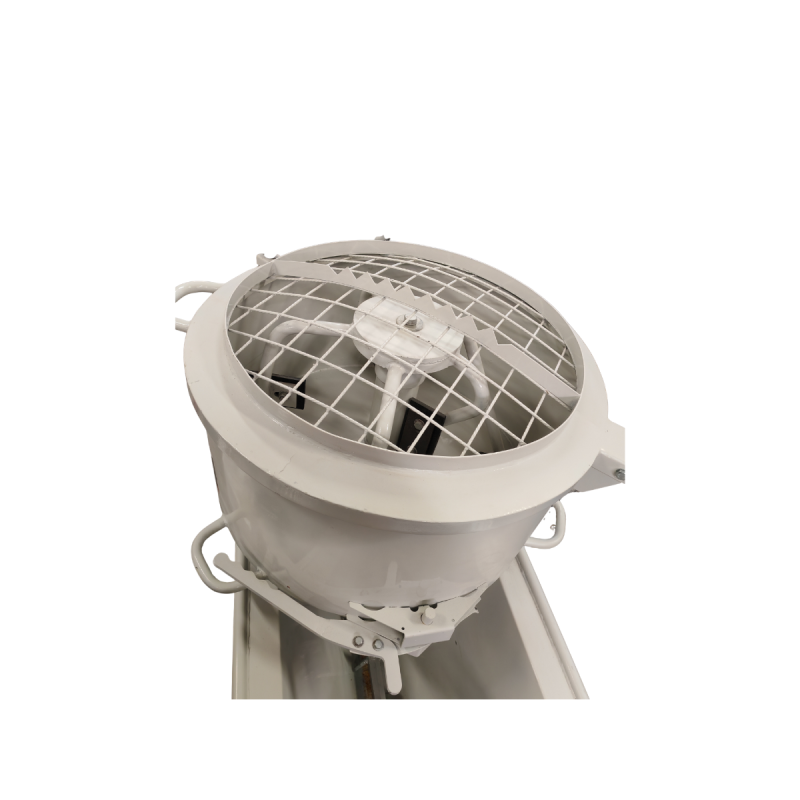

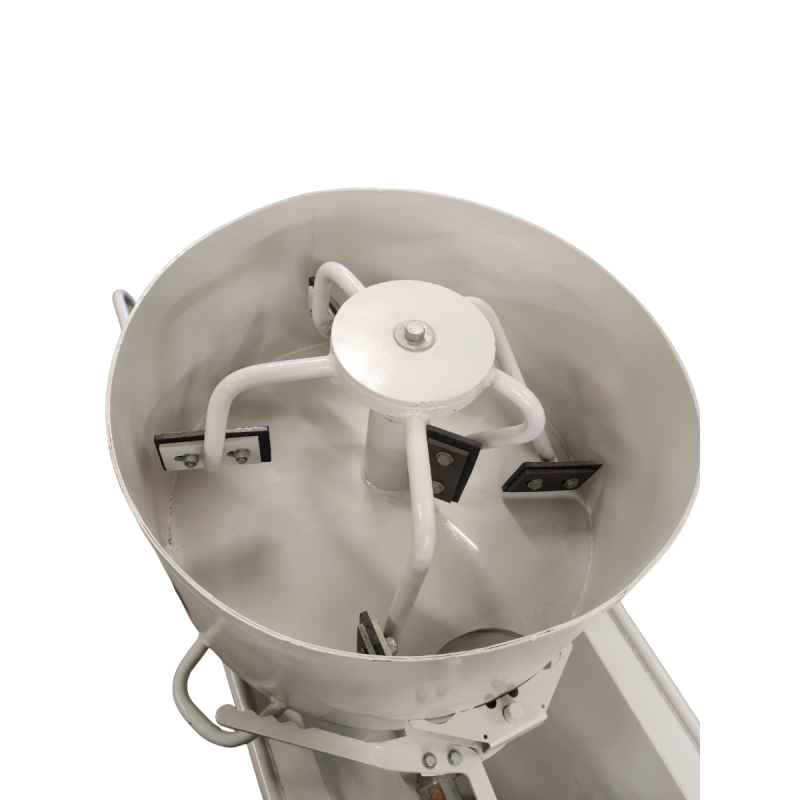

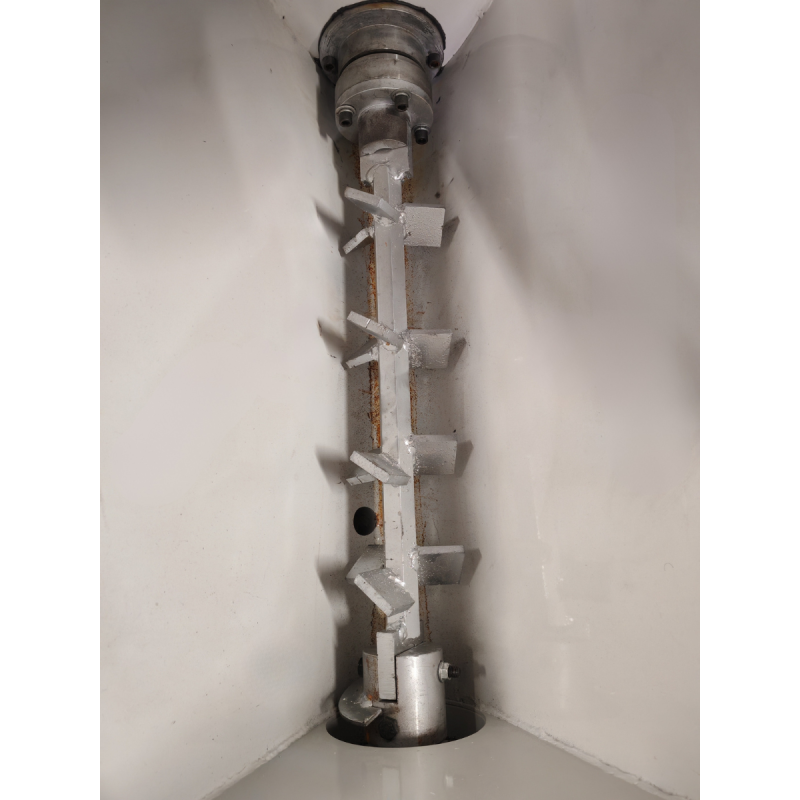

• Integrated mixing and feeding system – the R1 mixer ensures even preparation of the mortar, and the S6 unit automatically transports it to the spray gun.
• Smooth capacity control.
• High power and range – the 7.5 kW motor allows material to be transported to a height of up to 40 m.
• Convenient operation – mobile design and quick disassembly of components.
• High work efficiency – 150 l hopper capacity and flow rate of up to 45 l/min guarantee high productivity on the construction site.

Application

The S6 + R1 set is designed for:

• applying cement-lime and gypsum plasters,
• applying adhesive and reinforcing mortars in thermal insulation systems,
• spraying of filling compounds,
• feeding ready-made structural mixtures.

The set includes

• HYVST S6 plastering unit
• R1 mixer

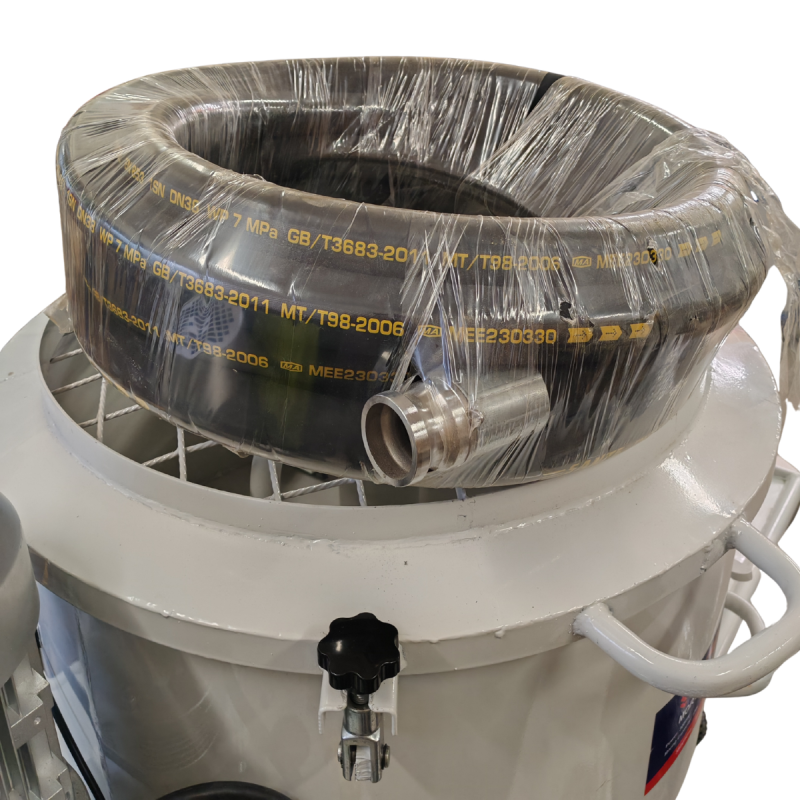

• Material hose Ø 38 mm (10 m)
• Air hose Ø 25 mm (5 m)
• Spray gun with 4 nozzles

Technical data:

R1 mixer

Parameter

Value

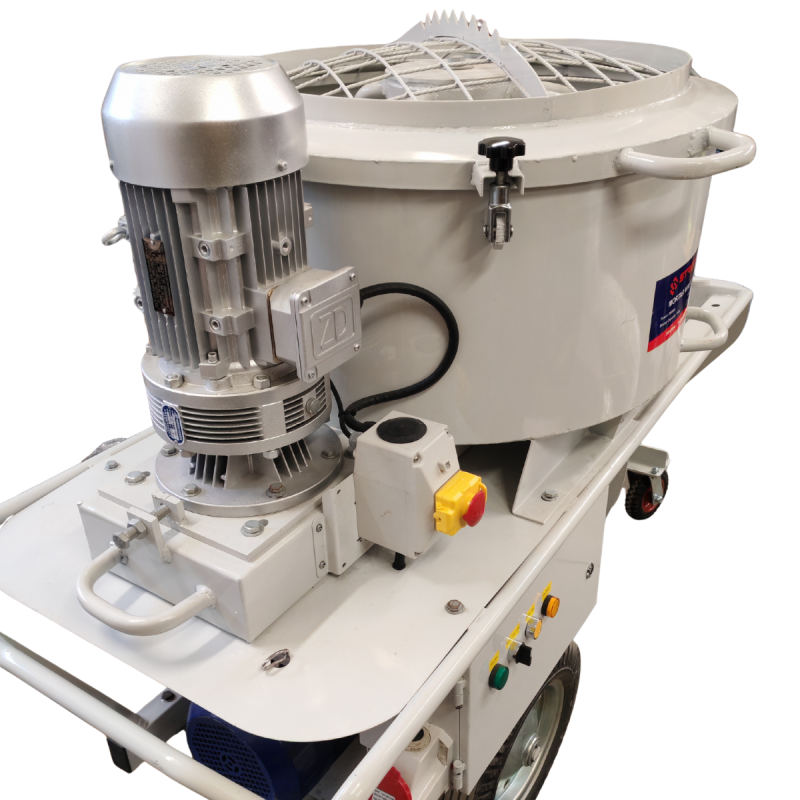

R1 motor power

3000 W

Power supply

380 V / 50 Hz

Mixing capacity

90 l/min

Tank capacity

150 l

Weight

200 kg

S6 unit

Pump

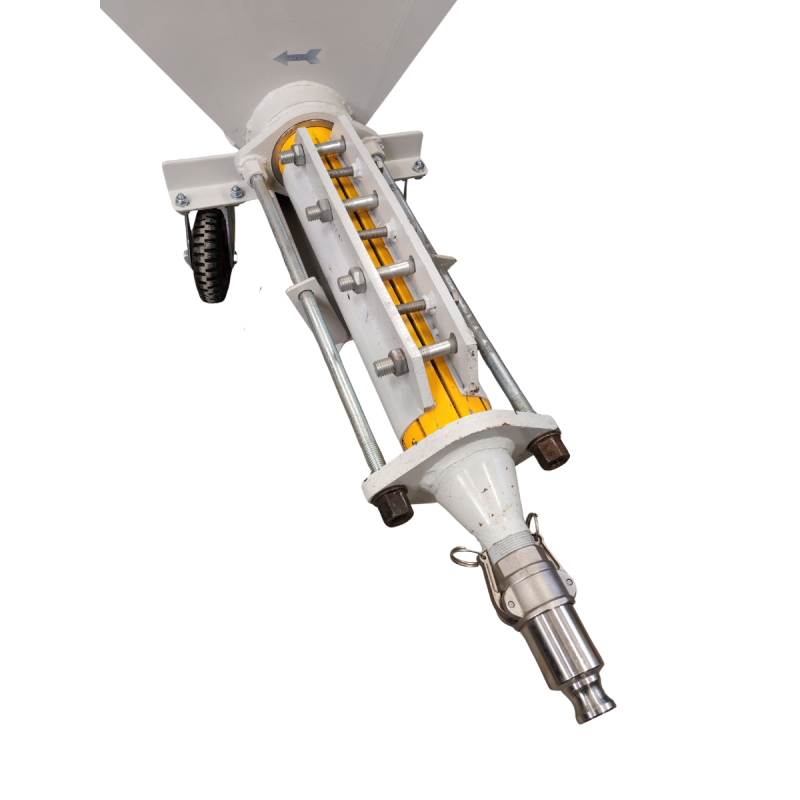

Screw

Engine power

7500 W

Power supply

380 V / 50 Hz

Capacity

0–45 l/min

Operating pressure

50 bar / 725 psi

Feed length

up to 40 m

Max. grain size

< 6 mm

Tank capacity

150 l

Set

Set weight

approx. 640 kg

Dimensions

200 × 95 × 150 cm
