Universal unit in a set with a high-performance 60.12 screw pump – up to 90 l/min. In this configuration, it is mainly dedicated to self-levelling (anhydrite) screeds.
Brand: TURBOSOL
- Free shipping from zł750.00
- +48 71 321 07 95
- zamowienia@speed-bud.pl

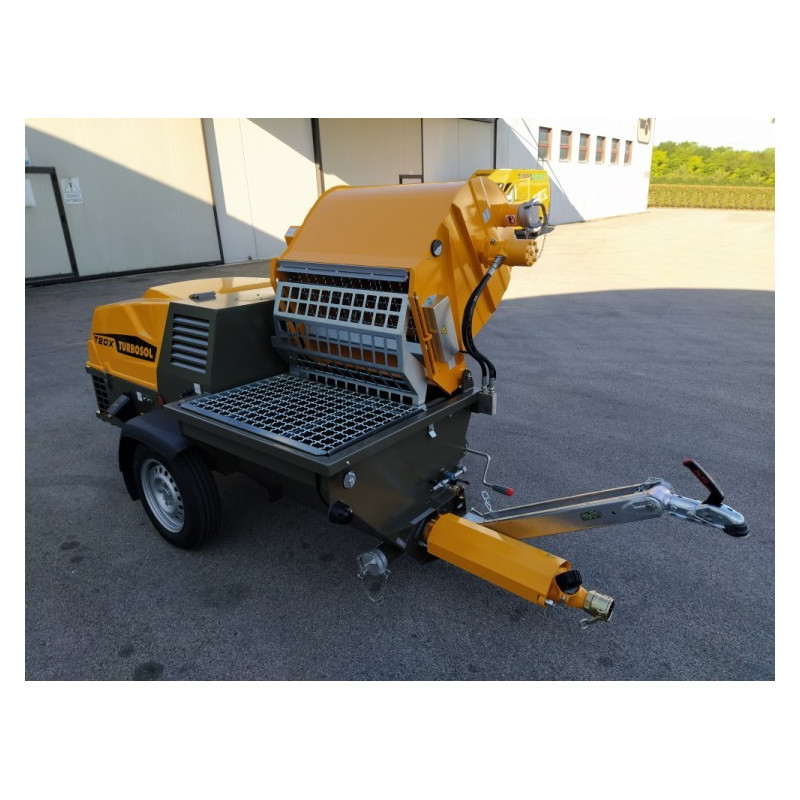

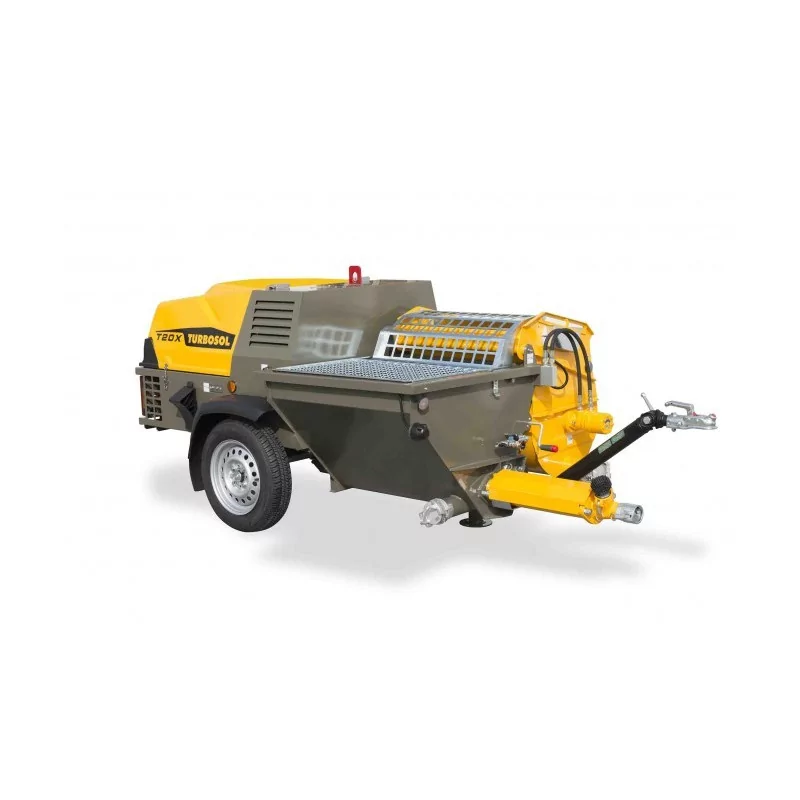

T20X mortar pump - TURBOSOL
The T20X is the latest screw pump from TURBOSOL, powered by a combustion engine and designed for pumping and spraying ready-made materials and materials prepared on site.
T20X mortar pump – TURBOSOL
The T20X is the latest screw pump from TURBOSOL, powered by a combustion engine and designed for pumping and spraying ready-made and on-site prepared materials. The device is equipped with the latest solutions, such as a hydraulically lifted mortar mixer.
Application:
- Pumping self-levelling floor screeds
- Spraying traditional and ready-made plaster mortars
- Pumping of ordinary and ready-made mortars
- Applying mixtures for concrete repairs
- Applying insulating and fire-resistant materials
- Spraying wet shotcrete
- Application of thixotropic mortars, joints, underlays, etc.
---
Advantages:

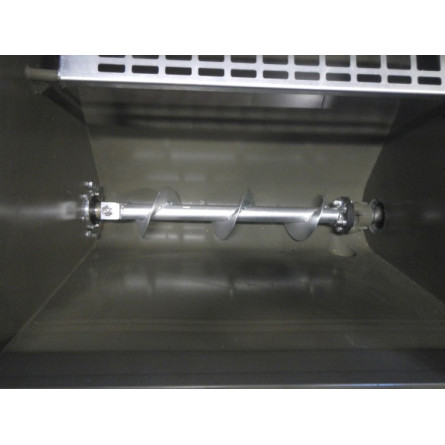

- Large capacity mixer, hydraulically lifted together with the support foot. Low-mounted for easy filling with material.
- Powerful and durable 3-cylinder diesel engine
- Modern engine silencing system to reduce noise levels
- Safety of use: immediate stop of the mixer when the sieve is lifted, sensors protecting the engine and hydraulic system, emergency button
- Variable capacity hydraulic system guarantees high performance and low fuel consumption

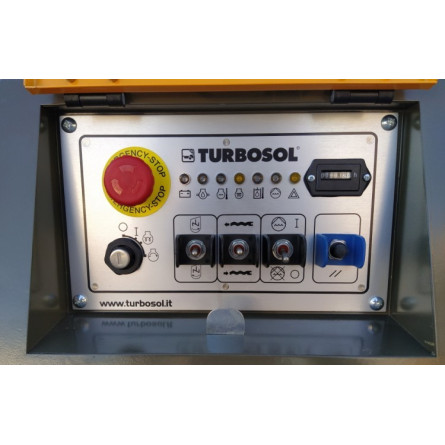

- Clear and easy-to-use control panel
- The device is compatible with a wide range of screw pumps: 2l6, T25, 60.12, 2l7 depending on the application, and the pump replacement process is quick and easy.
---
Scope of delivery:
- Variable displacement hydraulic pump
- Electromechanical control panel
- Pneumatic control
- Hydraulically lifted 240-litre mixer with reverse gear
- Shock-absorbing chassis suspension, tow bar for car, road lights
- Ear – transport handle for moving the machine with a crane
- 18-litre hydraulic oil tank
- 15-litre diesel tank
- Compressor with a capacity of 400 l/min
- 2l6 or T25 screw pump
- 35 m of mortar and air hoses
- Accessory box (spray gun, nozzle set)
- Grease gun
- Cleaning tools
---
Equipment - ready-made plasters:
- 2L6 pump
- mortar/air hose - 35 m with connectors
or optional
equipment - traditional mortars:
- T25 pump
- mortar/air hose - 35 m with quick connectors
- vibrating sieve
---
Optional:
- 60.12 pump (for screeds) with hoses and accessories in a box
- 2l7 pump with hoses and accessories in a box
- Water pressure gauge
- Remote control with 33 m cable
- Radio remote control (start - stop - reverse)
- Spray gun for ready-made thick-layer plasters
- Spray gun for injection with pressure gauge
- Nozzle for applying cement grouts
- High-pressure washer
- Towing hook for lorries
---
Technical parameters:

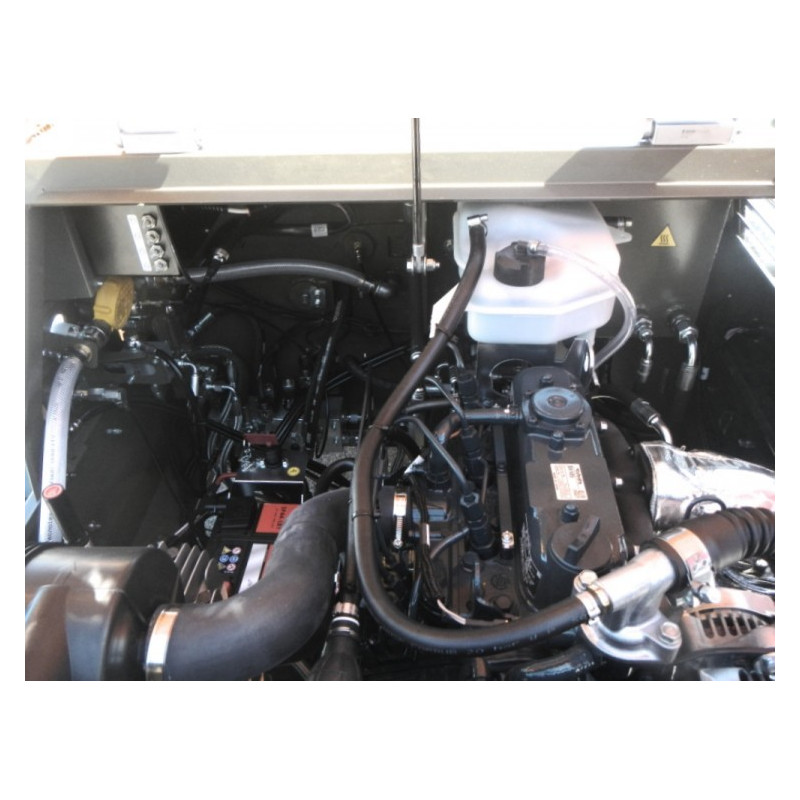

- Kubota D1105 3-cylinder diesel engine - 16.3 kW
- Screw pump included – 2l6
- Theoretical capacity (2l6 pump) [*] - 0 ÷ 55 l/min
- Theoretical capacity (T25 pump) [*] - 0 ÷ 70 l/min
- Theoretical capacity (60.12 pump) [*] - 0 ÷ 115 l/min
- Maximum grain size (2l6 pump) – 6 mm
- Maximum grain size (T25 pump) - 10 mm
- Maximum grain size (60.12 pump) - 10 mm
- Maximum pressure (2l6 pump) - 40 bar
- Maximum pressure (T25 pump) - 30 bar
- Tank capacity - 250 l
- Mixer capacity - 240 l
- Maximum pumping distance (2l6 pump) [*] - 100 m
- Maximum pumping distance (T25 pump) [*] - 80 m
- Maximum pumping height (2l6 pump) [*] - 60 m
- Maximum pumping height (T25 pump) [*] - 40 m
- Tank filling height - 85 cm
- Mortar hose connection diameter Ø - 50 mm
- Chassis for road use, without brakes
- Dimensions (L x W x H) 283 (320[**]) x 148 x 121 cm
- Weight 746 kg
*The data are theoretical and depend on the quality and consistency of the pumped material. The maximum height and feed distance cannot be achieved simultaneously.
**With hook extended
