PRO H DM screed pump - TURBOSOL

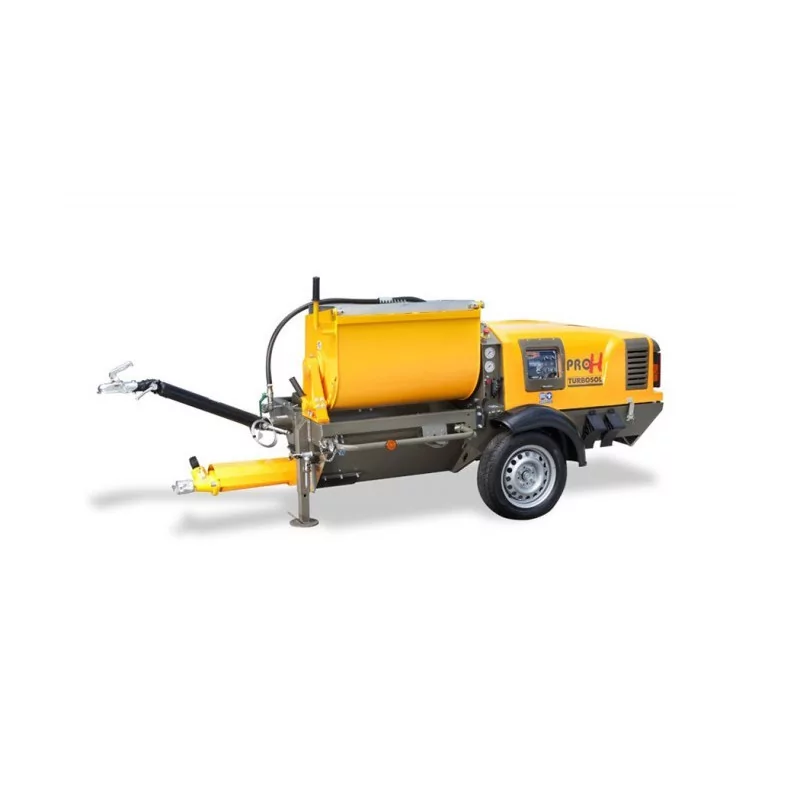

PRO H DM – TURBOSOL is a high-performance screw pump for many tasks (pumping, mixing, spraying and injecting - traditional and ready-mixed mortars). For long-distance delivery (up to 20 floors). Mounted on a chassis for towing on public roads.

Application:

• Spraying traditional and ready-mixed plaster mortars
• Pumping of ordinary and ready-mixed mortars
• Applying mixtures for concrete repairs
• Pumping self-levelling floor screeds
• Applying insulating and fire-resistant materials
• Spraying wet shotcrete
• Application of thixotropic mortars, joints, grouts, etc.

Advantages:

• Single lubrication point for simplified daily maintenance
• Large tank with electric screen vibrator facilitates material dosing from truck mixers
• Safety of use: immediate stop of the mixer when the sieve is lifted, sensors protecting the engine and hydraulic system, low-noise and low-emission diesel engine, and emergency button.

Scope of delivery:

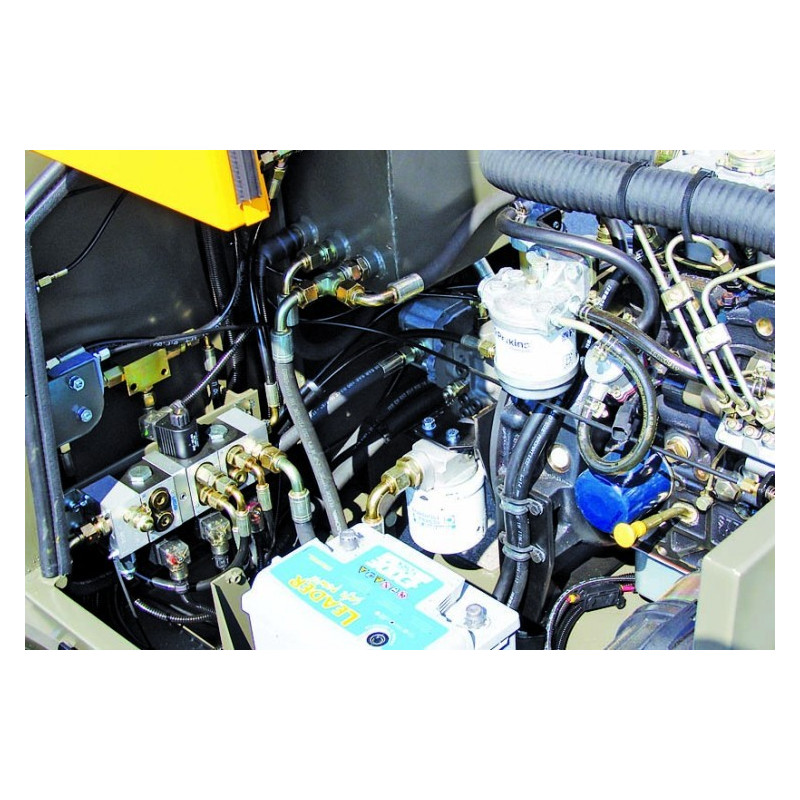

• Variable capacity hydraulic pump

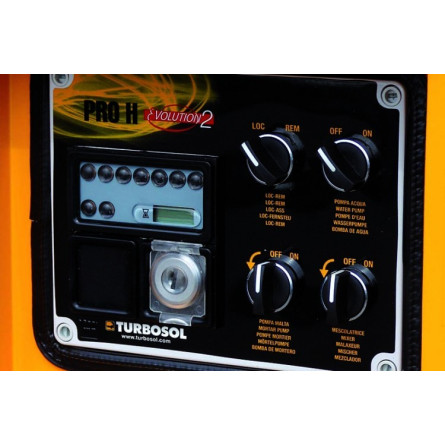

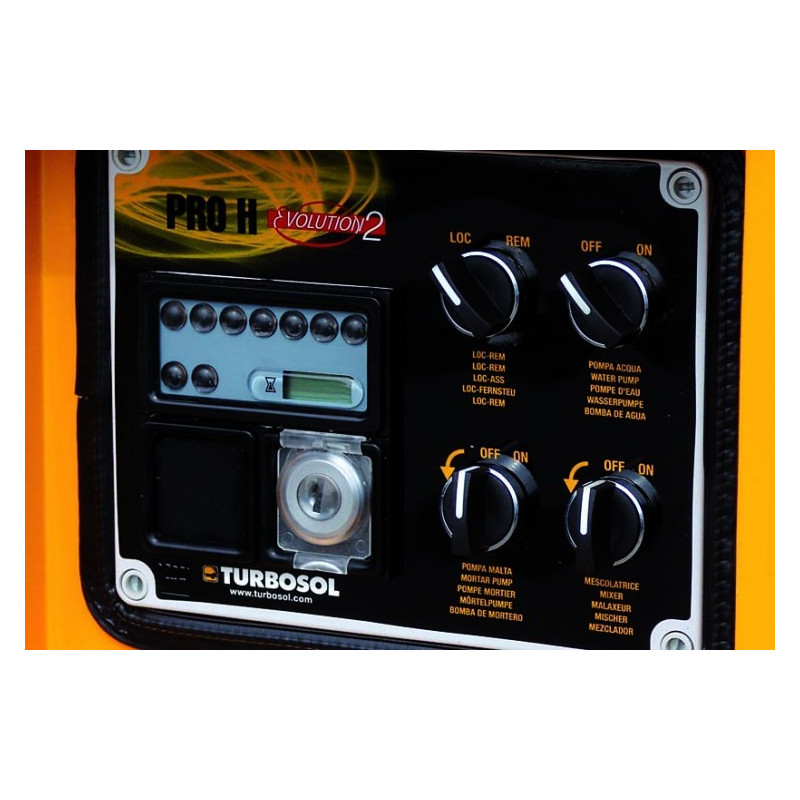

• Electromechanical control panel
• Pneumatic or electric control with 33 m cable

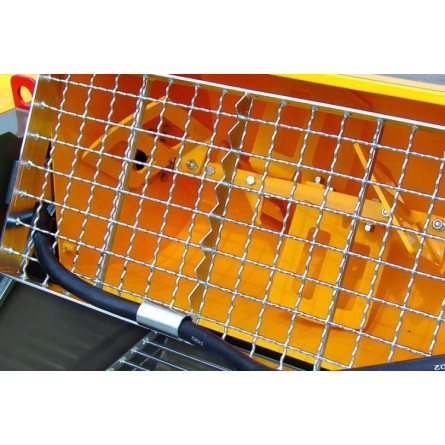

• Tilting sieve with mesh
• 200 l tank with agitator and flexible coupling
• Shock-absorbing chassis suspension, tow bar for car, road lights
• 18 l hydraulic oil tank
• 15 l diesel tank
• 180 l paddle mixer
• Compressor
• T25 screw pump (optional 2L6)
• Accessory box (spray gun, nozzle set)

Equipment – ready-mixed plasters:

• 2L6 pump
• mortar/air hose - 35 m with connectors

or optional

Equipment - traditional mortars:

• T25 pump
• mortar/air hose - 30 m with quick couplings
• vibrating sieve

Optional:

• 60.12 pump
• hoses and accessories in a box
• Water gauge
• Remote control with 33 m cable
• Radio remote control (start - stop - reverse)
• Spray gun for ready-mixed thick-layer plasters
• Spray gun for injection with pressure gauge
• Device for injecting cement slurry
• High-pressure washer
• Towing hook for lorries

Technical parameters:

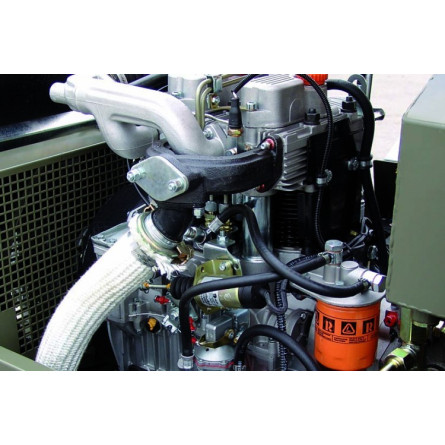

• 12LD/477/2 Lombardini diesel engine - 15 kW
• T25 screw pump
• Theoretical capacity [*] 0 ÷ 65 l/min
• Maximum grain size 10 mm
• Maximum pressure 30 bar
• Tank capacity 200 l
• Mixer capacity 180 l
• Pumping distance [*] 80 m
• Pumping height [*] 40 m
• Tank filling height 145 cm
• Mortar hose connection diameter Ø 50 mm
• Chassis for road use, without brakes
• Dimensions (L x W x H) 274 (339[**]) x 139 x 135 cm
• Weight 750 kg

_{[*] The data presented may vary depending on the viscosity, quality and composition of the mixture, the condition of the pump, and the diameter and length of the hoses. Pumping capacity at the operating distance and height cannot be achieved at the same time. [**] In towing position.}
