PRO HCL D screed pump - TURBOSOL

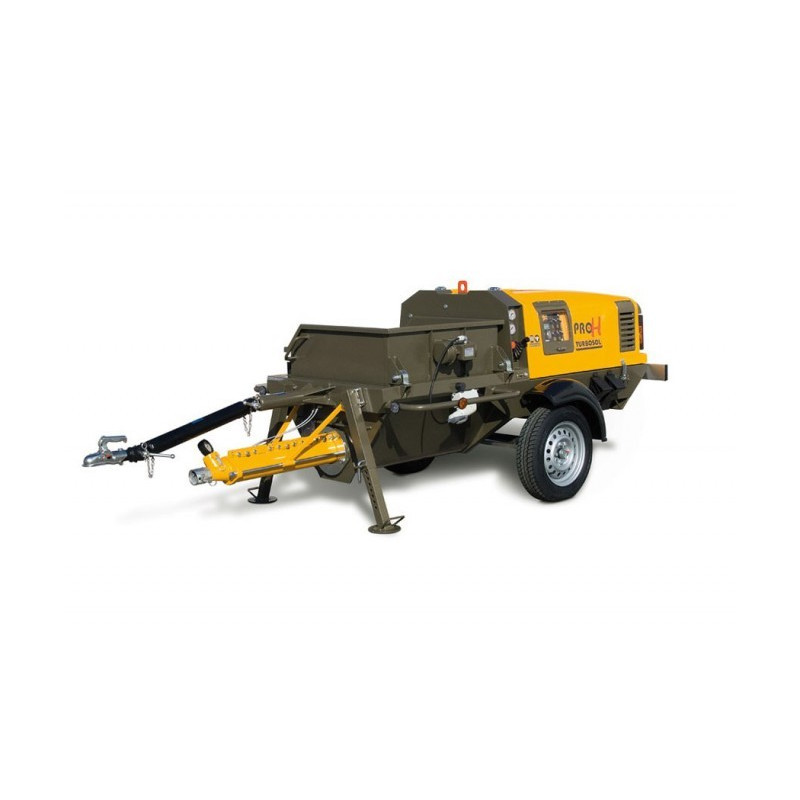

PRO HCL D – TURBOSOL is a high-performance screw pump for feeding liquid screeds over long distances (up to 20 floors). The PRO HCL D version is powered by a powerful diesel engine (22 kW). Mounted on a chassis for towing on public roads.

Application:

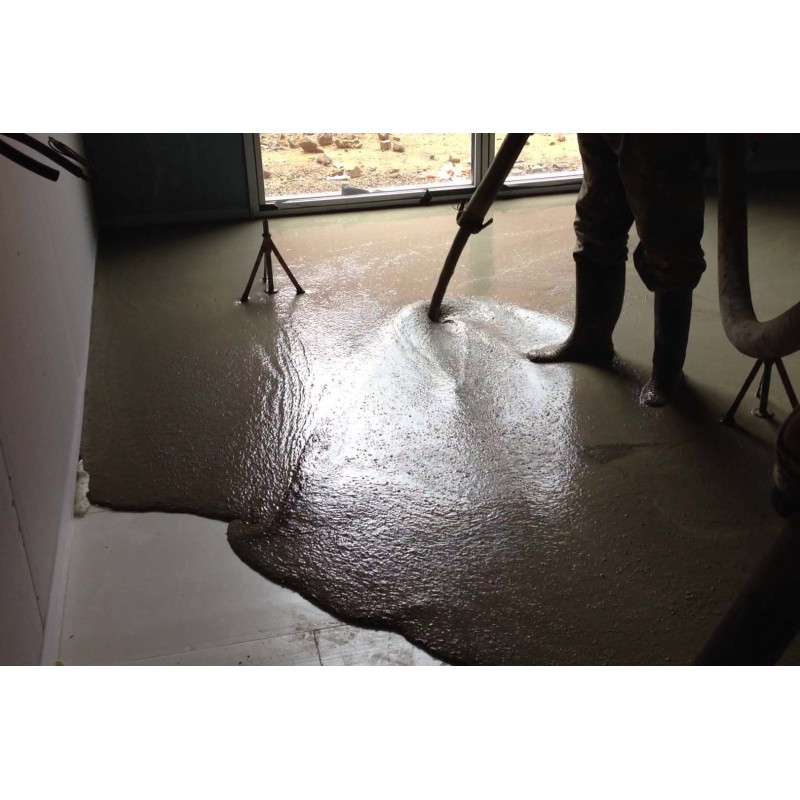

• Self-levelling screeds based on anhydrite or cement
• Foam concrete
• Fine-grained concrete.

Advantages:

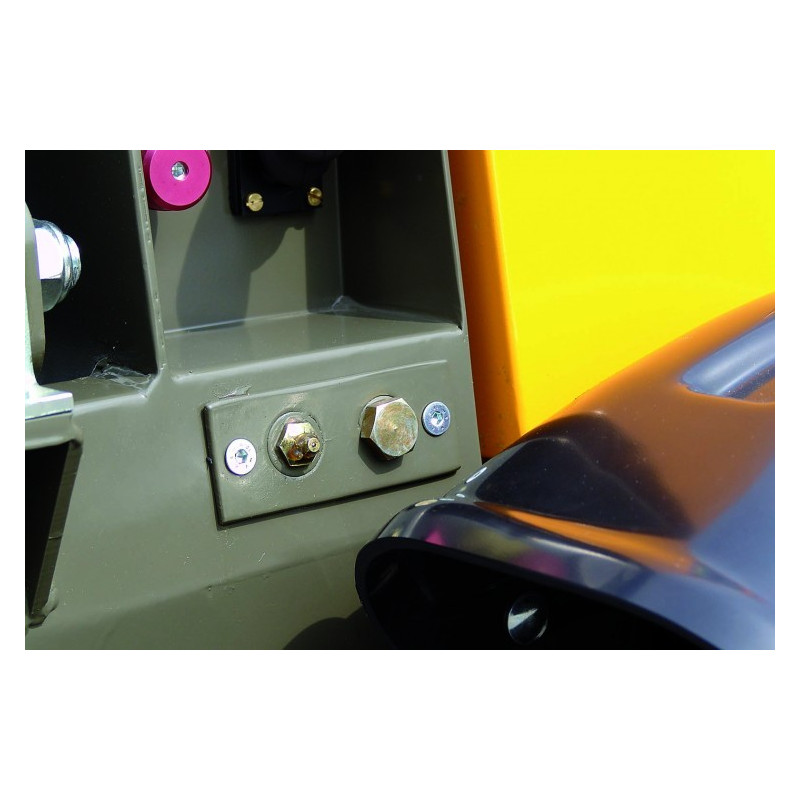

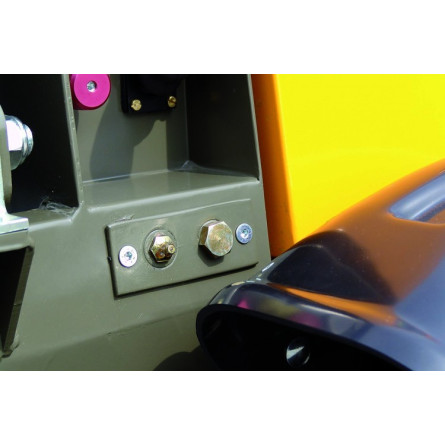

• Single lubrication point for simplified daily maintenance

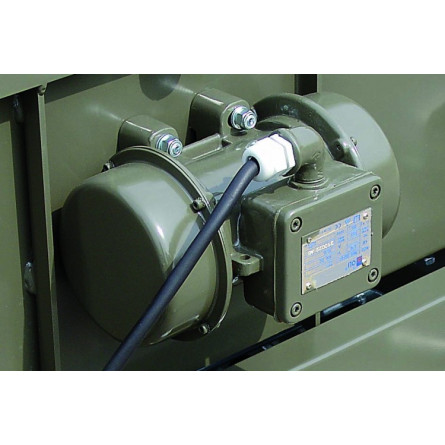

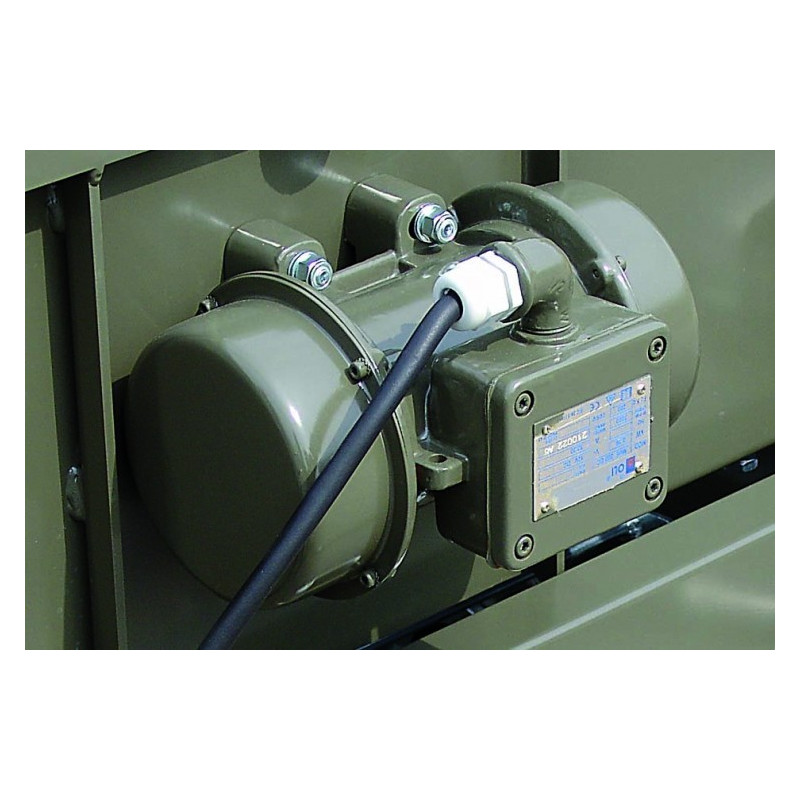

• Large tank with electric screen vibrator facilitates material dosing from truck mixers
• Safety in use: immediate stop of the mixer when the screen is lifted, sensors to protect the engine and hydraulic system, low-noise and low-emission diesel engine, and emergency button.

Scope of delivery:

• Variable capacity hydraulic pump
• Electromechanical control panel
• 3-function cable remote control
• Tilting sieve with mesh
• 200 l tank with agitator and flexible coupling
• Shock-absorbing chassis suspension, tow bar for car, road lights
• 25 l fuel tank
• 18-litre hydraulic oil tank
• Two stabilising feet
• Central lifting eye for crane lifting
• Diesel engine and hydraulic oil coolers
• DN 50 mortar hose, 30 m long with couplings
• Manual grease gun
• Cleaning tools
• Metal hose bracket
• Two plastic hose holders
• Box with accessories.

Optional equipment:

• Sieve set with vibrator
• High-pressure washer
• 60.12 plus screw pump - with a capacity of 300 l/min (14/16 mm grain)
• 3-function radio remote control
• Truck hitch.

Technical parameters:

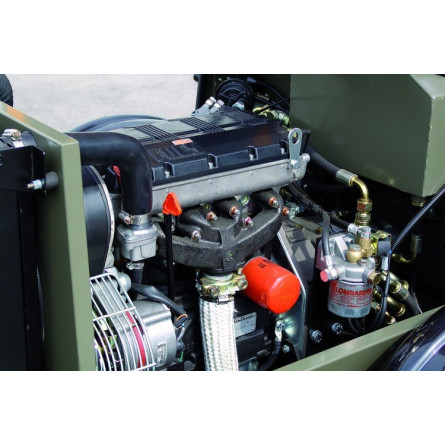

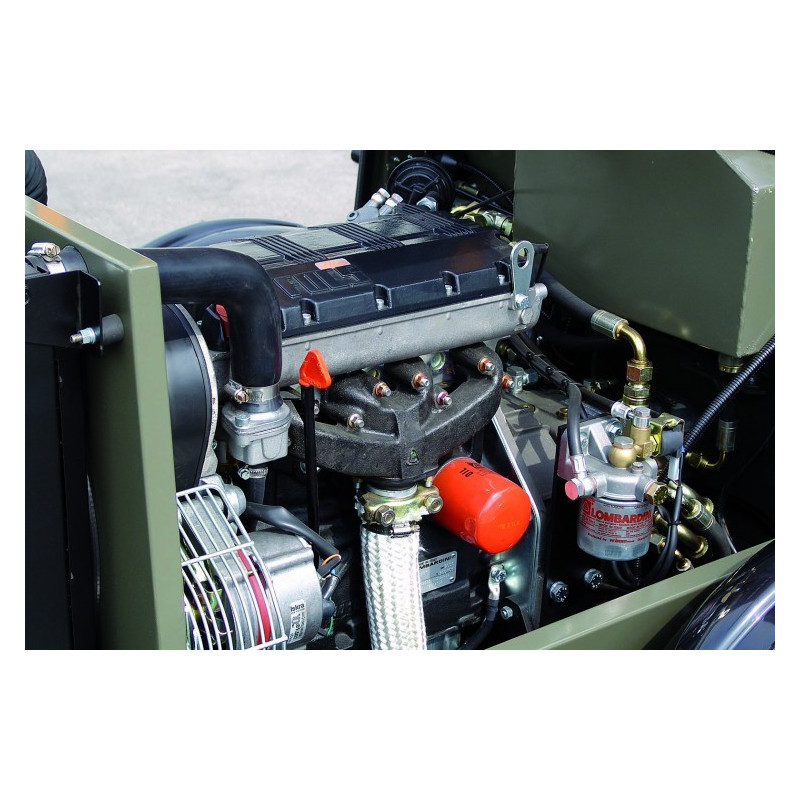

• FOCS 1404 Lombardini diesel engine - 22 kW
• 60.12 screw pump (60.12 plus)
• Theoretical capacity [*] 0 ÷ 240 l/min (0 - 300 l/min)
• Maximum grain size 8-10 mm (14-16 mm)
• Maximum pressure 20 bar (15 bar)
• Tank capacity 200 l
• Pumping distance [*] 100 m
• Pumping height [*] 60 m (50 m)
• Tank filling height 86 cm
• Mortar hose connection diameter Ø 50 mm
• Chassis for road use, without brakes
• Dimensions (L x W x H) 308 (363 [#]) x 141 x 117 cm
• Weight 750 kg [*]

_{[*] The data presented may vary depending on the viscosity, quality and composition of the mixture, the condition of the pump, and the diameter and length of the hoses. Pumping capacity at the operating distance and height cannot be achieved at the same time. [#] In towing position.}
