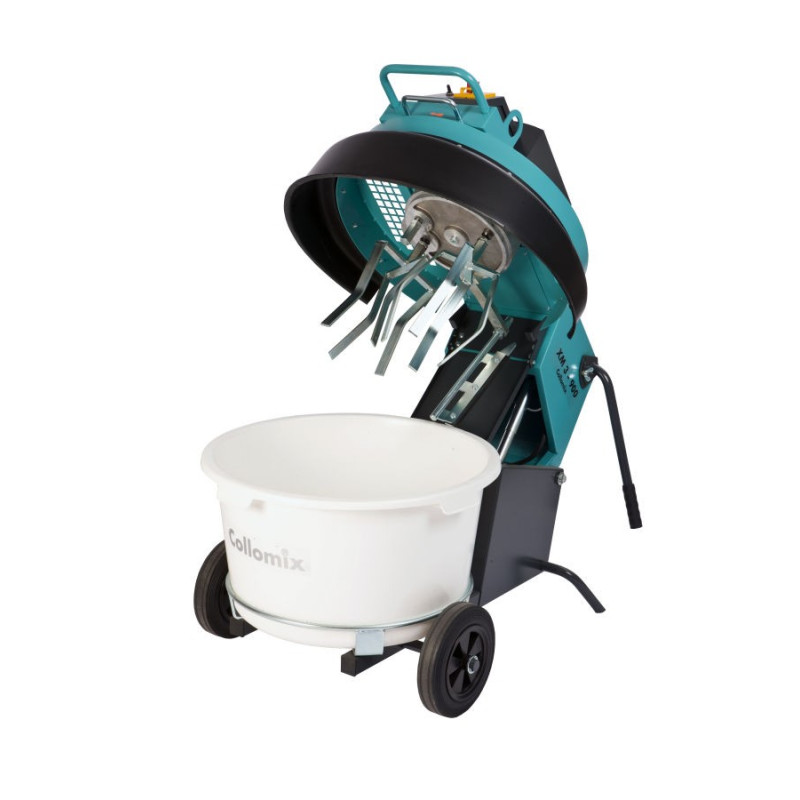

XM 3-900 mixer - COLLOMIX

The XM3-900 is a mixer designed for preparing specialised mortars. Its large tank and powerful motor ensure high performance. It is a high-quality product from the German manufacturer COLLOMIX.

Two mixer configurations are possible, depending on the materials used:

• configuration 1: XM 160 + XM195 - slow-speed system for thick materials
• configuration 2: XM160 + ST 160 - for liquid materials.

The COLLOMIX mixer has 3 operating modes - 2 time modes: 90 or 180 seconds and a mode without time limit.

Application:

• Mixer configuration 1: concrete up to 16 mm, cement screed, thermal insulation plaster, paving mortar, epoxy resin, tile adhesive, PCC/SPCC mortars, masonry mortar, grout, aggregate mixture with resin, renovation plaster, reprofiling mortar.
• Mixer configuration 2: liquid screed, rough coat, sealing compounds, self-levelling screeds, liquid concrete, resin coatings.

Advantages:

• High torque ensures fast and thorough mixing.
• Ideal solution for specialised work.
• 3 mixing time modes.
• 2 mixer configurations.
• 90-litre tank for maximum efficiency.

Technical data:

• Tank capacity: 90 l
• Mixing capacity: 70 l
• Motor power: 1.5 kW
• Power supply: 400 V
• Mixing speed - mixer configuration 1: 2 x 185 rpm
• Mixing speed - mixer configuration 2: 1 x 185 + 1 x 670 rpm
• Mortar scraper speed: 40 rpm
• Weight: 117 kg
• Dimensions: 1075 x 758 x 845 mm
• Catalogue number: 39015

XM3-900 kit equipment, 39015:

• XM 160 mixer, 70153 - 1 pc.
• XM 195 mixer, 70155 - 1 pc.
• SR 160 mixer, 70157 - 1 pc.
• scraper 70058 - 1 pc.
• 90 l tank, 60261 - 1 pc.
