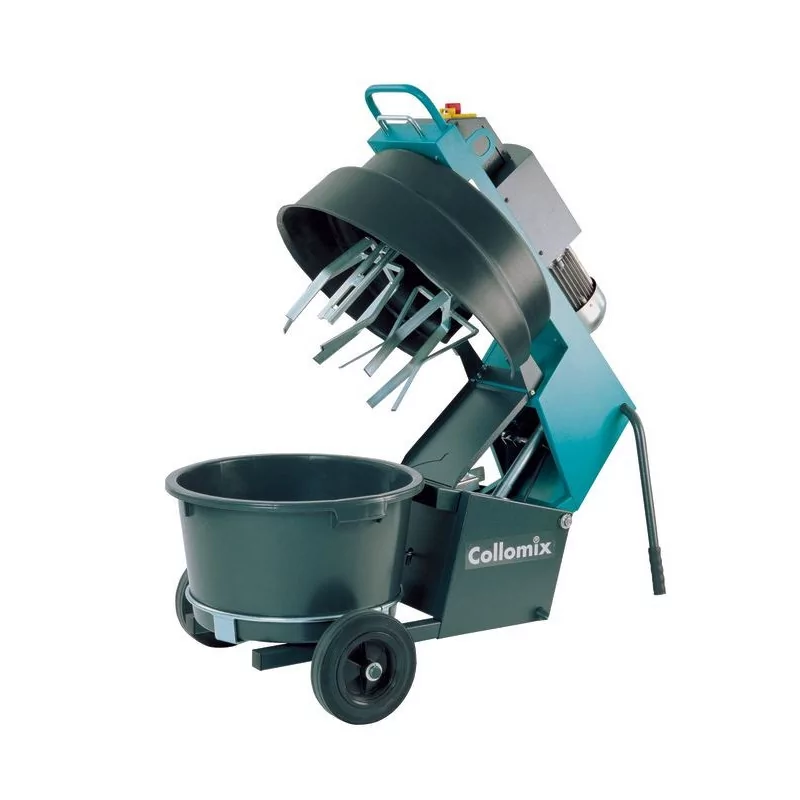

XM 2-650 400V mixer - COLLOMIX

The XM2-650 is a highly efficient mixer for specialised applications, powered by 400V. The device is made of the highest quality components, ensuring high quality and mixing power. Two mixer configurations are available for the XM2-650 mixer, depending on the materials used:

• configuration 1: XM 160 + XM195 - slow-speed system for thick materials
• configuration 2: XM160 + ST 160 - for liquid materials.

The COLLOMIX mixer has 3 operating modes - 2 time modes: 90 or 180 seconds and no time limit.

Application:

• Mixer configuration 1: concrete up to 16 mm, cement screed, thermal insulation plaster, paving mortar, epoxy resin, tile adhesive, PCC / SPCC mortars, masonry mortar, grout, aggregate mixture with resin, renovation plaster, reprofiling mortar.
• Mixer configuration 2: liquid screed, rough coat, sealing compounds, self-levelling screeds, liquid concrete, resin coatings.

Advantages:

• High torque ensures fast and thorough mixing.
• Ideal solution for specialised work.
• 3 mixing time modes.
• 2 mixer configurations.
• Mixer available in 2 versions: 230V and 400V.

Technical data:

• Tank capacity: 65 l
• Mixing capacity: 50 l
• Motor power: 1.5 kW
• Power supply: 400 V
• Mixing speed - mixer configuration 1: 2 x 185 rpm
• Mixing speed - mixer configuration 2: 1 x 185 + 1 x 670 rpm
• Mortar scraper speed: 40 rpm
• Weight: 105 kg
• Dimensions: 1075 x 730 x 845 mm
• Catalogue number: 39016

Equipment included in the XM2-650 400V, 39016 set:

• XM 160 mixer, 70153 - 1 pc.
• XM 195 mixer, 70155 - 1 pc.
• SR 160 mixer, 70157 - 1 pc.
• scraper 70058 - 1 pc.
• 65 l tank, 60403 - 1 pc.
