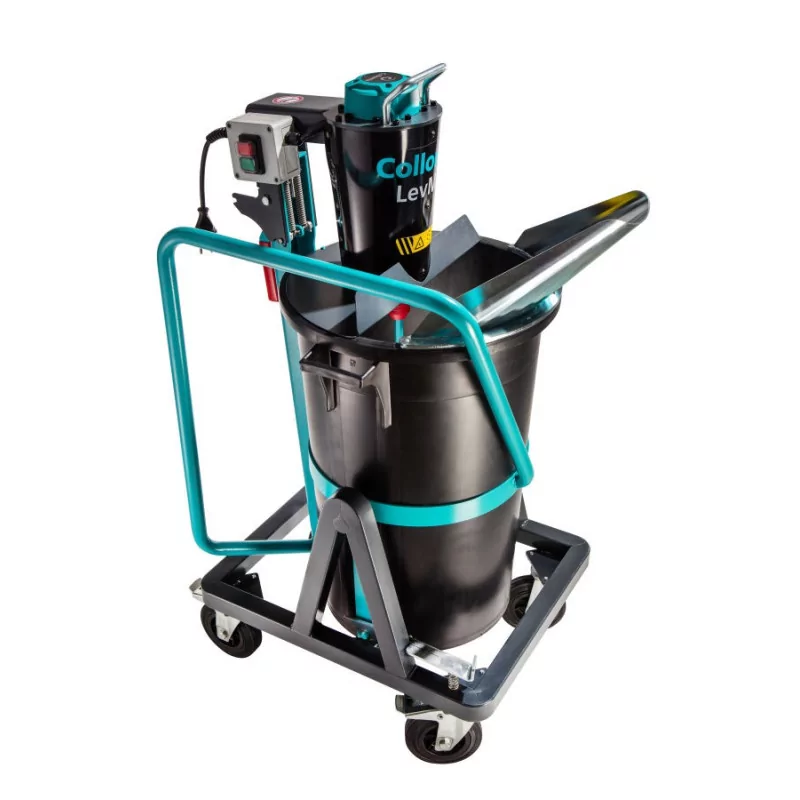

LevMix mixer - COLLOMIX

A device manufactured by the German company COLLOMIX, used mainly for thin-layer screeds. The mixer significantly speeds up work. Thanks to LevMix, we can achieve a capacity of up to 200 m² per hour for self-levelling screeds! Its specialised design eliminates the problem of carrying heavy buckets. The device ensures accurate and fast mixing.

Application

Liquid mortars such as: self-levelling screeds, liquid screeds, filling mortars, epoxy screeds, liquid polymers.

Advantages

• Allows 3 bags to be mixed at once (55 l) - increased efficiency without the need to increase the number of operators
• The material is poured by one person, without the need to carry heavy buckets
• Highest quality material thanks to an optimised mixing process
• Fast mixing time - up to 60% less time compared to standard mixers
• Robust construction - enables operation even under heavy loads
• Powerful drive - 1.6 kW motor for continuous operation
• Overvoltage trigger - disconnects the drive in case of excessive voltage in the mains
• Drive can be lifted at different angles
• Handle for safe material pouring
• 75 l tank with a usable capacity of 55 l, allows for mixing 3-4 bags in one cycle
• Wheel brake - secures the tank
• Compact design - allows for easy manoeuvring and transport on construction sites
• Outlet strainer - can be used to filter even the finest particles
• Reduced dust emissions - partially covered tank + vacuum cleaner connection adapter
• HEXAFIX mixer mounting system - allows for quick mixer replacement
• Material pouring chute enables precise material pouring
• VLX Turbo mixer - specialised mixer for optimal mixing results in the shortest possible time

Technical data

• Motor: 1.6 kW
• Power supply: 230 V
• Tank capacity: 75 l
• Mixed quantity: 55 l
• Mixing speed (empty tank): 660 rpm
• Mixing speed (full tank): 410 rpm
• Weight: 42 kg
• Dimensions: 520 x 690 x 1190 mm
• Catalogue number: 37102
