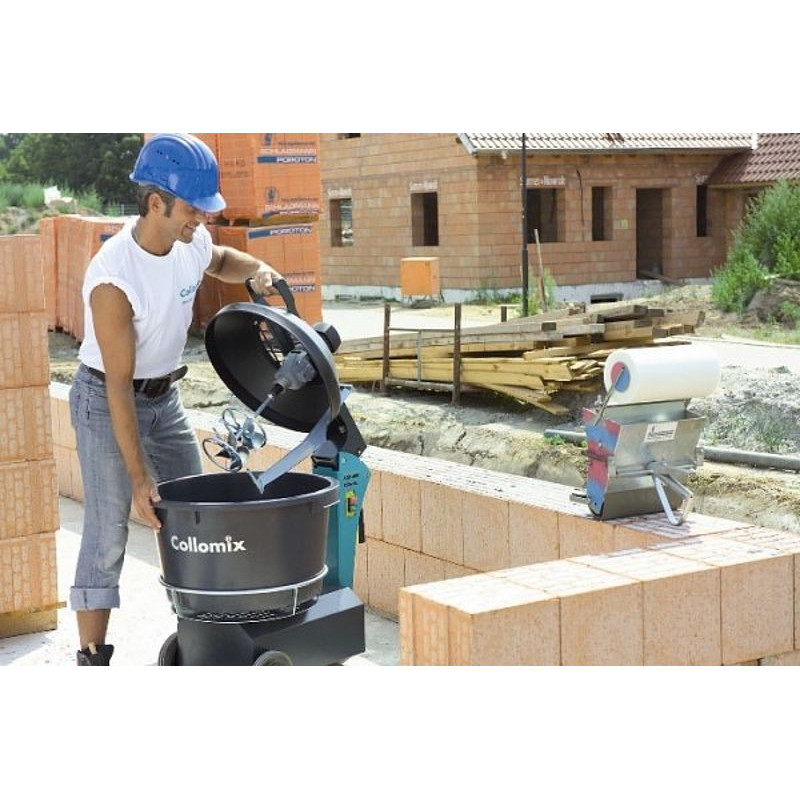

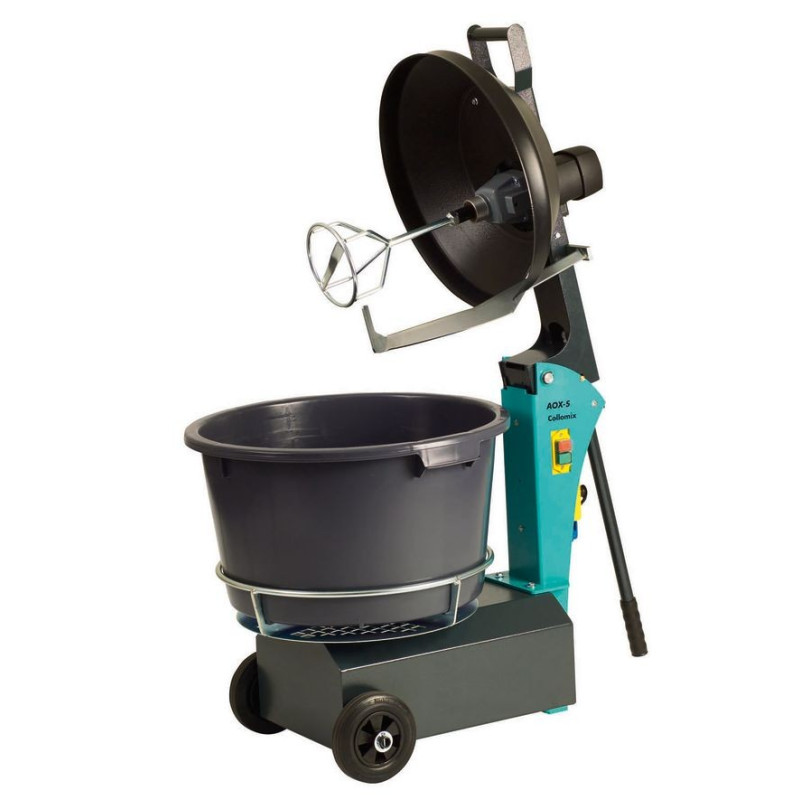

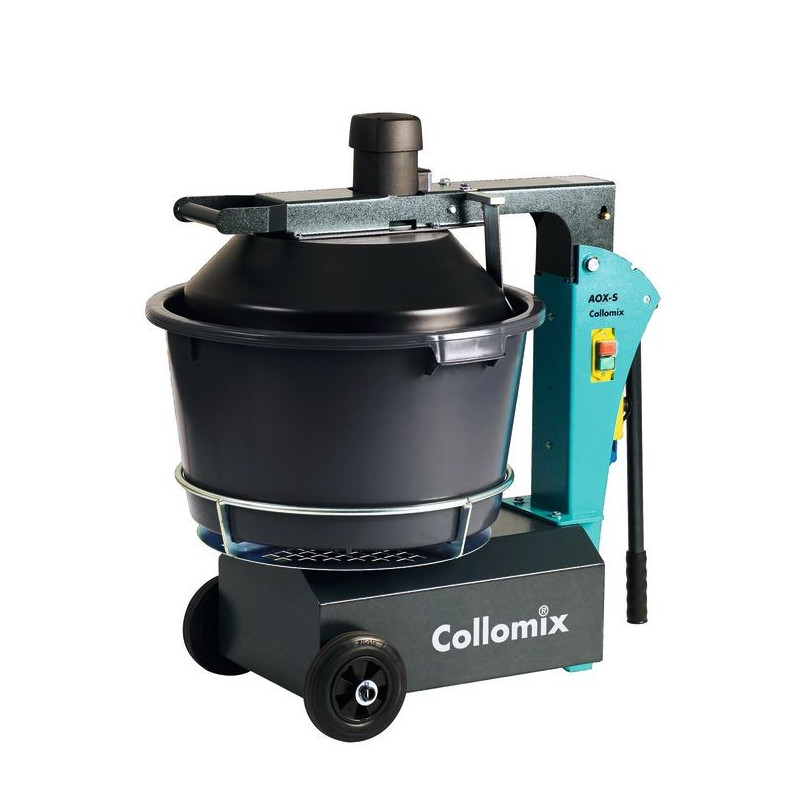

COLLOMIX AOX rotary mixer

The AOX-S is a compact, highly professional stationary mixer. Years of experience by Collomix engineers have resulted in a virtually maintenance-free machine with the lowest failure rates. All machine components: motors, gearboxes, frame and controls are manufactured in Germany.

A 1.1 kW motor drives the mixer (included in KR and DLX) and the tank, causing it to rotate in the opposite direction to the mixer. The edge scraper ensures that not a single lump of mortar remains at the bottom or edges of the bucket. This arrangement allows even the most difficult mortars to be mixed in the shortest possible time without any maintenance.

The operator can perform other tasks at the same time, so the use of an automatic mixer also reduces labour costs.

Two types of mixers are included in the set:

• KR 160 – characterised by high shear forces, designed for mixing sealants, adhesives, joints, plastering and masonry mortars, fillers, etc.
• DLX 140 – ideal for mixing large quantities of liquid and semi-liquid compounds (paints, adhesives, coatings, resins, fillers

The mechanical components of the gearbox are protected by lubricants that have been previously tested by the automotive industry. Its gears are made with perfect precision from corrosion-resistant tool steel. The machine operates quietly and smoothly thanks to its precisely refined mechanisms. The noise level does not interfere with work performed right next to the mixer.

All arguments speak in favour of choosing the AOX-S:

• perfect mixing of ingredients in a very short time
• highest quality Made in Germany
• longest machine service life despite extreme loads
• time savings – automation guarantees repeatability and mixing quality
• minimal vibration and noise, sealed cover protects against dust

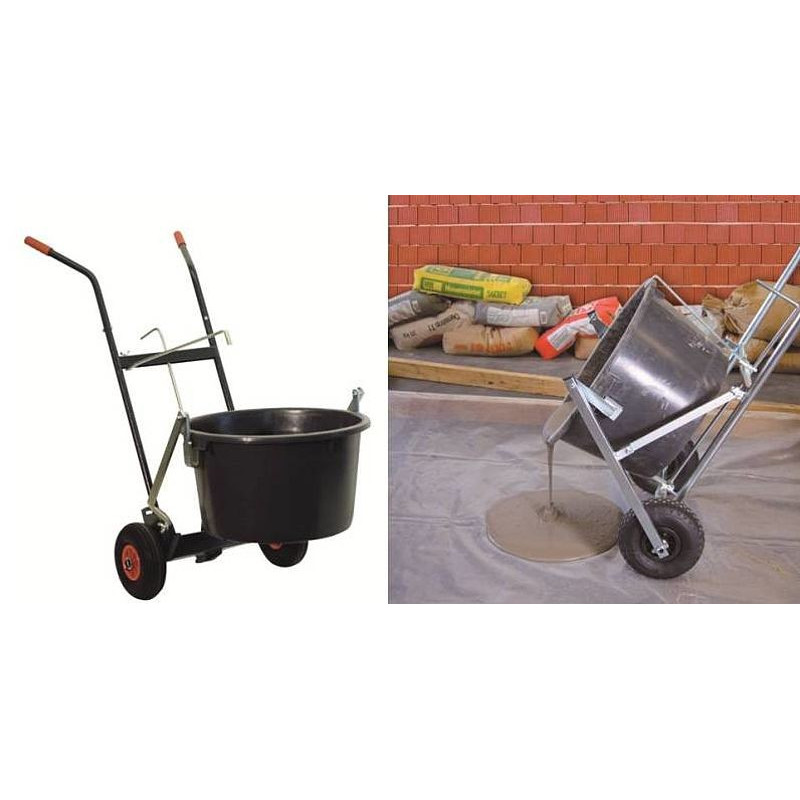

To facilitate emptying the tank, the CX70183 transport trolley is available as an option

Technical data:

• Mixing container capacity 65 litres,
• Maximum amount of material mixed: 40 litres
• Motor power 1.1 kW
• Supply voltage 230 V,
• Mixer speed 610 rpm,
• Plate speed 18 rpm,
• Dimensions 600x820x870 mm.
• Weight 51 kg
• Catalogue number 37123

Advantages:

• Effective mixing without employee involvement,
• Excellent mixing effect,
• Powerful drive with a capacity of up to 50 kg,
• Rotating plate with its own motor for the best possible mixing process,
• Scraper prevents mixed material from accumulating on the edges of the vessel,
• Robust container made of strong polyethylene,
• Practical handle, low weight and high mobility.
