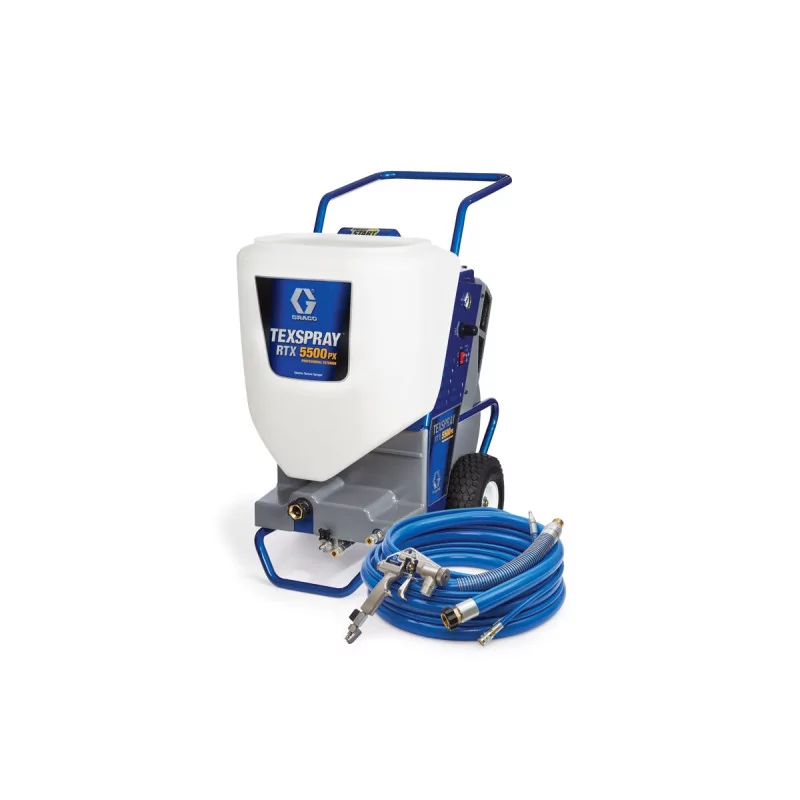

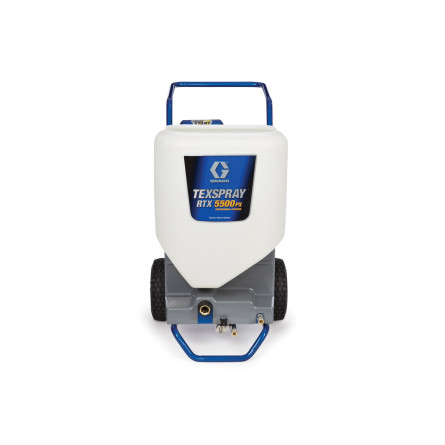

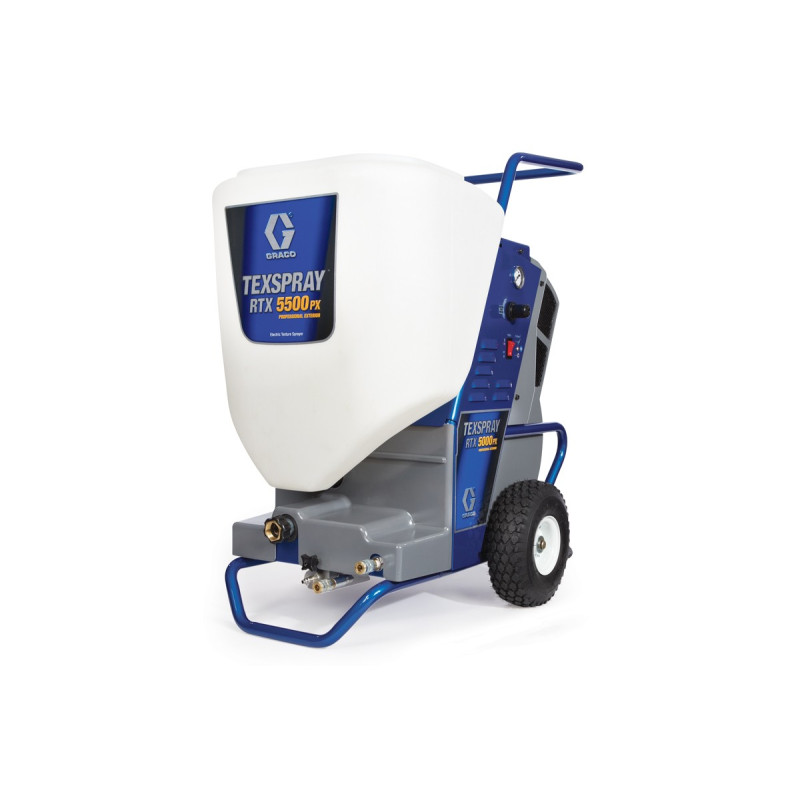

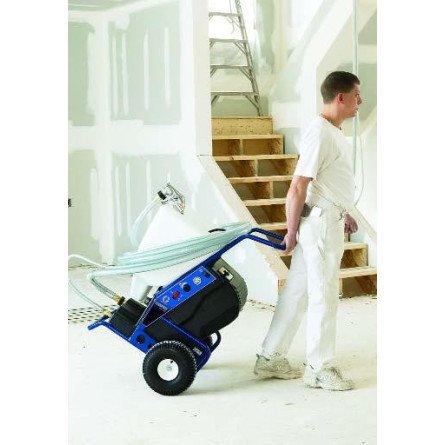

Graco RTX 5500 PX spray unit

For spraying decorative materials, textured paints, fillers, finishing coats, etc.

The NEW RTX SERIES features optimised solutions for spraying textured materials for interior and decorative finishes, delivering greater efficiency, productivity and the legendary quality that has kept Graco the market leader in textured finishes since 1992. The RTX 5500 Pro Interior series is an optimised structural sprayer that is perfect for tradespeople and contractors looking to reduce the time it takes to complete medium to large jobs. It is a professional solution for increased productivity that will keep you working efficiently on the job site. The RTX 5500 Pro Exterior series has been configured for projects of all sizes. It is ideal for large contractors working for individuals and companies who need an efficient device for spraying a wide variety of structural materials.

RotoFlex II Pump

• A proven "single-piece" pump that always works! Graco's unique flow-through pump design means smooth material flow for consistent coverage and a consistent spray pattern – every time! Unmatched durability when working with abrasive materials.
• Easy flushing
• Easy maintenance, no rusting parts

Double piston air compressor

• Unmatched spray power! Up to 50% more air for demanding finishes
• Maintenance-free design
• Longer pump life thanks to lower operating speeds compared to the RTX 1500

MaxPower™ DC motor

• Proven performance and full enclosure
• Fan-cooled enclosure protects motor from dust, dirt and other contaminants.
• Brushless design means no brushes to replace.
• Operates at 16 amps (in high-efficiency mode) and 10 amps in limited power mode.

SmartStart™ system

• Automatic Start/Stop when the trigger is pulled saves time
• Reduces noise in the workplace
• Extends the life of the pump and compressor
• Reduces tank and material vibration

WideTex™ nozzle and reducer

• The fastest way to achieve perfect textured finishes.
• Generates a wide and consistent spray pattern, allowing you to complete tasks faster and more efficiently than ever before.
• Easy left-to-right spray pattern control eliminates the need for circular gun movements.

Features of the RTX 5500PI and RTX 5500PX models:

Extra-large capacity cup

• Up to 57 litres (15 gallons) capacity reduces the time spent refilling the cup.

MaxPower 240 V brushless DC motor

• Allows for the trouble-free use of longer extension cords, reducing the hassle of circuit breakers.
• Fully enclosed, fan-cooled design protects the motor from dust, debris and other contaminants.
• The brushless design eliminates the need for brush replacement.
• The device can operate in 16 A mode for high performance and in 10 A mode if there are power limitations.

SmartStart system

• The innovative system automatically starts the pump and compressor when the trigger is pulled and stops them when it is released.
• The smooth start-up eliminates material impact, which can impair the quality of the finish.
• Reduces noise and vibration.
• Extends the life of the pump and compressor.

WideTex tips and connector (hardened in the PX model)

• Enable consistent fan pattern spraying.
• Repeatable spray patterns can be achieved with less adjustment of material flow and pressure.
• Increases productivity by over 20%.

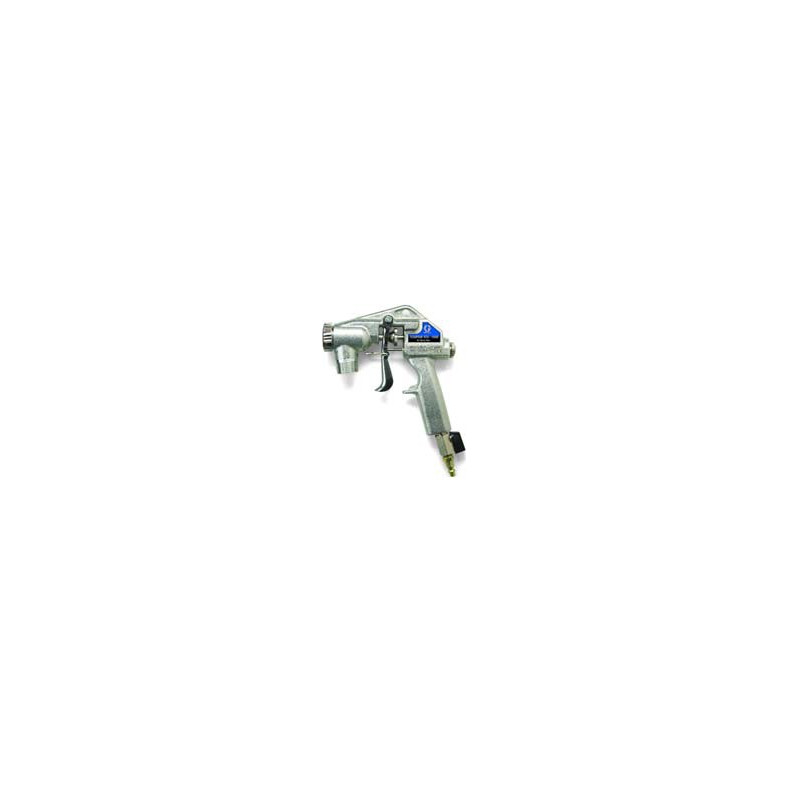

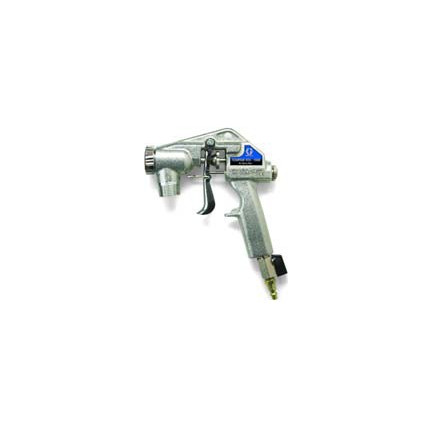

High-strength aluminium gun with built-in flood selector

• Durable aluminium construction
• Oversized fluid/air passages
• Allows the device to be set to flood mode using the gun.

RotoFlex HD pump

• Features an innovative braided sling for improved support of the RotoFlex pump tube.
• 21 l/min (5.5 gal/min) capacity for faster job completion — proven in real-world conditions!

High-performance twin-cylinder air compressor

• High-efficiency design delivers 33% more air for demanding finishes.
• Maintenance-free design.
• Material is ejected further.
• Lower operating speed ensures longer service life.
• Capacity of 0.26 m³/min (9.1 ft³/min) at 1.4 bar (20 PSI) pressure

Material/air hose attached to the bucket with a diameter of 25.4 mm (1 inch) or 31.75 mm (1 ¼ inch) on the PX model

For ease of use, both hoses are permanently connected to each other.

• Provides greater flexibility.

FlexChange pump section

• Tool-free pump replacement system — now easier than ever!
• Replacing the RotoFlex pump with a spare takes seconds.
• This eliminates costly downtime on the job site.

Adjustable material flow control

• Increasing the setting allows thicker materials to be sprayed.
• Decreasing the setting reduces flow and provides maximum control.
• Easy-to-read indicator.

Materials and applications:

Application - the new RTX spray equipment enables efficient and productive spraying of a wide range of interior structural and decorative materials:

• Clay textures
• Clay finishing coats
• EIFS adhesives and primers – mixed or powdered
• EIFS topcoats – mixed or powdered (particle diameter up to 3 mm)
• Acoustic finish coat
• Finishing coat for interior and exterior finishes (particle diameter up to 3 mm)

Basic equipment:

• Material hose 1 inch x 7.5 m
• 3/8-inch pneumatic hose, 7.5 m
• High-strength texture gun Round nozzles 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm
• WideTex connector Adapter with 4 mm, 6 mm, 8 mm, 10 mm, 12 mm and XL W tips

Technical parameters:

• Max. working pressure - 7 bar
• Max. air pressure - 3 bar
• Max. capacity (depending on material density) - 21 l/min.
• Max. particle diameter for the pump - 9 mm.
• Max. particle diameter for the gun - 4.5 mm.
• Tank capacity - 57 litres
• Weight (including hose and lance) - 66 kg.
• Max. hose length - 30 m.
• Brushless motor - 1.5 kW, 230 V
• Oil-free compressor - 260 l/min, 3 bar

OPTIONAL:

• Precision finishing kit
