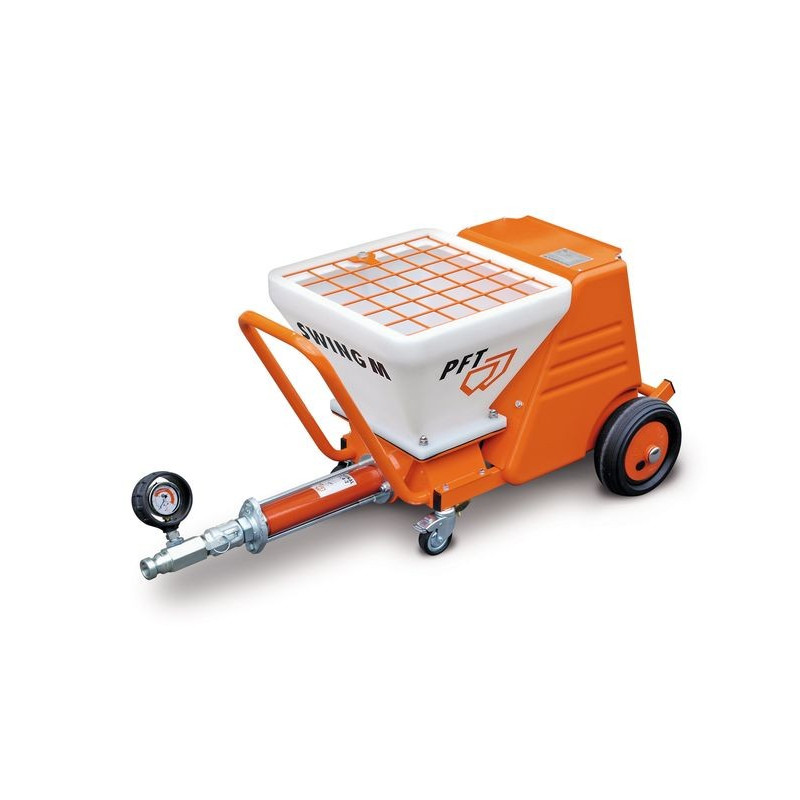

PFT SWING M FC-230V

The PFT SWING M is a small pressure pump with an electronically controlled, infinitely variable direct drive with a power output of 1.5 kW. The device is suitable for applying, pumping and spraying spray plasters, mortars and solvent-free (ready-mixed) materials with a maximum grain size of up to 3 mm.

Application:

For materials such as: dispersion paints, lime paints, precision, silicate and mineral plasters (with a paste consistency) with a maximum grain size of up to 3 mm, priming mortars, liquid wallpapers, betokontakt, sealing mortars and many others.

Advantages:

• Steplessly adjustable pump output
• Plastic container - easy to clean
• Variable feed speed by changing the pump (pump B or C)
• Small, lightweight, handy, compact
• Quick cleaning and maintenance
• Fits any combi without dismantling
• Easily fits under any mixer
• Optional: electric remote control

Technical data:

• Drive: 1.5 kW gear motor
• Speed: 10 - 204 rpm at 50 Hz
• Power supply: 230 V, alternating current, 50 Hz, 1 phase
• Fuse: 16 A
• Rotor/Stator: C4-2 standard equipment
• Capacity: 0.5–9 l/min (infinitely variable at 5–100 Hz)
• Delivery range: up to 20 m
• Grain size: max. 3 mm
• Operating pressure: max. 20 bar

Dimensions:

• Filling container height: 500 mm
• Hopper capacity: approx. 38 l
• Length/width/height: 1,100/460/500 mm
• Weight: 70 kg

Equipment:

• C4-2 pump unit
• 25 mm contact pressure gauge set
• Built-in control unit
• Material container with protective grille
• Operating instructions

Catalogue number: 00151992

Warranty: 12 months
