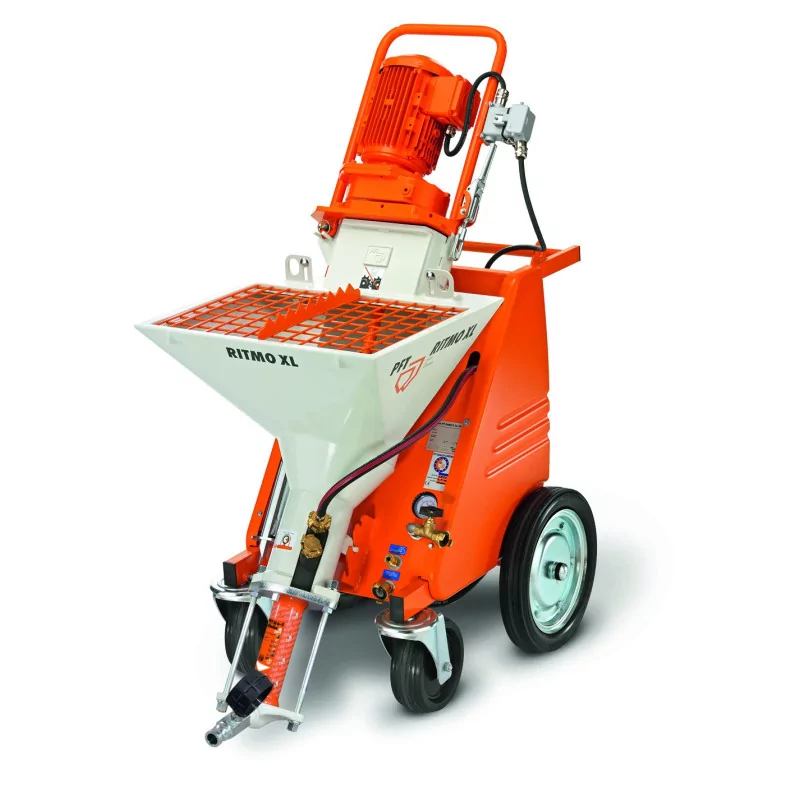

PFT RITMO XL FC-230/400V plastering unit

Compact plastering unit with a 230 V or 400 V power supply. Specially designed for pumping, spraying and applying dry and wet mortars suitable for machine application, paste-like materials and many others with a grain size of up to 7 mm.

The pumping capacity can be changed as required by quickly replacing the pump. Pneumatic filling from a silo using a silo loader allows for the optional use of a blow-off cover. The device can be broken down into three modules.

For all factory-produced dry mortars, such as:

• Machine-applied gypsum plasters
• Lime-gypsum plasters
• Cement plasters
• Lime plasters
• Lime-cement plasters
• Masonry mortars
• Insulating plasters
• Mortars for filling gaps
• Reinforced and adhesive mortars
• Self-levelling screeds
• Self-levelling fillers

Advantages of the device:

• Electric drive version in 230V/400V combination
• Stable and compact modular design
• The device is only 70 cm wide
• Can be used universally for various tasks and materials
• Various pumps can be used
• High feed capacity
• Easy to operate and maintain
• Easy and quick cleaning thanks to the rubber mixing zone
• Variable filling height from 85 to 101 cm
• Disassembly and transport can be carried out by one person, without the need for tools
• Integrated air compressor
• Possibility of connecting an additional mixer with aeration: PFT ROTOMIX or PFT ROTOQUIRL

Basic equipment:

• 5.5 kW gear motor, 120-400 rpm, with swing-off switch
• Integrated control unit
• Material hopper with protective grid
• RONDO 25 mm, 10 m, hydraulic connection, with couplings
• Mixing pipe cleaner for D and R pumps, galvanised
• RITMO XL cleaner shaft, galvanised
• Spray nozzle 25 mm, 14 short rotating nozzle
• Water-air hose 1/2", 11 m complete with connectors
• COMP P-200 air compressor with pressure control
• Inspection element part 25V with Geka connector
• Tool bag
• Operating instructions
• Adapter plug RED 5-32 A | BLU 2-16 A

Technical data:

• Drive - Gear motor: 5.5 kW, 120-400 rpm at 10-50 Hz
• Connection data: 230 V
• Rotor/Stator: SD 6-3 slimline
• Pump capacity: approx. 20 l/min
• Operating pressure: max. 30 bar
• Feed distance: 15 m (mortar) / 30 m (filler)
• COMP P-200 air compressor: 230 V, 0.5 kW, 200 l/min, max. 3.4 bar with pressure cut-off

Dimensions:

• Filling height: 850-1010 mm
• Tank capacity: 70 l
• Length: 1300 mm
• Width: 700 mm
• Height: 1400 mm
• Total weight: 232 kg

Catalogue number: 00197821

Warranty: 12 months
