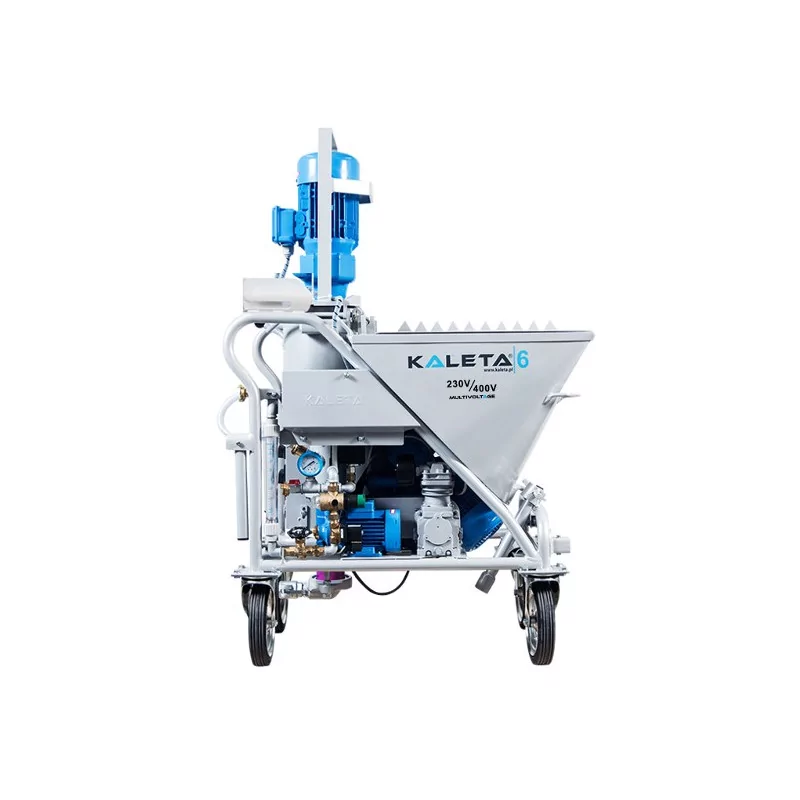

KALETA 6 MULTIVOLTAGE plastering machine -230/400V

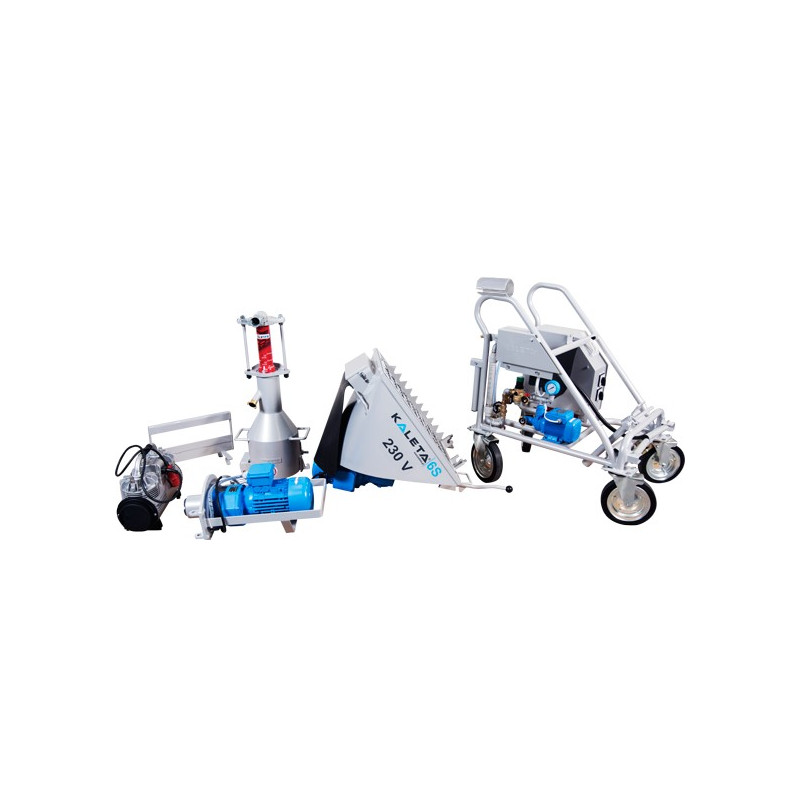

The latest model of plastering machine offered by KALETA. The machine works with a silo, and its capacity and feeding distance depend on the plaster mortar used and the type of pump: D or R. The machine is easy to operate, service and maintain. Its modular design allows for quick disassembly into five components: mixer column with pump, gear motor, feed hopper, support frame with installations, compressor with base.

APPLICATION:

ready-made mixtures in bags and from silos: gypsum plasters, lime-gypsum plasters, lime-cement plasters, base coats (rough coats), lightweight plasters, special plasters, renovation plasters, self-levelling screeds, liquid screeds, etc.

TECHNICAL CHARACTERISTICS:

• Length 960 mm
• Width 670 mm
• Height 1580 mm
• Filling height 960 mm
• Total weight 250 kg
• Bucket capacity 100 kg
• *capacity 6-60 l/min
• Max. discharge pressure 30 bar
• *Feed distance up to 30 m
• Pump motor 4 kW/400 rpm
• Basket motor 1.1 kW/45 rpm
• HS-24 compressor 300 l/min
• Water pump 230 V
• Power supply 230/400 V

EQUIPMENT:

• Spray gun 1 pc.
• Mortar delivery hose 2x10 m
• Air hose 2x10 m
• Screw pump D6-3 1 pc.
• Mixer 1 pc.
• Cleaner with connector 1 pc.
• Screw wrench 1 pc.
• Gun nozzle 3 pcs.
• Flat wrench 1 pc.
• Gun cleaner 1 pc.
• Cleaning ball 1 pc.
• G/K connector 2 pcs.
• DTR 1 pc.

*performance and feeding distance depend on the type of plaster mortar and screw pump
