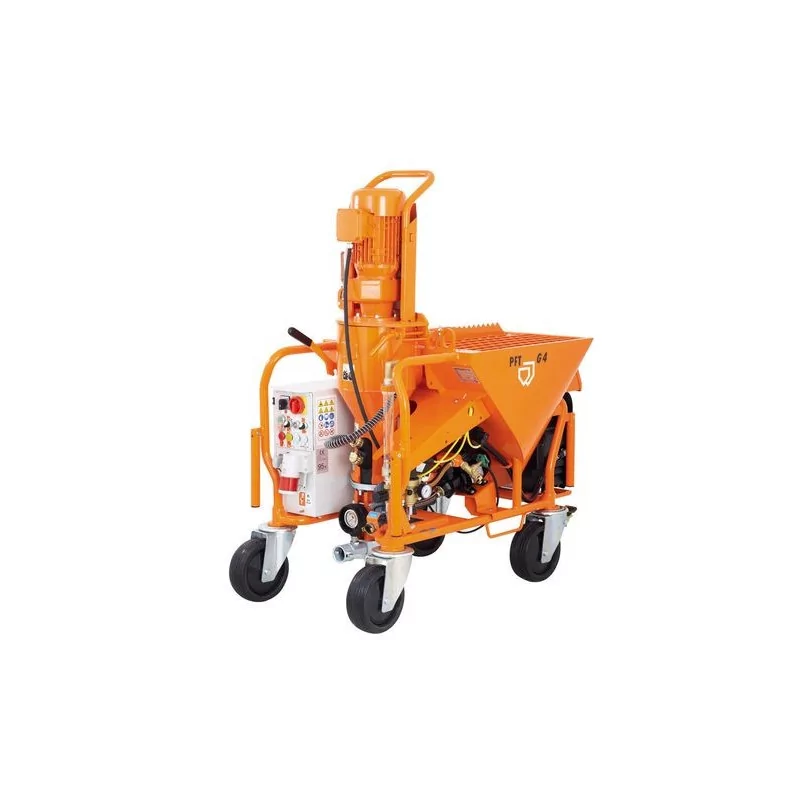

PFT G 4 FU 230V-400V plastering machine

version with water pump

The PFT G 4 is a continuous-operation plastering machine designed for processing factory-made dry machine-mixed mortars. The device can be filled with material from bags or directly from a silo or container using a feed cover or blow cover and the PFT SILOMAT. In the case of the flexible G 4 FC-230/400V version with a frequency converter, a single switch is all it takes to adjust the power without having to replace the pump. The FC-230/400V is particularly recommended for applications in the renovation and refurbishment sector, when working with low current.

Advantages:

• 400 V and 230 V switch
• Phase sequence monitoring
• Rubber mixing zone
• Easy cleaning – mixing zone made of rubber with replaceable D and R pump flanges
• New reinforced unit frame and sturdy wheels
• Special handles for lifting with a forklift and a lifting eye
• Large control cabinet, well protected against dust and moisture
• New large full-size water filter
• Mixing pipe lock allowing it to be locked in several positions for easier transport
• Possibility of direct filling of the unit with plaster from a silo via a PFT silo
• Possibility of filling the unit with plaster from a bag
• Four convenient handles for safe transport of the unit
• All water and air fittings are easily accessible
• Mixing pipe without replaceable flange for D-type pumps
• Flexible mixing intensity thanks to two water inlets
• Frequency converter (FC) for stepless speed control

Technical parameters:

• Maximum capacity: 35 L/min.
• Pressure: max. 30 bar.
• Feed distance: 15 m with DN25 (230 V), 30 m with DN25 (400 V), 50 m with DN35 (400 V)
• Drive: pump motor - SK 25 5.5 kW, approx. 400 rpm
• Dispenser motor: 0.3 kW, approx. 12 rpm
• Water supply pressure: 2.5 bar when the device is running
• Mortar tank capacity: 145 litres ~ 5 bags (30 kg)
• Filling height: 910 mm
• Overall length: 1,200 mm
• Width: 720 mm
• Height: 1,530 mm
• Total weight: 290 kg
• Warranty: 12 months
• Manufacturer: PFT

Basic equipment package:

• Pump unit: SD 6-3 slimline 20 l/min 25 bar
• Mortar hose: RONDO DN25 – 10 m
• Adapter connector: female part DN35 | Female part DN25
• Water pump for pressure boosting: AVO 500230 V, 1 Ph, 50 Hz, 0.37 kW
• Water meter: 150 - 1500 l/h
• Air compressor: COMP P-200, 230V, 1 Ph, 50 Hz, 0.5 kW, 200 l/min - max 3.4 bar with pressure shut-off
• Spraying device / fine plastering device: DN25-360 ° S14 200 Geka
• Connection cable: RED 5-32 A | BLU 2-16A adapter - 1m²
• Water/air hose: DN12 (1/2") Ewo | Geka - 11 m

Warranty: 12 months

Cat. no.: 00260621
