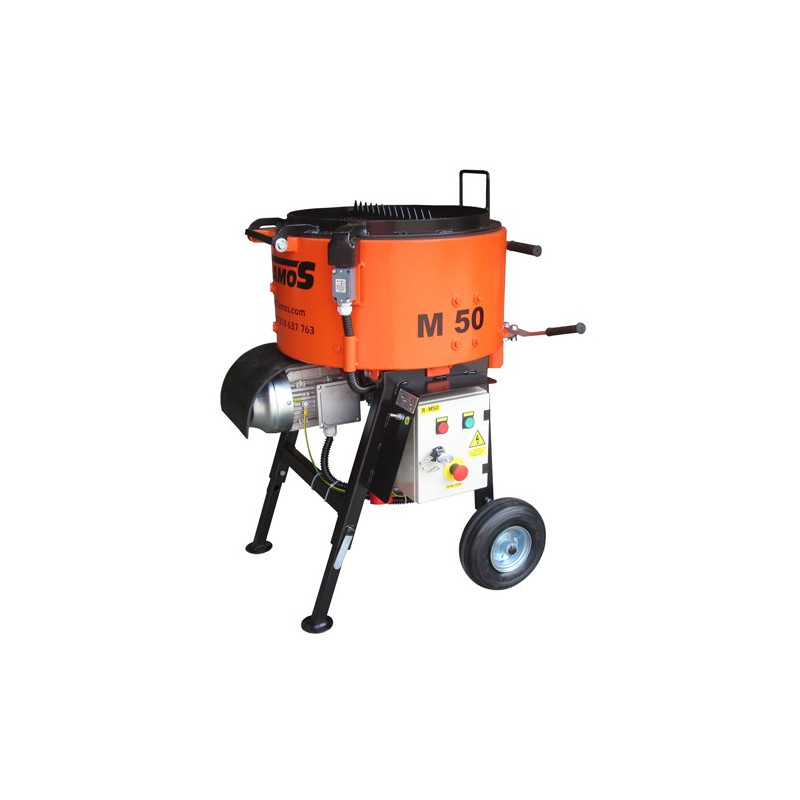

M 50 mixer, 1.5 kW, 400 V, FILAMOS

Counter-rotating mixers (cyclone mixers) are used for mixing dry, wet and moist mixtures. Their main advantage is the extremely thorough mixing of individual ingredients in a very short time (the mixing speed is 4–5 times higher than in the case of a standard drum mixer), resulting in a very high quality mixture.

APPLICATION:

Counter-rotating mixers are most often used to prepare refractory mixtures for the lining of open-hearth furnaces, heating boilers, coke oven batteries, chimneys and equipment used in the chemical industry. In the construction industry, mixers can be used to mix a wide range of construction materials, such as plaster, injection and renovation mixtures. The counter-rotating mixer is also suitable for industrial mixing of mixtures, where the material is processed in individual batches.

ADVANTAGES:

• accurate mixing of individual components of the mixture in a very short time
• a variety of mixers allowing for the preparation of different types of mixtures
• soft starter enabling smooth acceleration of the blades (on models with a power rating of over 5.5 kW)
• special cover design preventing the mixture from falling out
• mixing arms equipped with rubber beaters to prevent rapid wear or damage
• use of reinforced safety elements (under-current release and limit switch)
• operation requiring minimal servicing
• stable design enabling operation in demanding conditions
• low operating and maintenance costs.

TECHNICAL DATA:

• Tank capacity: 74 l
• Maximum usable capacity: 37 l
• Engine power: 1.5 kW
• Voltage: 400 V
• Electrical connection: 16 A
• Agitator speed: 47 rpm
• Dimensions: 730 x 680 x 950/1230 (L x W x H)
• Weight: 96 kg
