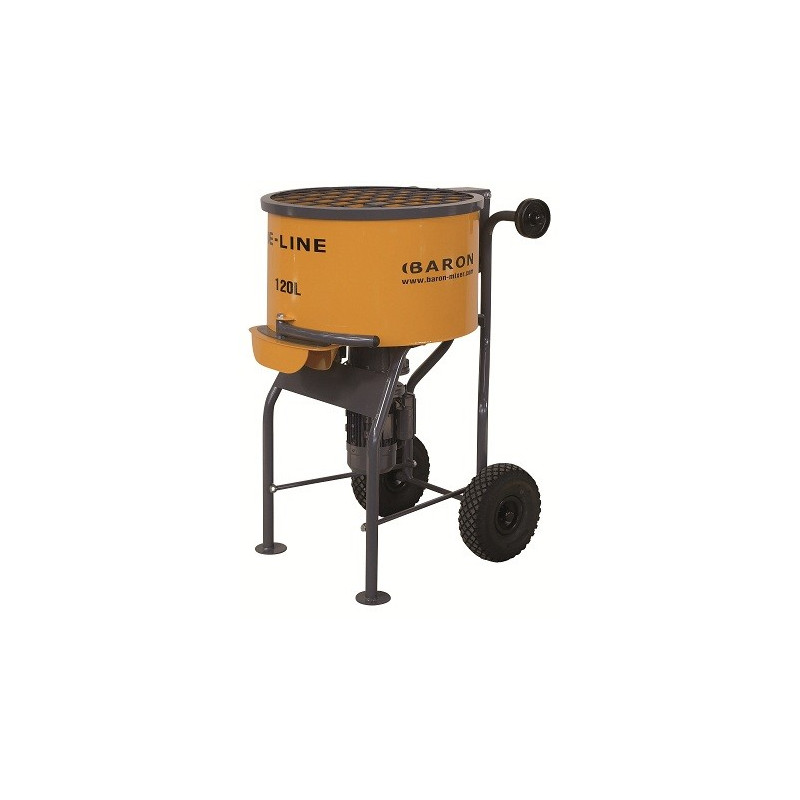

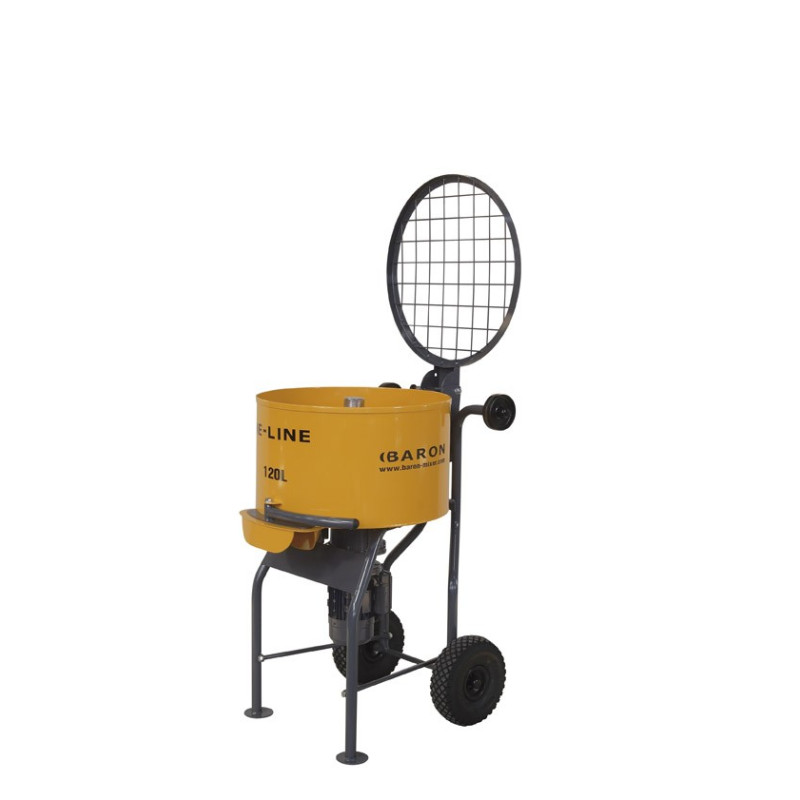

BARON E120 mortar mixer

Counter-rotating mixer for construction mortars and more. Mixer for all mixture consistencies (dry, moist and wet). An excellent alternative to outdated, traditional concrete mixers. Instant mixing time and high accuracy of mixing and emptying. Ideal for use with plastering units and pressure pumps. The only solution for many modern and demanding materials. Quiet and trouble-free operation. Wide range of applications. Also available in the VARIO version – with mixer speed adjustment in the range of 0–55 rpm.

Below is a video presenting replaceable linings for rubber granules: Baron EasyClean system

MAIN ADVANTAGES OF BARON MIXERS:

• for all mixture consistencies (dry, moist and wet)
• an excellent alternative to outdated, traditional concrete mixers
• instant mixing time and high accuracy of mixing and emptying
• ideal for use with plastering units and pressure pumps
• the only solution for many modern and demanding materials
• quiet and trouble-free operation
• Wide range of applications

APPLICATION - INDUSTRIES:

• finishing works in construction (plastering, filling, facade, flooring, bricklaying, concrete works)
• concrete plants – for laboratory purposes
• manufacturers of small concrete structures
• safe surfaces for sports fields and playgrounds made of rubber granules
• repair (insulation) of tanks, swimming pools, reinforced concrete structures
• repair of boilers and heating systems

APPLICATION – MATERIALS:

fine-grained concrete, artificial stone, adhesive mortars, fireclay mortars, PCC and SPCC sealing mortars renovation mortars, floor screeds and screeds, powder adhesives, mineral plasters, soundproofing plasters, polymer plasters, clay plasters

epoxy and polyurethane floors, epoxy resins, rubber granules for safe surfaces (sports fields, playgrounds)

WHY CHOOSE A BARON MIXER OVER THE COMPETITION

1. Easy access to parts and service
2. Wide range of mixers in terms of capacity and drive power
3. Wide selection of additional accessories for special materials
4. Possibility of replacing and adjusting mixer scrapers
5. Low weight and compact dimensions
6. Reinforced steel blades as standard, rubberised blades on request
7. Linings to prevent rubber granules from sticking - only in BARON mixers

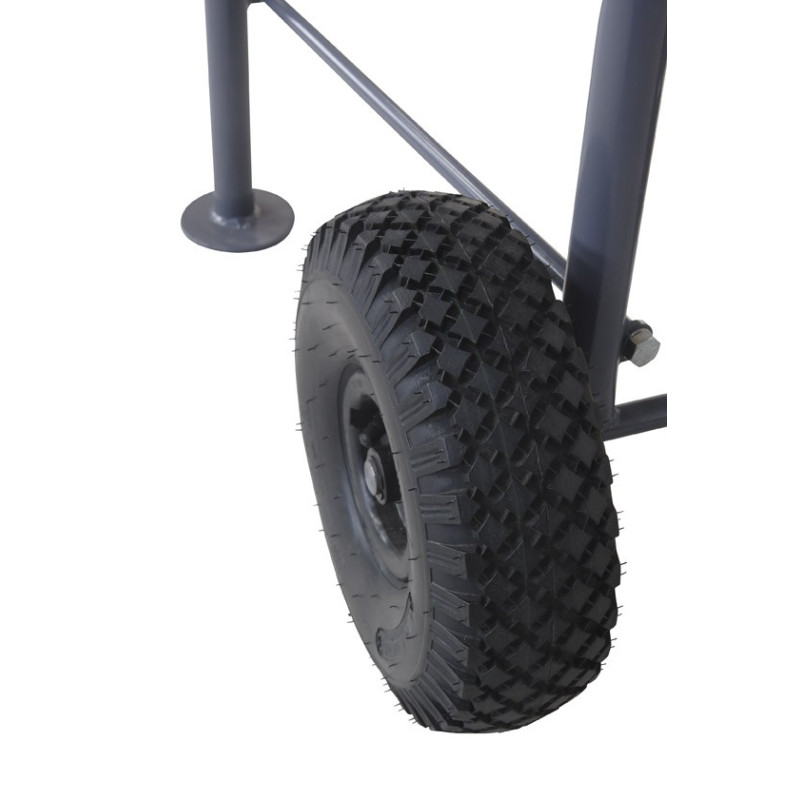

8. Four-layer pneumatic tyres for easy manoeuvring on construction sites
9. Motor cover protects against debris and water (M version)

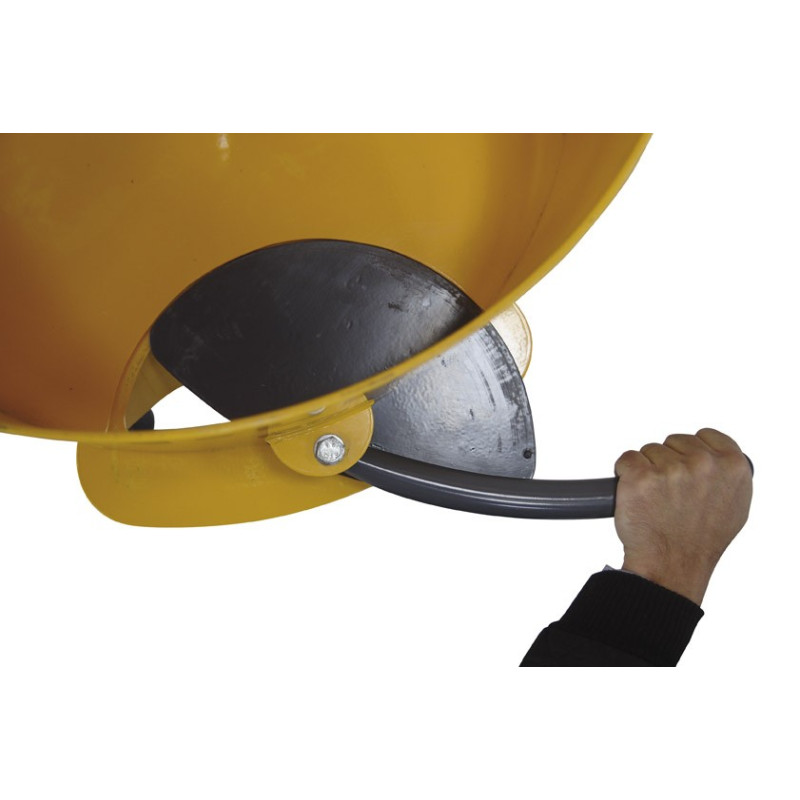

10. Durable bucket base - foot-operated (M version)
11. Durable and robust drum and frame construction

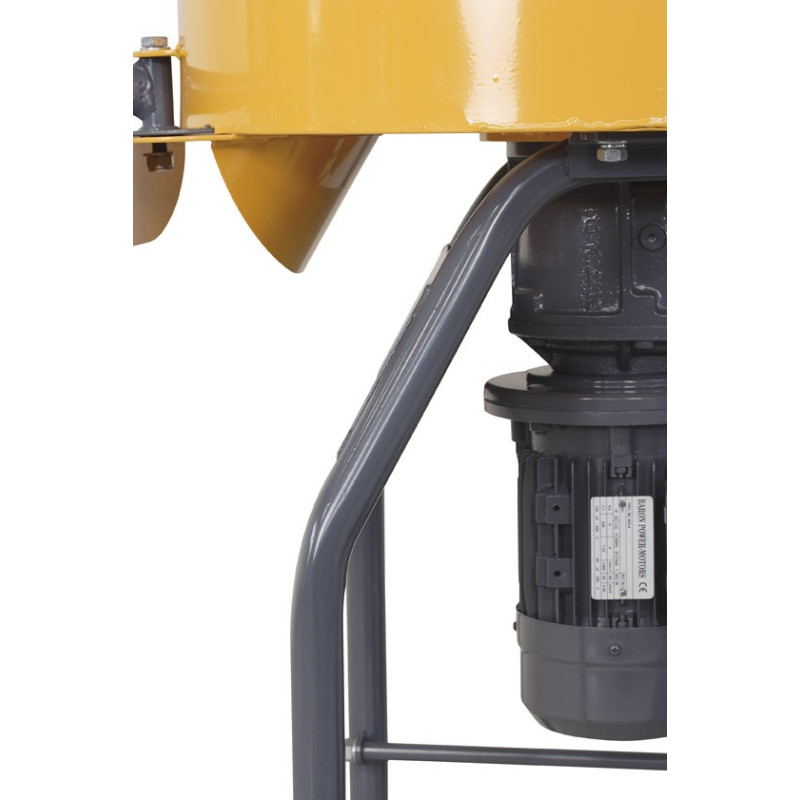

12. Modern maintenance-free motor and gearbox
13. Carefully and thoroughly emptied tank
14. Easy to remove and clean agitator
15. Ergonomic cover and spout height
16. No sharp edges

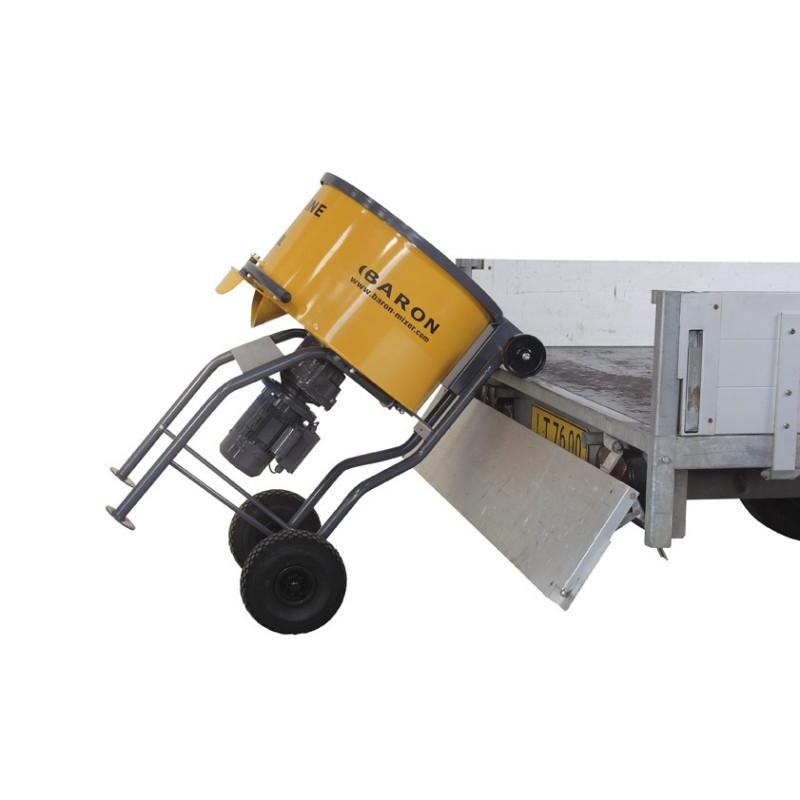

17. Rollers ensure easy and safe loading onto a vehicle
18. Functional lid lock
19. Electrical parts protected against damage
20. Switch with undervoltage protection
21. Limit switch – switches off the motor when the lid is open
22. Easy to clean and maintain

TECHNICAL DATA:

• Motor: 2 kW / 230V
• Gearbox: 30 rpm
• Tank capacity: 120 litres
• Drum diameter: 64 cm
• Width: 80 cm
• Height: 116 cm
• Weight: 90 kg
• Working capacity: 104 litres
• Max. weight of mixed substance: 211 kg

FEATURES:

• Reinforced steel blades as standard
• Maintenance-free motor and gearbox
• Carefully and thoroughly emptied tank
• Rubberised blades available as an option
• Easy to remove and clean head
• Highly positioned trigger handle is easily accessible
• Robust drum construction
• Trigger guard
• Correct trigger height ensures ease of use
• No sharp edges
• Safety switch located opposite the start/stop switch
• Durable frame construction
