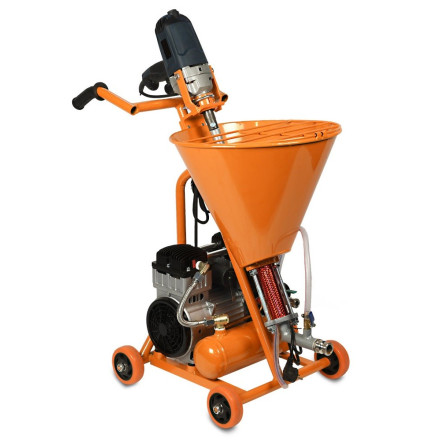

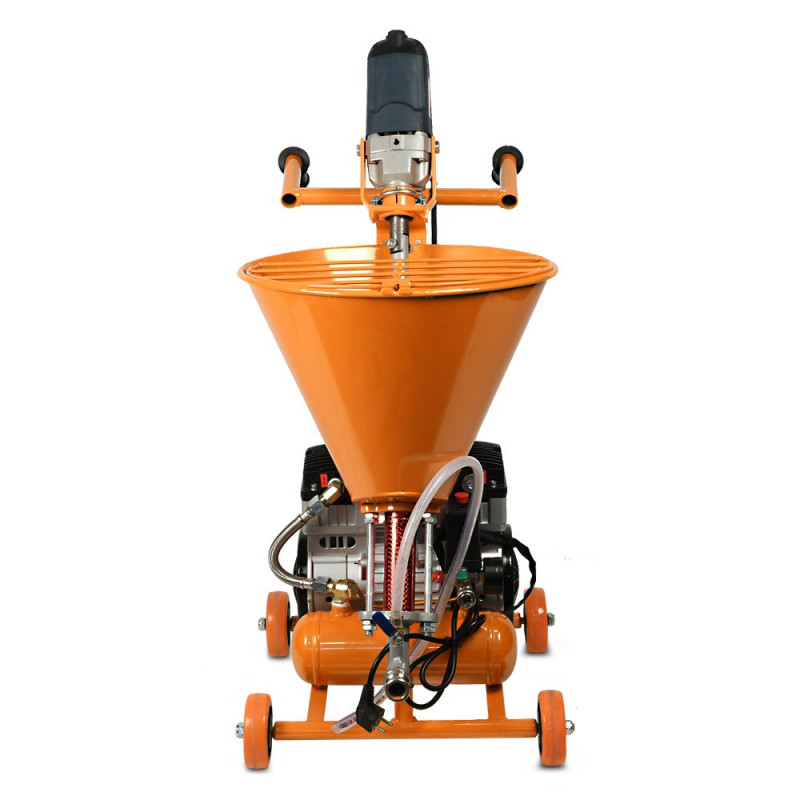

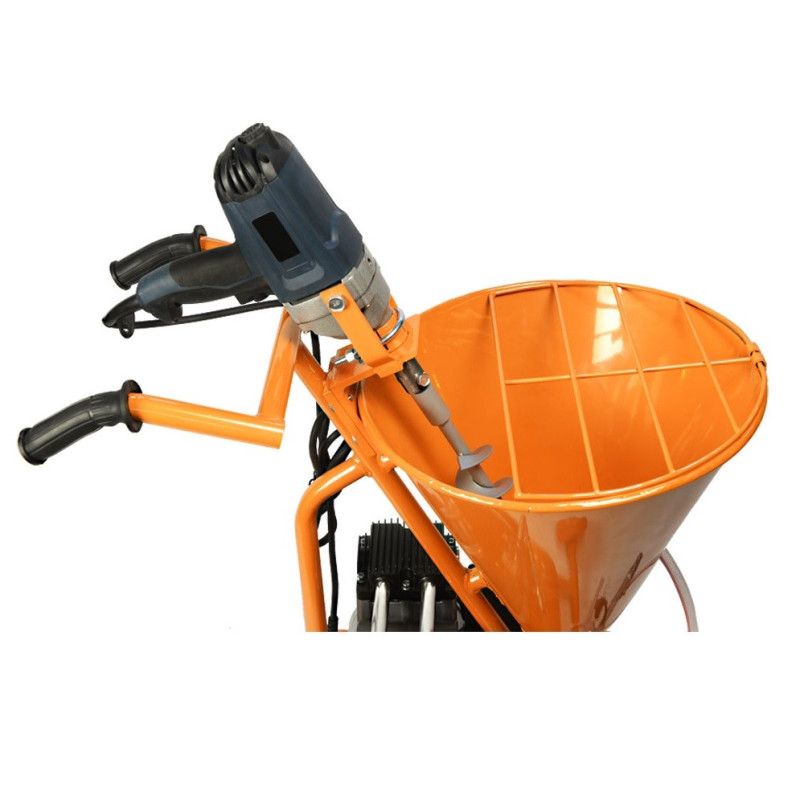

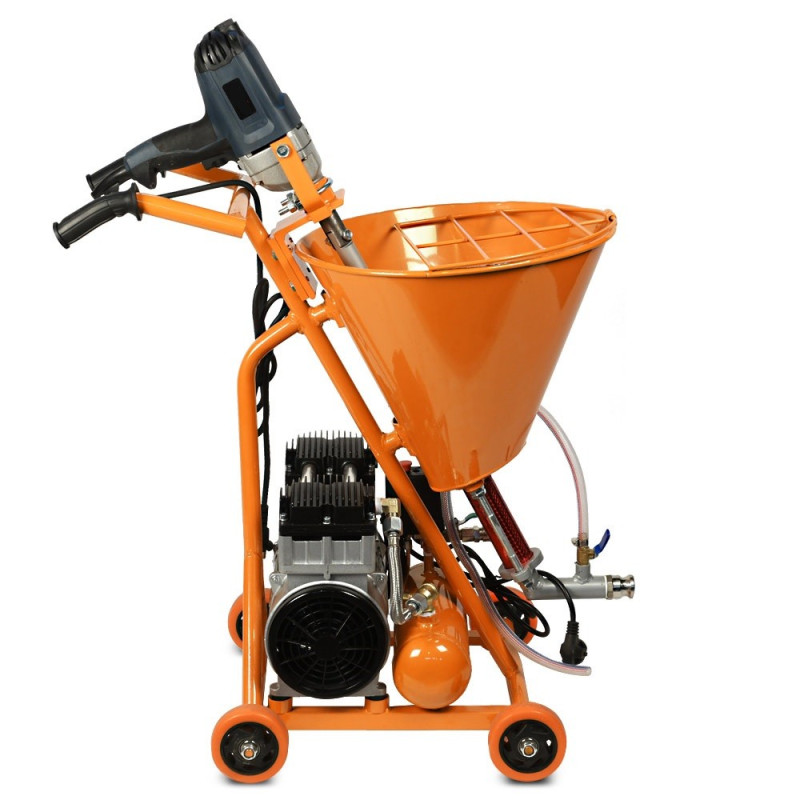

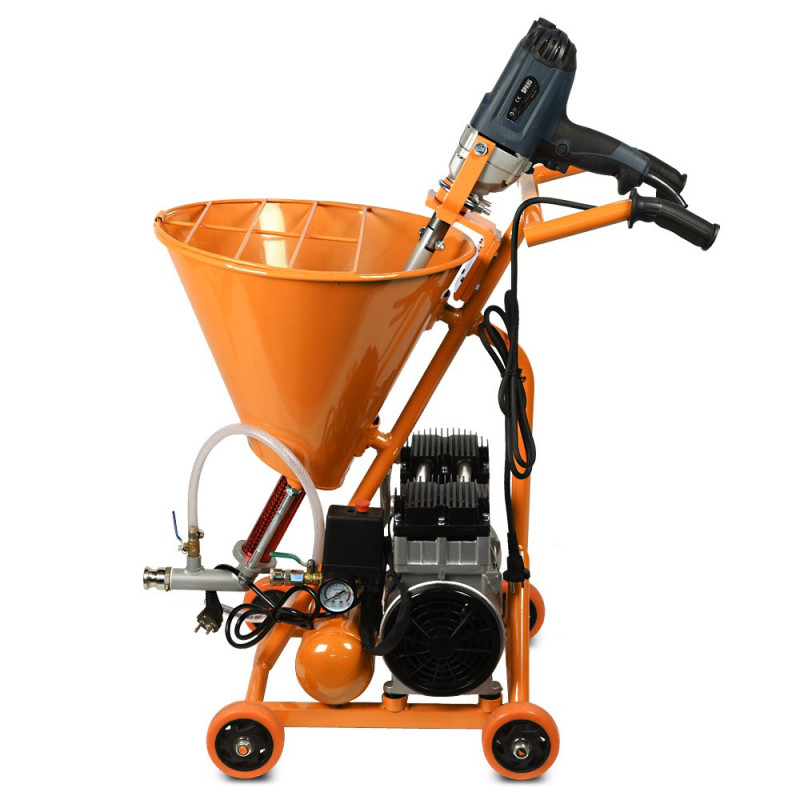

Spray unit – SPA-95 Strong-Tech injection pump

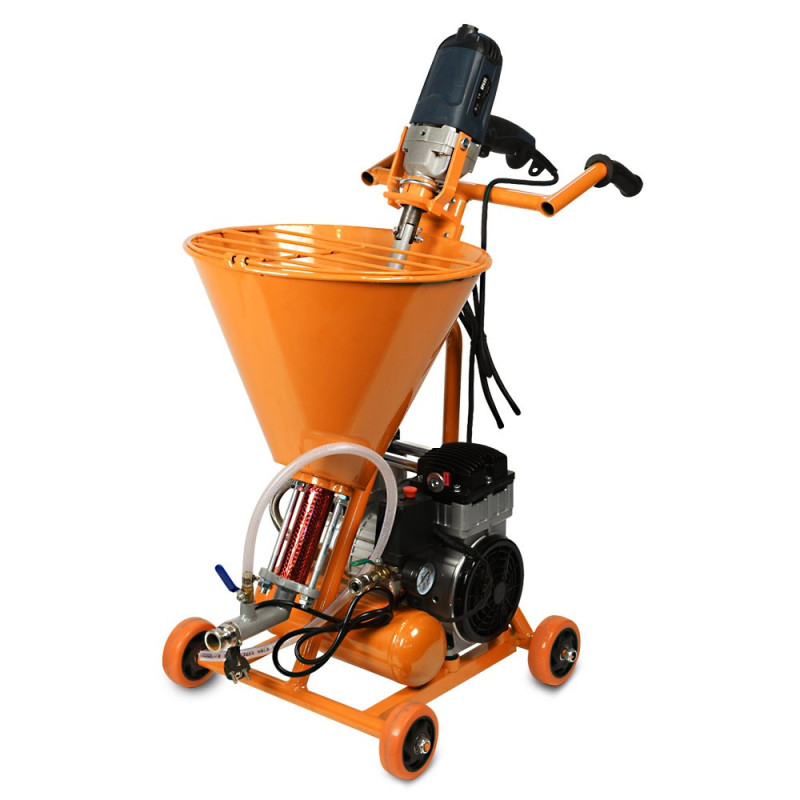

SPA-95 Strong-Tech is a small, mobile screw pump used for injection, spraying and grouting. It has a smooth capacity adjustment in the range of 1 - 10 l/min. The maximum grain size of the material fed is 1 mm. Depending on the intended use, the device can be equipped with appropriate accessories. The SPA-95 Strong-Tech can be easily and quickly disassembled, which greatly facilitates cleaning and transport. Comes with a powerful oil-free compressor.

Application:

• injection mortar,
• fine-grained filler,
• bituminous insulation,
• machine joint mortar,
• cement slurry,
• microcements,
• cement adhesive,
• antifungal agents
• water repellents
• sealing slurries,
• aqueous solutions, e.g. silicate solutions

Technical data:

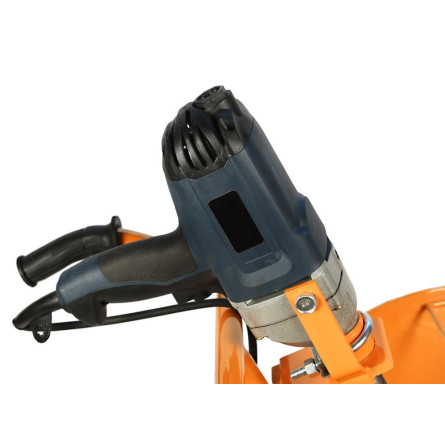

• motor power – 1300 W
• power supply – 230 V/50 Hz
• tank capacity – 25 litres
• max. grain size – up to 1 mm
• pumping capacity – 1–10 l/min
• max. working pressure – 20 bar
• max. pumping distance – 10 m
• Maximum pumping height - 7 m
• weight – 38 kg
• compressor motor power – 1200 W
• Compressor capacity – 196 l/min
• Maximum compressor pressure - 8 bar

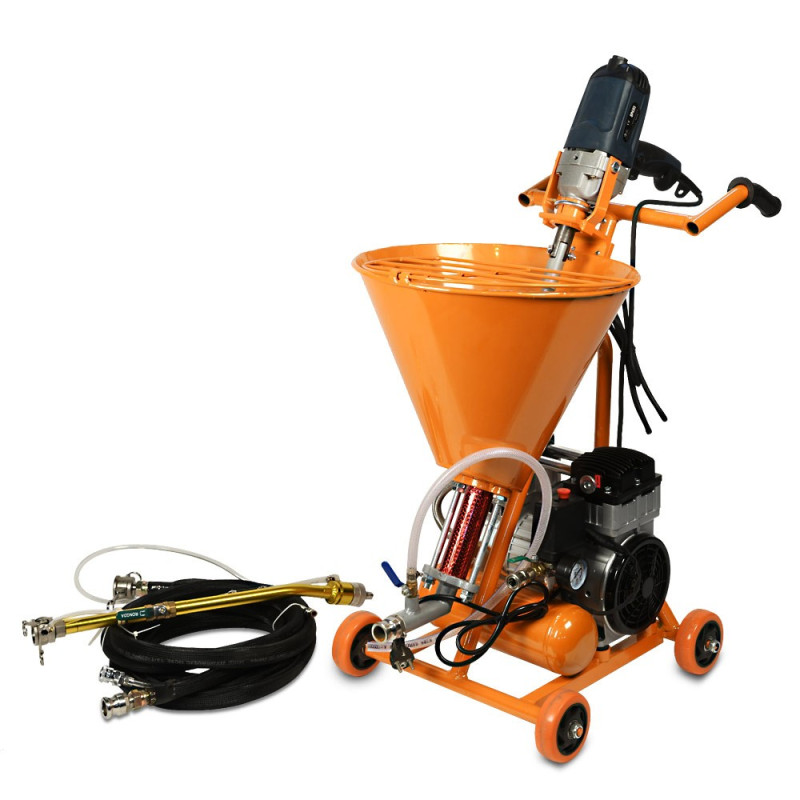

Equipment:

• mortar hose
• air hose
• spray gun
• spray nozzles (1; 1.8; 5 mm)

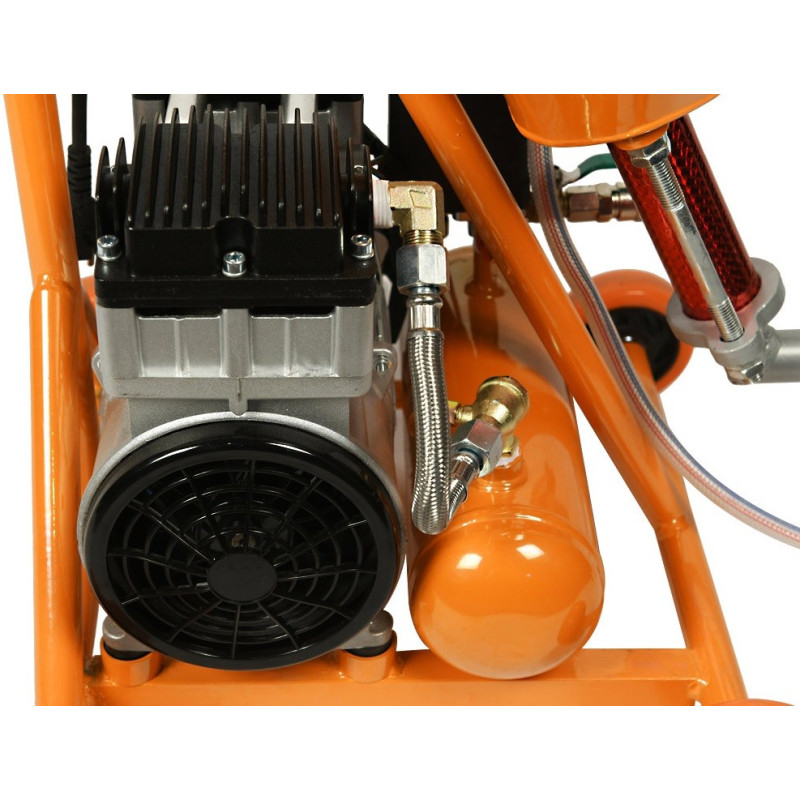

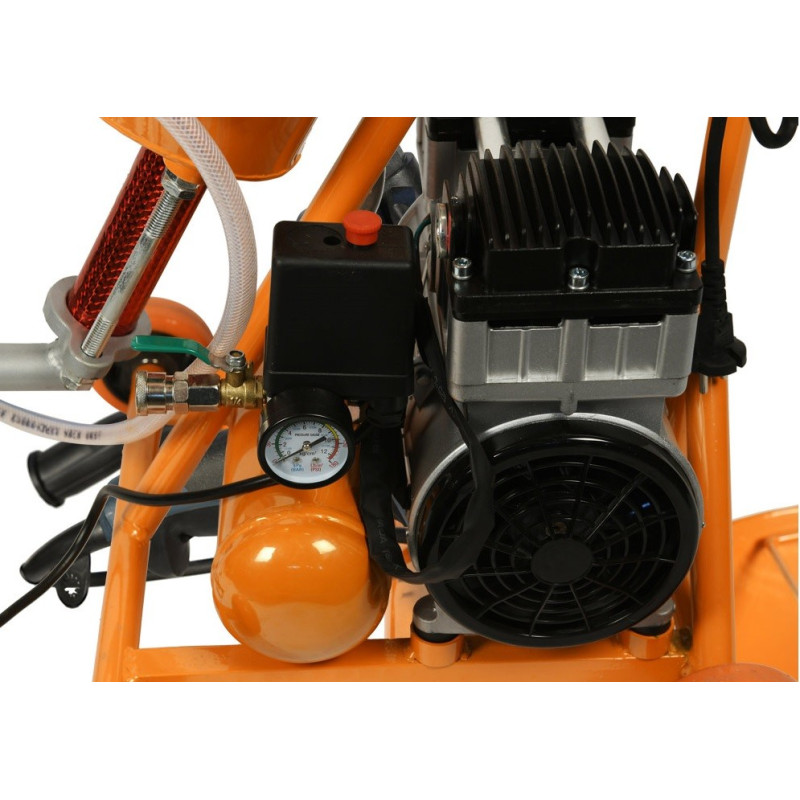

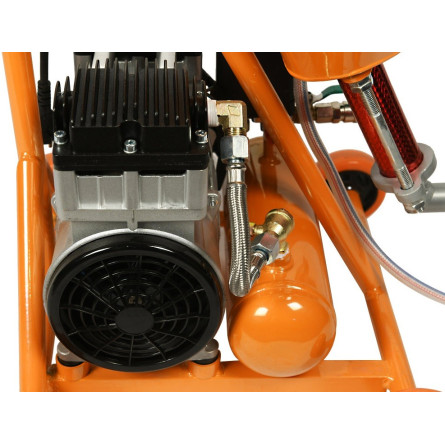

• oil-free piston compressor

Warranty – 36 months
