M680 Spray Unit - GRACO, package: 262927

The Graco M680™ mortar piston pump is designed to spray even the most abrasive materials, yet is easy to operate and clean. Applying mortar by hand is very time-consuming. Graco's M680 mortar pump saves time, speeds up work and increases profits by replacing the traditional trowel and float with automatic material spraying and surface finishing.

Advantages:

• Labour cost savings
• Less material waste and better surface quality
• Quick and easy cleaning
• Extremely durable construction
• Ideal for plasterers.

Materials and applications:

• Resin-based mortars
• Bituminous compounds (including two-component 2k)
• Anti-slip paints
• Cement plasters and fireproof insulation
• Materials for changing surface texture
• Shotcrete
• Waterproof insulation
• Polymers with fillers such as glass flakes, silica or sand
• PCC/SPCC mortars
• Facade adhesive
• Low-pressure injections
• Cement-based fillers
• Textured plasters.

Main functions:

• Low-pressure pumping (13.7 to 34.5 bar), which results in less wear on the positive displacement pump.
• Less material loss and better finish than with manual application.
• Quick and easy cleaning thanks to the high-speed flushing function.
• Quick disassembly for manual cleaning.
• Pneumatically powered motor that allows you to work in potentially explosive atmospheres.
• One convenient air source for pump and spray drive.

Applicators available with flexible hose, lance or HTX 680:

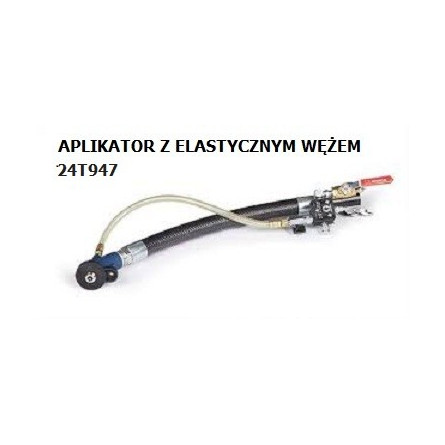

Flexible hose applicator:

• Ideal for materials with heavy fillers that are easy to compact.
• Equipped with a round nozzle; provides a rough pattern.
• Simple design, easy to clean.
• Part number 24T947.

Lance applicator:

• Designed for hard-to-reach areas.
• Ideal for heavy-filler materials that are easy to compact.
• Equipped with a round nozzle; provides a rough pattern.
• Simple design, easy to clean.
• Part number 24T946.

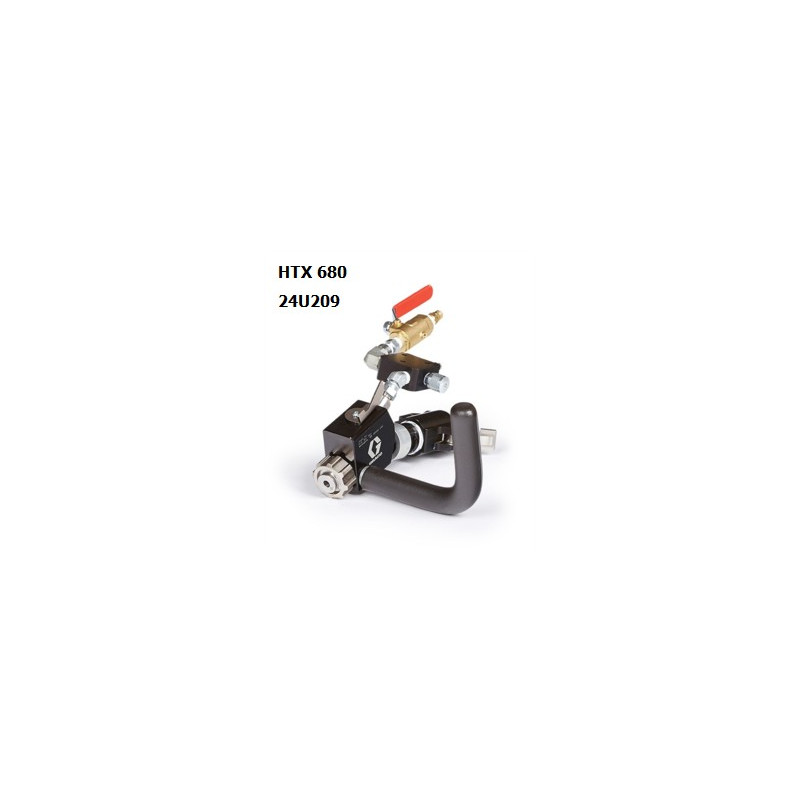

HTX 680 Applicator:

• Good for light materials that are typically difficult to compact.
• Equipped with round nozzles arranged in a pattern; provides a medium, round pattern.
• Air mixed with material through multiple Venturi channels produces a uniform pattern.
• Better pattern control for light materials or paints with high solids content.
• Available with flat pattern discs to widen the pattern, providing a wider coverage area with each pass.
• Part number 24U209.

Unit specifications:

• Gear ratio: 10:1
• Maximum operating pressure: 70 bar
• Max. inlet pressure: 7 bar
• Capacity at 30 cycles/min: 20.6 l/min
• Capacity at 60 cycles/min: 41.2 l/min
• Weight: 113 kg (with DN25 – 7.6 m and DN19 – 3 m hoses)
• Length x width x height: 94 x 70 x 113 cm.

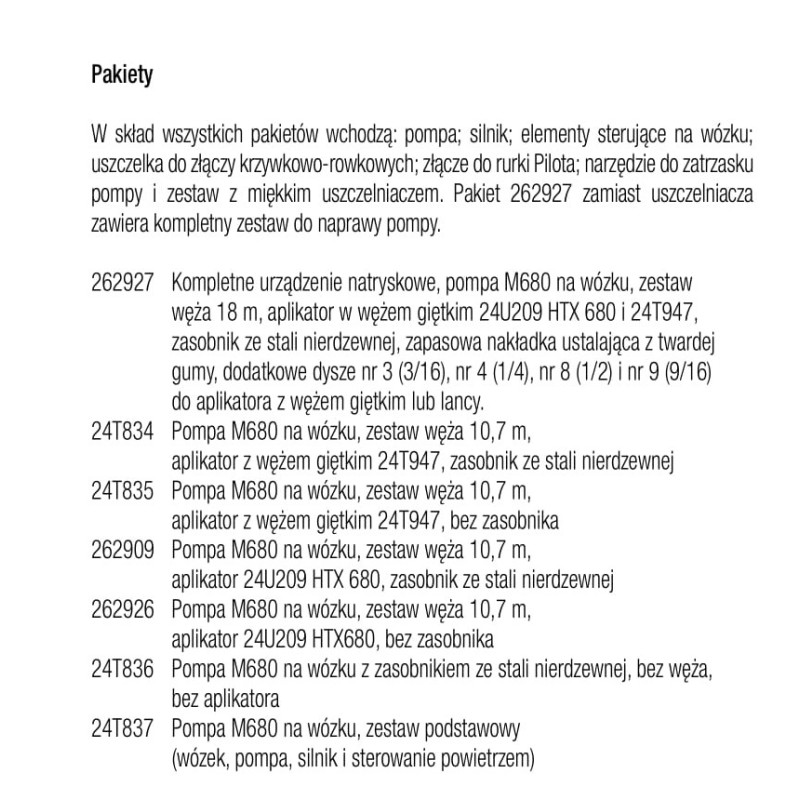

Equipment:

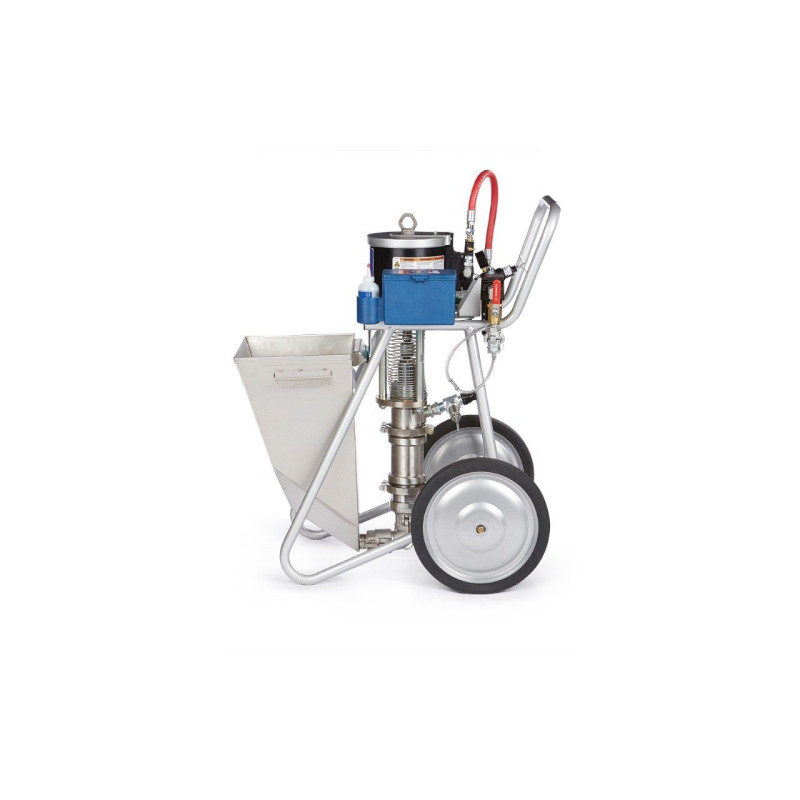

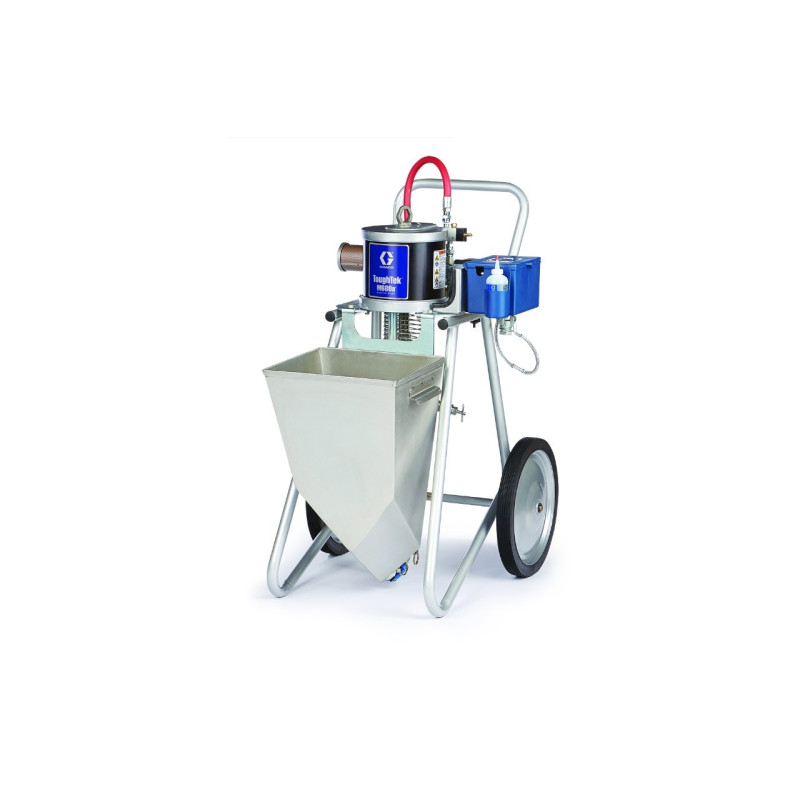

• M680 pump on trolley
• Stainless steel tank
• HTX 680 spray gun – 24U209
• Applicator with flexible hose - 24T947
• DN 25 material hose - 15 m
• Material hose DN 19 - 3 m
• Additional nozzles for applicator 24T947: 3/16, 1/4, 1/2, 9/16
• Complete pump repair kit.
