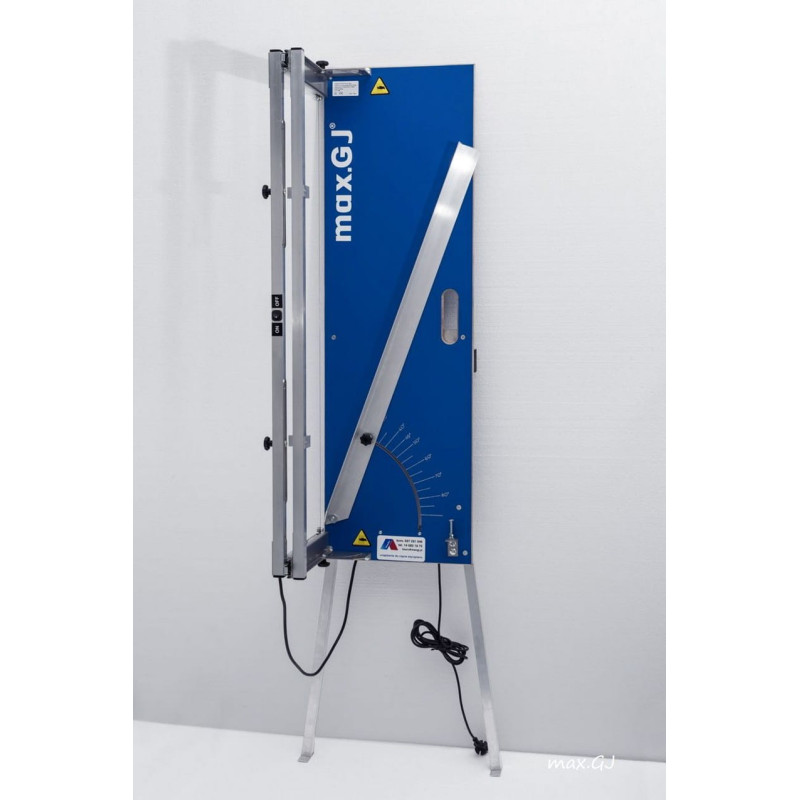

MAX.GJ TYPE-100 polystyrene cutting device

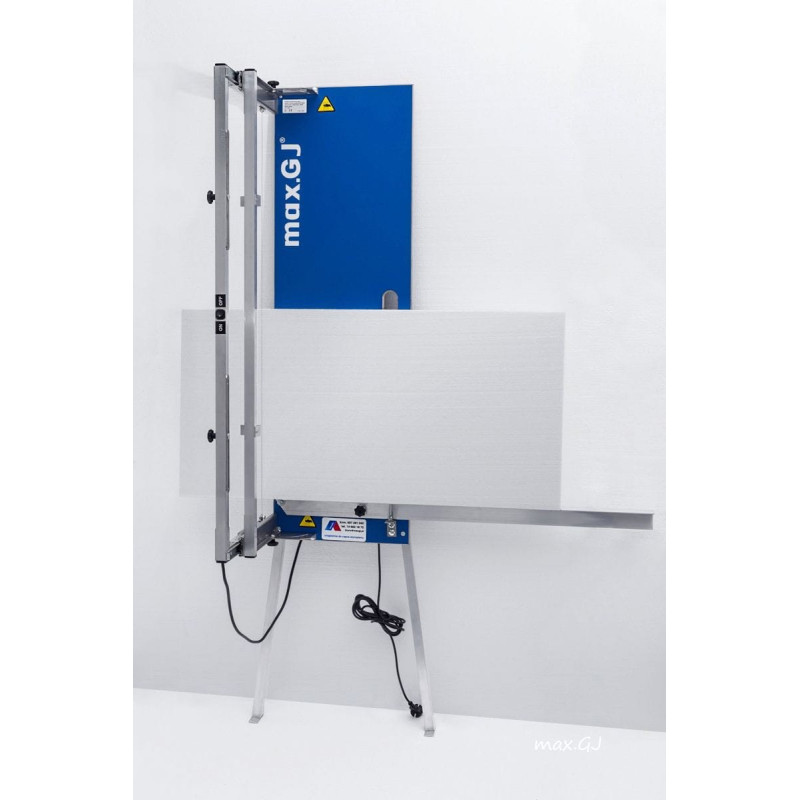

A device designed for waste-free cutting of polystyrene. The cutting part is a heated resistance wire. The device is powered from a 230 V voltage source via a 230 V / 24 V isolation transformer, which provides protection against electric shock. A functional measuring device facilitates the accurate measurement of polystyrene boards. The design of the device allows cutting at an angle of 90° to any acute angle, ensuring complete cutting of the material. Functionality in all conditions and simple operation. Precise shaping guarantees material savings. The device is compact, easy to disassemble, transport and store. It is energy-efficient and, thanks to its functional qualities, saves time. The device operates vertically and comes with 2 aluminium supports (legs), an engraved gauge for measuring cut polystyrene and angle scales on hinges and on the worktop. The device can be used to make straight and angled cuts, as well as milling cuts. It can cut polystyrene from a thickness of, for example, 200 mm to 150 mm.

Technical parameters:

• 230 V/24 V power transformer (mounted on the device)
• 230 V power supply
• frequency 50 Hz
• transformer power 120 W
• total length of the device 1700 mm (with supports extended)
• max. cutting thickness 280 mm
• Maximum cutting length 1005 mm
• device weight 13 kg (with transformer)

Basic equipment:

• 230V/24V power transformer

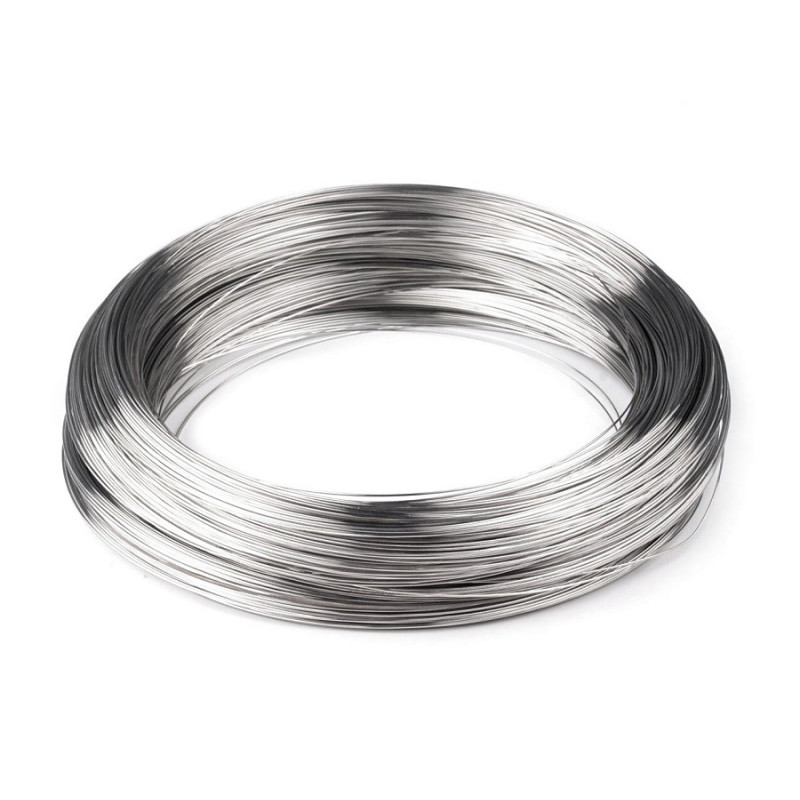

• Work area board including: two linear guides, arm, measuring device, electrical installation with switch, resistance wire with tensioning system, two aluminium legs
