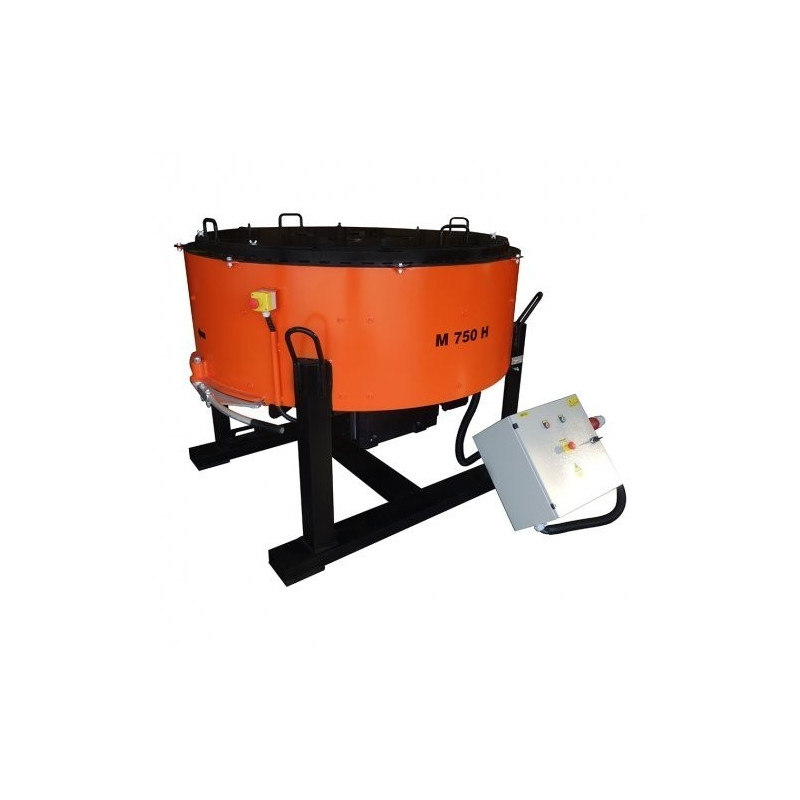

M 750 mixer, 11 kW, 400 V, FILAMOS

Counter-rotating mixers (cyclone mixers) are used for mixing dry, wet and moist mixtures. Their main advantage is the extremely thorough mixing of individual components in a very short time (the mixing speed is 4–5 times higher than in the case of a standard drum mixer), resulting in a very high quality mixture.

Application: Counter-rotating mixers are most often used to prepare refractory mixtures for the lining of open-hearth furnaces, heating boilers, coke oven batteries, chimneys and equipment used in the chemical industry. In the construction industry, mixers can be used to mix a wide range of construction materials, such as plaster, injection and concrete mixes. The counter-rotating mixer is also suitable for industrial mixing of mixtures, where the material is processed in individual batches.

Advantages:

• accurate mixing of individual components of the mixture in a very short time
• a variety of mixers allowing for the preparation of different types of mixtures
• soft starter enabling smooth acceleration of the blades (on models with a power rating of over 5.5 kW)
• special lid design preventing the mixture from falling out
• mixing arms equipped with rubber beaters to prevent rapid wear or damage
• use of reinforced safety elements (overvoltage release and limit switch)
• operation requiring minimal servicing
• stable construction enabling operation in demanding conditions
• low operating and maintenance costs.

Technical data:

• Tank capacity: 1246 l
• Maximum usable capacity: 756 l
• Engine power: 11 kW
• Voltage: 400 V
• Electrical connection: 32 A
• Agitator speed: 30 rpm
• Dimensions: 1600 x 1600 x 1300 mm (L x W x H)
• Discharge segment height: 540 mm
• Weight: approx. 1295-1390 kg (depending on the type of gear motor)
