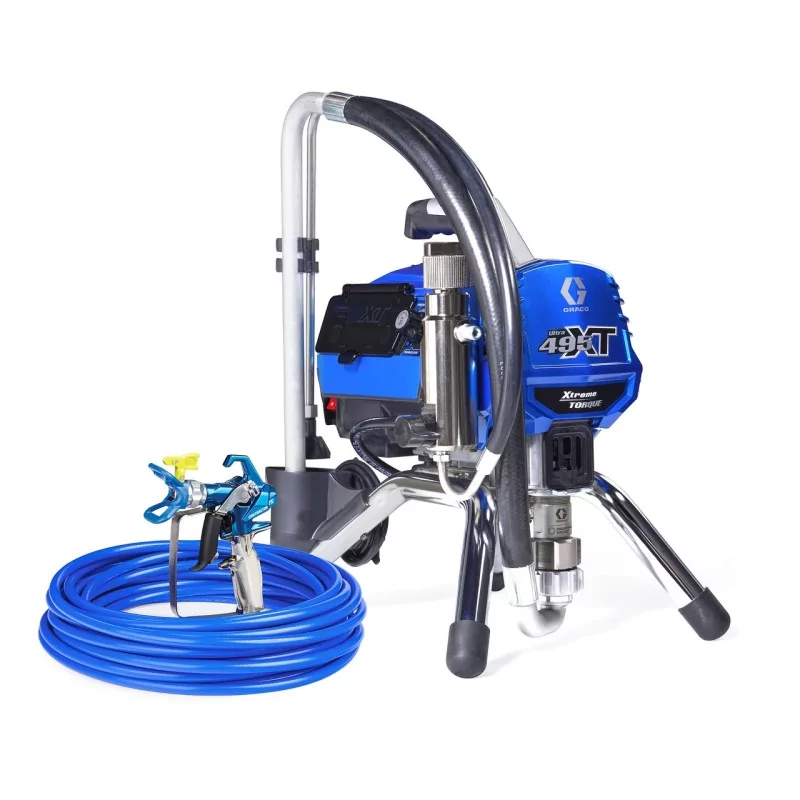

Ultra 495 XT Paint Sprayer Stand

Features

The Ultra 495 XT paint sprayer offers unrivalled capabilities in hydrodynamic spraying. Thanks to its 1.7 KM Xtreme Torque motor, state-of-the-art pressure control with a fast response time, increased efficiency and the longest pump life in its class, the Ultra 495 XT is sure to become an indispensable tool in your work.

Xtreme productivity. Xtreme reliability. Graco’s Xtreme Torque electric sprayers for medium-sized jobs make work easier and faster thanks to increased flow rates and enhanced productivity.

Xtreme Torque Motor technology

• 15 times more torque than traditional motors
• 8X more magnets for unrivalled power and performance
• A 90 per cent reduction in speed extends motor life
• Up to 10 times quieter

Quick pressure adjustment

• Instant response for the highest quality finish
• Greater output regardless of nozzle size
• The industry’s widest operating pressure range (from 3 to 227 bar)

Choice of performance mode

• The choice between two spray modes allows you to maximise the speed of every job
• Low-pressure mode (3–140 bar): offers economy and Xtreme control
• High-pressure mode (35–227 bar): delivers Xtreme performance

Easy-to-read digital LED display

• Visible even in the most challenging spraying conditions

Endurance Vortex piston pump with ProConnect system

• The Endurance Vortex piston is 3 times more durable than the best products from other brands
• The removable ProConnect pump speeds up on-site servicing

TurboClean cleaning system

• The fastest pump cleaning system in the industry
• Cleans 3 times faster, using half the water
• Convenient positioning

WatchDog pump protection

• Protects against damage by switching off the pump when it needs refilling

Durable filtration

• The Easy Out filter ensures easy maintenance and reduces clogging

Easy to transport

• Weighs just 14.1 kg (stand)

Hose, spray gun and nozzle included

• Contractor PC spray gun and RAC X LP 517 SwitchTip nozzle

Technical specifications

• Frame configuration: Stand
• Maximum flow rate (l/min): 3.0
• Maximum working pressure (bar): 227
• Maximum nozzle size (in): .027
• Minimum operating pressure (bar): 3
• Minimum operating pressure (psi): 50
• Model: Ultra
• Voltage (V): 230
• Series: 495 XT
• Type: Airless sprayer
• Weight (kg): 14.1
