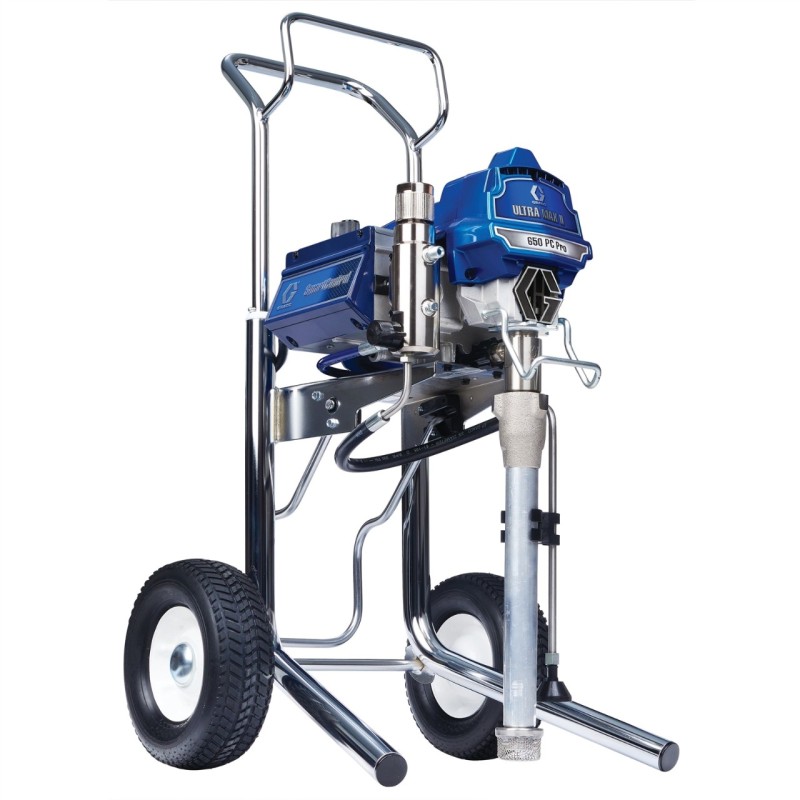

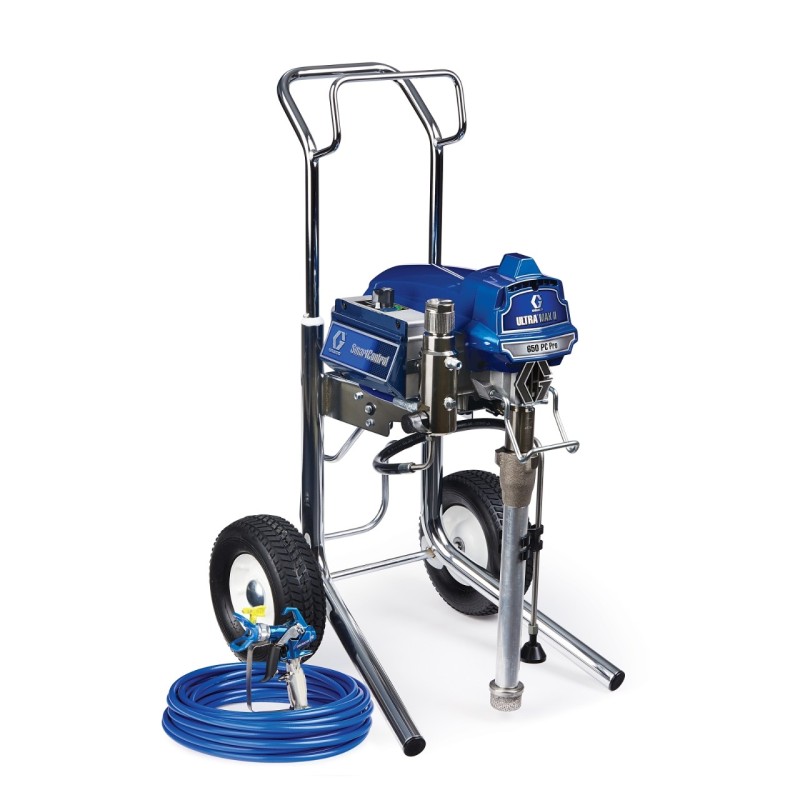

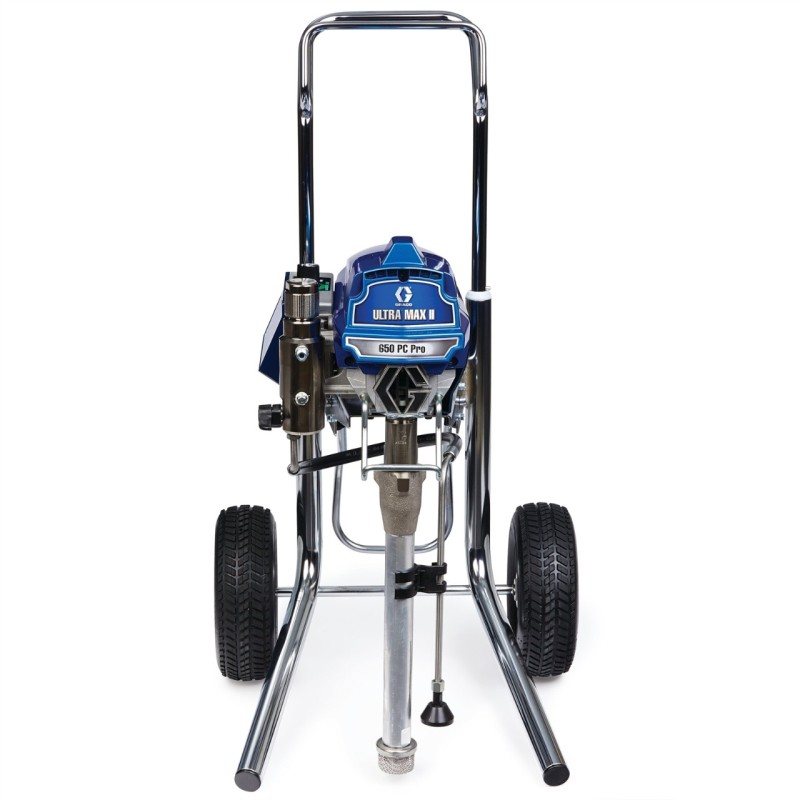

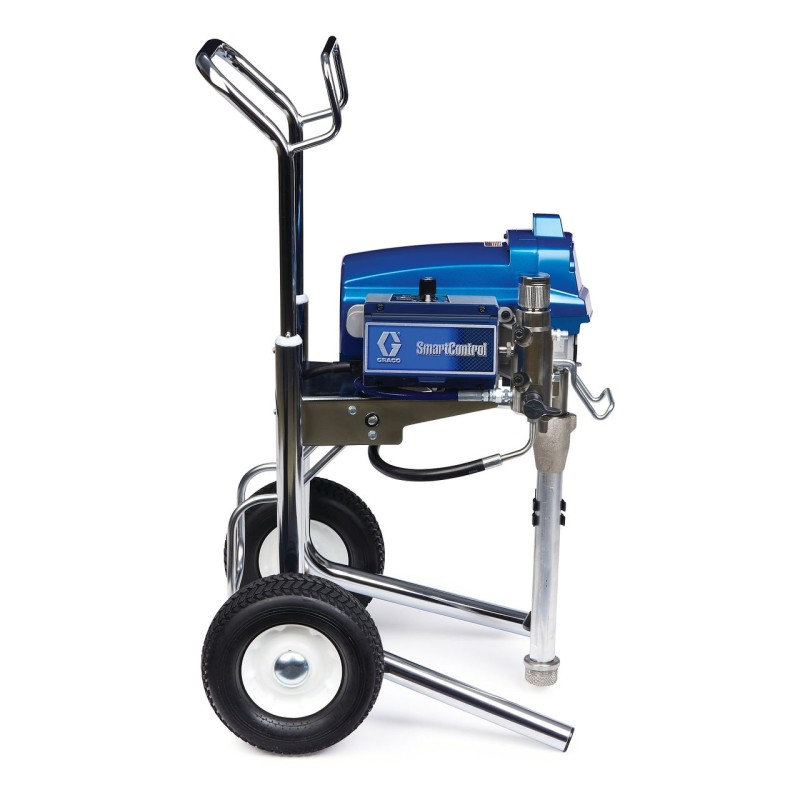

Ultra Max II 650 PC Pro Hi-Boy Paint Sprayer

The Graco Ultra Max II 650 PC Pro electric airless sprayer is the lightest electric hydrodynamic unit capable of operating two spray guns. It is a true workhorse – offering the perfect combination of quality, performance, mobility and durability.

The performance of a large sprayer combined with the mobility of a medium-sized unit allows you to complete jobs more quickly. It offers enhanced capability for handling heavier coatings and a lower cost of ownership.

Endurance piston pump

• Lasts twice as long as competitors’ pumps
• A larger inlet allows for the handling of heavier coatings
• ProConnect: tool-free pump replacement in minutes

2-hose manifold

• Capable of connecting 2 spray guns – supports nozzles up to .019”
• The Easy Out filter ensures easy maintenance and reduces clogging

Small, compact frame

• Balanced design for easy transport and manoeuvring
• Chrome-plated steel construction designed to withstand tough conditions on the building site

MaxPower motor and Advantage Drive

• Maintenance-free brushless design with a lifetime guarantee
• The most durable drive system with a lifetime guarantee

SmartControl with digital display

• Consistent pressure for every job
• Continuously monitors performance and adjusts motor speed to suit the nozzle size and spraying requirements
• FastFlush™ ensures 2X faster cleaning using half the water

Contractor PC spray gun

• All-day comfort and control
• The lightest spray gun in its class
• Up to 50 per cent less trigger force

Lowest cost of ownership

• The Endurance pump lasts twice as long as competitors’ pumps
• Chromex piston rod with a longer stroke
• Chrome-plated stainless steel sleeve
• V-Max Blue seals
• Eliminate downtime with ProConnect – quick and easy on-site repairs
• The MaxPower motor and Advantage Drive ensure maintenance-free operation and a lifetime guarantee

Technical specifications

• Features: Endurance Chromex pump, SmartControl 3.0, MaxPower brushless motor, Advantage Drive, ProConnect, FastFlush, Easy Out filter, Contractor PC spray gun
• Overall length (cm): 59.1
• Fluid outlet thread type: NPSM
• Frame design: Hi-Boy
• Cycle count per gallon: 570
• Number of spray guns: 2
• Maximum flow rate (l/min): 3.0
• Maximum working pressure (bar): 228
• Maximum operating pressure (psi): 3,300
• Maximum nozzle size (in): 0.029
• Maximum nozzle size for 1 gun (in): 0.029
• Maximum nozzle size for 2 guns (in): 0.019
• Wet parts material: Acetal, Aluminium, Fluoroelastomer, Leather, Nickel-plated carbon steel, Nylon, Polyethylene, PTFE, Stainless steel, Tungsten carbide, UHMWPE, Urethane, Galvanised carbon steel
• Motor power (KM): 1.8
• Minimum generator power (W): 4,000
• Model: Ultra Max II
• Voltage (V): 120
• Current (A): 15
• Filter mesh size: 60
• Sound power level (dB(A)): 100
• Sound pressure level (dB(A)): 90
• Recommended replacement pump: 19Y298
• Pump mounting type: ProConnect
• Pressure control type: SmartControl 3.0
• Series: 650 PC Pro
• Overall width (cm): 52.1
• Type: Airless spray unit
• Motor type: MaxPower
• Included: Contractor PC spray gun, RAC X LP 517 nozzle, RAC X guard, BlueMax II hydrodynamic hose 1/4 in x 15 m (50 ft), TSL fluid 118 ml (4 oz)
• Weight (kg): 34.0
• Overall height (cm): 71.8
• Power supply: Electric
• Frequency (Hz): 50/60
• Hose inlet diameter (in): 1/4
• Liquid outlet diameter (in): 1/4
